PAJ7260u2手势识别传感器

资料

1.简介

手势识别传感器是一款集成3D手势识别和运动跟踪为一体的交互式传感器，传感器可以在有效范围内识别手指的顺时针/逆时针转动方向和手指的运动方向等。

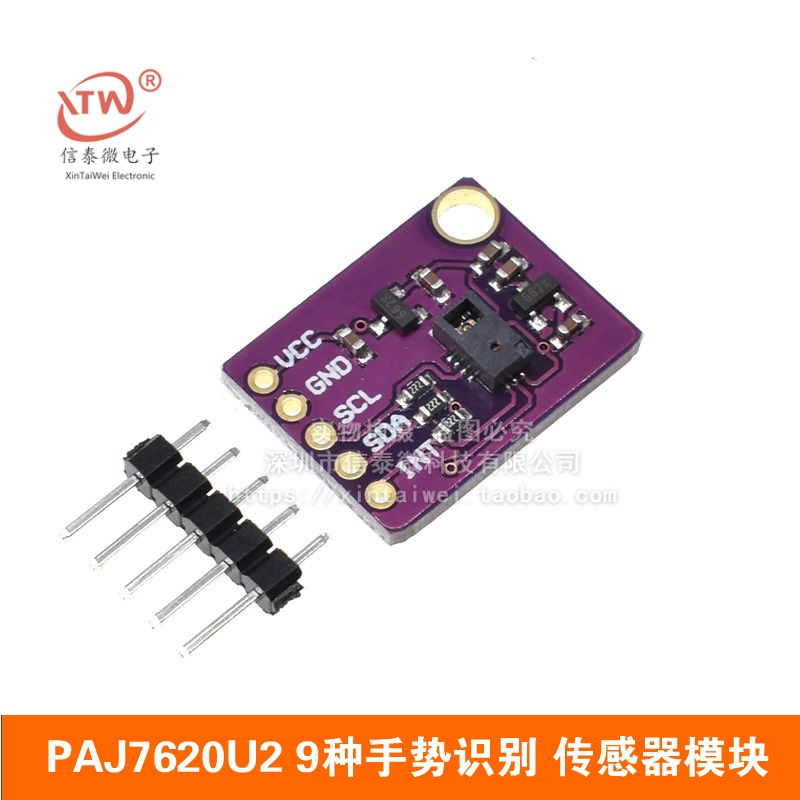

该PAJ7260u2手势识别传感器是将手势识别功能与通用I2C接口集成到单个芯片中的PAJ7620U2。它可以识别13种手势，包括向上移动，向下移动，向左移动，向右移动，向前移动，向后移动，顺时针方向，圆周 - 逆时针方向，向下，向下，从左到右，从左到右。这些手势信息可以通过I2C总线简单访问。该PAJ7260u2手势识别传感器模块设计核心芯片为 PAJ7260u2，是一个支持与I2C协议通信的身体红外识别IC。传感器可以应用于各类互动交互艺术产品，试想一下，挥一挥手，打开台灯，挥一挥手，打开音乐。一切尽在弹指间。PAJ7260u2手势识别传感器特点：

2. PAJ7260u2手势识别传感器规格参数：

• 手势速度在正常模式下为60°/ s至600°/ s，游戏模式为60°/ s至1200°/ s
• 环境光免疫力：<100k Lux
• 内置接近检测
• 传感器：PAJ7620U2
• 电源：2.8V至3.3V，I / O电压为1.8V〜3.3V
• 接口：IIC
• 工作温度：-40°C至+ 85°C
• 尺寸：25 * 20mm;

3. 9 gestures代码：

/*
   Copyright (c) 2015 seeed technology inc.
   Website    : www.seeed.cc
   Author     : Wuruibin
   Modified Time: June 2015
   Description: This demo can recognize 9 gestures and output the result, including move up, move down, move left, move right,
  				move forward, move backward, circle-clockwise, circle-counter clockwise, and wave.

   The MIT License (MIT)

   Permission is hereby granted, free of charge, to any person obtaining a copy
   of this software and associated documentation files (the "Software"), to deal
   in the Software without restriction, including without limitation the rights
   to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
   copies of the Software, and to permit persons to whom the Software is
   furnished to do so, subject to the following conditions:

   The above copyright notice and this permission notice shall be included in
   all copies or substantial portions of the Software.

   THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
   IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
   FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
   AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
   LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
   OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
   THE SOFTWARE.
*/

#include <Wire.h>
#include "paj7620.h"

/*
  Notice: When you want to recognize the Forward/Backward gestures, your gestures' reaction time must less than GES_ENTRY_TIME(0.8s).
        You also can adjust the reaction time according to the actual circumstance.
*/
#define GES_REACTION_TIME		500				// You can adjust the reaction time according to the actual circumstance.
#define GES_ENTRY_TIME			800				// When you want to recognize the Forward/Backward gestures, your gestures' reaction time must less than GES_ENTRY_TIME(0.8s).
#define GES_QUIT_TIME			1000

void setup()
{
  uint8_t error = 0;

  Serial.begin(9600);
  Serial.println("\nPAJ7620U2 TEST DEMO: Recognize 9 gestures.");

  error = paj7620Init();			// initialize Paj7620 registers
  if (error)
  {
    Serial.print("INIT ERROR,CODE:");
    Serial.println(error);
  }
  else
  {
    Serial.println("INIT OK");
  }
  Serial.println("Please input your gestures:\n");
}

void loop()
{
  uint8_t data = 0, data1 = 0, error;

  error = paj7620ReadReg(0x43, 1, &data);				// Read Bank_0_Reg_0x43/0x44 for gesture result.
  if (!error)
  {
    switch (data) 									// When different gestures be detected, the variable 'data' will be set to different values by paj7620ReadReg(0x43, 1, &data).
    {
      case GES_RIGHT_FLAG:
        delay(GES_ENTRY_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Right");
        }
        break;
      case GES_LEFT_FLAG:
        delay(GES_ENTRY_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Left");
        }
        break;
      case GES_UP_FLAG:
        delay(GES_ENTRY_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Up");
        }
        break;
      case GES_DOWN_FLAG:
        delay(GES_ENTRY_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Down");
        }
        break;
      case GES_FORWARD_FLAG:
        Serial.println("Forward");
        delay(GES_QUIT_TIME);
        break;
      case GES_BACKWARD_FLAG:
        Serial.println("Backward");
        delay(GES_QUIT_TIME);
        break;
      case GES_CLOCKWISE_FLAG:
        Serial.println("Clockwise");
        break;
      case GES_COUNT_CLOCKWISE_FLAG:
        Serial.println("anti-clockwise");
        break;
      default:
        paj7620ReadReg(0x44, 1, &data1);
        if (data1 == GES_WAVE_FLAG)
        {
          Serial.println("wave");
        }
        break;
    }
  }
  delay(100);
}

4. 15 gestures代码

/*
   Copyright (c) 2015 seeed technology inc.
   Website    : www.seeed.cc
   Author     : Wuruibin
   Modified Time: June 2015
   Description: This demo can recognize 15 gestures and output the result.
  				You can adjust the reaction time according to the actual circumstance
 				by modifying "#define GES_REACTION_TIME  500".

   The MIT License (MIT)

   Permission is hereby granted, free of charge, to any person obtaining a copy
   of this software and associated documentation files (the "Software"), to deal
   in the Software without restriction, including without limitation the rights
   to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
   copies of the Software, and to permit persons to whom the Software is
   furnished to do so, subject to the following conditions:

   The above copyright notice and this permission notice shall be included in
   all copies or substantial portions of the Software.

   THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
   IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
   FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
   AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
   LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
   OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
   THE SOFTWARE.
*/

#include <Wire.h>
#include "paj7620.h"

/*
  Notice: When you want to recognize the Forward/Backward gesture or other continuous gestures, your gestures' reaction time must less than GES_REACTION_TIME(0.8s).
        You also can adjust the reaction time according to the actual circumstance.
*/
#define GES_REACTION_TIME		800
#define GES_QUIT_TIME			1000

void setup()
{
  uint8_t error = 0;

  Serial.begin(9600);
  Serial.println("\nPAJ7620U2 TEST DEMO: Recognize 15 gestures.");

  error = paj7620Init();			// initialize Paj7620 registers
  if (error)
  {
    Serial.print("INIT ERROR,CODE:");
    Serial.println(error);
  }
  else
  {
    Serial.println("INIT OK");
  }
  Serial.println("Please input your gestures:");
}

void loop()
{
  uint8_t data = 0, data1 = 0, error;

  error = paj7620ReadReg(0x43, 1, &data);				// Read Bank_0_Reg_0x43/0x44 for gesture result.
  if (!error)
  {
    switch (data) 									// When different gestures be detected, the variable 'data' will be set to different values by paj7620ReadReg(0x43, 1, &data).
    {
      case GES_RIGHT_FLAG:
        delay(GES_REACTION_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_LEFT_FLAG)
        {
          Serial.println("Right-Left");
        }
        else if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Right");
        }
        break;
      case GES_LEFT_FLAG:
        delay(GES_REACTION_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_RIGHT_FLAG)
        {
          Serial.println("Left-Right");
        }
        else if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Left");
        }
        break;
        break;
      case GES_UP_FLAG:
        delay(GES_REACTION_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_DOWN_FLAG)
        {
          Serial.println("Up-Down");
        }
        else if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Up");
        }
        break;
      case GES_DOWN_FLAG:
        delay(GES_REACTION_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_UP_FLAG)
        {
          Serial.println("Down-Up");
        }
        else if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        else if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Down");
        }
        break;
      case GES_FORWARD_FLAG:
        delay(GES_REACTION_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_BACKWARD_FLAG)
        {
          Serial.println("Forward-Backward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Forward");
          delay(GES_QUIT_TIME);
        }
        break;
      case GES_BACKWARD_FLAG:
        delay(GES_REACTION_TIME);
        paj7620ReadReg(0x43, 1, &data);
        if (data == GES_FORWARD_FLAG)
        {
          Serial.println("Backward-Forward");
          delay(GES_QUIT_TIME);
        }
        else
        {
          Serial.println("Backward");
          delay(GES_QUIT_TIME);
        }
        break;
      case GES_CLOCKWISE_FLAG:
        Serial.println("Clockwise");
        break;
      case GES_COUNT_CLOCKWISE_FLAG:
        Serial.println("anti-clockwise");
        break;
      default:
        paj7620ReadReg(0x44, 1, &data1);
        if (data1 == GES_WAVE_FLAG)
        {
          Serial.println("wave");
        }
        break;
    }
  }
  delay(100);
}
