栈的应用实例3—迷宫求解问题
- 用栈求解迷宫问题:
#include <iostream>
#include <cstdio>
#include <cstdlib>
using namespace std;
#define STACK_INIT_SIZE 1000 //栈的初始化容量
#define STACK_INC_SIZE 100 //栈的分配增量
#define M 8 //迷宫的行
#define N 8 //迷宫的列
//迷宫中点的位序
typedef struct MAGE{
int i;
int j;
}Mage;
typedef Mage elemType; //栈中存放的是Mage类型的数据
Mage a[STACK_INIT_SIZE]; //点的位序结构体数组
int mg[M+2][N+2]={
{1,1,1,1,1,1,1,1,1,1},
{1,0,0,1,0,0,0,1,0,1},
{1,0,0,1,0,0,0,1,0,1},
{1,0,0,0,0,1,1,0,0,1},
{1,0,1,1,1,0,0,0,0,1},
{1,0,0,0,1,0,0,0,0,1},
{1,0,1,0,0,0,1,0,0,1},
{1,0,1,1,1,0,1,1,1,1},
{1,1,0,0,0,0,0,0,0,1},
{1,1,1,1,1,1,1,1,1,1},
};
//栈的数据结构
typedef struct{
elemType* base; //栈底指针
elemType* top; //栈顶指针
int stackSize; //当前已分配的栈总存储空间
}SqStack;
void initStack(SqStack& S); //构造空栈并初始化
void pushStack(SqStack& S,elemType data); //数据元素进栈
void popStack(SqStack& S); //数据元素出栈
void findWay(int i1,int j1,int i2,int j2,SqStack& S); //迷宫求解
void initStack(SqStack& S)
{
S.base=(elemType*)malloc(STACK_INIT_SIZE * sizeof(elemType));
if(!S.base) exit(1);
S.top=S.base;
S.stackSize=STACK_INIT_SIZE;
}
void pushStack(SqStack& S,elemType data)
{
if(S.top-S.base>=S.stackSize) //栈满,扩充容量
{
S.base=(elemType*)realloc(S.base,(S.stackSize+STACK_INC_SIZE) * sizeof(elemType));
if(!S.base) exit(1);
S.top=S.base+S.stackSize; //栈顶改变
S.stackSize+=STACK_INC_SIZE;
}
*S.top=data;
cout<<"进栈:"<<"("<<(*S.top).i<<","<<(*S.top).j<<")";
S.top++;
cout<<endl;
}
void popStack(SqStack& S)
{
if(S.top!=S.base)
{
cout<<"出栈:"<<"("<<(*(S.top-1)).i<<","<<(*(S.top-1)).j<<")";
S.top--;
}
cout<<endl;
}
void printStack(SqStack& S)
{
cout<<"栈中的内容为:"<<endl;
for(elemType* i=S.base;i<S.top;i++)
{
int j=0;
cout<<"("<<(*(i+j)).i<<","<<(*(i+j)).j<<")--->"<<" ";
j++;
}
}
//求解迷宫
void findWay(int i1,int j1,int i2,int j2,SqStack& S)
{
a[0].i=i1;
a[0].j=j1;
for(int m=1;;m++)
{
if(((*(S.top-1)).i==i2)&&((*(S.top-1)).j==j2))
{
printStack(S);
cout<<"到达终点!!";
exit(0);
}
if(mg[i1-1][j1]==0) //上
{
a[m].i=i1-1;
a[m].j=j1;
pushStack(S,a[m]);
mg[i1-1][j1]=-1;
findWay(a[m].i,a[m].j,i2,j2,S);
}
else if(mg[i1][j1+1]==0) //右
{
a[m].i=i1;
a[m].j=j1+1;
pushStack(S,a[m]);
mg[i1][j1+1]=-1;
findWay(a[m].i,a[m].j,i2,j2,S);
}
else if(mg[i1+1][j1]==0) //下
{
a[m].i=i1+1;
a[m].j=j1;
pushStack(S,a[m]);
mg[i1+1][j1]=-1;
findWay(a[m].i,a[m].j,i2,j2,S);
}
else if(mg[i1][j1-1]==0) //左
{
a[m].i=i1;
a[m].j=j1-1;
pushStack(S,a[m]);
mg[i1][j1-1]=-1;
findWay(a[m].i,a[m].j,i2,j2,S);
}
else
{
mg[a[m].i][a[m].j]=-1;
popStack(S);
findWay((*(S.top-1)).i,(*(S.top-1)).j,i2,j2,S);
}
}
}
int main()
{
SqStack S; //定义栈S
initStack(S); //初始化空栈S
findWay(1,1,8,8,S);
return 0;
}

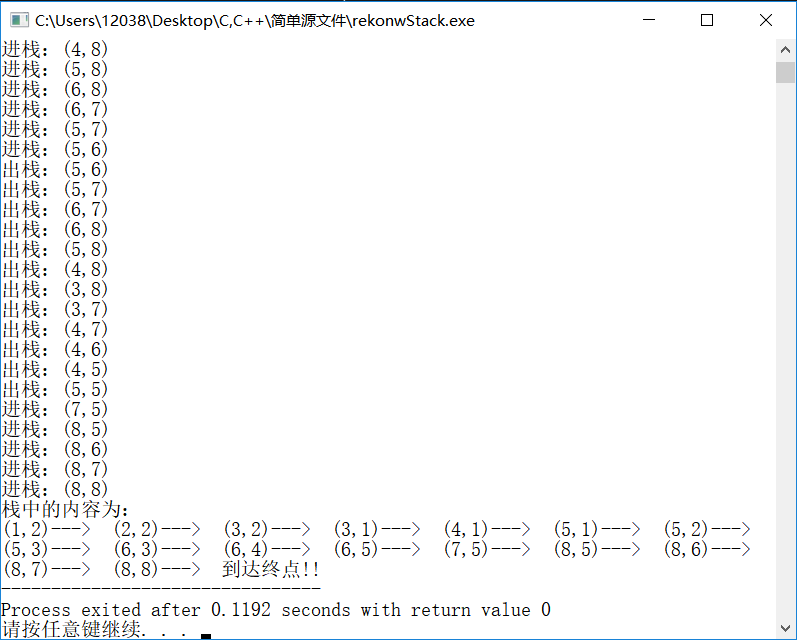

运行结果:
