《设计模式(三)之——装饰者模式》

一、情景：

老王在卖的煎饼摊子开张了，主营产品有煎饼、鸡蛋、火腿。
问题：1、有顾客想买加了鸡蛋的煎饼、或者加了火腿、鸡蛋的煎饼，那么该如何改造呢？

二、情景后续

设计模式大佬、推荐他用装饰者模式，进行包装、包装出带有鸡蛋的煎饼

三、装饰者模式（Decorator）

• 定义：动态的将责任附加到对象上若老扩展功能，装饰者提供老比继承更有弹性的替代方案
• 重要组件
• Component 被包装的原始组件
• Decorator 实现与原始组件相同的接口，并且组合了一个原始组件的引用

四、代码演示

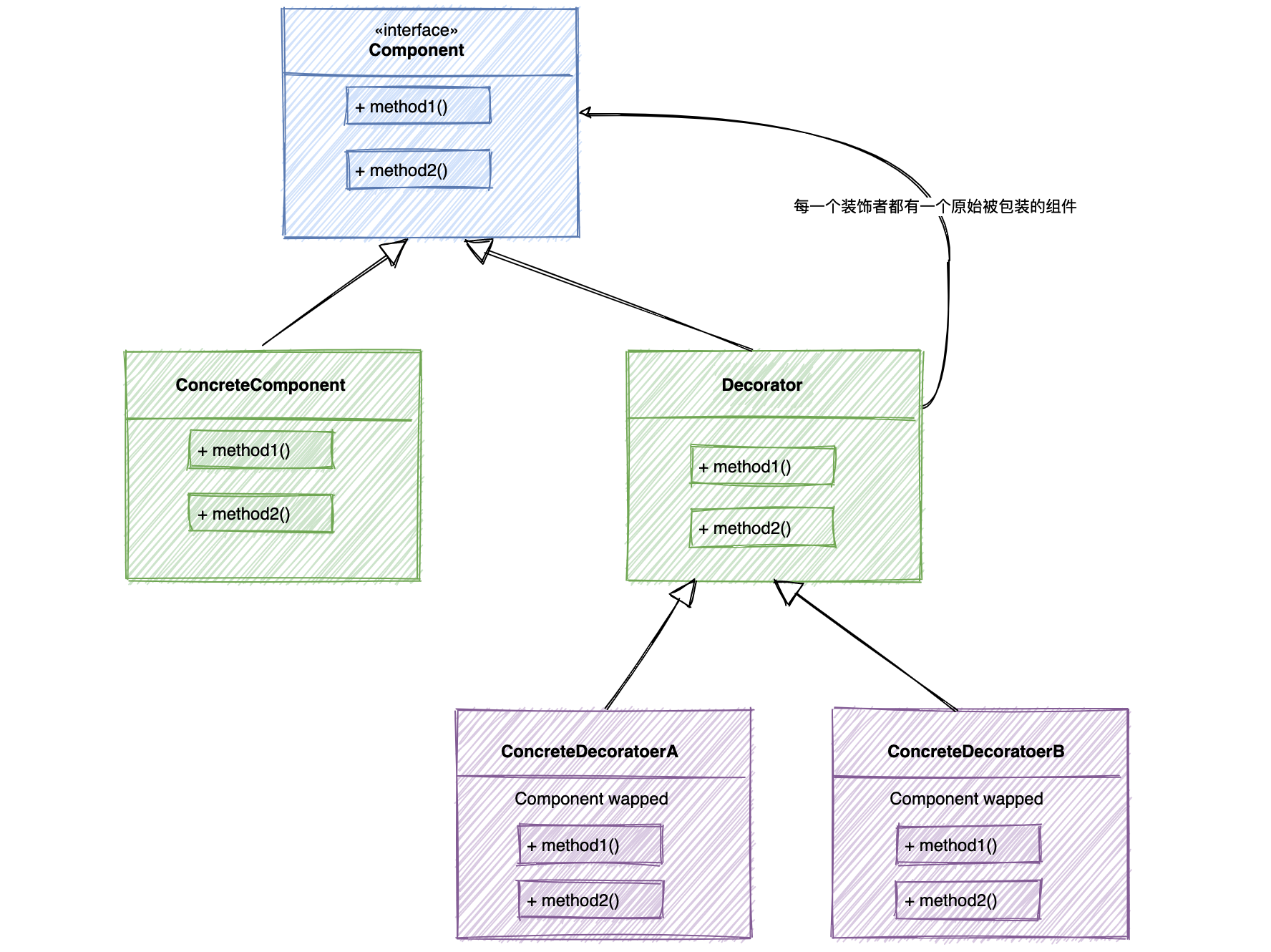

4.1类图

4.2 煎饼、鸡蛋、火腿公共接口(Component)

/**
 * @author liuzihao
 * @create 2020-10-07-11:45
 * 煎饼摊子基本接口
 */
public interface JbComponent {


    /**
     * 描述
     * @return
     */
    public String desc();

    /**
     * 价格
     * @return
     */
    public BigDecimal price();
}

4.3 各自的实现(ConcreteComponent)

/**
 * @author liuzihao
 * @create 2020-10-07-11:48
 * 鸡蛋
 */
public class JbComponenteEgg implements JbComponent {


    @Override
    public String desc() {


        return "鸡蛋";
    }

    @Override
    public BigDecimal price() {


        return new BigDecimal("1");
    }
}

/**
 * @author liuzihao
 * @create 2020-10-07-11:47
 */
public class JbComponentPancakes implements  JbComponent{


    @Override
    public String desc() {


        return "煎饼";
    }

    @Override
    public BigDecimal price() {


        return new BigDecimal(2);
    }
}
/**
 * @author liuzihao
 * @create 2020-10-07-11:48
 */
public class JbComponenthHotDog implements JbComponent {


    @Override
    public String desc() {


        return "火腿";
    }

    @Override
    public BigDecimal price() {


        return new BigDecimal(1);
    }
}

4.4 装饰者——带有鸡蛋煎饼(ConcreteDecoratoerA)

/**
 * @author liuzihao
 * @create 2020-10-07-11:51
 */
public class DecoratorPancakesWithEgg implements JbComponent {


    private JbComponent jbComponent;

    public DecoratorPancakesWithEgg(JbComponent jbComponent) {


        this.jbComponent = jbComponent;
    }
    @Override
    public String desc() {


        return jbComponent.desc() + "\t" + "加鸡蛋";
    }

    @Override
    public BigDecimal price() {


        return jbComponent.price().add(BigDecimal.ONE);
    }
}

4.5 装饰者——带有鸡蛋、火腿的煎饼(ConcreteDecoratoerB)

/**
 * @author liuzihao
 * @create 2020-10-07-11:54
 */
public class DecoratorPancakesWithHotDog implements JbComponent{


	// 传入已经加了鸡蛋的煎饼
    private JbComponent jbComponent;

    public DecoratorPancakesWithHotDog(JbComponent jbComponent) {


        this.jbComponent = jbComponent;
    }
    @Override
    public String desc() {


        return jbComponent.desc() +"\t" + "加热狗";
    }

    @Override
    public BigDecimal price() {


        return jbComponent.price().add(BigDecimal.ONE);
    }
}

4.6 代码测试

public class DemoMain {


    public static void main(String[] args) {


        JbComponent jbComponent1 = new JbComponenthHotDog();
        System.out.println("卖" + jbComponent1.desc() + "\t 价格" +jbComponent1.price());
        JbComponent jbComponent2 = new JbComponenteEgg();
        System.out.println("卖" + jbComponent2.desc() + "\t 价格" +jbComponent2.price());
        JbComponent jbComponent3 = new JbComponentPancakes();
        System.out.println("卖" + jbComponent3.desc() + "\t 价格" +jbComponent3.price());

        System.out.println("==开始卖包装产品==");
        JbComponent jbComponent4 = new DecoratorPancakesWithEgg(jbComponent3);
        System.out.println("卖" + jbComponent4.desc() + "\t 价格" +jbComponent4.price());
        JbComponent jbComponent5 = new DecoratorPancakesWithEgg(jbComponent4);
        System.out.println("卖" + jbComponent5.desc() + "\t 价格" +jbComponent5.price());


    }
}

五、小结

5.1改造之后的煎饼摊子

5.2总结

• 装饰者模式同继承一样，可以扩展行为，这符合开闭原则，但是有一个不好的地方就是这样会到账设计中出现很多小对象，程序的复杂性会增加。
• 装饰者可以不断的叠加，例如上述案例中，可以用完包装完鸡蛋后，继续包装鸡蛋、不断重复包装行为。
