root@ok3588-buildroot:/etc/init.d# vi S49weston
./buildroot/package/weston/S49weston
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ ./build.sh cleanall
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ ./build.sh
20250408在荣品的PRO-RK3566开发板使用Rockchip原厂的buildroot系统时加入gnome-screenshot命令【直接编译进IMG】
2025/4/7 17:57
荣品的PRO-RK3566开发板，4GB+32GB内存。
缘起：请问在飞凌的OK3588-C_Linux5.10.209+Qt5.15.10_用户资料_R1如果使用 weston-screenshooter 截屏？
在Android12/13下都可以很方便的使用screencap截屏。
现在 在linux/Buildroot千辛万苦中找到了weston-screenshooter，失败/异常了。
请问该如何使用？语法错误？还是该如何配置呢？
root@ok3588-buildroot:/#
root@ok3588-buildroot:/# weston-screenshooter
Output capture error: unauthorized
Error: screenshot or protocol failure
root@ok3588-buildroot:/#
root@ok3588-buildroot:/# weston-screenshooter 01.png
Output capture error: unauthorized
Error: screenshot or protocol failure
root@ok3588-buildroot:/#
root@ok3588-buildroot:/# uname -a
Linux ok3588-buildroot 5.10.209 #1 SMP Thu Feb 13 10:19:48 CST 2025 aarch64 GNU/Linux
root@ok3588-buildroot:/#
root@ok3588-buildroot:/#
修改步骤：
将/etc/init.d/S49weston中的：
/usr/bin/weston&
修改成为：
/usr/bin/weston --debug &
重启就可以使用weston-screenshooter了！
root@ok3588-buildroot:/#
root@ok3588-buildroot:/#
root@ok3588-buildroot:/#
root@ok3588-buildroot:/# cd /sdcard/
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/sdcard# ls -l
total 0
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/sdcard# weston-screenshooter
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/sdcard# ls -l
total 116
-rw-r--r-- 1 root root 116979 Jan 1 08:00 wayland-screenshot-1970-01-01_08-00-44.png
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/sdcard# weston-screenshooter 01.png
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/sdcard# ls -l
total 232
-rw-r--r-- 1 root root 116979 Jan 1 08:00 wayland-screenshot-1970-01-01_08-00-44.png
-rw-r--r-- 1 root root 116979 Jan 1 08:00 wayland-screenshot-1970-01-01_08-00-54.png
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/sdcard#
root@ok3588-buildroot:/etc/init.d# vi S49weston
root@ok3588-buildroot:/etc/init.d# cat S49weston
#!/bin/sh -e
### BEGIN INIT INFO
# Provides: weston
# Required-Start: mountvirtfs
# Required-Stop:
# Should-Start:
# Should-Stop:
# Default-Start: 2 3 4 5
# Default-Stop: 0 1 6
# Short-Description: Linux weston daemon
### END INIT INFO
PATH="/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin"
# Load default env variables from profiles(e.g. /etc/profile.d/weston.sh)
/etc/forlinx_env.sh
. /etc/profile
start_weston()
{
/usr/bin/weston --debug &
现在需要将S49weston的修改直接编译进IMG里。
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$

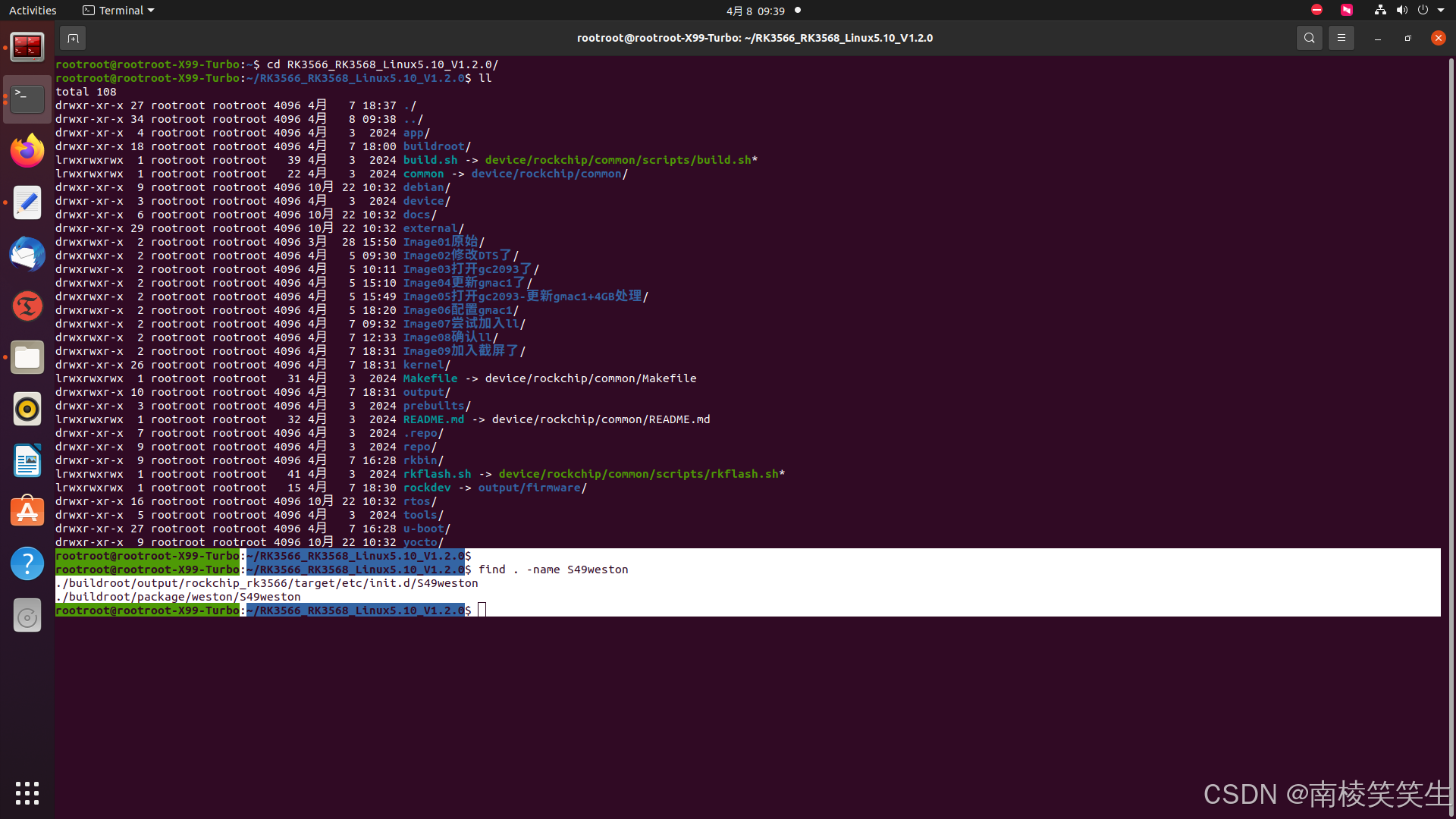

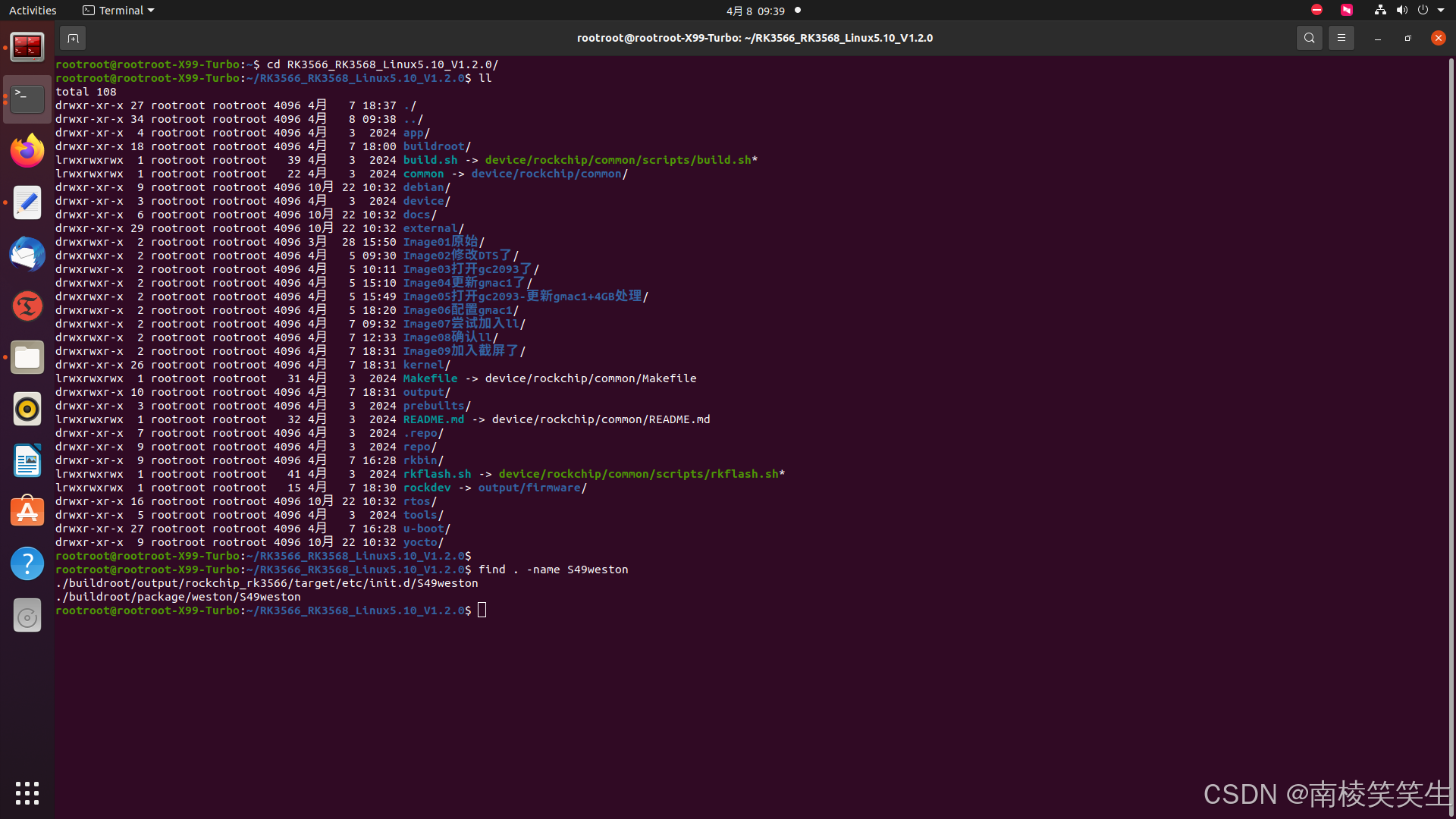

rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ find . -name S49weston
./buildroot/output/rockchip_rk3566/target/etc/init.d/S49weston
./buildroot/package/weston/S49weston
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$

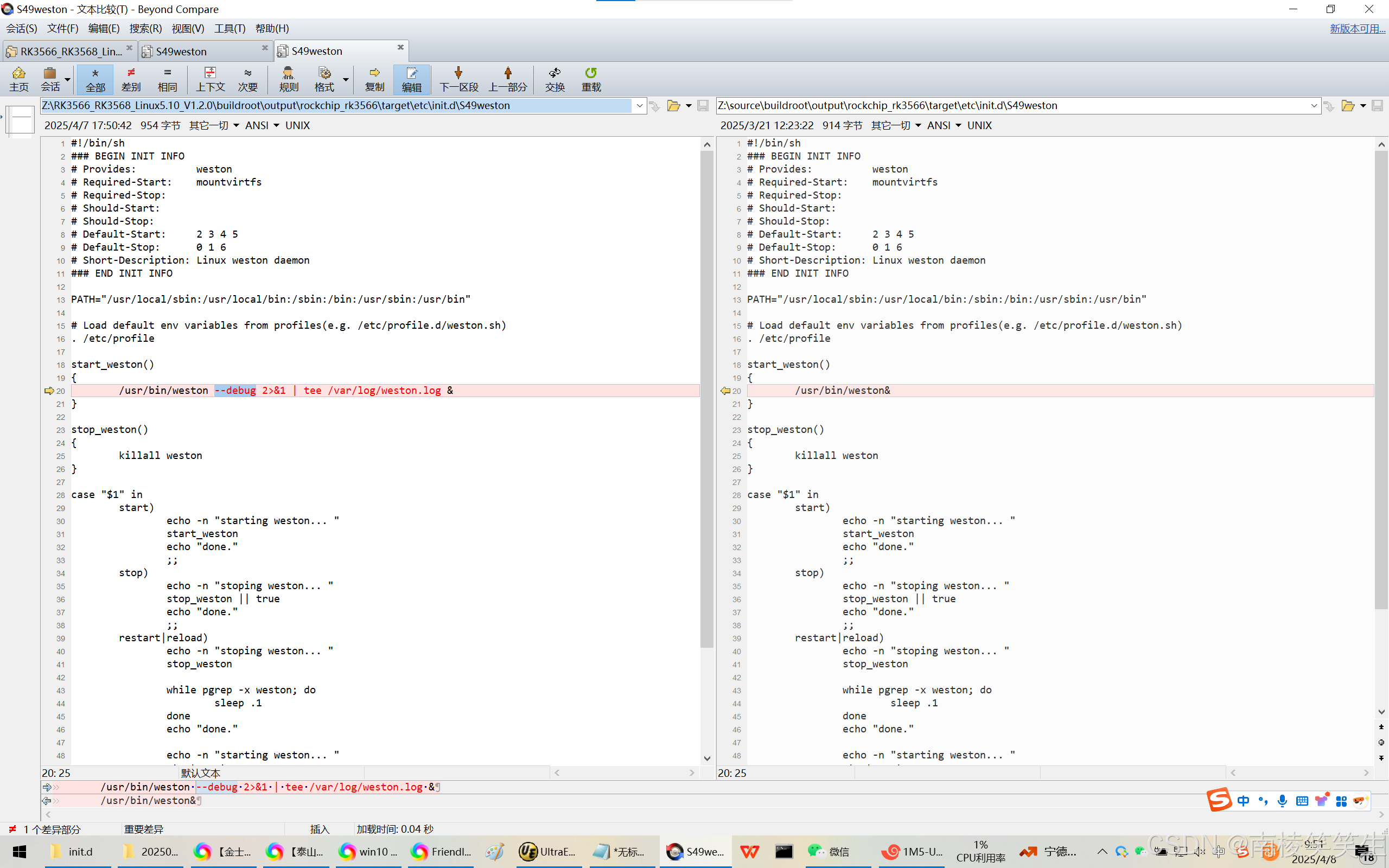

直接修改output目中的./buildroot/output/rockchip_rk3566/target/etc/init.d/S49weston
之后直接打包，是否可行，没有验证。

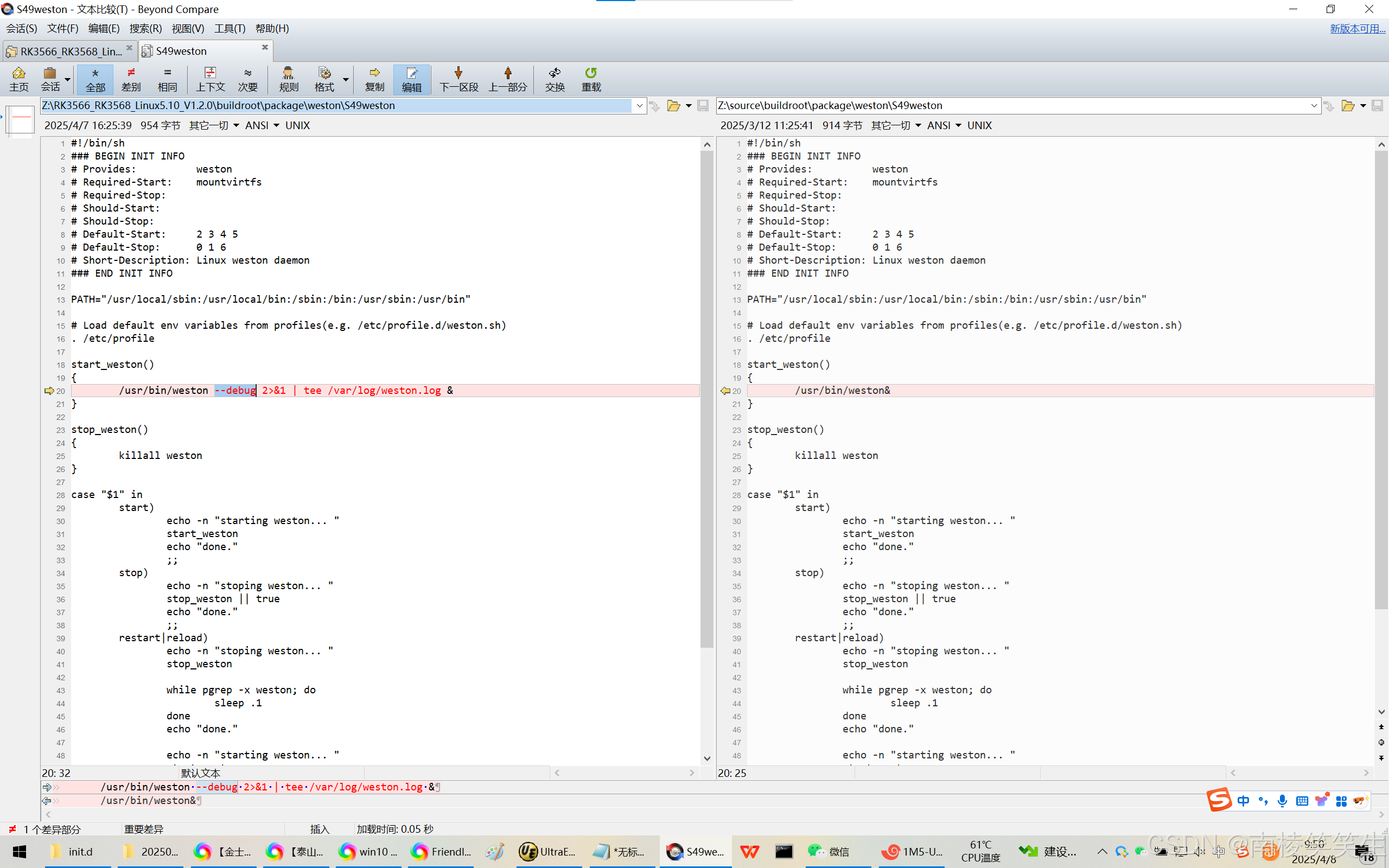

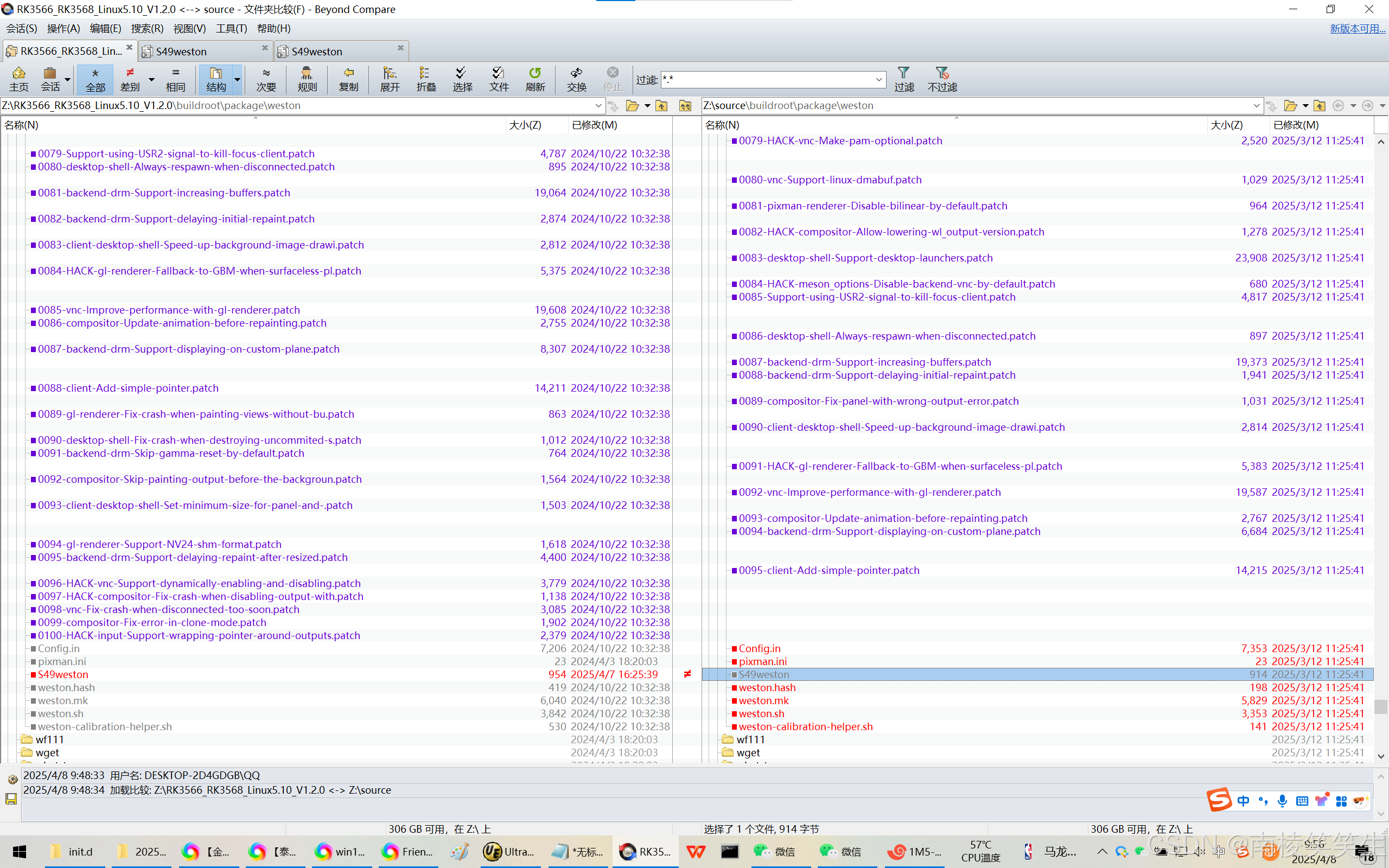

修改：./buildroot/package/weston/S49weston
Z:\RK3566_RK3568_Linux5.10_V1.2.0\buildroot\package\weston\S49weston
Z:\source\buildroot\package\weston\S49weston
#!/bin/sh
### BEGIN INIT INFO
# Provides: weston
# Required-Start: mountvirtfs
# Required-Stop:
# Should-Start:
# Should-Stop:
# Default-Start: 2 3 4 5
# Default-Stop: 0 1 6
# Short-Description: Linux weston daemon
### END INIT INFO
PATH="/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin"
# Load default env variables from profiles(e.g. /etc/profile.d/weston.sh)
. /etc/profile
start_weston()
{
/usr/bin/weston --debug 2>&1 | tee /var/log/weston.log &
}
stop_weston()
{
killall weston
}
case "$1" in
start)
echo -n "starting weston... "
start_weston
echo "done."
;;
stop)
echo -n "stoping weston... "
stop_weston || true
echo "done."
;;
restart|reload)
echo -n "stoping weston... "
stop_weston
while pgrep -x weston; do
sleep .1
done
echo "done."
echo -n "starting weston... "
start_weston
echo "done."
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit 0
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ ./build.sh cleanall
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ ./build.sh

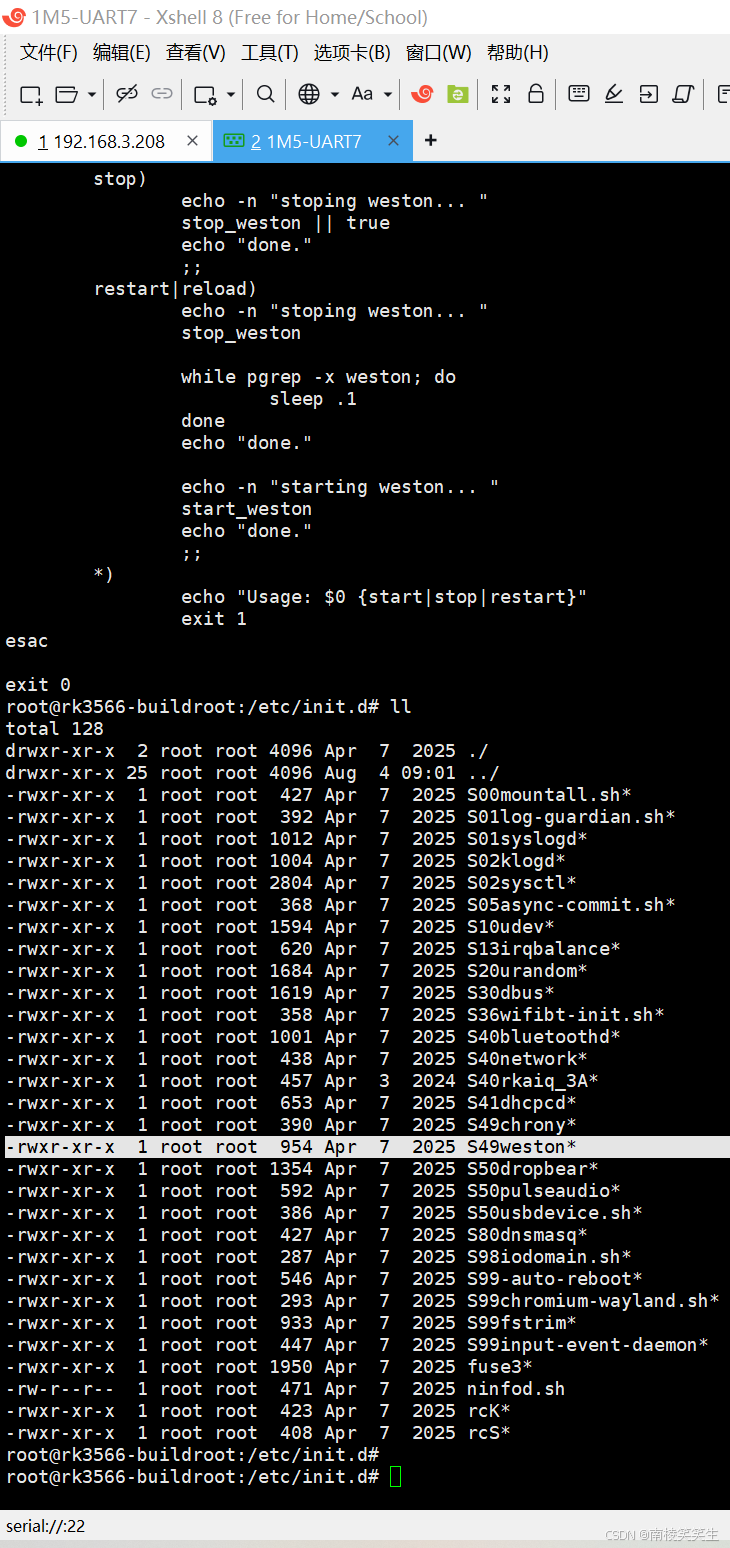

root@rk3566-buildroot:/etc# cd init.d
root@rk3566-buildroot:/etc/init.d# ll
total 128
drwxr-xr-x 2 root root 4096 Apr 7 2025 ./
drwxr-xr-x 25 root root 4096 Aug 4 09:01 ../
-rwxr-xr-x 1 root root 427 Apr 7 2025 S00mountall.sh*
-rwxr-xr-x 1 root root 392 Apr 7 2025 S01log-guardian.sh*
-rwxr-xr-x 1 root root 1012 Apr 7 2025 S01syslogd*
-rwxr-xr-x 1 root root 1004 Apr 7 2025 S02klogd*
-rwxr-xr-x 1 root root 2804 Apr 7 2025 S02sysctl*
-rwxr-xr-x 1 root root 368 Apr 7 2025 S05async-commit.sh*
-rwxr-xr-x 1 root root 1594 Apr 7 2025 S10udev*
-rwxr-xr-x 1 root root 620 Apr 7 2025 S13irqbalance*
-rwxr-xr-x 1 root root 1684 Apr 7 2025 S20urandom*
-rwxr-xr-x 1 root root 1619 Apr 7 2025 S30dbus*
-rwxr-xr-x 1 root root 358 Apr 7 2025 S36wifibt-init.sh*
-rwxr-xr-x 1 root root 1001 Apr 7 2025 S40bluetoothd*
-rwxr-xr-x 1 root root 438 Apr 7 2025 S40network*
-rwxr-xr-x 1 root root 457 Apr 3 2024 S40rkaiq_3A*
-rwxr-xr-x 1 root root 653 Apr 7 2025 S41dhcpcd*
-rwxr-xr-x 1 root root 390 Apr 7 2025 S49chrony*
-rwxr-xr-x 1 root root 954 Apr 7 2025 S49weston*
-rwxr-xr-x 1 root root 1354 Apr 7 2025 S50dropbear*
-rwxr-xr-x 1 root root 592 Apr 7 2025 S50pulseaudio*
-rwxr-xr-x 1 root root 386 Apr 7 2025 S50usbdevice.sh*
-rwxr-xr-x 1 root root 427 Apr 7 2025 S80dnsmasq*
-rwxr-xr-x 1 root root 287 Apr 7 2025 S98iodomain.sh*
-rwxr-xr-x 1 root root 546 Apr 7 2025 S99-auto-reboot*
-rwxr-xr-x 1 root root 293 Apr 7 2025 S99chromium-wayland.sh*
-rwxr-xr-x 1 root root 933 Apr 7 2025 S99fstrim*
-rwxr-xr-x 1 root root 447 Apr 7 2025 S99input-event-daemon*
-rwxr-xr-x 1 root root 1950 Apr 7 2025 fuse3*
-rw-r--r-- 1 root root 471 Apr 7 2025 ninfod.sh
-rwxr-xr-x 1 root root 423 Apr 7 2025 rcK*
-rwxr-xr-x 1 root root 408 Apr 7 2025 rcS*
root@rk3566-buildroot:/etc/init.d#

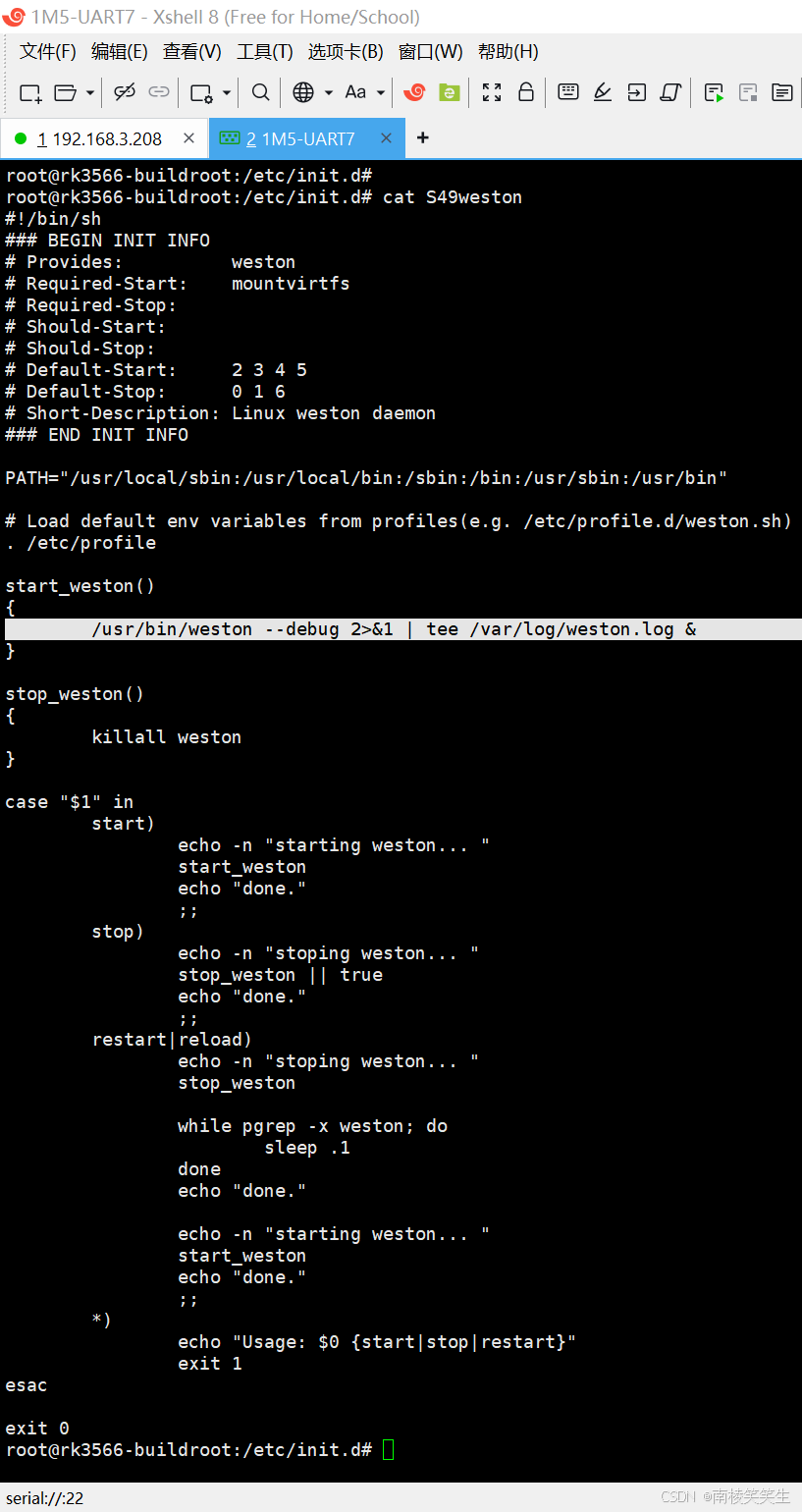

root@rk3566-buildroot:/etc/init.d# cat S49weston
参考资料：
百度：weston-screenshooter 01.png Output capture error: unauthorized
BING：weston-screenshooter 01.png Error: screenshot or protocol failure
https://kira-96.github.io/notes/weston-screenshot/
weston桌面系统截屏方法
二月 3, 2023
使用weston-screenshooter
但必须启用weston桌面--debug选项，否则会出现以下错误：
[root@RK356X:/]# weston-screenshooter
[02:41:05.145] libwayland: error in client communication (pid 776)
weston_screenshooter@5: error 0: screenshooter failed: permission denied. Debug protocol must be enabled
以RK3568开发板，buildroot系统为例，修改/etc/init.d/S50launcher，找到weston所在行，添加--debug选项。
......
# Uncomment to disable mirror mode
# unset WESTON_DRM_MIRROR
export XDG_RUNTIME_DIR=${XDG_RUNTIME_DIR:-/var/run}
export QT_QPA_PLATFORM=${QT_QPA_PLATFORM:-wayland}
weston --tty=2 --debug --idle-time=0&
{
# Wait for weston ready
while [ ! -e ${XDG_RUNTIME_DIR}/wayland-0 ]; do
sleep .1
done
/usr/bin/QLauncher &
}&
......
forlinx开发板使用的yocto系统也类似，修改/lib/systemd/system/weston.service，在weston后添加--debug选项。
$ vi /lib/systemd/system/weston.service
# 修改如下
# ExecStart=/usr/bin/weston --debug --log=${XDG_RUNTIME_DIR}/weston.log $OPTARGS

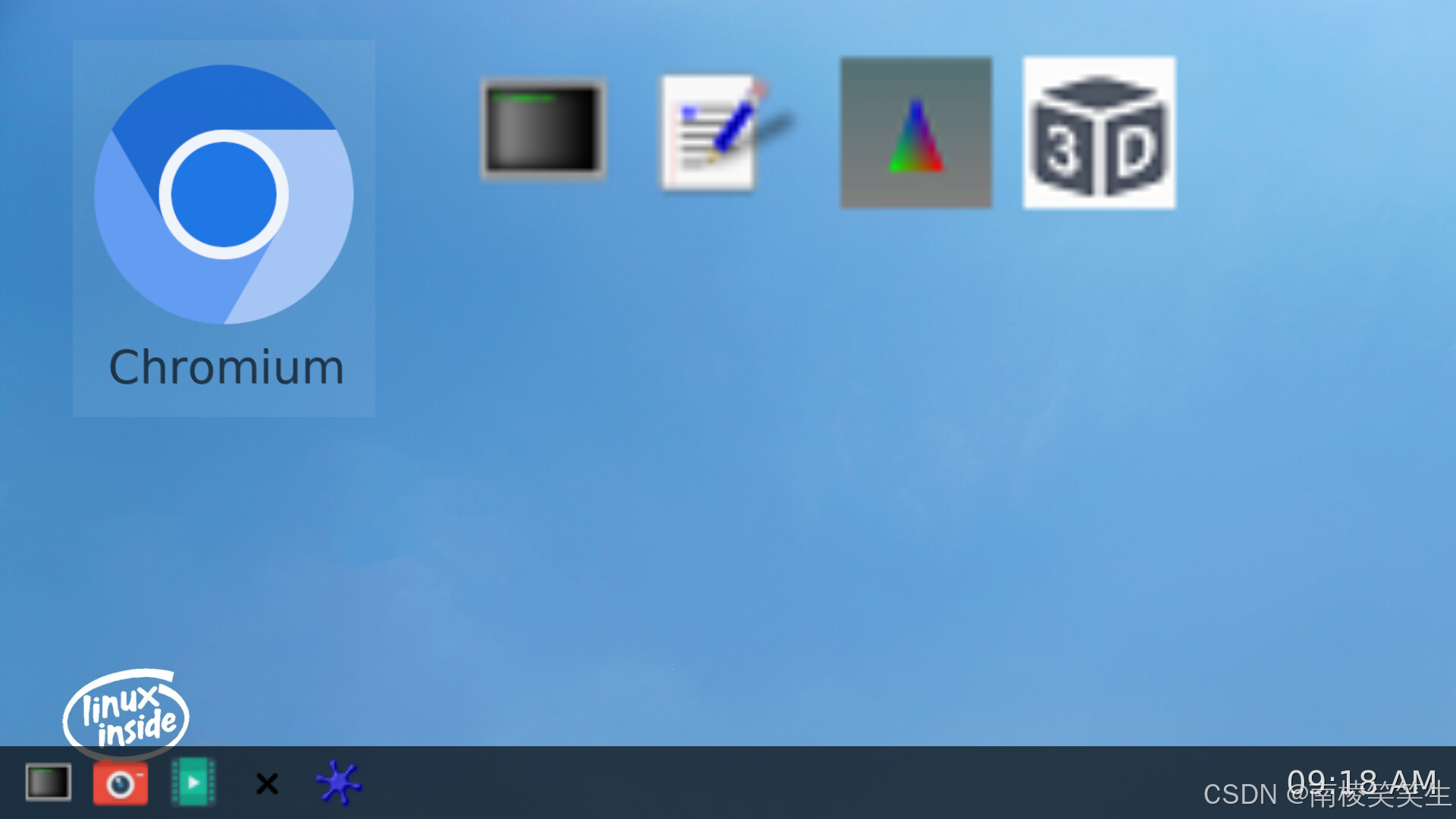

然后重启系统，之后就可以使用weston-screenshooter截取屏幕了。
https://blog.csdn.net/qq_40177571/article/details/124989542?ops_request_misc=%257B%2522request%255Fid%2522%253A%252238e8168a9636ee7d6f3f6129ebc177b9%2522%252C%2522scm%2522%253A%252220140713.130102334..%2522%257D&request_id=38e8168a9636ee7d6f3f6129ebc177b9&biz_id=0&utm_medium=distribute.pc_search_result.none-task-blog-2~all~sobaiduend~default-2-124989542-null-null.142^v101^pc_search_result_base6&utm_term=weston-screenshooter&spm=1018.2226.3001.4187
LS1028 weston桌面weston-screenshooter截图方法
https://blog.csdn.net/qq_40177571/article/details/124989542
vim /lib/systemd/system/weston.service
//修改如下所示：
ExecStart=/usr/bin/weston --debug --log=${XDG_RUNTIME_DIR}/weston.log $OPTARGS
