启动项目

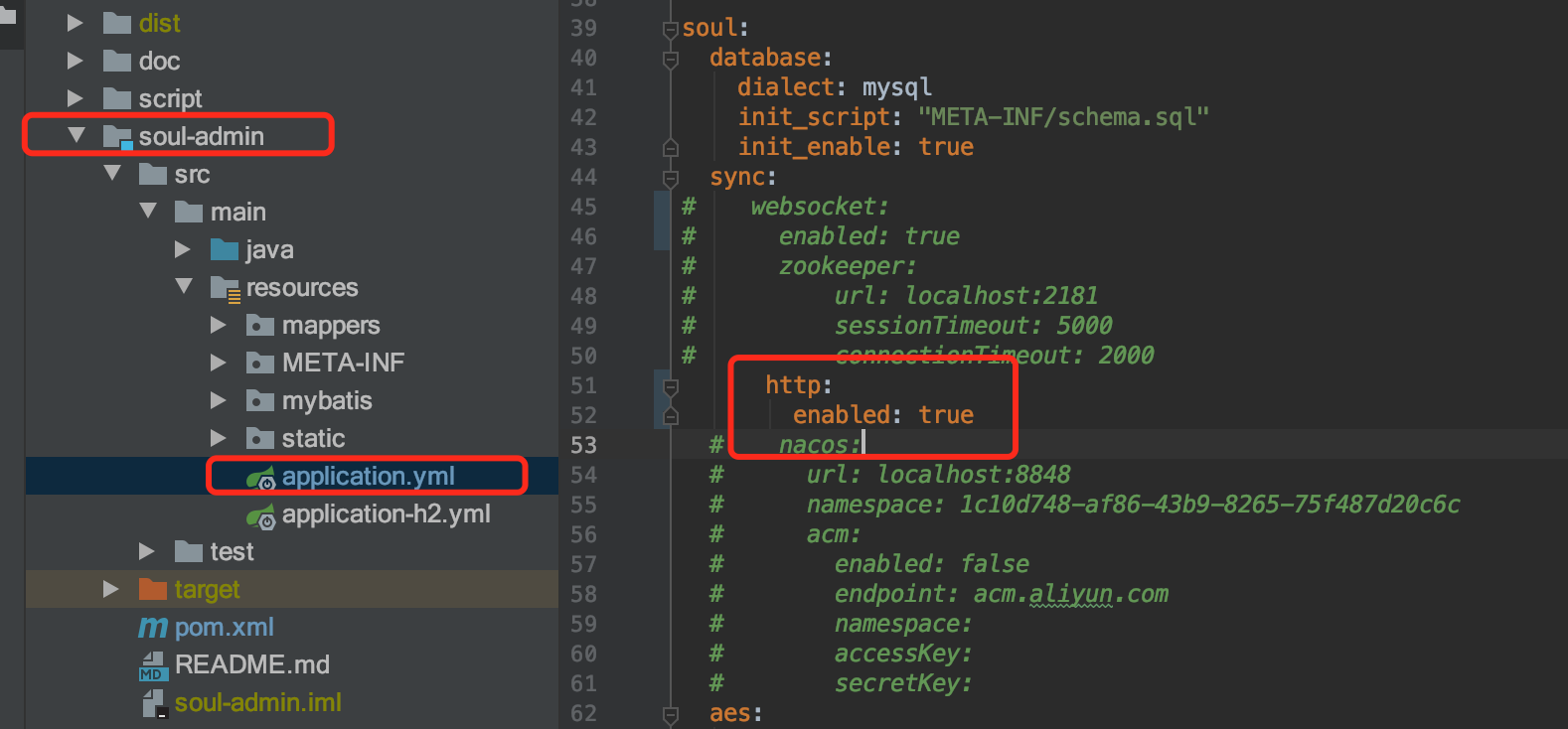

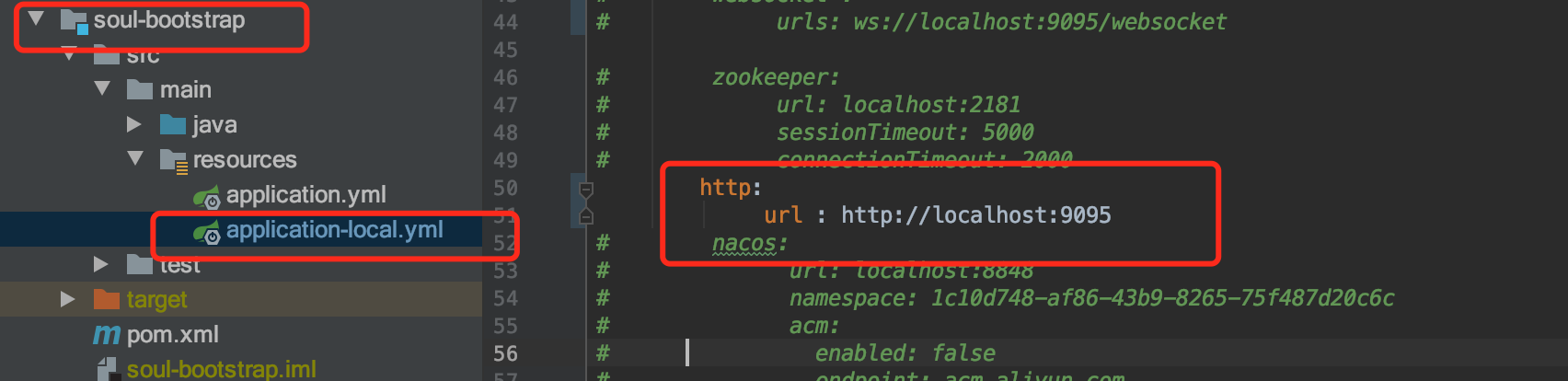

修改两个配置文件，配置成htpp长轮询。不清楚的话可以先看我的第一篇
启动的时候得注意，先得启动soul-admin,然后再启动soul-bootstrap,要不然会报服务找不到。
源码分析
HttpLongPollingDataChangedListener这个类看名字就在知道是http长轮询数据改变的监听器，查看该类的uml图发现如图3所示。
在调试过程中发现每隔一分钟就会调用HttpLongPollingDataChangedListener.compareChangedGroup这个方法。
private List<ConfigGroupEnum> compareChangedGroup(final HttpServletRequest request) {
List<ConfigGroupEnum> changedGroup = new ArrayList<>(4);
for (ConfigGroupEnum group : ConfigGroupEnum.values()) {
// md5,lastModifyTime
String[] params = StringUtils.split(request.getParameter(group.name()), ',');
if (params == null || params.length != 2) {
throw new SoulException("group param invalid:" + request.getParameter(group.name()));
}
String clientMd5 = params[0];
long clientModifyTime = NumberUtils.toLong(params[1]);
ConfigDataCache serverCache = CACHE.get(group.name());
// do check.
if (this.checkCacheDelayAndUpdate(serverCache, clientMd5, clientModifyTime)) {
changedGroup.add(group);
}
}
return changedGroup;
}
经过代码查阅发现LongPollingClient实现了Runnable的run接口，在run接口里使用的调度器，默认是60秒执行一次。
@Override
public void run() {
this.asyncTimeoutFuture = scheduler.schedule(() -> {
clients.remove(LongPollingClient.this);
List<ConfigGroupEnum> changedGroups = compareChangedGroup((HttpServletRequest) asyncContext.getRequest());
sendResponse(changedGroups);
}, timeoutTime, TimeUnit.MILLISECONDS);
clients.add(this);
}追溯代码发现在HttpLongPollingDataChangedListener.doLongPolling
/**
* If the configuration data changes, the group information for the change is immediately responded.
* Otherwise, the client's request thread is blocked until any data changes or the specified timeout is reached.
*
* @param request the request
* @param response the response
*/
public void doLongPolling(final HttpServletRequest request, final HttpServletResponse response) {
// compare group md5
List<ConfigGroupEnum> changedGroup = compareChangedGroup(request);
String clientIp = getRemoteIp(request);
// response immediately.
if (CollectionUtils.isNotEmpty(changedGroup)) {
this.generateResponse(response, changedGroup);
log.info("send response with the changed group, ip={}, group={}", clientIp, changedGroup);
return;
}
// listen for configuration changed.
final AsyncContext asyncContext = request.startAsync();
// AsyncContext.settimeout() does not timeout properly, so you have to control it yourself
asyncContext.setTimeout(0L);
// block client's thread.
scheduler.execute(new LongPollingClient(asyncContext, clientIp, HttpConstants.SERVER_MAX_HOLD_TIMEOUT));
}其中方法中有这样一行代码这里就是60秒执行一次的入口。
scheduler.execute(new LongPollingClient(asyncContext, clientIp, HttpConstants.SERVER_MAX_HOLD_TIMEOUT));还发现每隔5分钟就会同步数据库的数据，通过看代码可以得知这里使用了ScheduledExecutorService定时的调用refreshLocalCache更新数据。
@Override
protected void afterInitialize() {
long syncInterval = httpSyncProperties.getRefreshInterval().toMillis();
// Periodically check the data for changes and update the cache
scheduler.scheduleWithFixedDelay(() -> {
log.info("http sync strategy refresh config start.");
try {
this.refreshLocalCache();
log.info("http sync strategy refresh config success.");
} catch (Exception e) {
log.error("http sync strategy refresh config error!", e);
}
}, syncInterval, syncInterval, TimeUnit.MILLISECONDS);
log.info("http sync strategy refresh interval: {}ms", syncInterval);
}
private void refreshLocalCache() {
this.updateAppAuthCache();
this.updatePluginCache();
this.updateRuleCache();
this.updateSelectorCache();
this.updateMetaDataCache();
}溯源的时候发现了HttpLongPollingDataChangedListener在soul启动的时候会执行以下代码，其中scheduler是单线程且是守护线程。
/**
* Instantiates a new Http long polling data changed listener.
* @param httpSyncProperties the HttpSyncProperties
*/
public HttpLongPollingDataChangedListener(final HttpSyncProperties httpSyncProperties) {
this.clients = new ArrayBlockingQueue<>(1024);
this.scheduler = new ScheduledThreadPoolExecutor(1,
SoulThreadFactory.create("long-polling", true));
this.httpSyncProperties = httpSyncProperties;
}先启动soul-admin 然后启动 soul-bootstrap的时候会发现调用了/cofigs/listener接口
@ConditionalOnBean(HttpLongPollingDataChangedListener.class)
@RestController
@RequestMapping("/configs")
@Slf4j
public class ConfigController {
@Resource
private HttpLongPollingDataChangedListener longPollingListener;
/**
* Listener.
*
* @param request the request
* @param response the response
*/
@PostMapping(value = "/listener")
public void listener(final HttpServletRequest request, final HttpServletResponse response) {
longPollingListener.doLongPolling(request, response);
}
}为什么会调用这个接口，那使用“/configs/listener”查询会发现在HttpSyncDataService.doLongPolling使用了httpclient发送了一个post请求。查看HttpSyncDataService.doLongPolling的调用方，发现是HttpLongPollingTask这个线程去调度的。看样子是会重试3次，每次失败就睡5秒如果3次失败的话就睡5分钟。但哪里才是60秒调度入口呢？
class HttpLongPollingTask implements Runnable {
private String server;
private final int retryTimes = 3;
HttpLongPollingTask(final String server) {
this.server = server;
}
@Override
public void run() {
while (RUNNING.get()) {
for (int time = 1; time <= retryTimes; time++) {
try {
doLongPolling(server);
} catch (Exception e) {
// print warnning log.
if (time < retryTimes) {
log.warn("Long polling failed, tried {} times, {} times left, will be suspended for a while! {}",
time, retryTimes - time, e.getMessage());
ThreadUtils.sleep(TimeUnit.SECONDS, 5);
continue;
}
// print error, then suspended for a while.
log.error("Long polling failed, try again after 5 minutes!", e);
ThreadUtils.sleep(TimeUnit.MINUTES, 5);
}
}
}
log.warn("Stop http long polling.");
}
}直到看到这里，谜底解开。这里用了一个AtomicBoolean防止多线程争用，然后使用调度器每60秒调用一次。
private void start() {
// It could be initialized multiple times, so you need to control that.
if (RUNNING.compareAndSet(false, true)) {
// fetch all group configs.
this.fetchGroupConfig(ConfigGroupEnum.values());
int threadSize = serverList.size();
this.executor = new ThreadPoolExecutor(threadSize, threadSize, 60L, TimeUnit.SECONDS,
new LinkedBlockingQueue<>(),
SoulThreadFactory.create("http-long-polling", true));
// start long polling, each server creates a thread to listen for changes.
this.serverList.forEach(server -> this.executor.execute(new HttpLongPollingTask(server)));
} else {
log.info("soul http long polling was started, executor=[{}]", executor);
}
}而start的入口是HttpSyncDataService构造函数的时候就已经调用了
public HttpSyncDataService(final HttpConfig httpConfig, final PluginDataSubscriber pluginDataSubscriber,
final List<MetaDataSubscriber> metaDataSubscribers, final List<AuthDataSubscriber> authDataSubscribers) {
this.factory = new DataRefreshFactory(pluginDataSubscriber, metaDataSubscribers, authDataSubscribers);
this.httpConfig = httpConfig;
this.serverList = Lists.newArrayList(Splitter.on(",").split(httpConfig.getUrl()));
this.httpClient = createRestTemplate();
this.start();
}这个猜想应该是托管给spring容器了，果不其然，在HttpSyncDataConfiguration使用了构造器注入
@Bean
public SyncDataService httpSyncDataService(final ObjectProvider<HttpConfig> httpConfig, final ObjectProvider<PluginDataSubscriber> pluginSubscriber,
final ObjectProvider<List<MetaDataSubscriber>> metaSubscribers, final ObjectProvider<List<AuthDataSubscriber>> authSubscribers) {
log.info("you use http long pull sync soul data");
return new HttpSyncDataService(Objects.requireNonNull(httpConfig.getIfAvailable()), Objects.requireNonNull(pluginSubscriber.getIfAvailable()),
metaSubscribers.getIfAvailable(Collections::emptyList), authSubscribers.getIfAvailable(Collections::emptyList));
}综上，http长轮询一直都有守护线程去调度接口进行数据更新，不仅有主动调用，也有被动调用方式。为什么不建议使用这种方式,看官网的解释是如下
1.http长轮询使得网关很轻量，时效性略低。
2.其根据分组key来拉取，如果数据量过大，过多，会有一定的影响。 什么意思呢？就是一个组下面的一个小地方更改，会拉取整个的组数据。
3.在soul-admin 集群时候，可能会有bug。
其中第二点是compareChangedGroup方法，查看源码的话确实如此，会对整个group进行比较修改。
