boot+cxf，实现webservice

1.导入 cxf 依赖

<!--cxf-->
<dependency>
    <groupId>org.apache.cxf</groupId>
    <artifactId>cxf-rt-frontend-jaxws</artifactId>
    <version>3.1.6</version>
</dependency>
<dependency>
    <groupId>org.apache.cxf</groupId>
    <artifactId>cxf-rt-transports-http</artifactId>
    <version>3.1.6</version>
</dependency>
<dependency>
    <groupId>org.apache.cxf</groupId>
    <artifactId>cxf-rt-transports-http-jetty</artifactId>
    <version>3.1.6</version>
</dependency>

2.在启动类中添加注解

@SpringBootApplication
@MapperScan("com.gtmap.fundsupervision.mapper")
@ImportResource(locations = {

     "classpath:cxf/cxf.xml" })
public class FundSupervisionApplication {



    public static void main(String[] args) {


        SpringApplication.run(FundSupervisionApplication.class, args);
    }

}

3.在 resources 下创建 cxf.xml

文件内容：

<?xml version="1.0" encoding="UTF-8"?>
<beans  xmlns = "http://www.springframework.org/schema/beans"
      xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
      xmlns:jaxws="http://cxf.apache.org/jaxws"
      xsi:schemaLocation = "http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd
    http://cxf.apache.org/jaxws     http://cxf.apache.org/schemas/jaxws.xsd ">

    <!-- 将Bean托管给Spring -->
    <bean id="xingYeBankWebService" class="com.gtmap.fundsupervision.webservice.XingYeBankWebServiceImpl">
    </bean>

<!--    <jaxws:server address="/xingYeBank">-->
<!--        <jaxws:serviceBean>-->
<!--            <ref bean="xingYeBankWebService"/>-->
<!--        </jaxws:serviceBean>-->
<!--    </jaxws:server>-->

</beans>

4.创建 cxf 配置类

@Configuration
public class CxfConfig {


    @Bean
    public ServletRegistrationBean newServlet() {


        return new ServletRegistrationBean(new CXFServlet(), "/cxf/*");
    }

    @Bean(name = Bus.DEFAULT_BUS_ID)
    public SpringBus springBus() {


        return new SpringBus();
    }

    /**
     * @return
     */
    @Bean
    @Qualifier("xingYeBankWebServiceImpl") // 注入webService
    public Endpoint endpoint(XingYeBankWebServiceImpl xingYeBankWebServiceImpl) {


        EndpointImpl endpoint = new EndpointImpl(springBus(), xingYeBankWebServiceImpl);
        endpoint.publish("/xingYeBank");// 暴露webService api,用在资源访问
        return endpoint;
    }

}

5.创建 webservice 接口

@WebService
public interface XingYeBankWebService {



    //获取全部协议的数据
    @WebMethod
    List<XingYeBankZjjgxyDto> getAllData();

}

6.创建接口实现类

@Service
@WebService(endpointInterface="com.gtmap.fundsupervision.webservice.XingYeBankWebService") //webservice接口全类名
public class XingYeBankWebServiceImpl implements XingYeBankWebService {



    //spring使用
    @Autowired
    private FcjyClfZjjgxyMapper fcjyClfZjjgxyMapper;

    /**
     * 获取全部协议的数据
     * @return
     */
    @Override
    public List<XingYeBankZjjgxyDto> getAllData() {


    	//业务代码
    }
}

7.启动项目，输入网址查看是否发布成功

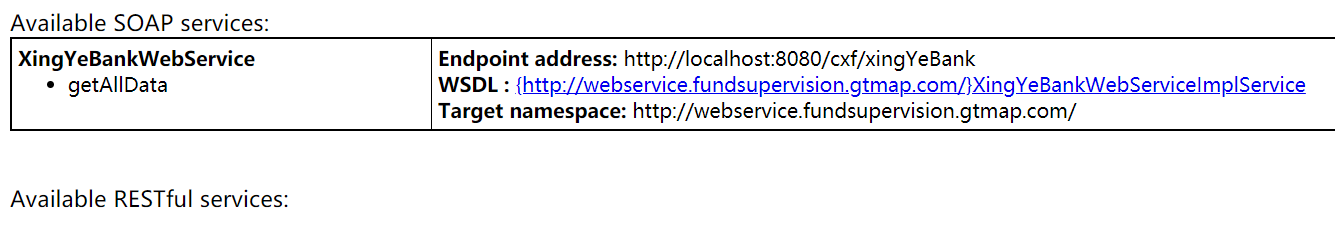

输入：http://localhost:8080/cxf
可以看到:

根据 endpoint address 和方法名查看:

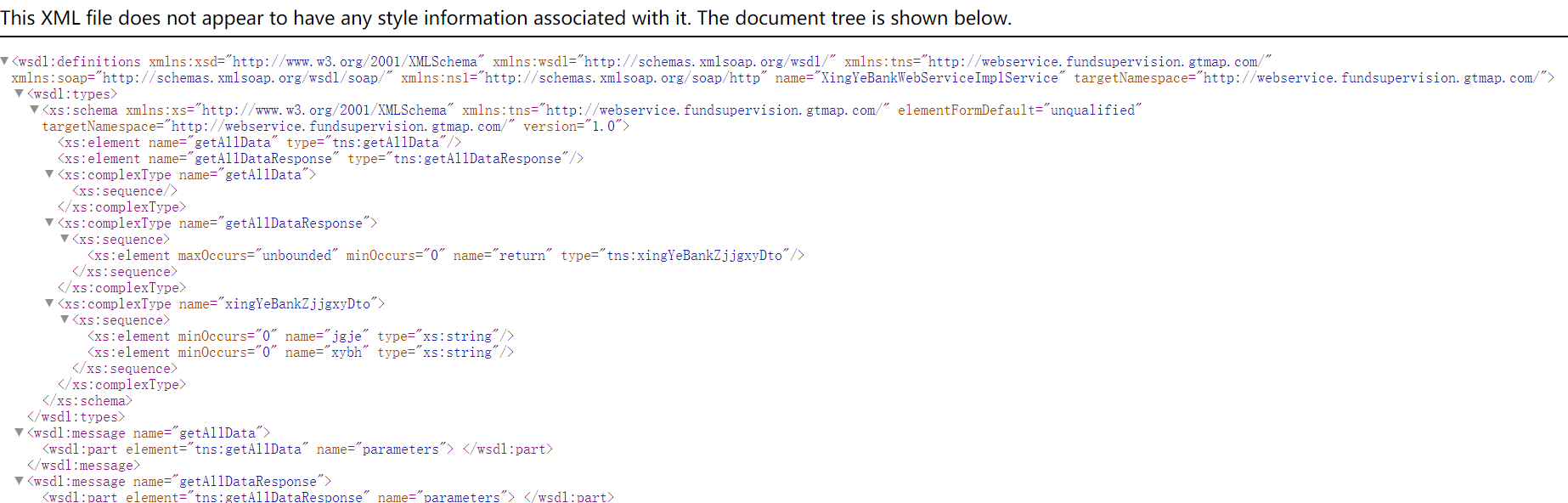

输入： http://192.168.0.168:8080/cxf/xingYeBank/getAllData?wsdl

可以看到：

8.自定义一个client，去调用方法：

public class XingYeBankClient {



    public static void main(String[] args) throws Exception {


        String wsdl = "http://192.168.0.168:8080/cxf/xingYeBank/getAllData?wsdl";
        String TargetNamespace = "http://webservice.fundsupervision.gtmap.com/";
        String methodName = "getAllData";

        //创建动态客户端
        JaxWsDynamicClientFactory factory = JaxWsDynamicClientFactory.newInstance();
        Client client = factory.createClient(wsdl);

        //客户端执行方法
        Object[] invoke = client.invoke(new QName(TargetNamespace, methodName));
        System.out.println("结果：" + invoke);
    }

}

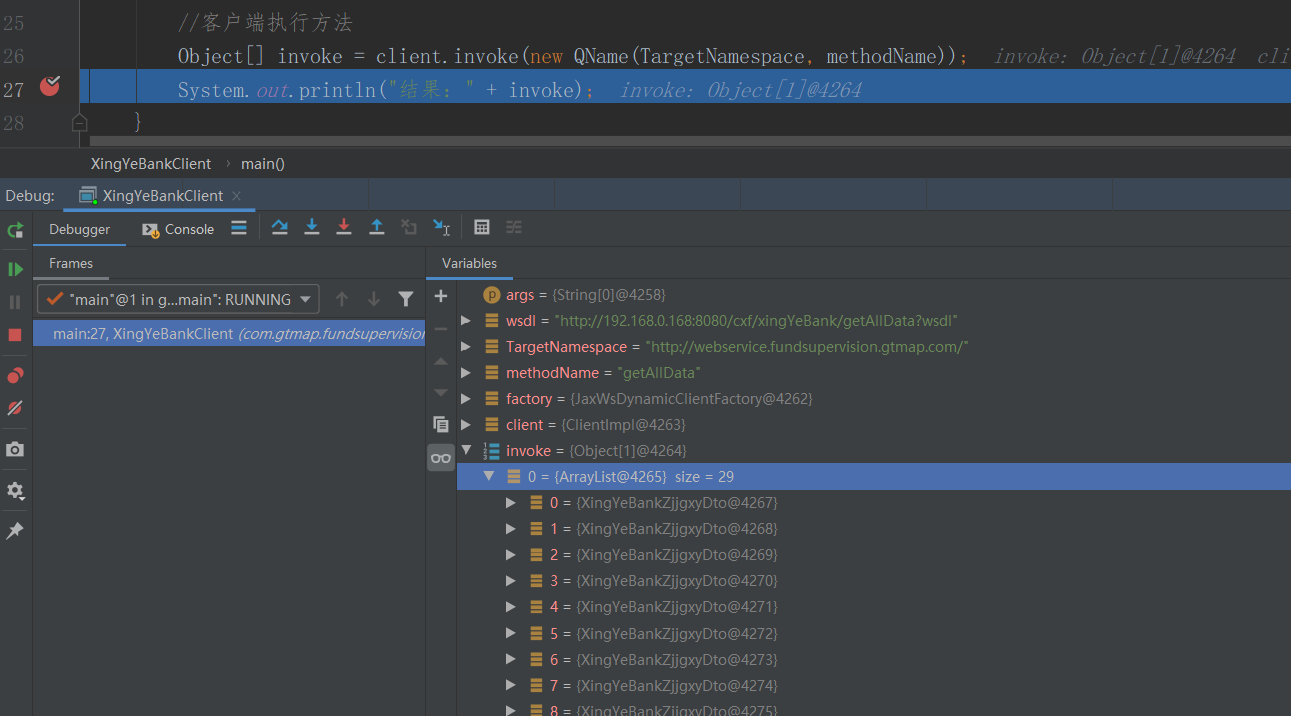

执行结果：
