二十、SpringCloud Alibaba Seata处理分布式事务

---

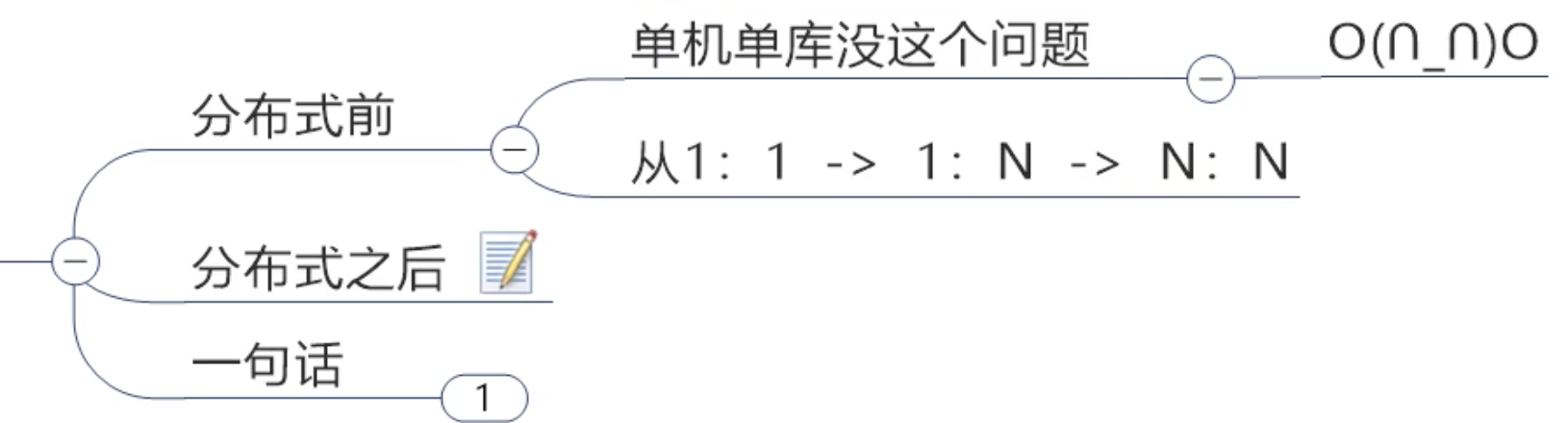

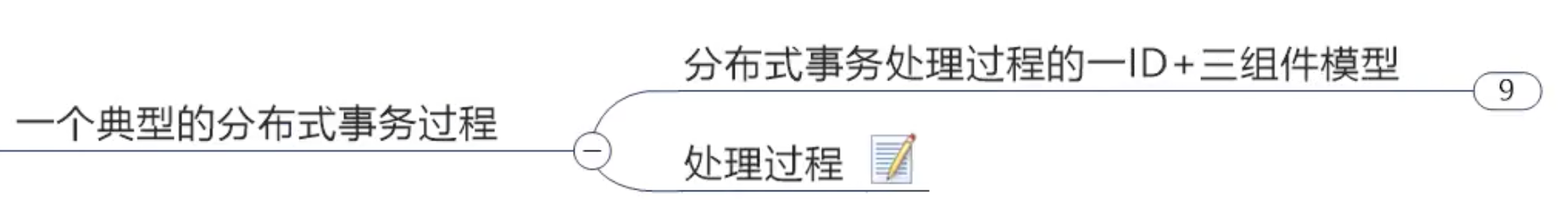

分布式事务问题

---

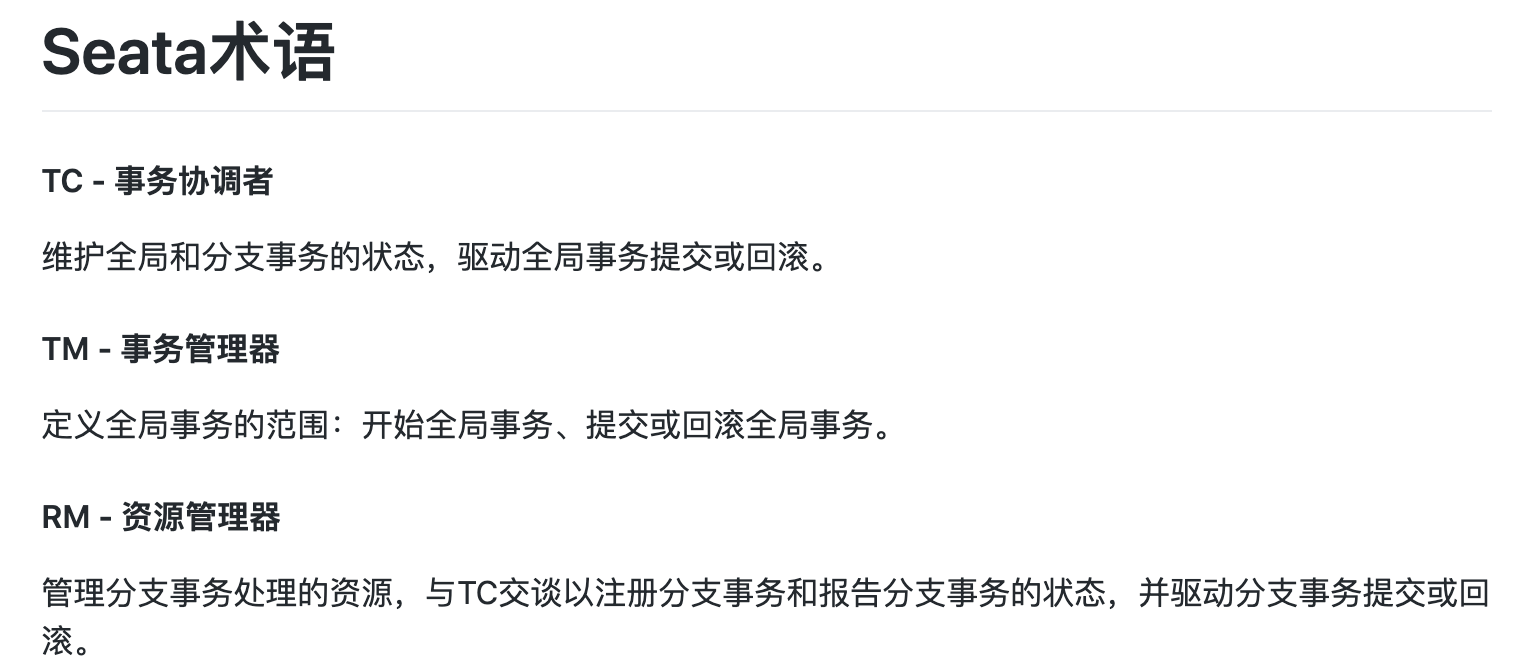

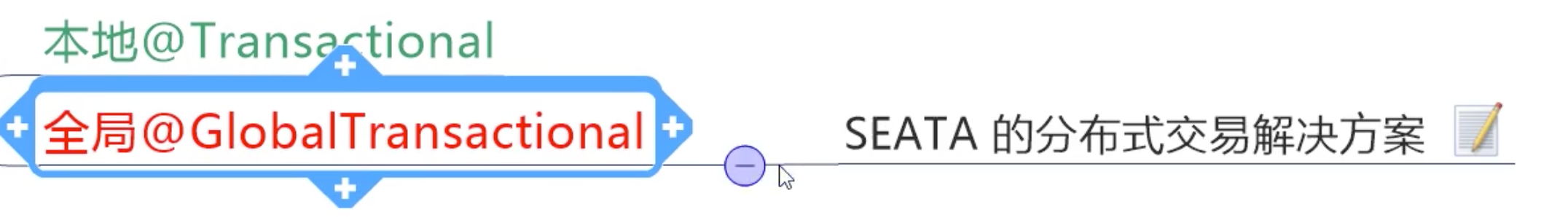

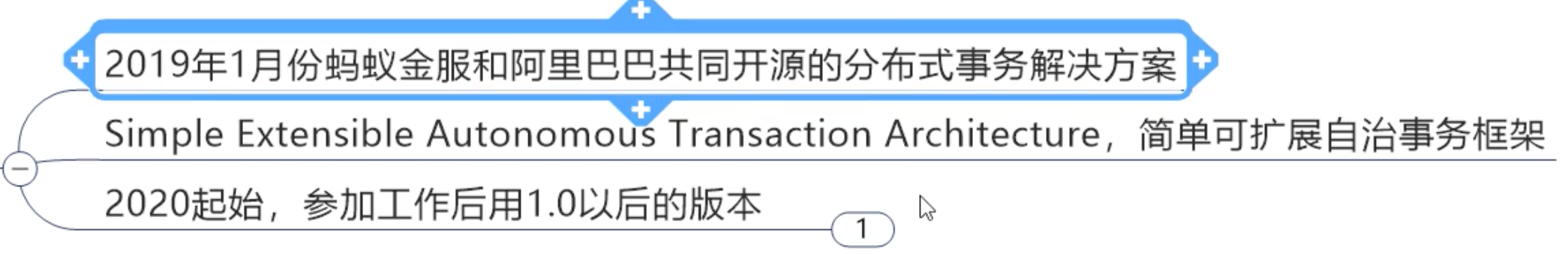

Seata简介

官网：http://seata.io/zh-cn/

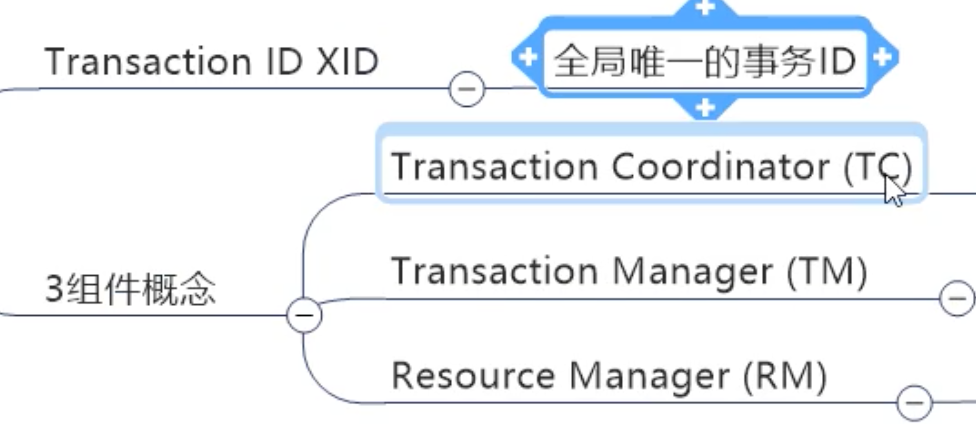

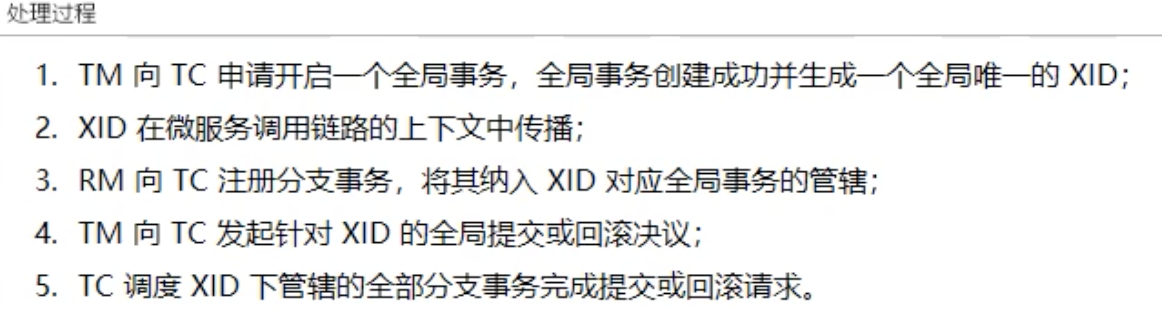

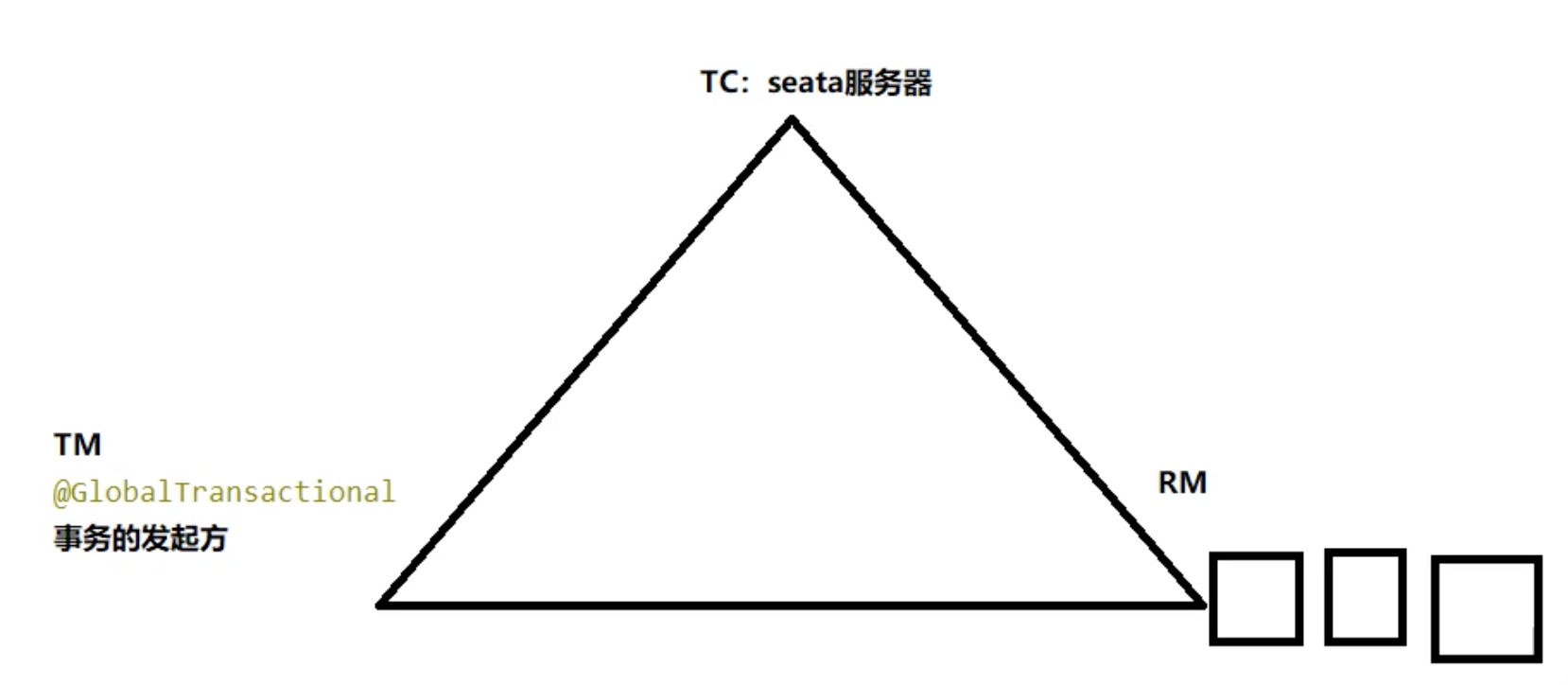

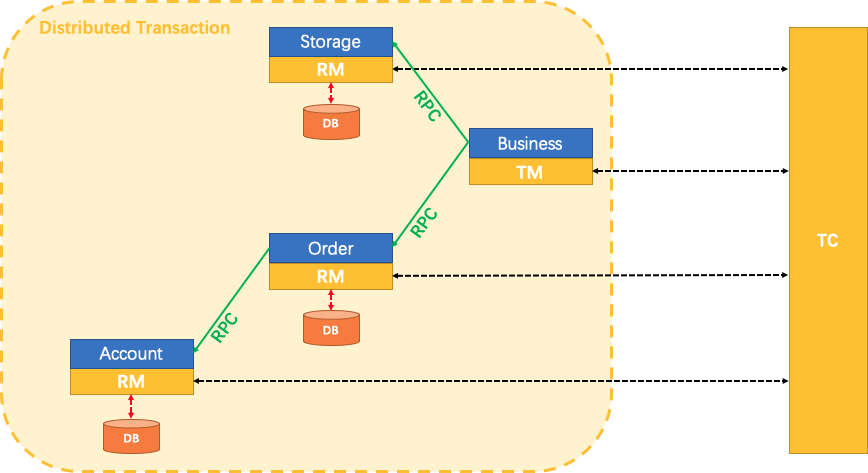

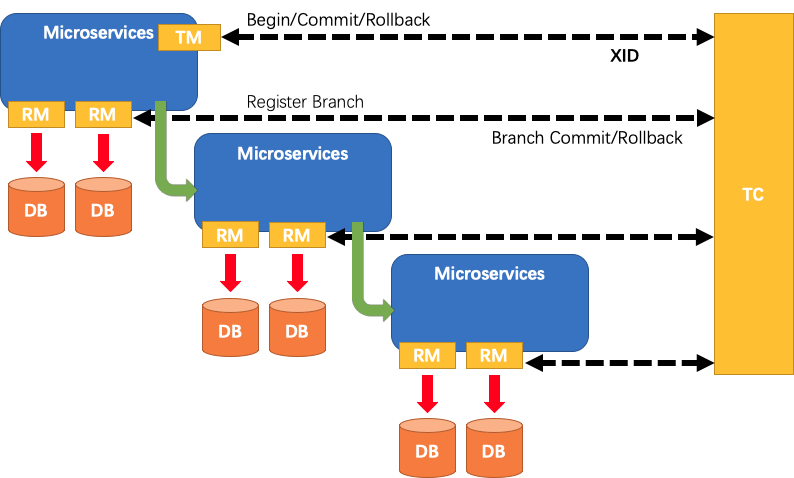

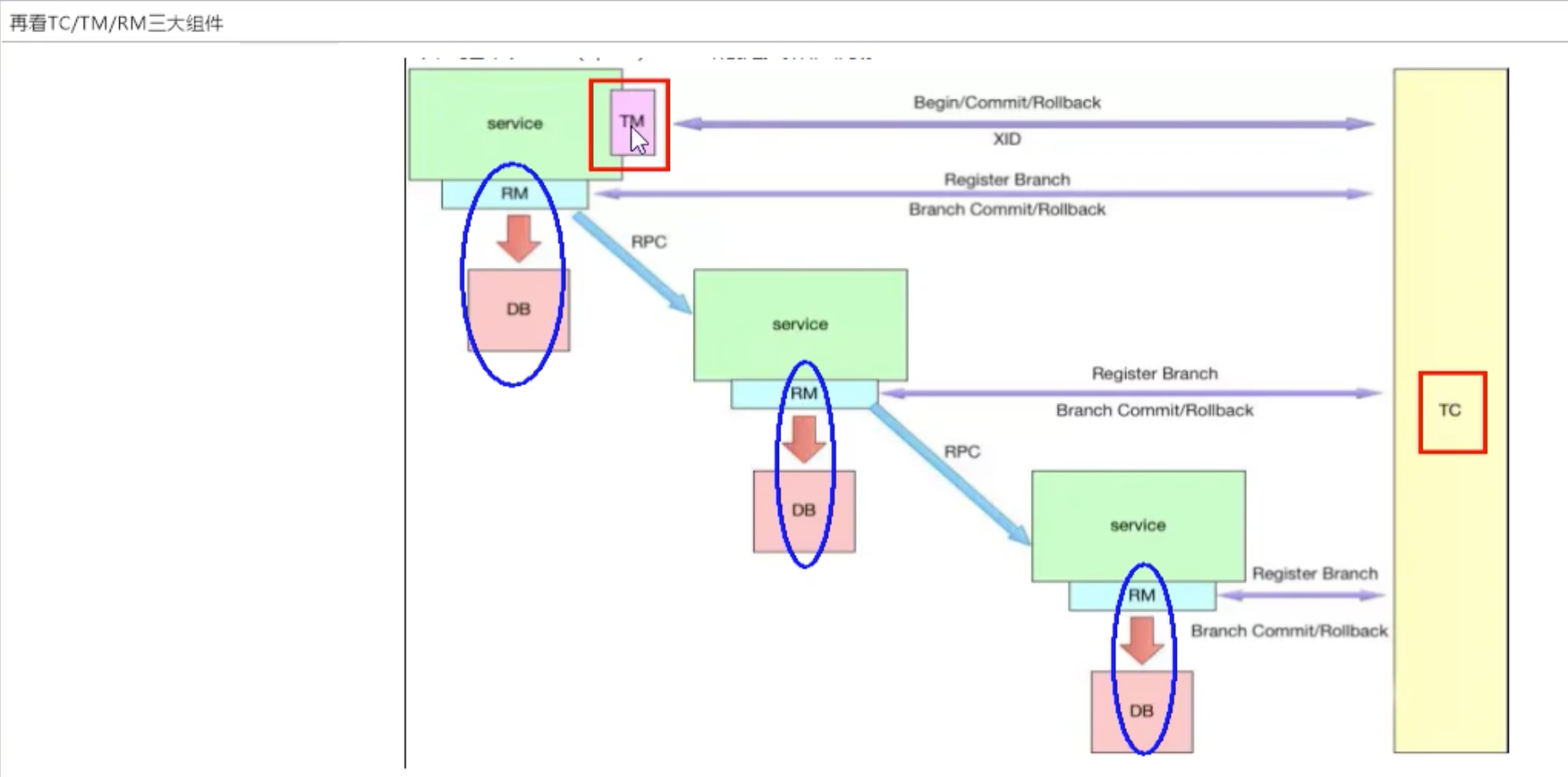

TC决策，XID联系上下文身份，RM注册联系XID，TM发起意见

---

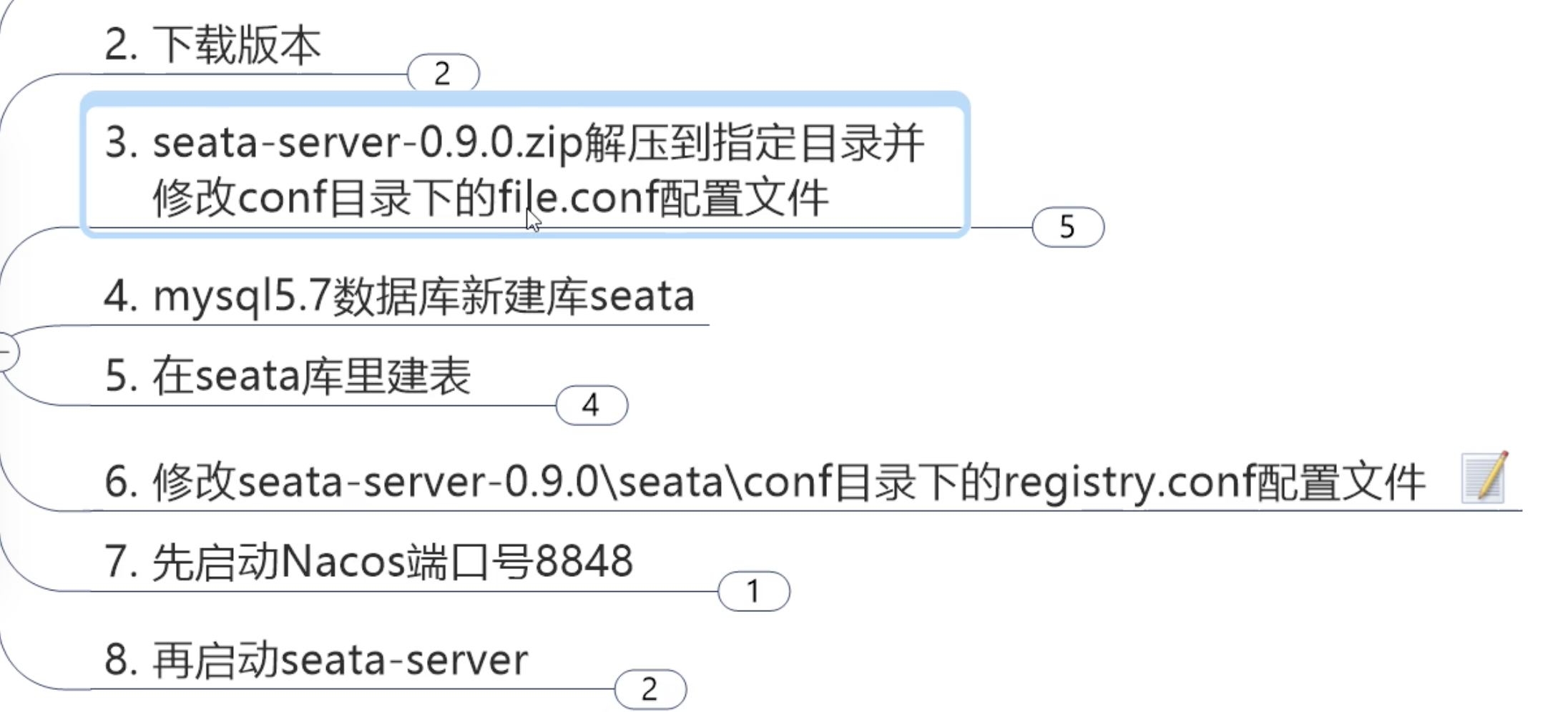

Seata-Server安装

下载：https://github.com/seata/seata/releases

---

需要注意阿昌这里使用的是1.0版本，在conf目录下没有sql语句

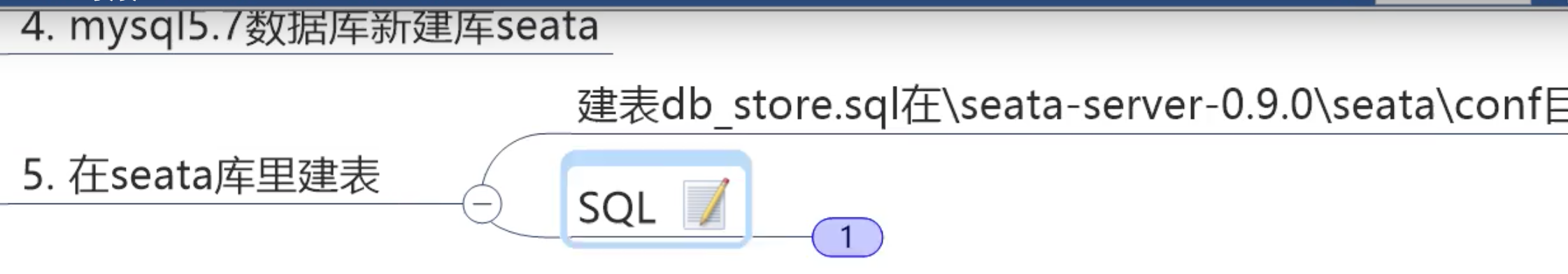

需要在连接的mysql数据库下创建一张名为：seata的库，并创建相关表

CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(96),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_branch_id` (`branch_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

不然打开seata-server.bat会闪退。

闪退还有两种解决方案：

https://www.pianshen.com/article/34321640579/

数据库建库建表
mysql8的同学需要修改file.conf的驱动配置store.db.driver-class-name；并lib目录下删除mysql5驱动，添加mysql8驱动。

启动nacos

启动seata

---

docker下载安装

mysql5.6：

#启动数据库容器（注意，我这里数据库暴露的是3305端口）
docker start 数据库容器ID
#docker run -p 3305:3306 --name mysql5.6 -e MYSQL_ROOT_PASSWORD=123456 -d mysql:5.6

#进入mysql5.6容器
docker exec -it 容器ID /bin/bash

#进入mysql
mysql -uroot -p123456  --default-character-set=utf8

#创建seata数据库
create database seata character set utf8;
use seata;

#创建seata数据库需要的表（三张表）
CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(96),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_branch_id` (`branch_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

#因为之前已经弄过了nacos的持久化，已建了nacos_config数据库了，所以这里就不再赘述。

#退出数据库
exit

#退出容器
exit

nacos1.3：

#启动nacos
docker start nacos容器ID
#docker run --env MODE=standalone --name mynacos -d -p 8848:8848 -e MYSQL_SERVICE_HOST=10.211.55.26  -e MYSQL_SERVICE_PORT=3305  -e MYSQL_SERVICE_DB_NAME=nacos_config  -e MYSQL_SERVICE_USER=root  -e MYSQL_SERVICE_PASSWORD=123456  -e SPRING_DATASOURCE_PLATFORM=mysql  -e MYSQL_DATABASE_NUM=1 nacos/nacos-server

seata：

#拉取seata镜像（此时最新版为1.2）
docker pull seataio/seata-server

#运行seata
docker run --name myseata -d -h 10.211.55.26 -p 8091:8091 seataio/seata-server

#进入seata容器
docker exec -it 容器ID /bin/bash
cd resources
#因为容器没有装vim，所以我们要先安装vim
apt-get update
apt-get install vim
#备份文件
cp file.conf file.conf.bk
cp registry.conf registry.conf.bk

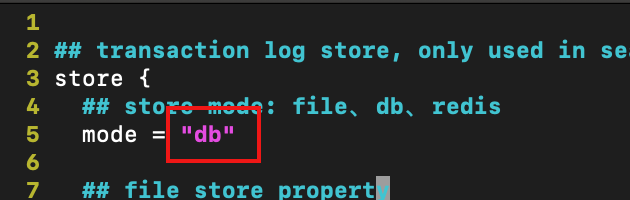

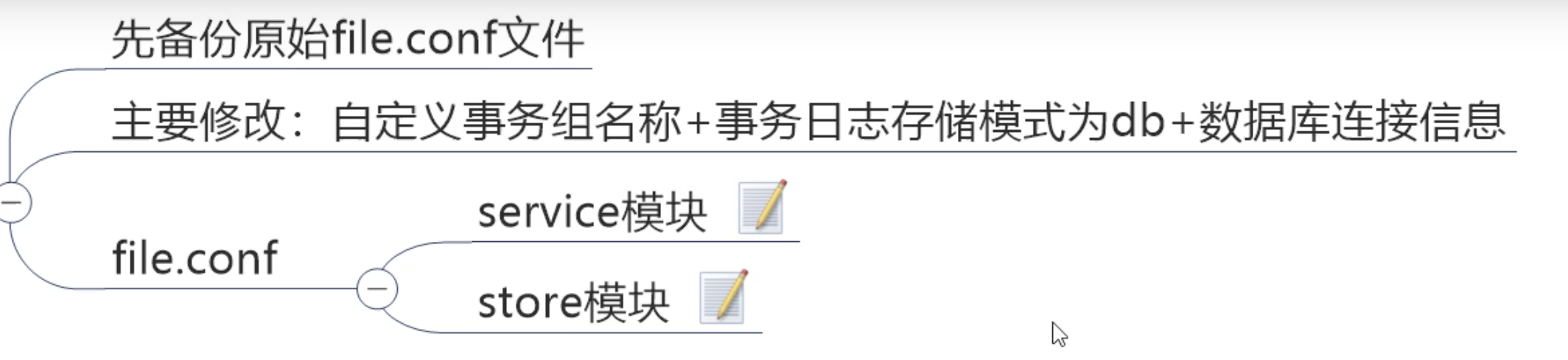

#修改file.conf文件（看下图）
vim file.conf
#seata1.2的file.conf里没有service模块，store的mode支持了redis
#mysql8的同学需要修改file.conf的驱动配置store.db.driver-class-name；并lib目录下删除mysql5驱动，添加mysql8驱动。
#按esc键然后:wq!退出

#修改文件（看下图）
vim registry.conf
#按esc键然后:wq!退出

#退出容器
exit

#重启容器
docker restart seata容器ID

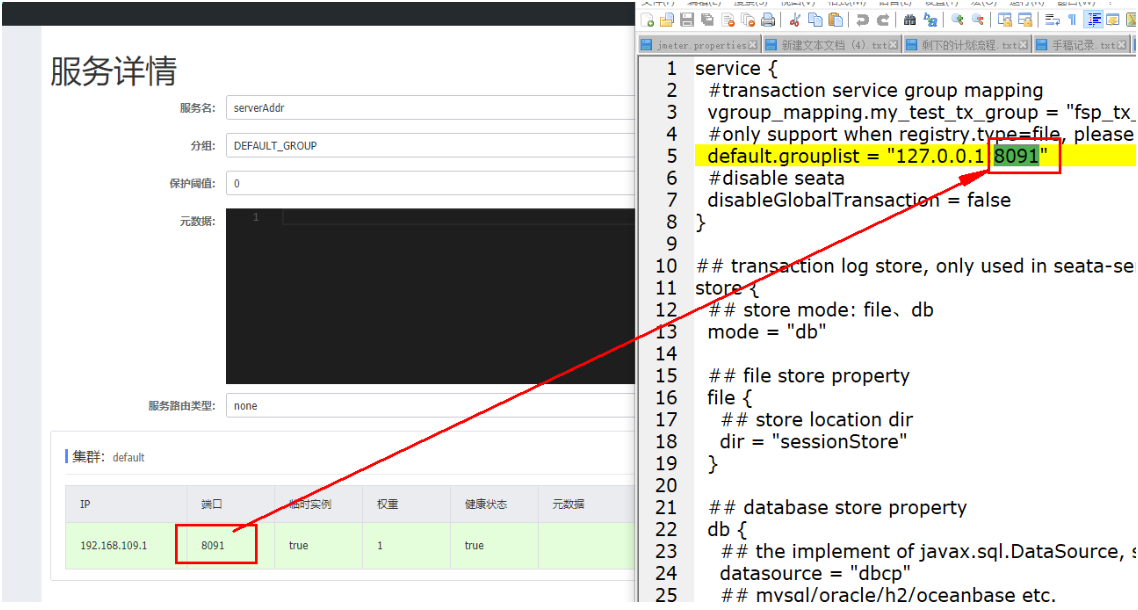

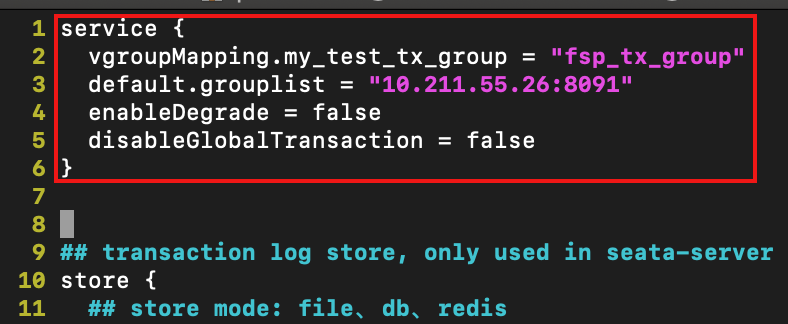

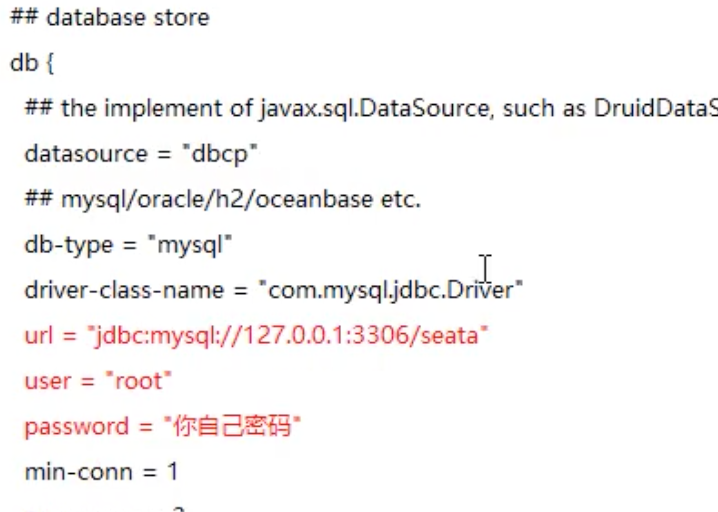

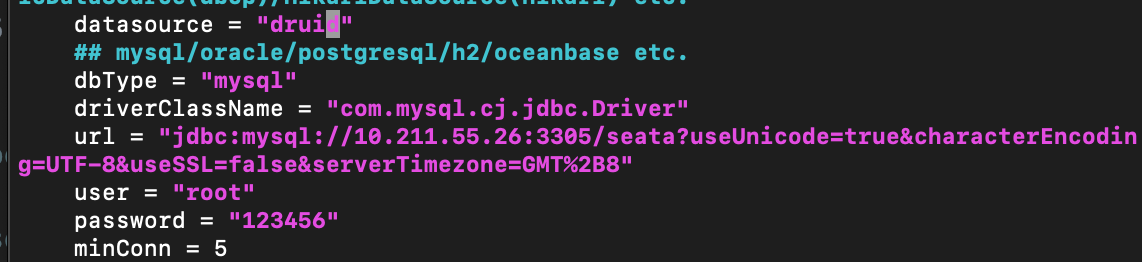

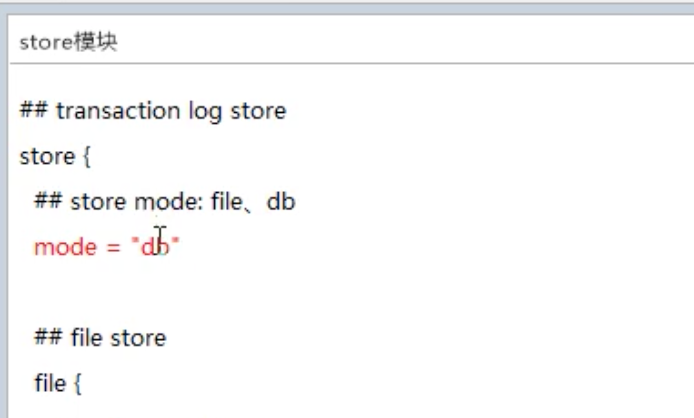

file.conf

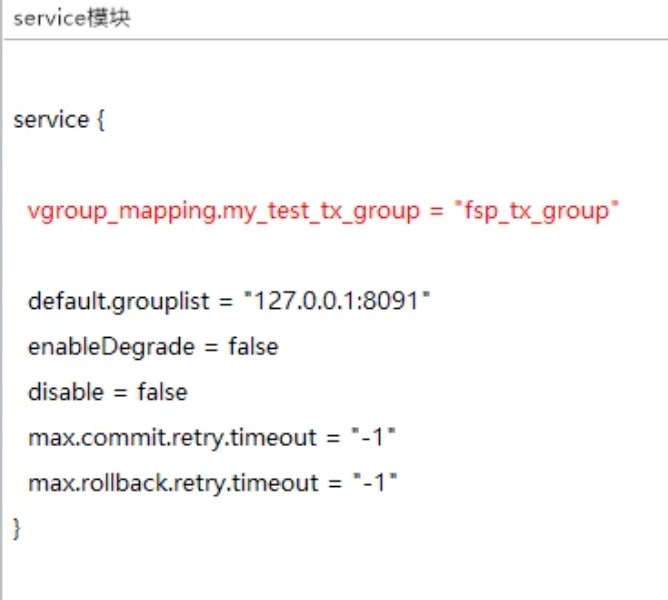

#service {


#  vgroupMapping.my_test_tx_group = "fsp_tx_group"
#  default.grouplist = "10.211.55.26:8091"
#  enableDegrade = false
#  disableGlobalTransaction = false
#}

jdbc:mysql://10.211.55.26:3305/seata_order?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=GMT%2B8

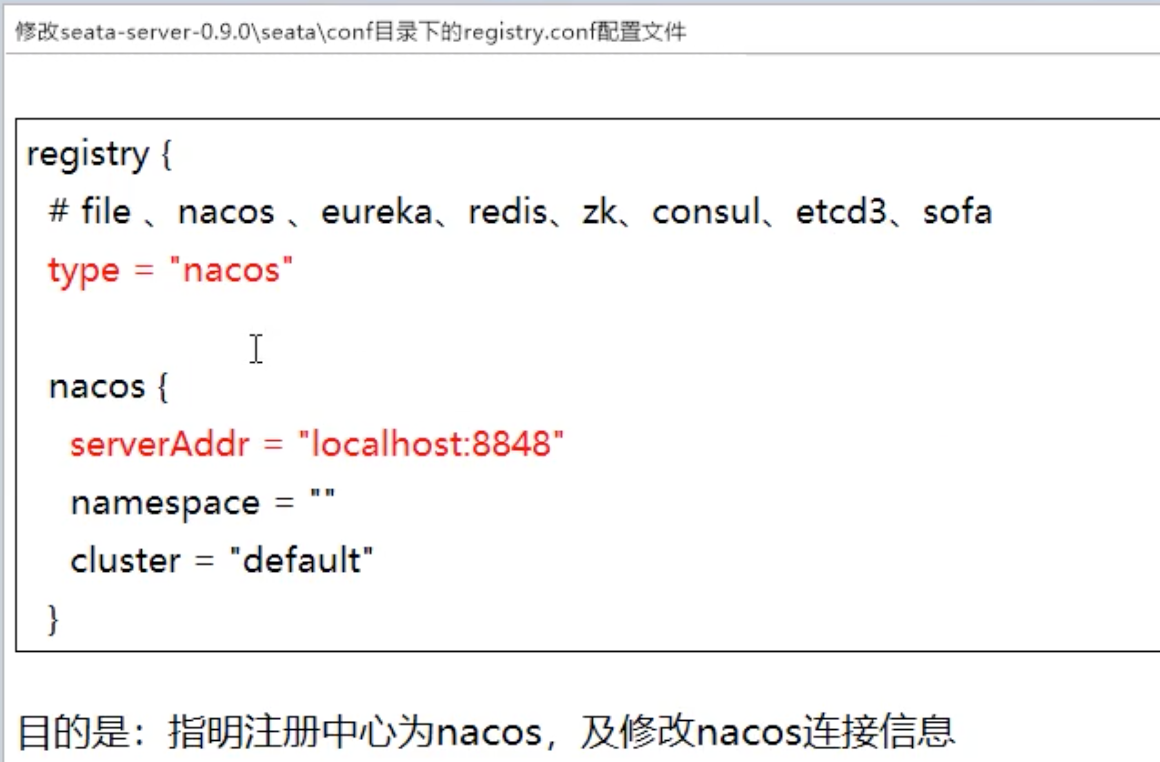

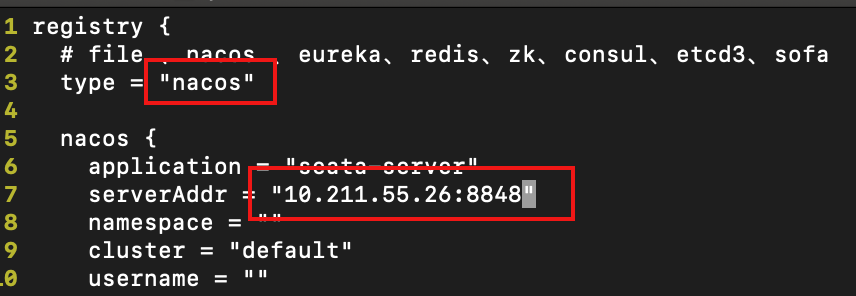

registry.conf

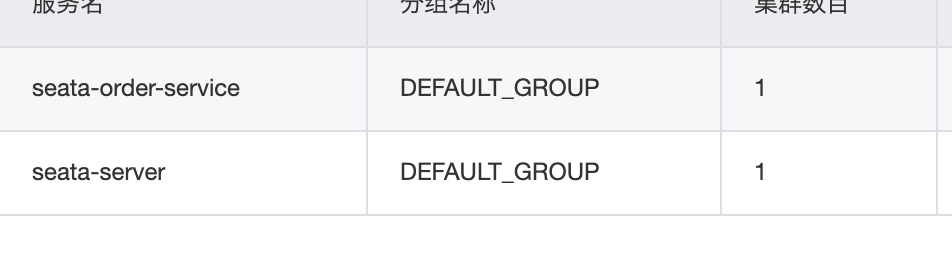

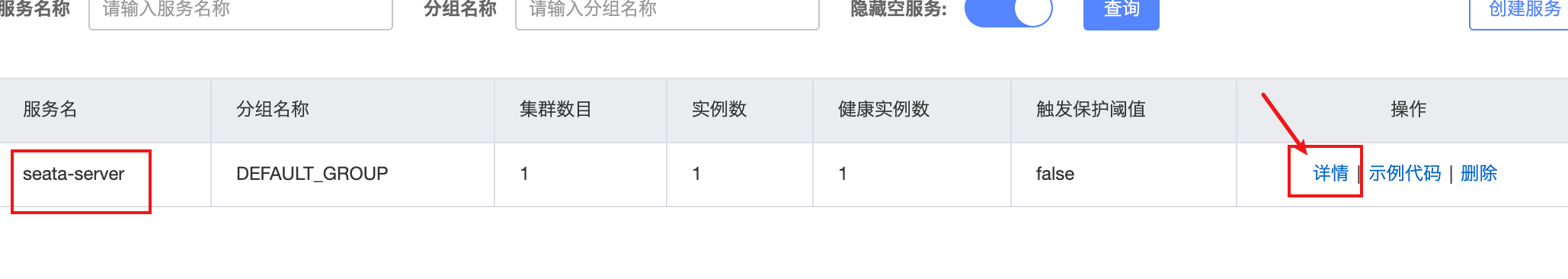

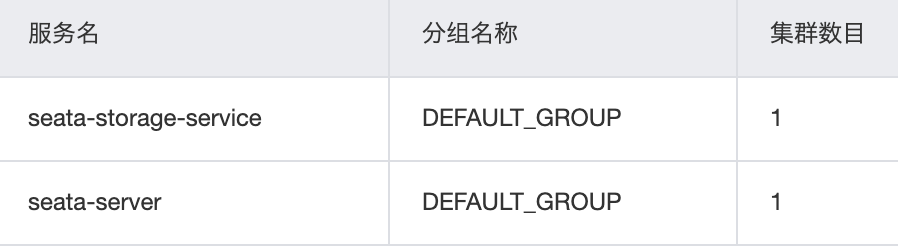

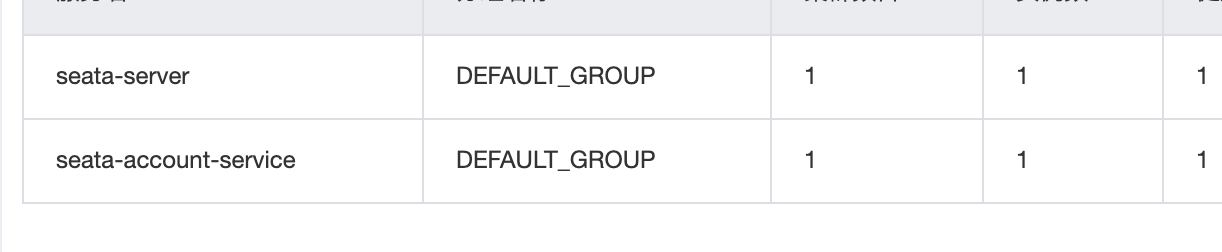

http://localhost:8848/nacos，到nacos后台看seata是否成功注册进nacos。

查看注册进nacos的seata信息是否正确。

---

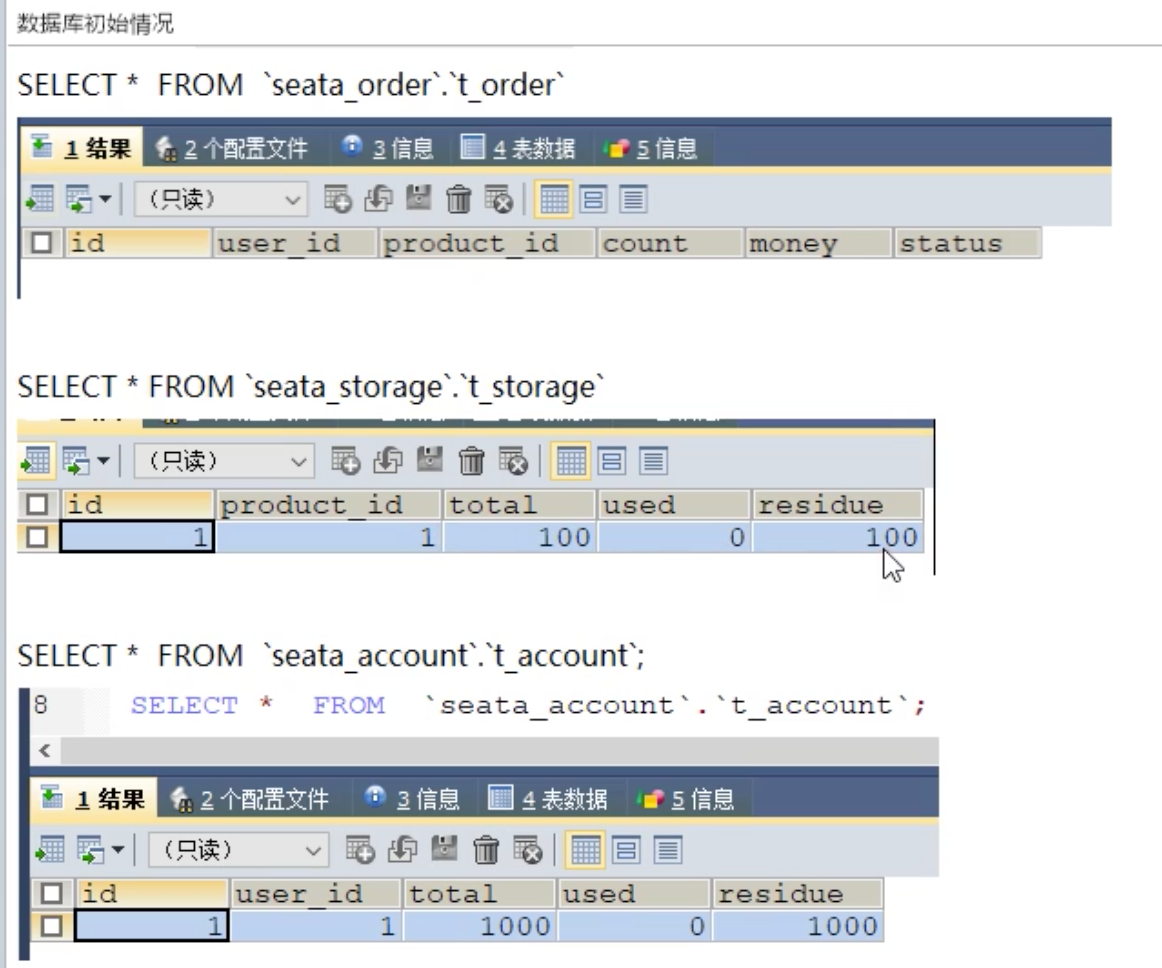

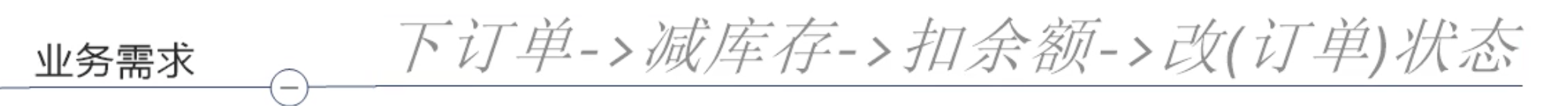

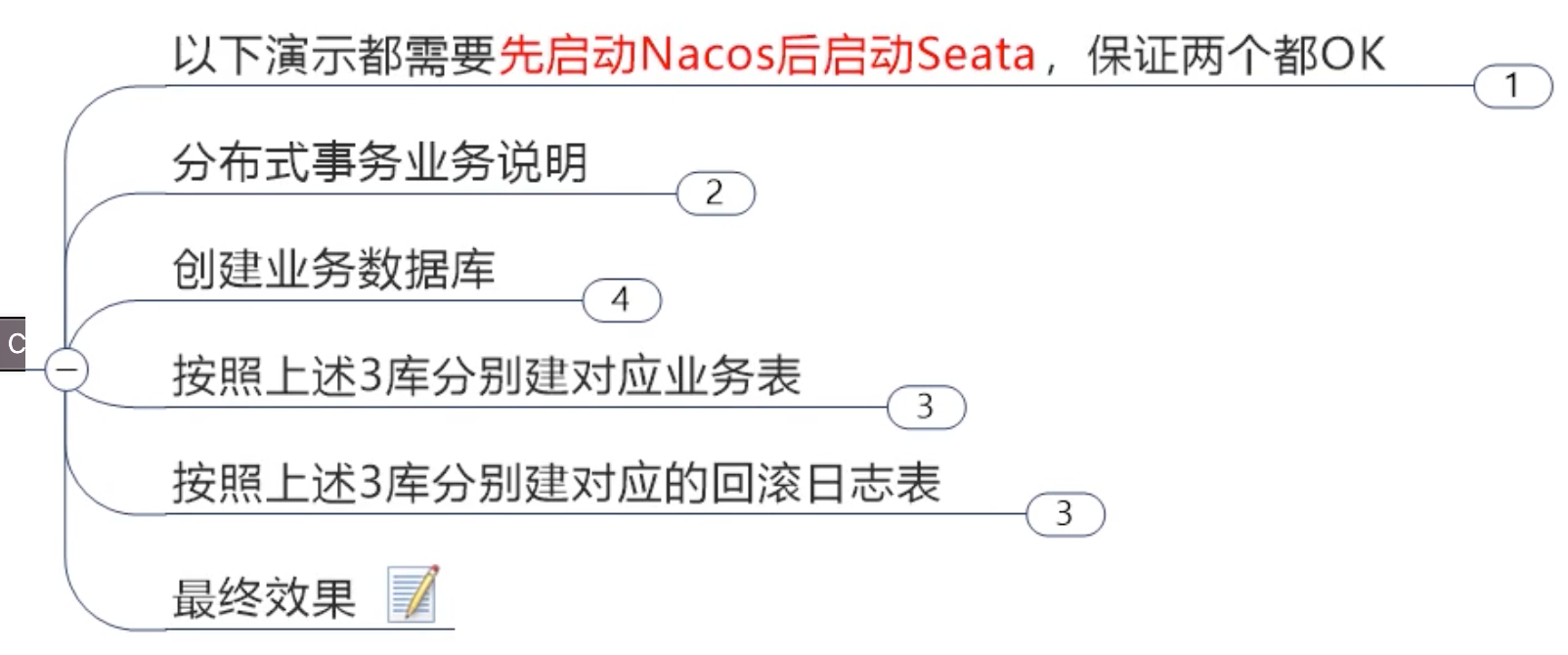

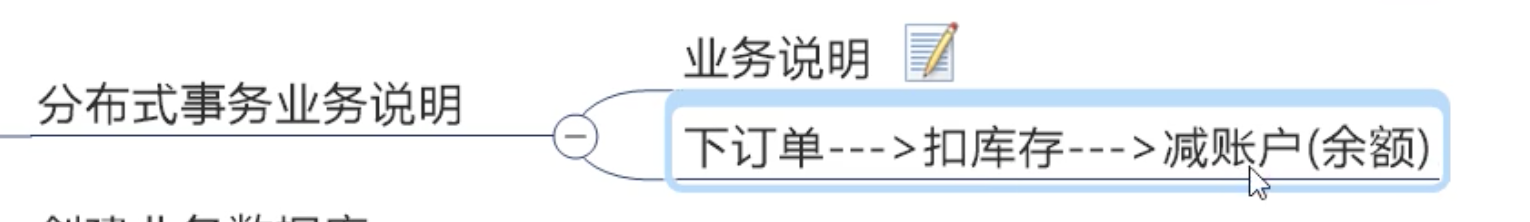

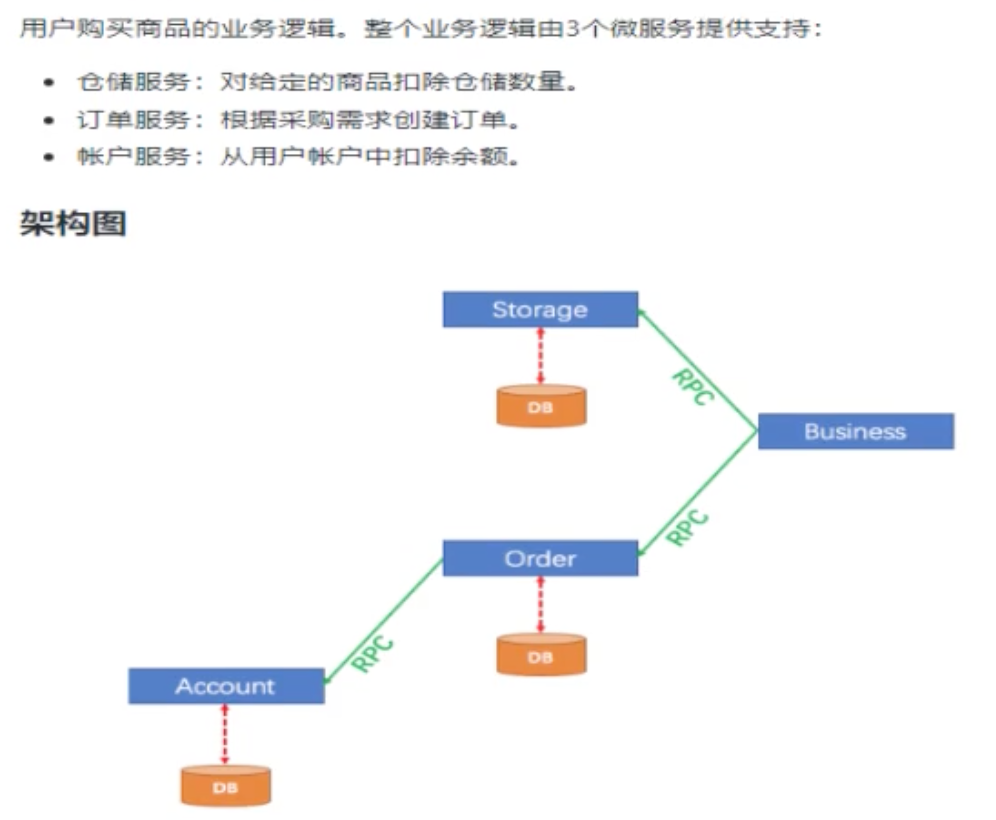

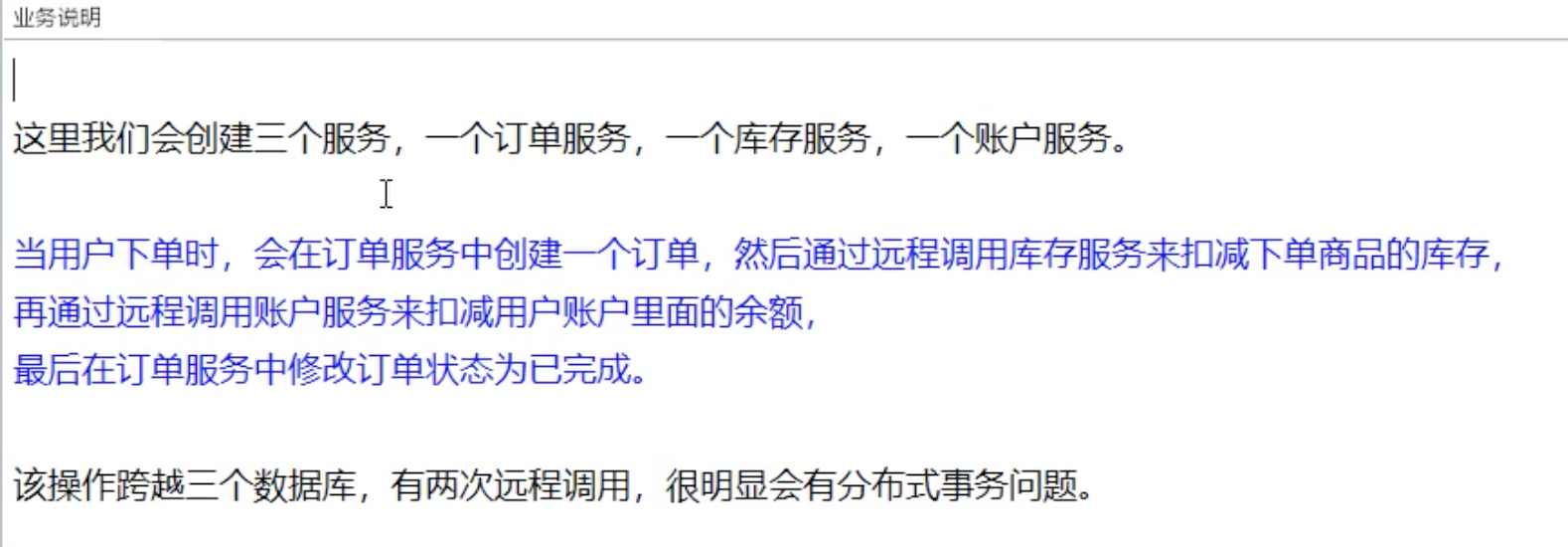

订单/库存/账户业务数据库准备

---

一般流程：

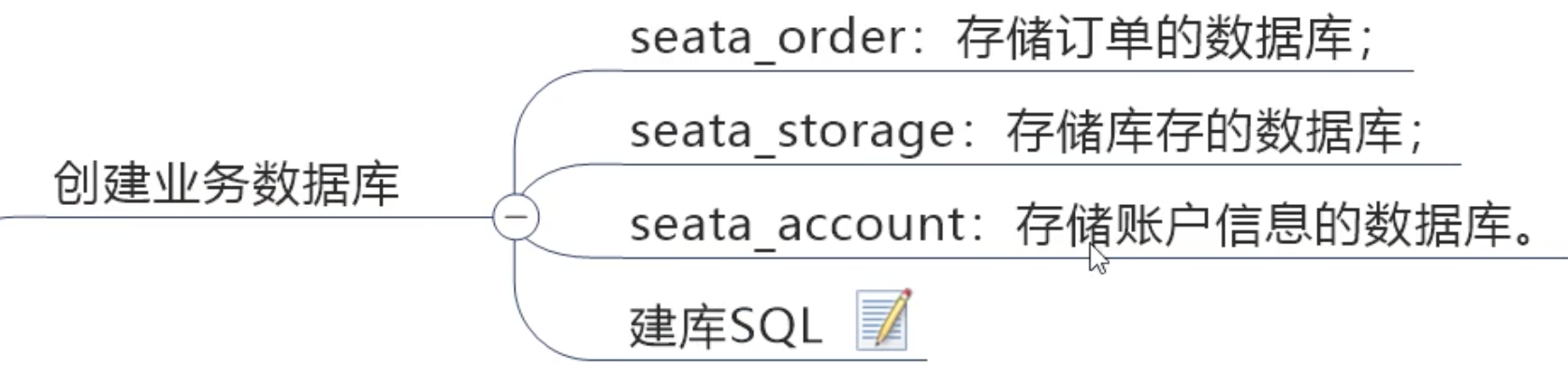

• 创建数据库

create database seata_order;
create database seata_storage;
create database seata_account;

• 创建对应的表【订单表、库存表、账户业务表】

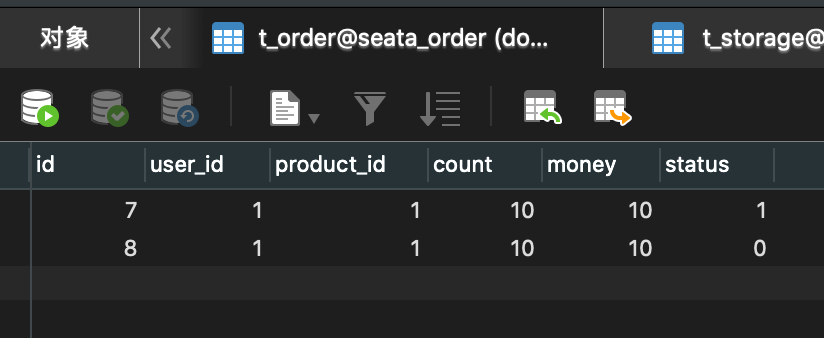

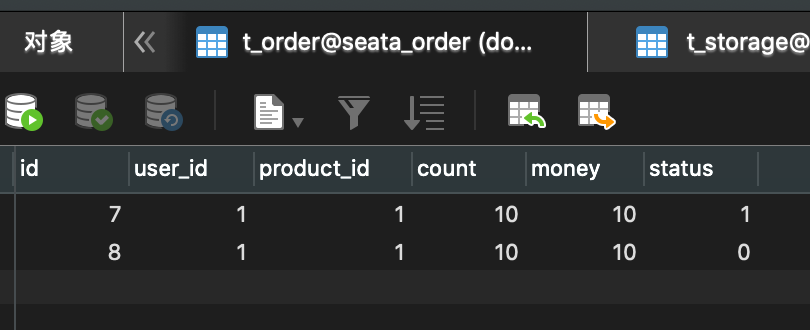

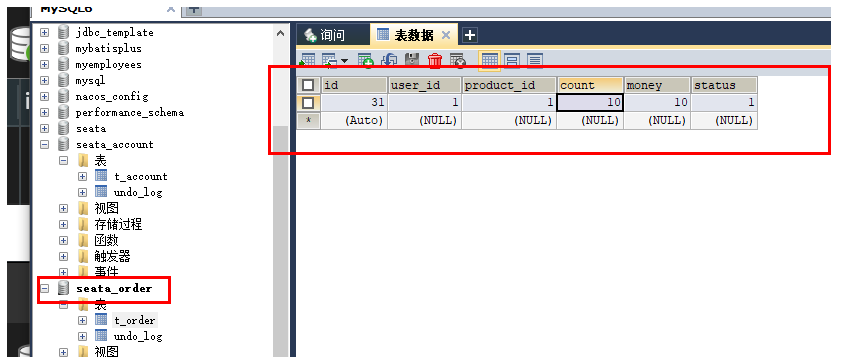

seata_order：订单表

CREATE TABLE t_order(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
`product_id` BIGINT(11)DEFAULT NULL COMMENT '产品id',
`count` INT(11) DEFAULT NULL COMMENT '数量',
`money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
`status` INT(1) DEFAULT NULL COMMENT '订单状态: 0:创建中; 1:已完结'
)ENGINE=INNODB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

select * from t_order;

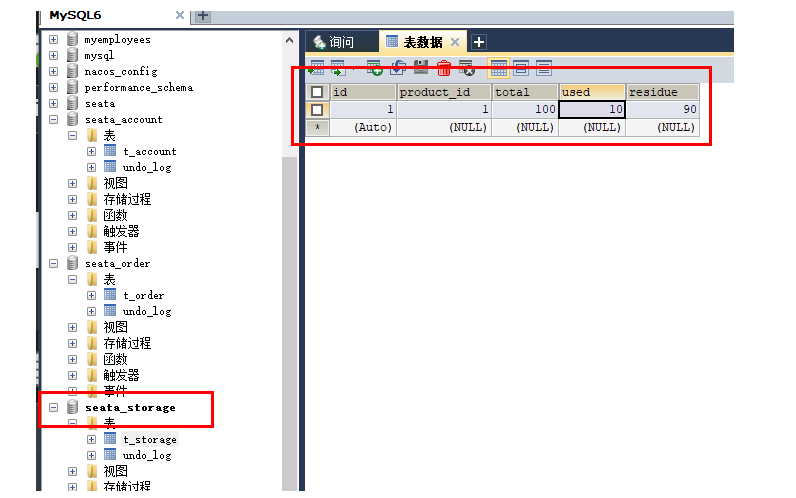

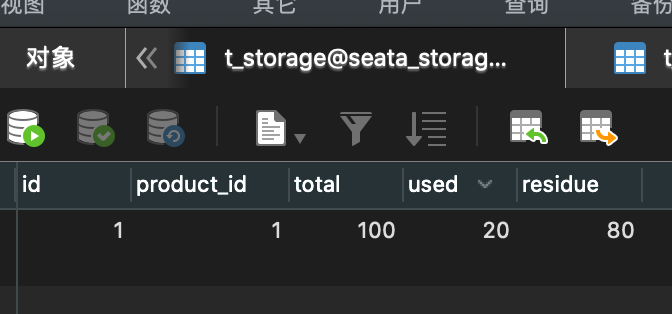

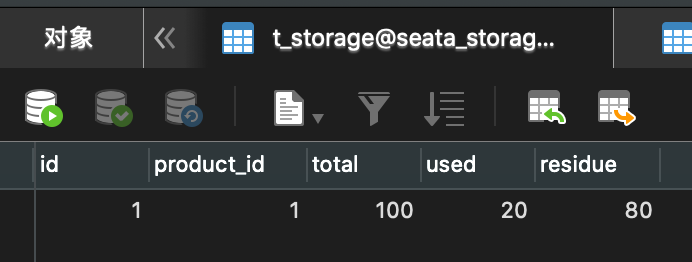

seata_storage：库存表

CREATE TABLE t_storage(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
`total` INT(11) DEFAULT NULL COMMENT '总库存',
`used` INT(11) DEFAULT NULL COMMENT '已用库存',
`residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
)ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO t_storage(`id`,`product_id`,`total`,`used`,`residue`)VALUES('1','1','100','0','100');

SELECT * FROM t_storage;

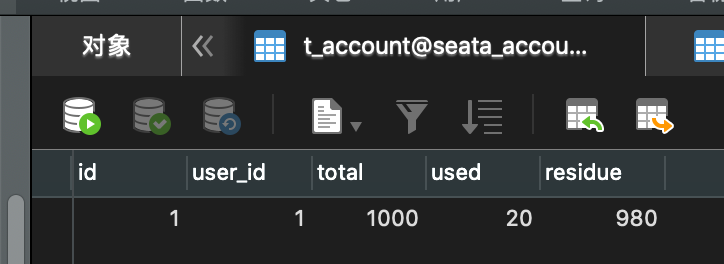

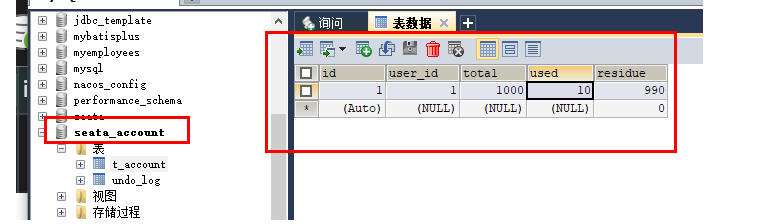

seata_account：账户业务表

CREATE TABLE t_account(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
`total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
`used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
`residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
)ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO t_account(`id`,`user_id`,`total`,`used`,`residue`)VALUES('1','1','1000','0','1000');

SELECT * FROM t_account;

• 创建对应的回滚日志表undo_log

seata_account：seata_storage、seata_order：

CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';

---

docker流程：

#进入mysql5.6容器
docker exec -it 容器ID /bin/bash

#进入mysql
mysql -uroot -p123456  --default-character-set=utf8

#创建业务数据库和对应的业务表

#order
create database seata_order;

use seata_order;

CREATE TABLE t_order(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
`product_id` BIGINT(11)DEFAULT NULL COMMENT '产品id',
`count` INT(11) DEFAULT NULL COMMENT '数量',
`money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
`status` INT(1) DEFAULT NULL COMMENT '订单状态: 0:创建中; 1:已完结'
)ENGINE=INNODB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

select * from t_order;

CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';


#storage
create database seata_storage;

use seata_storage;

CREATE TABLE t_storage(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
`total` INT(11) DEFAULT NULL COMMENT '总库存',
`used` INT(11) DEFAULT NULL COMMENT '已用库存',
`residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
)ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO t_storage(`id`,`product_id`,`total`,`used`,`residue`)VALUES('1','1','100','0','100');

SELECT * FROM t_storage;

CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';


#account
create database seata_account;

use seata_account;

CREATE TABLE t_account(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
`total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
`used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
`residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
)ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO t_account(`id`,`user_id`,`total`,`used`,`residue`)VALUES('1','1','1000','0','1000');

SELECT * FROM t_account;

CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';


#退出mysql
exit

#退出容器
exit

---

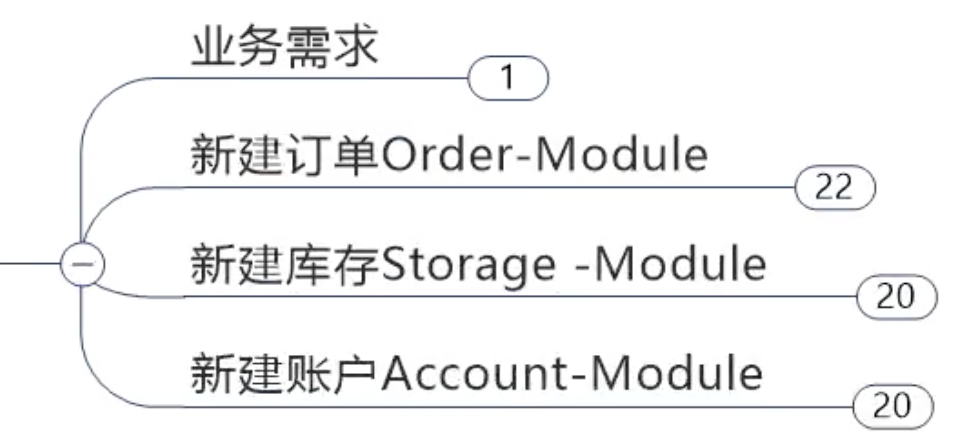

订单/库存/账户业务微服务准备

---

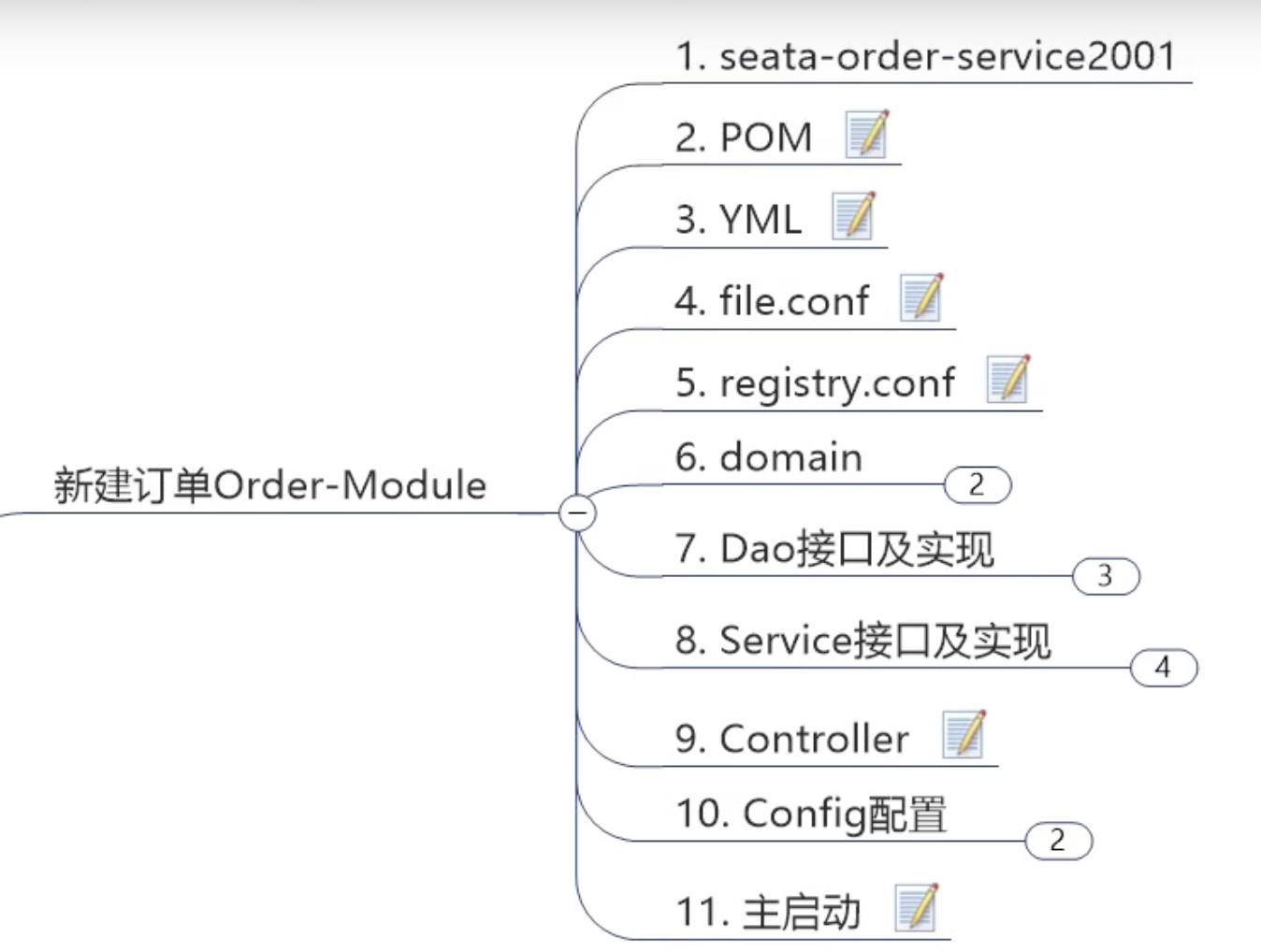

订单模块

1. 新建模块seata-order-service2001

2. pom

   <dependencies>
       <!-- nacos -->
       <dependency>
           <groupId>com.alibaba.cloud</groupId>
           <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
       </dependency>
       <!-- seata-->
       <dependency>
           <groupId>com.alibaba.cloud</groupId>
           <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
           <exclusions>
               <exclusion>
                   <groupId>io.seata</groupId>
                   <artifactId>seata-all</artifactId>
               </exclusion>
           </exclusions>
       </dependency>
       <dependency>
           <groupId>io.seata</groupId>
           <artifactId>seata-all</artifactId>
           <version>1.0.0</version>
       </dependency>
       <dependency>
           <groupId>org.springframework.cloud</groupId>
           <artifactId>spring-cloud-starter-openfeign</artifactId>
       </dependency>
               <dependency>
           <groupId>org.mybatis.spring.boot</groupId>
           <artifactId>mybatis-spring-boot-starter</artifactId>
       </dependency>
       <dependency>
           <groupId>com.alibaba</groupId>
           <artifactId>druid-spring-boot-starter</artifactId>
       </dependency>
       <dependency>
           <groupId>mysql</groupId>
           <artifactId>mysql-connector-java</artifactId>
       </dependency>
       <!--jdbc-->
       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-jdbc</artifactId>
       </dependency>
       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-web</artifactId>
       </dependency>
       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-actuator</artifactId>
       </dependency>
       <dependency>
           <groupId>org.projectlombok</groupId>
           <artifactId>lombok</artifactId>
           <optional>true</optional>
       </dependency>
       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-test</artifactId>
           <scope>test</scope>
       </dependency>
   </dependencies>


3. yml

   server:
     port: 2001

   spring:
     application:
       name: seata-order-service
     cloud:
       alibaba:
         seata:
           #自定义事务组名称需要与seata-server中的对应
           tx-service-group: fsp_tx_group
       nacos:
         discovery:
           server-addr: localhost:8848
     datasource:
       driver-class-name: com.mysql.jdbc.Driver
       url: jdbc:mysql://localhost:3306/seata_order
       username: "root"
       password: "00000"

   feign:
     hystrix:
       enabled: false

   logging:
     level:
       io:
         seata: info

   mybatis:
     mapperLocations: classpath:mapper/*.xml


4. file.conf

   transport {


     # tcp udt unix-domain-socket
     type = "TCP"
     #NIO NATIVE
     server = "NIO"
     #enable heartbeat
     heartbeat = true
     #thread factory for netty
     thread-factory {


       boss-thread-prefix = "NettyBoss"
       worker-thread-prefix = "NettyServerNIOWorker"
       server-executor-thread-prefix = "NettyServerBizHandler"
       share-boss-worker = false
       client-selector-thread-prefix = "NettyClientSelector"
       client-selector-thread-size = 1
       client-worker-thread-prefix = "NettyClientWorkerThread"
       # netty boss thread size,will not be used for UDT
       boss-thread-size = 1
       #auto default pin or 8
       worker-thread-size = 8
     }
     shutdown {


       # when destroy server, wait seconds
       wait = 3
     }
     serialization = "seata"
     compressor = "none"
   }

   service {



     vgroup_mapping.fsp_tx_group = "default" #修改自定义事务组名称

     default.grouplist = "127.0.0.1:8091"
     enableDegrade = false
     disable = false
     max.commit.retry.timeout = "-1"
     max.rollback.retry.timeout = "-1"
     disableGlobalTransaction = false
   }


   client {


     async.commit.buffer.limit = 10000
     lock {


       retry.internal = 10
       retry.times = 30
     }
     report.retry.count = 5
     tm.commit.retry.count = 1
     tm.rollback.retry.count = 1
   }

   ## transaction log store
   store {


     ## store mode: file、db
     mode = "db"

     ## file store
     file {


       dir = "sessionStore"

       # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
       max-branch-session-size = 16384
       # globe session size , if exceeded throws exceptions
       max-global-session-size = 512
       # file buffer size , if exceeded allocate new buffer
       file-write-buffer-cache-size = 16384
       # when recover batch read size
       session.reload.read_size = 100
       # async, sync
       flush-disk-mode = async
     }

     ## database store
     db {


       ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
       datasource = "dbcp"
       ## mysql/oracle/h2/oceanbase etc.
       db-type = "mysql"
       driver-class-name = "com.mysql.jdbc.Driver"
       url = "jdbc:mysql://127.0.0.1:3306/seata"
       user = "root"
       password = "00000"
       min-conn = 1
       max-conn = 3
       global.table = "global_table"
       branch.table = "branch_table"
       lock-table = "lock_table"
       query-limit = 100
     }
   }
   lock {


     ## the lock store mode: local、remote
     mode = "remote"

     local {


       ## store locks in user's database
     }

     remote {


       ## store locks in the seata's server
     }
   }
   recovery {


     #schedule committing retry period in milliseconds
     committing-retry-period = 1000
     #schedule asyn committing retry period in milliseconds
     asyn-committing-retry-period = 1000
     #schedule rollbacking retry period in milliseconds
     rollbacking-retry-period = 1000
     #schedule timeout retry period in milliseconds
     timeout-retry-period = 1000
   }

   transaction {


     undo.data.validation = true
     undo.log.serialization = "jackson"
     undo.log.save.days = 7
     #schedule delete expired undo_log in milliseconds
     undo.log.delete.period = 86400000
     undo.log.table = "undo_log"
   }

   ## metrics settings
   metrics {


     enabled = false
     registry-type = "compact"
     # multi exporters use comma divided
     exporter-list = "prometheus"
     exporter-prometheus-port = 9898
   }

   support {


     ## spring
     spring {


       # auto proxy the DataSource bean
       datasource.autoproxy = false
     }
   }




5. registry.conf

   registry {


     # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
     type = "nacos"

     nacos {


       serverAddr = "localhost:8848"
       namespace = ""
       cluster = "default"
     }
     eureka {


       serviceUrl = "http://localhost:8761/eureka"
       application = "default"
       weight = "1"
     }
     redis {


       serverAddr = "localhost:6379"
       db = "0"
     }
     zk {


       cluster = "default"
       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     consul {


       cluster = "default"
       serverAddr = "127.0.0.1:8500"
     }
     etcd3 {


       cluster = "default"
       serverAddr = "http://localhost:2379"
     }
     sofa {


       serverAddr = "127.0.0.1:9603"
       application = "default"
       region = "DEFAULT_ZONE"
       datacenter = "DefaultDataCenter"
       cluster = "default"
       group = "SEATA_GROUP"
       addressWaitTime = "3000"
     }
     file {


       name = "file.conf"
     }
   }

   config {


     # file、nacos 、apollo、zk、consul、etcd3
     type = "file"

     nacos {


       serverAddr = "localhost"
       namespace = ""
     }
     consul {


       serverAddr = "127.0.0.1:8500"
     }
     apollo {


       app.id = "seata-server"
       apollo.meta = "http://192.168.1.204:8801"
     }
     zk {


       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     etcd3 {


       serverAddr = "http://localhost:2379"
     }
     file {


       name = "file.conf"
     }
   }





6. domain
   CommonResult

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class CommonResult<T> {


       private Integer code;
       private String message;
       private T data;

       public CommonResult(Integer code, String message) {


           this(code, message, null);
       }
   }


   Order

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class Order {



       private Long id;

       private Long userId;

       private Long productId;

       private Integer count;

       private BigDecimal money;

       private Integer status; // 订单状态 0：创建中 1：已完结
   }


7. Dao

   @Mapper
   public interface OrderDao {



       //1 新建订单
       void create(Order order);

       //2 修改订单状态,从0改为1
       void update(@Param("userId") Long userId, @Param("status") Integer status);

   }


8. mapper
   OrderMapper.xml

   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
           "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
   <mapper namespace="com.achang.springcloud.dao.OrderDao">

       <resultMap id="BaseResultMap" type="com.achang.springcloud.domain.Order">
           <id column="id" property="id" jdbcType="BIGINT"/>
           <result column="user_id" property="userId" jdbcType="BIGINT"/>
           <result column="product_id" property="productId" jdbcType="BIGINT"/>
           <result column="count" property="count" jdbcType="INTEGER"/>
           <result column="money" property="money" jdbcType="DECIMAL"/>
           <result column="status" property="status" jdbcType="INTEGER"/>
       </resultMap>

       <insert id="create" parameterType="com.achang.springcloud.domain.Order"
               useGeneratedKeys="true" keyProperty="id">
           insert into t_order(`user_id`,`product_id`,`count`,`money`,`status`)
               VALUES (#{userId}, #{productId}, #{count}, #{money}, 0)
       </insert>

       <update id="update" parameterType="com.achang.springcloud.domain.Order">
           update t_order set `status`=1
           where `user_id`=#{userId} and `status`=#{status}
       </update>

   </mapper>


9. service
   StorageService

   @FeignClient(value = "seata-storage-service")
   public interface StorageService {


       @PostMapping(value = "/storage/decrease")
       CommonResult decrease(@RequestParam("productId")Long productId,@RequestParam("count")Integer count);
   }


   AccountService

   @FeignClient(value = "seata-account-service")
   public interface AccountService {


       @PostMapping(value = "/account/decrease")
       CommonResult decrease(@RequestParam("userId")Long userId,@RequestParam("money") BigDecimal money);




   OrderService

   public interface OrderService {


       public void  create(Order order);
   }


10. impl
    OderServiceImpl

    @Service
    @Slf4j
    public class OrderServiceImpl implements OrderService {



        @Resource
        private OrderDao orderDao;

        @Resource
        private StorageService storageService;

        @Resource
        private AccountService accountService;

        @Override
        /**

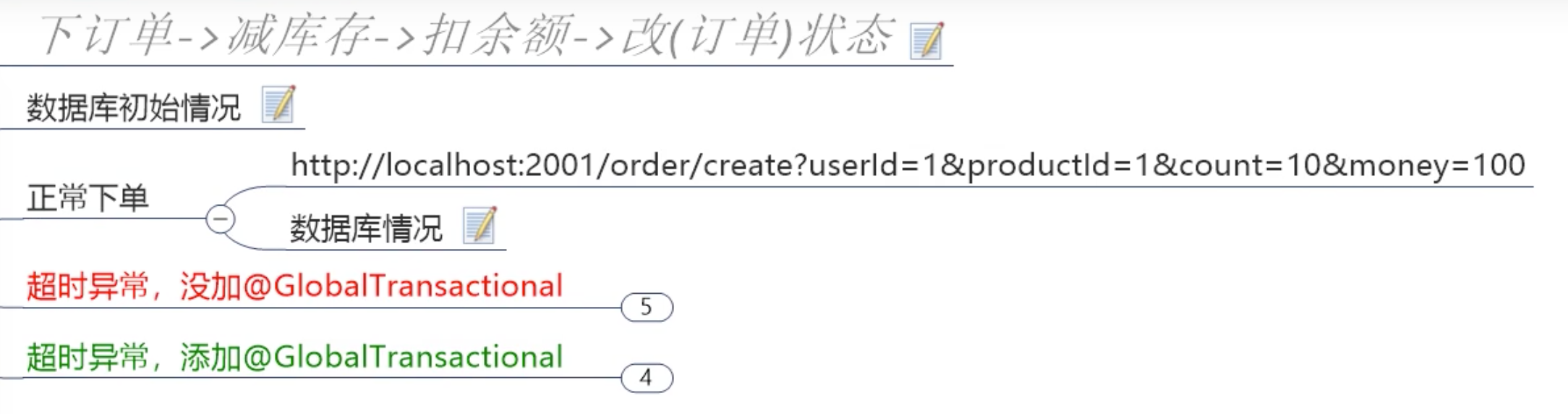

         * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
         * 简单说：下订单->扣库存->减余额->改状态
         */
        public void create(Order order) {

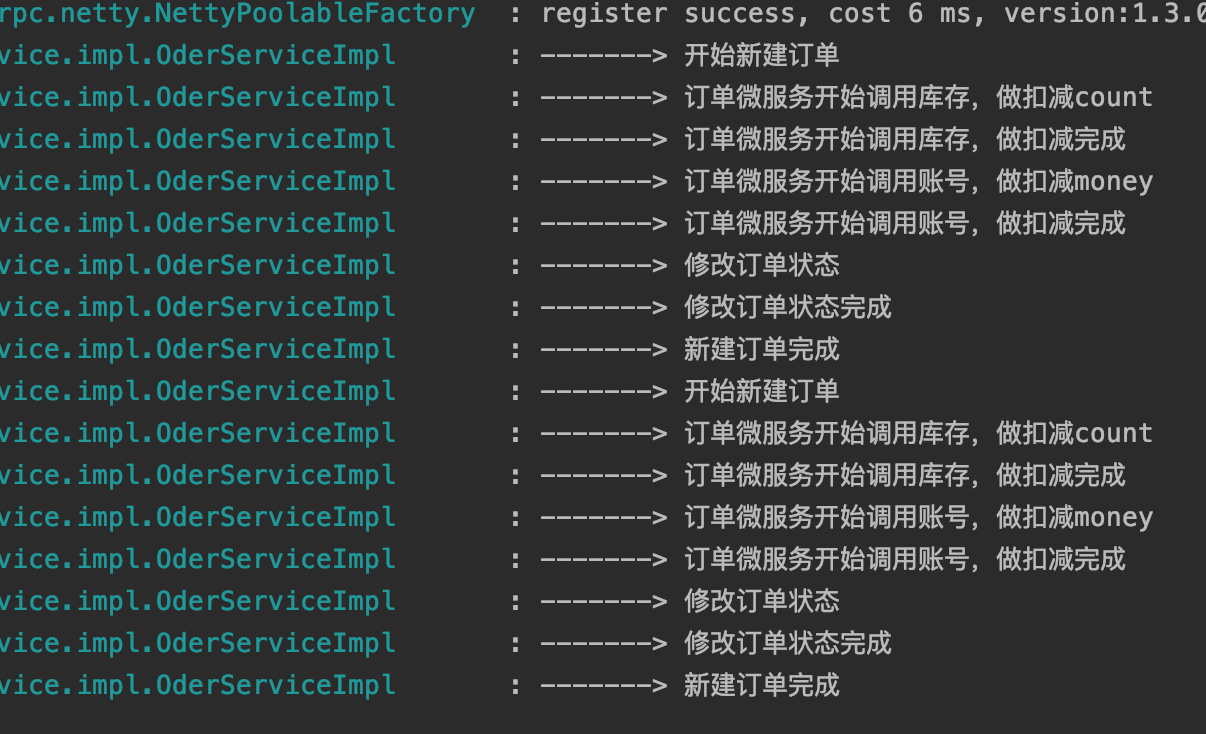

            log.info("--------开始【新建订单】");
            //1、新建订单
            orderDao.create(order);

            log.info("--------订单微服务开始调用【库存】，开始扣减库存数量");
            //2、扣减库存
            storageService.decrease(order.getProductId(),order.getCount());
            log.info("--------订单微服务开始调用【库存】，结束扣减库存数量");

            log.info("--------订单微服务开始调用【账户余额】，开始扣减钱");
            //3、扣减账户余额
            accountService.decrease(order.getUserId(),order.getMoney());
            log.info("--------订单微服务开始调用【账户余额】，结束扣减钱");

            //4、修改订单状态，从0到1，1代表已经完成
            log.info("--------修改订单状态开始");
            orderDao.update(order.getUserId(),0);
            log.info("--------修改订单状态完成");

            log.info("下订单结束了-----------------");
        }

    }


11. controller
    OrderController

    @RestController
    public class OrderController {


        @Autowired
        private OrderService orderService;

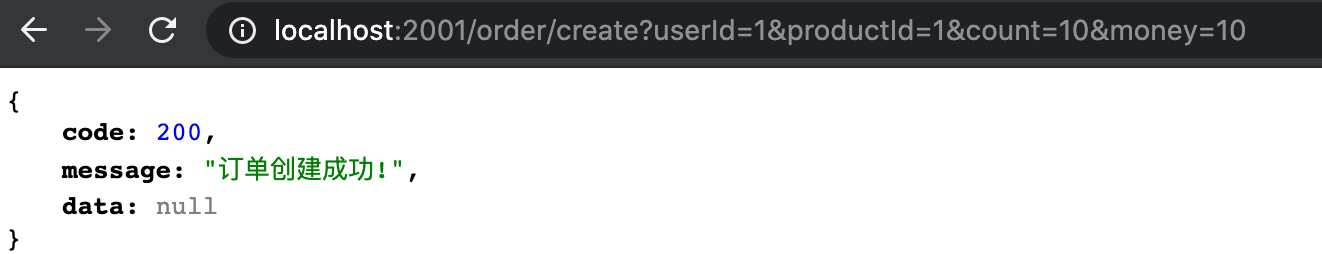

        @GetMapping("/order/create")
        public CommonResult create(Order order){


            orderService.create(order);
            return new CommonResult(200,"订单创建完成");
        }

    }


12. config
    MybatisConfig

    @MapperScan("com.achang.springcloud.dao")
    @Configuration
    public class MybatisConfig {


    }


    DataSourceProxyConfig

    package com.achang.springcloud.config;

    import com.alibaba.druid.pool.DruidDataSource;
    import io.seata.rm.datasource.DataSourceProxy;
    import org.apache.ibatis.session.SqlSessionFactory;
    import org.mybatis.spring.SqlSessionFactoryBean;
    import org.mybatis.spring.transaction.SpringManagedTransactionFactory;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.boot.context.properties.ConfigurationProperties;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

    import javax.sql.DataSource;

    //使用Seata对数据源进行代理
    @Configuration
    public class DataSourceProxyConfig {



        @Value("${mybatis.mapperLocations}")
        private String mapperLocations;

        @Bean
        @ConfigurationProperties(prefix = "spring.datasource")
        public DataSource druidDataSource() {


            return new DruidDataSource();
        }

        @Bean
        public DataSourceProxy dataSourceProxy(DataSource dataSource) {


            return new DataSourceProxy(dataSource);
        }

        @Bean
        public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {


            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSourceProxy);
            sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
            sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
            return sqlSessionFactoryBean.getObject();
        }

    }


13. 主启动类

    @SpringBootApplication(exclude = DataSourceAutoConfiguration.class) //取消数据源的自动创建
    @EnableDiscoveryClient
    @EnableFeignClients
    public class SeataOrderMain2001 {


        public static void main(String[] args) {


            SpringApplication.run(SeataOrderMain2001.class,args);
        }
    }

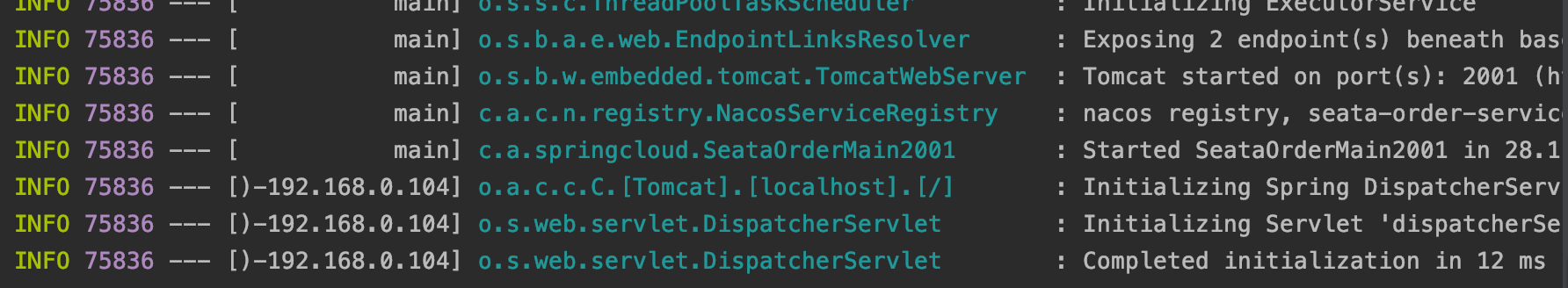

14. 启动2001


    官方列举的常见问题：https://seata.io/zh-cn/docs/overview/faq.html

---

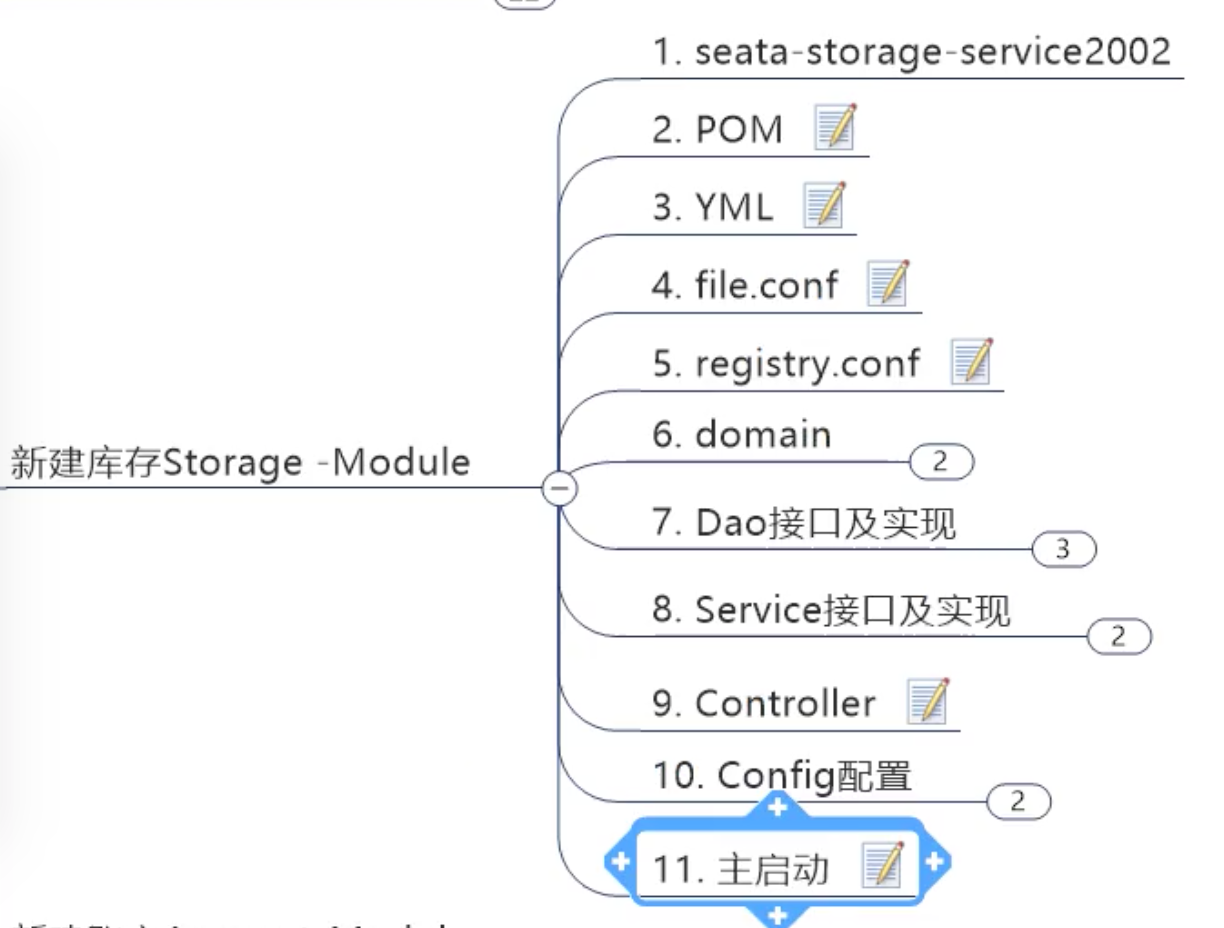

库存模块

1. 新建模块seata-storage-service2002

2. pom

   <dependencies>
           <!-- nacos -->
           <dependency>
               <groupId>com.alibaba.cloud</groupId>
               <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
           </dependency>
           <!-- seata-->
           <dependency>
               <groupId>com.alibaba.cloud</groupId>
               <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
               <exclusions>
                   <exclusion>
                       <groupId>io.seata</groupId>
                       <artifactId>seata-all</artifactId>
                   </exclusion>
               </exclusions>
           </dependency>
           <dependency>
               <groupId>io.seata</groupId>
               <artifactId>seata-all</artifactId>
               <!--指定与你使用的seata版本-->
               <version>1.0.0</version>
           </dependency>
           <dependency>
               <groupId>org.springframework.cloud</groupId>
               <artifactId>spring-cloud-starter-openfeign</artifactId>
           </dependency>
           <dependency>
               <groupId>org.mybatis.spring.boot</groupId>
               <artifactId>mybatis-spring-boot-starter</artifactId>
           </dependency>
           <dependency>
               <groupId>com.alibaba</groupId>
               <artifactId>druid-spring-boot-starter</artifactId>
           </dependency>
           <dependency>
               <groupId>mysql</groupId>
               <artifactId>mysql-connector-java</artifactId>
           </dependency>
           <!--jdbc-->
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-jdbc</artifactId>
           </dependency>
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-web</artifactId>
           </dependency>
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-actuator</artifactId>
           </dependency>
           <dependency>
               <groupId>org.projectlombok</groupId>
               <artifactId>lombok</artifactId>
               <optional>true</optional>
           </dependency>
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-test</artifactId>
               <scope>test</scope>
           </dependency>
       </dependencies>


3. yml

   server:
     port: 2002

   spring:
     application:
       name: seata-storage-service
     cloud:
       alibaba:
         seata:
           tx-service-group: fsp_tx_group
       nacos:
         discovery:
           server-addr: localhost:8848
     datasource:
       driver-class-name: com.mysql.jdbc.Driver
       url: jdbc:mysql://localhost:3306/seata_storage
       username: "root"
       password: "00000"

   logging:
     level:
       io:
         seata: info

   mybatis:
     mapperLocations: classpath:mapper/*.xml





4. file.conf

   transport {


     # tcp udt unix-domain-socket
     type = "TCP"
     #NIO NATIVE
     server = "NIO"
     #enable heartbeat
     heartbeat = true
     #thread factory for netty
     thread-factory {


       boss-thread-prefix = "NettyBoss"
       worker-thread-prefix = "NettyServerNIOWorker"
       server-executor-thread-prefix = "NettyServerBizHandler"
       share-boss-worker = false
       client-selector-thread-prefix = "NettyClientSelector"
       client-selector-thread-size = 1
       client-worker-thread-prefix = "NettyClientWorkerThread"
       # netty boss thread size,will not be used for UDT
       boss-thread-size = 1
       #auto default pin or 8
       worker-thread-size = 8
     }
     shutdown {


       # when destroy server, wait seconds
       wait = 3
     }
     serialization = "seata"
     compressor = "none"
   }

   service {



     vgroup_mapping.fsp_tx_group = "default" #修改自定义事务组名称

     default.grouplist = "127.0.0.1:8091"
     enableDegrade = false
     disable = false
     max.commit.retry.timeout = "-1"
     max.rollback.retry.timeout = "-1"
     disableGlobalTransaction = false
   }


   client {


     async.commit.buffer.limit = 10000
     lock {


       retry.internal = 10
       retry.times = 30
     }
     report.retry.count = 5
     tm.commit.retry.count = 1
     tm.rollback.retry.count = 1
   }

   ## transaction log store
   store {


     ## store mode: file、db
     mode = "db"

     ## file store
     file {


       dir = "sessionStore"

       # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
       max-branch-session-size = 16384
       # globe session size , if exceeded throws exceptions
       max-global-session-size = 512
       # file buffer size , if exceeded allocate new buffer
       file-write-buffer-cache-size = 16384
       # when recover batch read size
       session.reload.read_size = 100
       # async, sync
       flush-disk-mode = async
     }

     ## database store
     db {


       ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
       datasource = "dbcp"
       ## mysql/oracle/h2/oceanbase etc.
       db-type = "mysql"
       driver-class-name = "com.mysql.jdbc.Driver"
       url = "jdbc:mysql://127.0.0.1:3306/seata"
       user = "root"
       password = "00000"
       min-conn = 1
       max-conn = 3
       global.table = "global_table"
       branch.table = "branch_table"
       lock-table = "lock_table"
       query-limit = 100
     }
   }
   lock {


     ## the lock store mode: local、remote
     mode = "remote"

     local {


       ## store locks in user's database
     }

     remote {


       ## store locks in the seata's server
     }
   }
   recovery {


     #schedule committing retry period in milliseconds
     committing-retry-period = 1000
     #schedule asyn committing retry period in milliseconds
     asyn-committing-retry-period = 1000
     #schedule rollbacking retry period in milliseconds
     rollbacking-retry-period = 1000
     #schedule timeout retry period in milliseconds
     timeout-retry-period = 1000
   }

   transaction {


     undo.data.validation = true
     undo.log.serialization = "jackson"
     undo.log.save.days = 7
     #schedule delete expired undo_log in milliseconds
     undo.log.delete.period = 86400000
     undo.log.table = "undo_log"
   }

   ## metrics settings
   metrics {


     enabled = false
     registry-type = "compact"
     # multi exporters use comma divided
     exporter-list = "prometheus"
     exporter-prometheus-port = 9898
   }

   support {


     ## spring
     spring {


       # auto proxy the DataSource bean
       datasource.autoproxy = false
     }
   }




5. registry.conf

   registry {


     # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
     type = "nacos"

     nacos {


       serverAddr = "localhost:8848"
       namespace = ""
       cluster = "default"
     }
     eureka {


       serviceUrl = "http://localhost:8761/eureka"
       application = "default"
       weight = "1"
     }
     redis {


       serverAddr = "localhost:6379"
       db = "0"
     }
     zk {


       cluster = "default"
       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     consul {


       cluster = "default"
       serverAddr = "127.0.0.1:8500"
     }
     etcd3 {


       cluster = "default"
       serverAddr = "http://localhost:2379"
     }
     sofa {


       serverAddr = "127.0.0.1:9603"
       application = "default"
       region = "DEFAULT_ZONE"
       datacenter = "DefaultDataCenter"
       cluster = "default"
       group = "SEATA_GROUP"
       addressWaitTime = "3000"
     }
     file {


       name = "file.conf"
     }
   }

   config {


     # file、nacos 、apollo、zk、consul、etcd3
     type = "file"

     nacos {


       serverAddr = "localhost"
       namespace = ""
     }
     consul {


       serverAddr = "127.0.0.1:8500"
     }
     apollo {


       app.id = "seata-server"
       apollo.meta = "http://192.168.1.204:8801"
     }
     zk {


       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     etcd3 {


       serverAddr = "http://localhost:2379"
     }
     file {


       name = "file.conf"
     }
   }


6. domain
   CommonResult

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class CommonResult<T> {


       private Integer code;
       private String message;
       private T data;

       public CommonResult(Integer code, String message) {


           this(code, message, null);
       }
   }


   Storage

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class Storage {


       private Long id;

       private Long productId;

       private Integer total;

       private Integer used;

       private Integer residue;
   }


7. dao

   @Mapper
   public interface StorageDao {


       void decrease(@Param("productId") Long productId, @Param("count") Integer count);
   }


8. mapper
   StorageMapper.xml

   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
           "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
   <mapper namespace="com.achang.springcloud.dao.StorageDao">

       <resultMap id="BaseResultMap" type="com.achang.springcloud.domain.Storage">
           <id column="id" property="id" jdbcType="BIGINT"/>
           <result column="product_id" property="productId" jdbcType="BIGINT"/>
           <result column="total" property="total" jdbcType="INTEGER"/>
           <result column="used" property="used" jdbcType="INTEGER"/>
           <result column="residue" property="residue" jdbcType="INTEGER"/>
       </resultMap>

       <update id="decrease">
           UPDATE
               t_storage
           SET
               used = used + #{count},residue = residue - #{count}
           WHERE
               product_id = #{productId}
       </update>
   </mapper>


9. service
   StorageService

   public interface StorageService {



       void decrease(Long productId, Integer count);

   }


10. impl
    StorageServiceImpl

    @Service
    @Slf4j
    public class OderServiceImpl implements StorageService {



        @Resource
        private StorageDao storageDao;

        @Override
        public void decrease(Long productId, Integer count) {


            log.info("----> StorageService中扣减库存");
            storageDao.decrease(productId, count);
            log.info("----> StorageService中扣减库存完成");
        }
    }


11. controller
    StorageController

    @RestController
    public class StorageController {


        @Resource
        private StorageService storageService;

        @RequestMapping("/storage/decrease")
        public CommonResult decrease(Long productId,Integer count){


            storageService.decrease(productId, count);
            return new CommonResult(200, "扣减库存成功!");
        }
    }


12. config
    MyBatisConfig

    @Configuration
    @MapperScan({

          "com.achang.springcloud.dao"})
    public class MyBatisConfig {


    }


    DataSourceProxyConfig

    //使用Seata对数据源进行代理
    @Configuration
    public class DataSourceProxyConfig {



        @Value("${mybatis.mapperLocations}")
        private String mapperLocations;

        @Bean
        @ConfigurationProperties(prefix = "spring.datasource")
        public DataSource druidDataSource() {


            return new DruidDataSource();
        }

        @Bean
        public DataSourceProxy dataSourceProxy(DataSource dataSource) {


            return new DataSourceProxy(dataSource);
        }

        @Bean
        public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {


            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSourceProxy);
            sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
            sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
            return sqlSessionFactoryBean.getObject();
        }

    }


13. 主启动类

    @SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
    @EnableDiscoveryClient
    @EnableFeignClients
    public class SeataStorageServiceApplication2002 {


        public static void main(String[] args) {


            SpringApplication.run(SeataStorageServiceApplication2002.class, args);
        }
    }

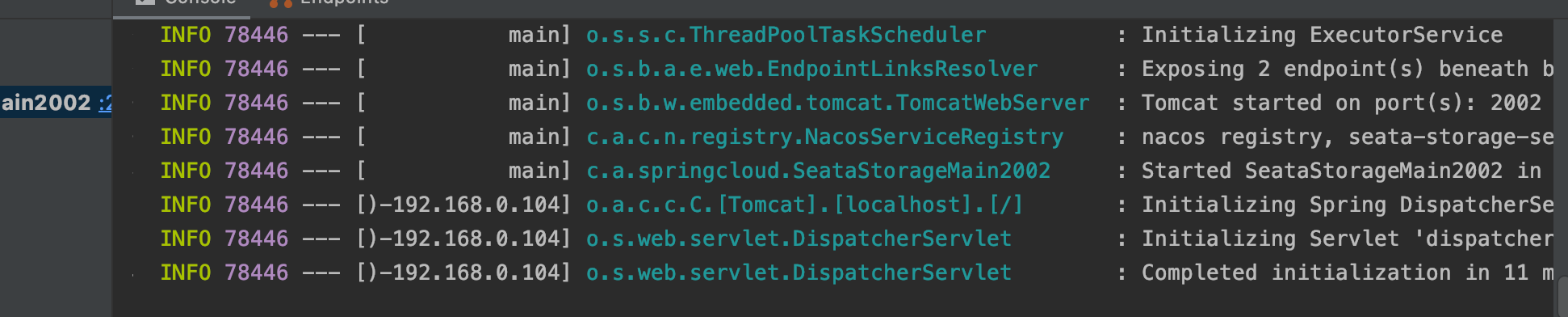

14. 启动2002



---

账户模块

1. 新建模块seata-account-service2003

2. pom

   <dependencies>
           <!-- nacos -->
           <dependency>
               <groupId>com.alibaba.cloud</groupId>
               <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
           </dependency>
           <!-- seata-->
           <dependency>
               <groupId>com.alibaba.cloud</groupId>
               <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
               <exclusions>
                   <exclusion>
                       <groupId>io.seata</groupId>
                       <artifactId>seata-all</artifactId>
                   </exclusion>
               </exclusions>
           </dependency>
           <dependency>
               <groupId>io.seata</groupId>
               <artifactId>seata-all</artifactId>
               <!--指定与你使用的seata版本-->
               <version>1.0.0</version>
           </dependency>
           <dependency>
               <groupId>org.springframework.cloud</groupId>
               <artifactId>spring-cloud-starter-openfeign</artifactId>
           </dependency>
           <dependency>
               <groupId>org.mybatis.spring.boot</groupId>
               <artifactId>mybatis-spring-boot-starter</artifactId>
           </dependency>
           <dependency>
               <groupId>com.alibaba</groupId>
               <artifactId>druid-spring-boot-starter</artifactId>
           </dependency>
           <dependency>
               <groupId>mysql</groupId>
               <artifactId>mysql-connector-java</artifactId>
           </dependency>
           <!--jdbc-->
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-jdbc</artifactId>
           </dependency>
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-web</artifactId>
           </dependency>
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-actuator</artifactId>
           </dependency>
           <dependency>
               <groupId>org.projectlombok</groupId>
               <artifactId>lombok</artifactId>
               <optional>true</optional>
           </dependency>
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-test</artifactId>
               <scope>test</scope>
           </dependency>
       </dependencies>


3. yml

   server:
     port: 2003

   spring:
     application:
       name: seata-account-service
     cloud:
       alibaba:
         seata:
           tx-service-group: fsp_tx_group
       nacos:
         discovery:
           server-addr: localhost:8848
     datasource:
       driver-class-name: com.mysql.jdbc.Driver
       url: jdbc:mysql://localhost:3306/seata_account
       username: "root"
       password: "00000"

   logging:
     level:
       io:
         seata: info

   mybatis:
     mapperLocations: classpath:mapper/*.xml


4. file.conf

   transport {


     # tcp udt unix-domain-socket
     type = "TCP"
     #NIO NATIVE
     server = "NIO"
     #enable heartbeat
     heartbeat = true
     #thread factory for netty
     thread-factory {


       boss-thread-prefix = "NettyBoss"
       worker-thread-prefix = "NettyServerNIOWorker"
       server-executor-thread-prefix = "NettyServerBizHandler"
       share-boss-worker = false
       client-selector-thread-prefix = "NettyClientSelector"
       client-selector-thread-size = 1
       client-worker-thread-prefix = "NettyClientWorkerThread"
       # netty boss thread size,will not be used for UDT
       boss-thread-size = 1
       #auto default pin or 8
       worker-thread-size = 8
     }
     shutdown {


       # when destroy server, wait seconds
       wait = 3
     }
     serialization = "seata"
     compressor = "none"
   }

   service {



     vgroup_mapping.fsp_tx_group = "default" #修改自定义事务组名称

     default.grouplist = "127.0.0.1:8091"
     enableDegrade = false
     disable = false
     max.commit.retry.timeout = "-1"
     max.rollback.retry.timeout = "-1"
     disableGlobalTransaction = false
   }


   client {


     async.commit.buffer.limit = 10000
     lock {


       retry.internal = 10
       retry.times = 30
     }
     report.retry.count = 5
     tm.commit.retry.count = 1
     tm.rollback.retry.count = 1
   }

   ## transaction log store
   store {


     ## store mode: file、db
     mode = "db"

     ## file store
     file {


       dir = "sessionStore"

       # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
       max-branch-session-size = 16384
       # globe session size , if exceeded throws exceptions
       max-global-session-size = 512
       # file buffer size , if exceeded allocate new buffer
       file-write-buffer-cache-size = 16384
       # when recover batch read size
       session.reload.read_size = 100
       # async, sync
       flush-disk-mode = async
     }

     ## database store
     db {


       ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
       datasource = "dbcp"
       ## mysql/oracle/h2/oceanbase etc.
       db-type = "mysql"
       driver-class-name = "com.mysql.jdbc.Driver"
       url = "jdbc:mysql://127.0.0.1:3306/seata"
       user = "root"
       password = "00000"
       min-conn = 1
       max-conn = 3
       global.table = "global_table"
       branch.table = "branch_table"
       lock-table = "lock_table"
       query-limit = 100
     }
   }
   lock {


     ## the lock store mode: local、remote
     mode = "remote"

     local {


       ## store locks in user's database
     }

     remote {


       ## store locks in the seata's server
     }
   }
   recovery {


     #schedule committing retry period in milliseconds
     committing-retry-period = 1000
     #schedule asyn committing retry period in milliseconds
     asyn-committing-retry-period = 1000
     #schedule rollbacking retry period in milliseconds
     rollbacking-retry-period = 1000
     #schedule timeout retry period in milliseconds
     timeout-retry-period = 1000
   }

   transaction {


     undo.data.validation = true
     undo.log.serialization = "jackson"
     undo.log.save.days = 7
     #schedule delete expired undo_log in milliseconds
     undo.log.delete.period = 86400000
     undo.log.table = "undo_log"
   }

   ## metrics settings
   metrics {


     enabled = false
     registry-type = "compact"
     # multi exporters use comma divided
     exporter-list = "prometheus"
     exporter-prometheus-port = 9898
   }

   support {


     ## spring
     spring {


       # auto proxy the DataSource bean
       datasource.autoproxy = false
     }
   }





5. registry.conf

   registry {


     # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
     type = "nacos"

     nacos {


       serverAddr = "localhost:8848"
       namespace = ""
       cluster = "default"
     }
     eureka {


       serviceUrl = "http://localhost:8761/eureka"
       application = "default"
       weight = "1"
     }
     redis {


       serverAddr = "localhost:6379"
       db = "0"
     }
     zk {


       cluster = "default"
       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     consul {


       cluster = "default"
       serverAddr = "127.0.0.1:8500"
     }
     etcd3 {


       cluster = "default"
       serverAddr = "http://localhost:2379"
     }
     sofa {


       serverAddr = "127.0.0.1:9603"
       application = "default"
       region = "DEFAULT_ZONE"
       datacenter = "DefaultDataCenter"
       cluster = "default"
       group = "SEATA_GROUP"
       addressWaitTime = "3000"
     }
     file {


       name = "file.conf"
     }
   }

   config {


     # file、nacos 、apollo、zk、consul、etcd3
     type = "file"

     nacos {


       serverAddr = "localhost"
       namespace = ""
     }
     consul {


       serverAddr = "127.0.0.1:8500"
     }
     apollo {


       app.id = "seata-server"
       apollo.meta = "http://192.168.1.204:8801"
     }
     zk {


       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     etcd3 {


       serverAddr = "http://localhost:2379"
     }
     file {


       name = "file.conf"
     }
   }



6. domain
   CommonResult

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class CommonResult<T> {


       private Integer code;
       private String message;
       private T data;

       public CommonResult(Integer code, String message) {


           this(code, message, null);
       }
   }


   Account

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class Account {



       private Long id;

       private Long userId;

       private BigDecimal total;

       private BigDecimal used;

       private BigDecimal  residue;
   }


7. dao
   AccountDao

   @Mapper
   public interface AccountDao {


       void decrease(@Param("userId") Long userId, @Param("money") BigDecimal money);
   }


8. mapper
   AccountMapper.xml

   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
           "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
   <mapper namespace="com.achang.springcloud.dao.AccountDao">

       <resultMap id="BaseResultMap" type="com.achang.springcloud.domain.Account">
           <id column="id" property="id" jdbcType="BIGINT"/>
           <result column="user_id" property="userId" jdbcType="BIGINT"/>
           <result column="total" property="total" jdbcType="DECIMAL"/>
           <result column="used" property="used" jdbcType="DECIMAL"/>
           <result column="residue" property="residue" jdbcType="DECIMAL"/>
       </resultMap>

       <update id="decrease">
           update t_account
           set used = used + #{money}, residue = residue - #{money}
           where user_id = #{userId};
       </update>
   </mapper>


9. service
   AccountService

   public interface AccountService {


       void decrease(@RequestParam("userId")Long userId, @RequestParam("money")BigDecimal money);
   }


10. impl
    AccountServiceImpl

    @Service
    @Slf4j
    public class AccountServiceImpl implements AccountService {



        @Resource
        private AccountDao accountDao;

        @Override
        public void decrease(Long userId, BigDecimal money) {


            log.info("---> AccountService中扣减账户余额");
            accountDao.decrease(userId,money);
            log.info("---> AccountService中扣减账户余额完成");
        }
    }


11. controller
    AccountController

    @RestController
    public class AccountController {


        @Resource
        private AccountService accountService;

        @RequestMapping("/account/decrease")
        public CommonResult decrease(@RequestParam("userId")Long userId,@RequestParam("money") BigDecimal money){


            accountService.decrease(userId,money);
            return new CommonResult(200,"扣减库存成功！");
        }

    }


12. config
    MyBatisConfig

    @Configuration
    @MapperScan({

          "com.achang.springcloud.dao"})
    public class MyBatisConfig {


    }


    DataSourceProxyConfig

    package com.achang.springcloud.config;

    import com.alibaba.druid.pool.DruidDataSource;
    import io.seata.rm.datasource.DataSourceProxy;
    import org.apache.ibatis.session.SqlSessionFactory;
    import org.mybatis.spring.SqlSessionFactoryBean;
    import org.mybatis.spring.transaction.SpringManagedTransactionFactory;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.boot.context.properties.ConfigurationProperties;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

    import javax.sql.DataSource;

    //使用Seata对数据源进行代理
    @Configuration
    public class DataSourceProxyConfig {



        @Value("${mybatis.mapperLocations}")
        private String mapperLocations;

        @Bean
        @ConfigurationProperties(prefix = "spring.datasource")
        public DataSource druidDataSource() {


            return new DruidDataSource();
        }

        @Bean
        public DataSourceProxy dataSourceProxy(DataSource dataSource) {


            return new DataSourceProxy(dataSource);
        }

        @Bean
        public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {


            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSourceProxy);
            sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
            sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
            return sqlSessionFactoryBean.getObject();
        }

    }


13. 主启动类
    SeataAccountMain2003

    @SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
    @EnableDiscoveryClient
    @EnableFeignClients
    public class SeataAccountMainApp2003 {


        public static void main(String[] args) {


            SpringApplication.run(SeataAccountMainApp2003.class, args);
        }
    }

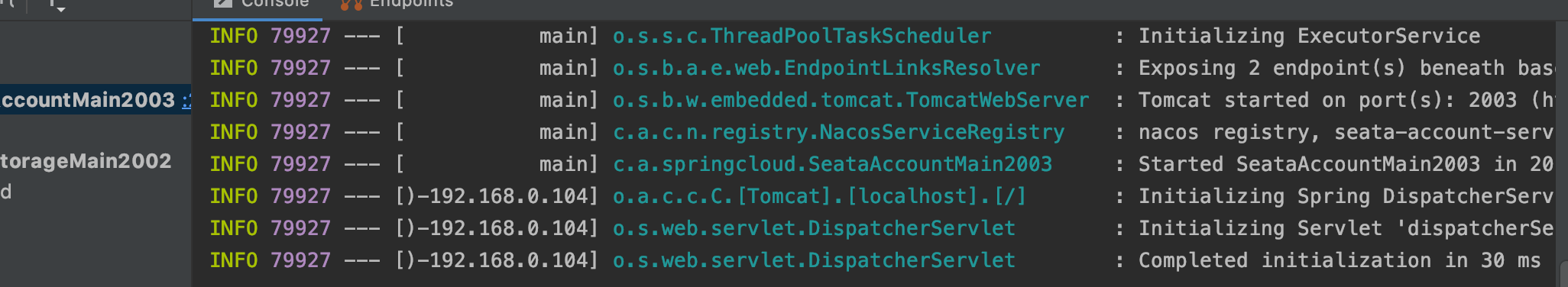

14. 启动2003



阿昌遇到的问题：

上面看似简单，但又很考验细节的流程。经过总结

1、mybatis的xml映射文件必须要写后的.xml，不然会报500错误

2、配置文件中的数据库配置信息要求仔细配置，不要遗漏，或配置错误

3、上面的业务代码是订单->库存->账户，所以2002/2003的controller不需要使用@GetMapping注解，库存和账户需要使用@RequestMapping

4、dao层的接口类必须在类上标注@Mapper

---

Test

---

正常下单

启动2001，2002，2003

在浏览器输入：http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100

---

超时异常

1. 停止2003。

2. 在2003的AccountServiceImpl里的decrease中添加

           //模拟超时异常，全局事务回滚
           //睡眠20s
           try{

         TimeUnit.SECONDS.sleep(20);}catch(InterruptedException e){

          e.printStackTrace();}




3. 重新启动2003。

4. 刷新页面http://localhost:2001/order/create?userId=1&productId=1&count=10&money=10




   超时异常后，order添加了订单，而且storage的库存和account的余额都发生了变化。
   因为feign调用时间默认是1秒，超过1秒就不等待，直接返回超时异常，但是account在20秒后还是会去扣余额，而且没有回滚，所以order添加了订单，storage的库存也发生了变化。
   而且feign有超时重试机制，所以可能会多次扣款。

加入Seata事务

1. 停止2001。

2. 在2001的OderServiceImpl里的create方法上加上：

       //name随便命名，只要不重复即可
    	//rollbackFor = Exception.class表示出现所有异常都回滚
       //rollbackFor表示哪些需要回滚
       //noRollbackFor表示哪些不需要回滚
       @GlobalTransactional(name = "fsp-create-order", rollbackFor = Exception.class)


3. 重启2001。

4. 刷新页面http://localhost:2001/order/create?userId=1&productId=1&count=10&money=10





订单没有添加，storage和account也没变化，回滚成功。

---

补充

---

Seata

---

TC/TM/RM三组件

---

分布式事务的执行流程

seata文档：http://seata.io/zh-cn/docs/overview/what-is-seata.html

感谢尚硅谷
