20250409在荣品的PRO-RK3566开发板使用Rockchip原厂的buildroot系统时使用iperf3

企业开发 2025-04-10 00:58:10 阅读次数: 0

20250409在荣品的PRO-RK3566开发板使用Rockchip原厂的buildroot系统时使用iperf3
2025/4/8 20:31

缘起：Rockchip原厂的buildroot系统【默认】只有iperf2，现阶段广泛使用iperf3。
因此需要编译的时候在buildroot的config配置文件中打开iperf3了。
现在给出两种方法：

1、GUI图形化正式的步骤：

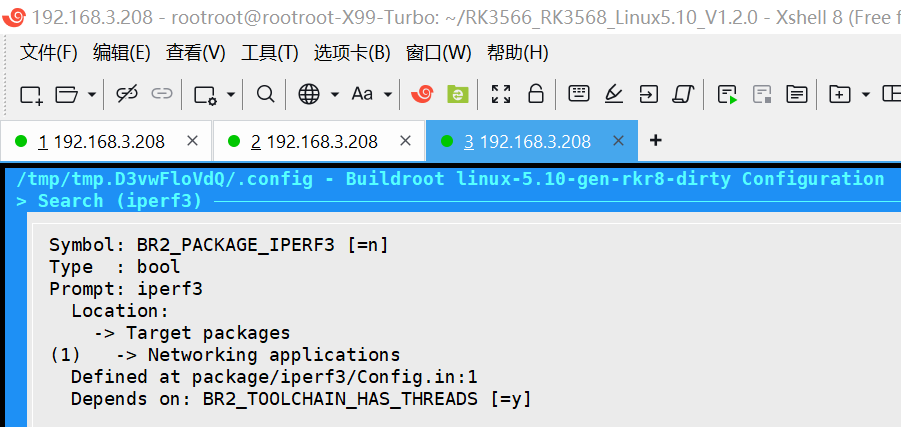

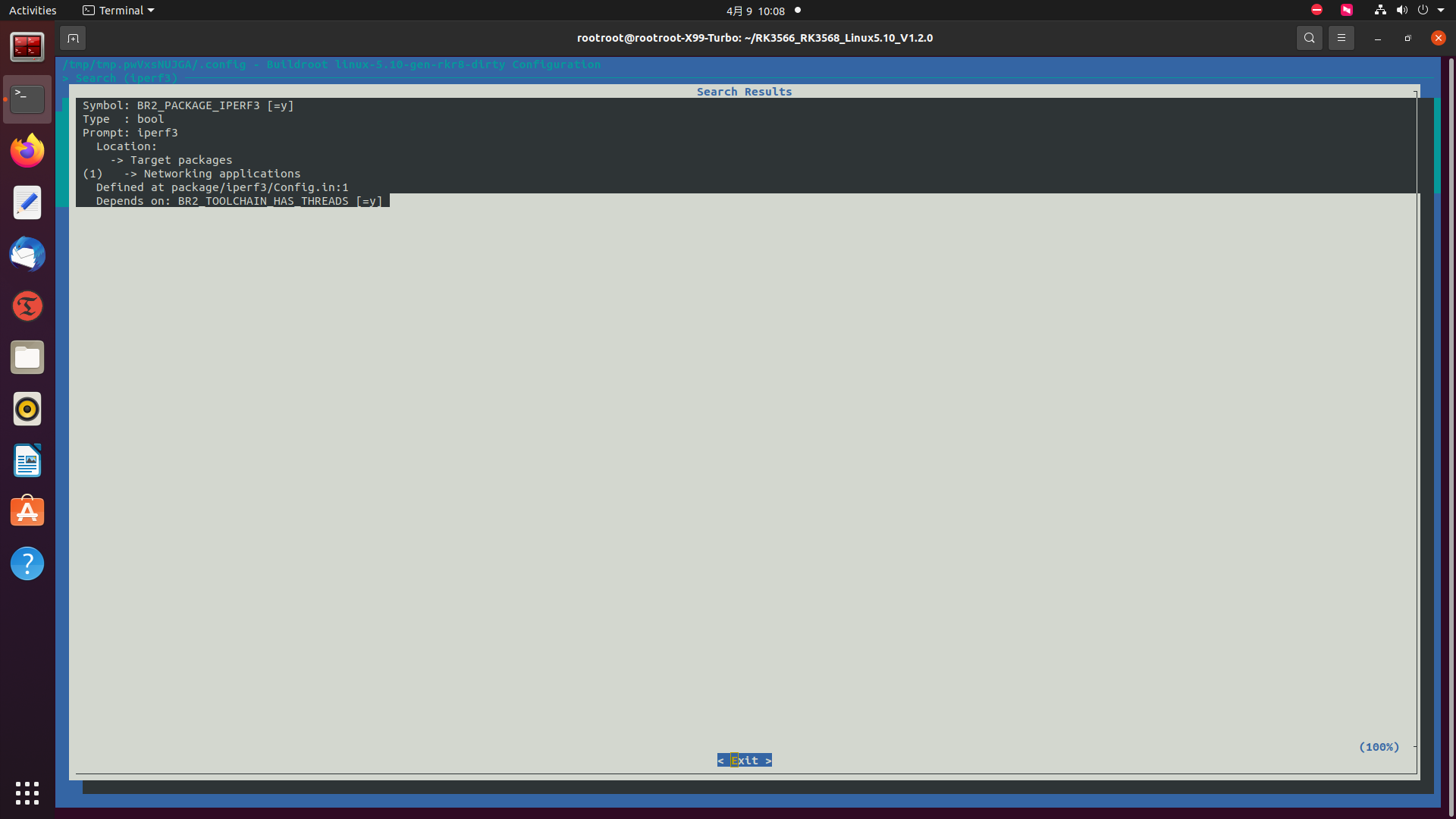

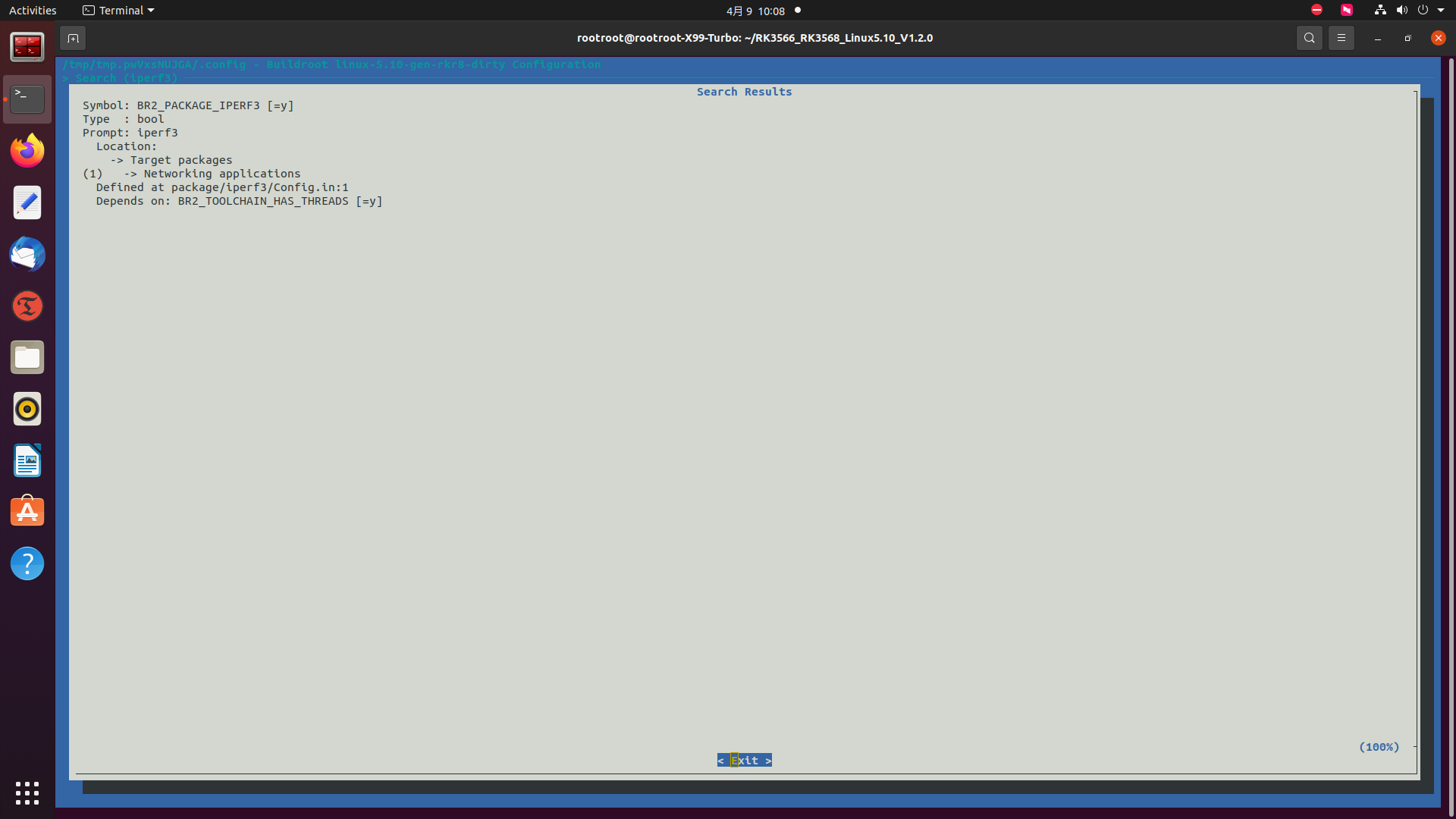

Symbol: BR2_PACKAGE_IPERF3 [=n]
Type : bool
Prompt: iperf3
Location:
-> Target packages
(1) -> Networking applications
Defined at package/iperf3/Config.in:1
Depends on: BR2_TOOLCHAIN_HAS_THREADS [=y]

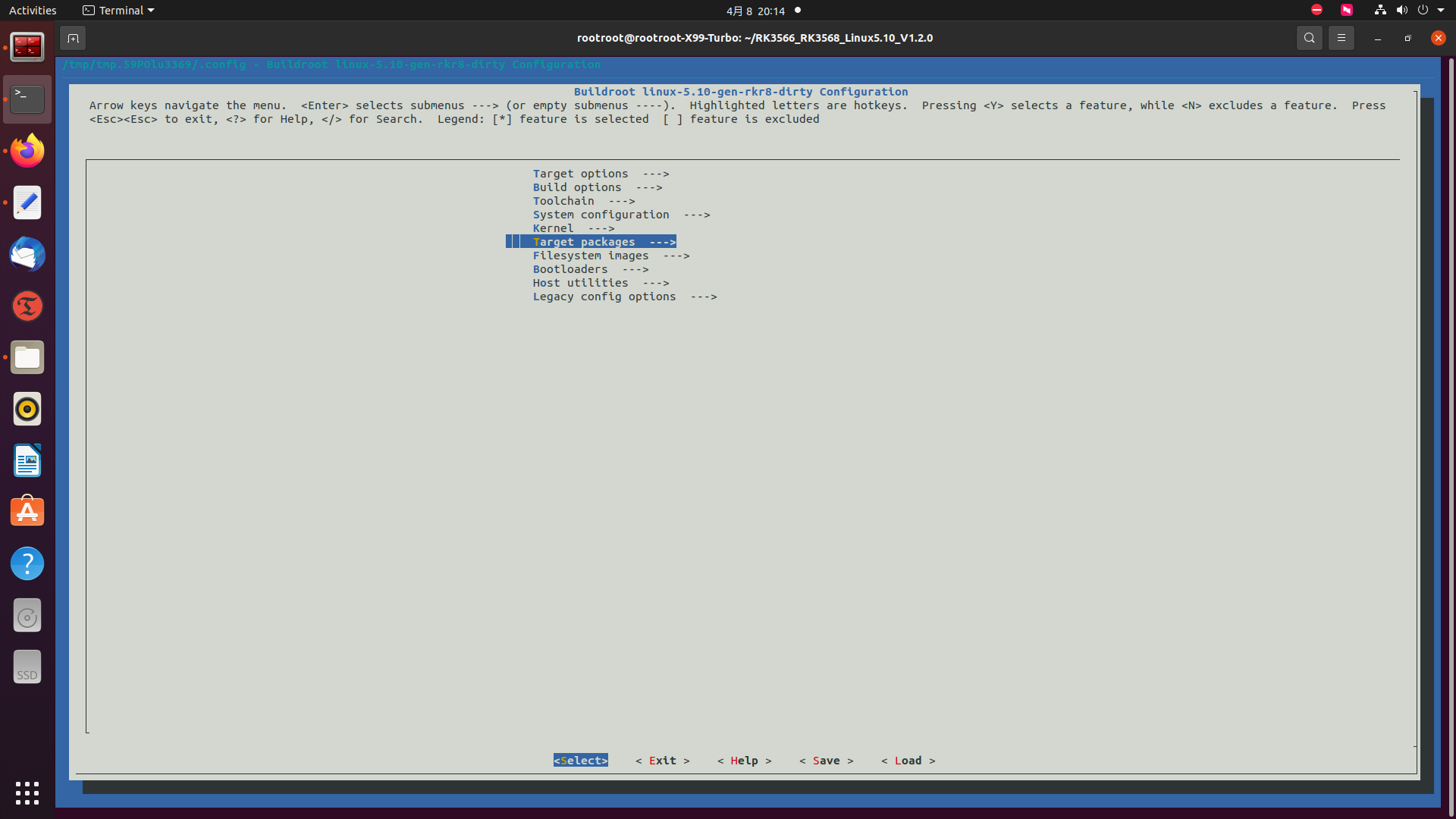

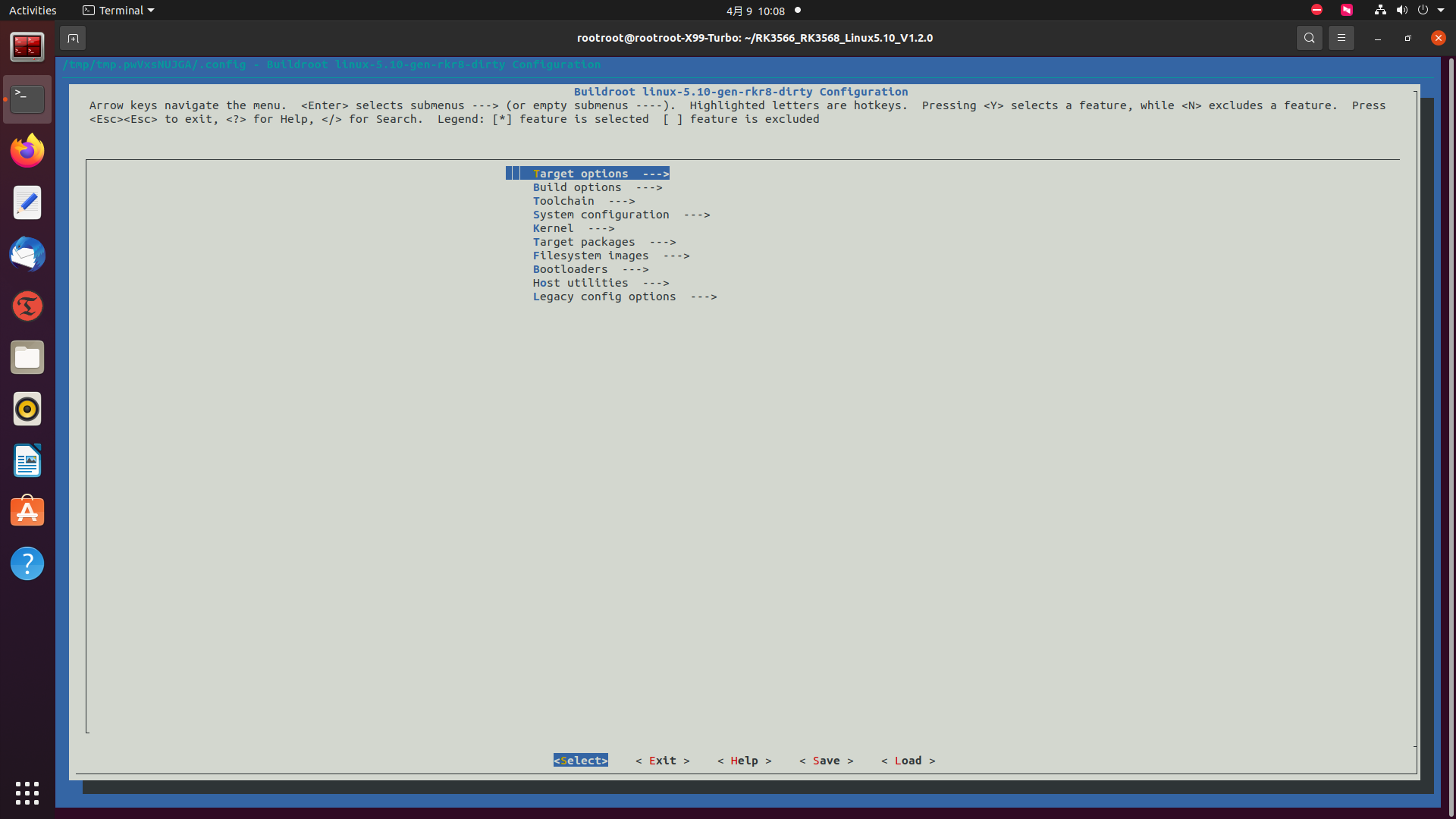

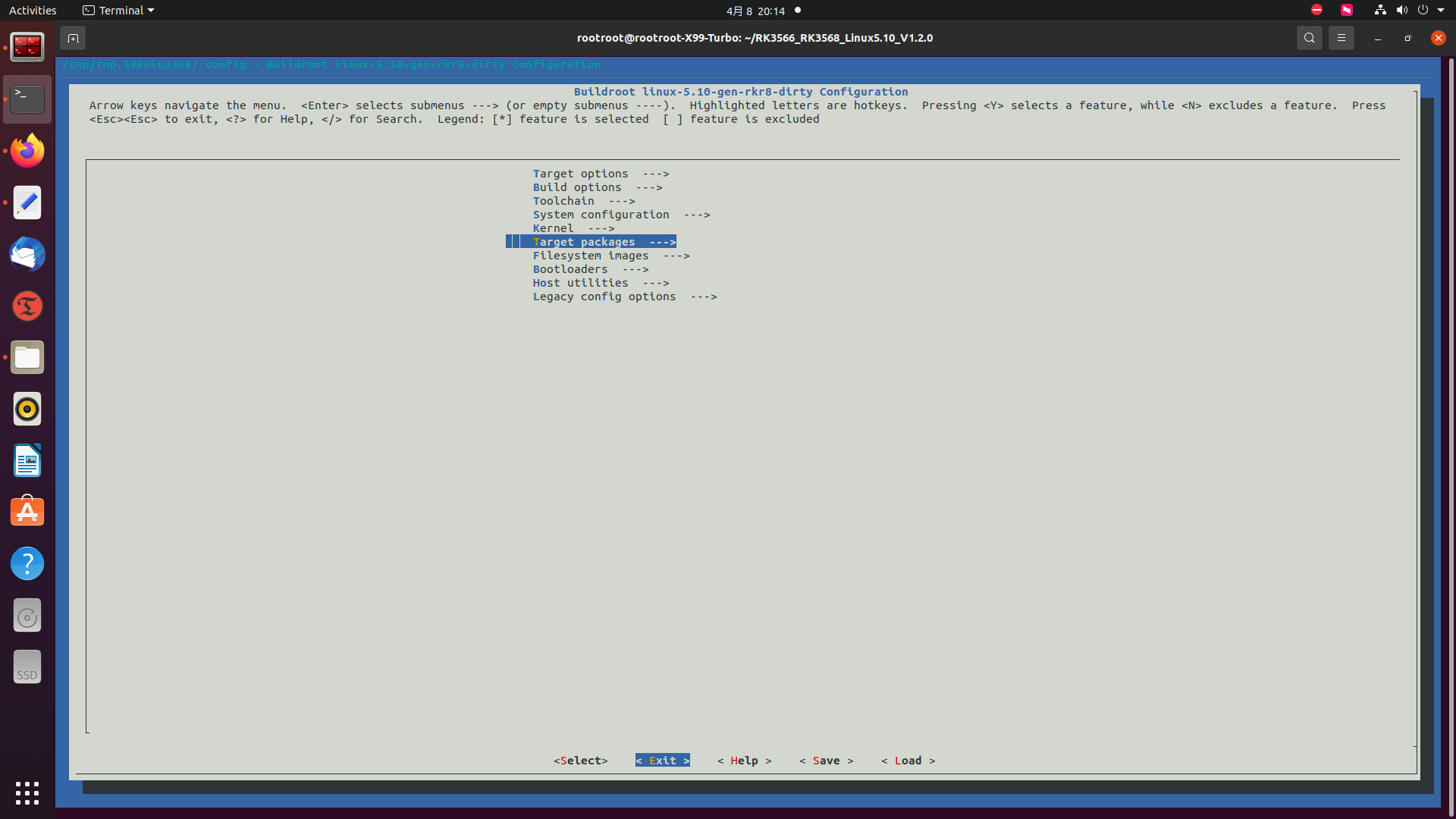

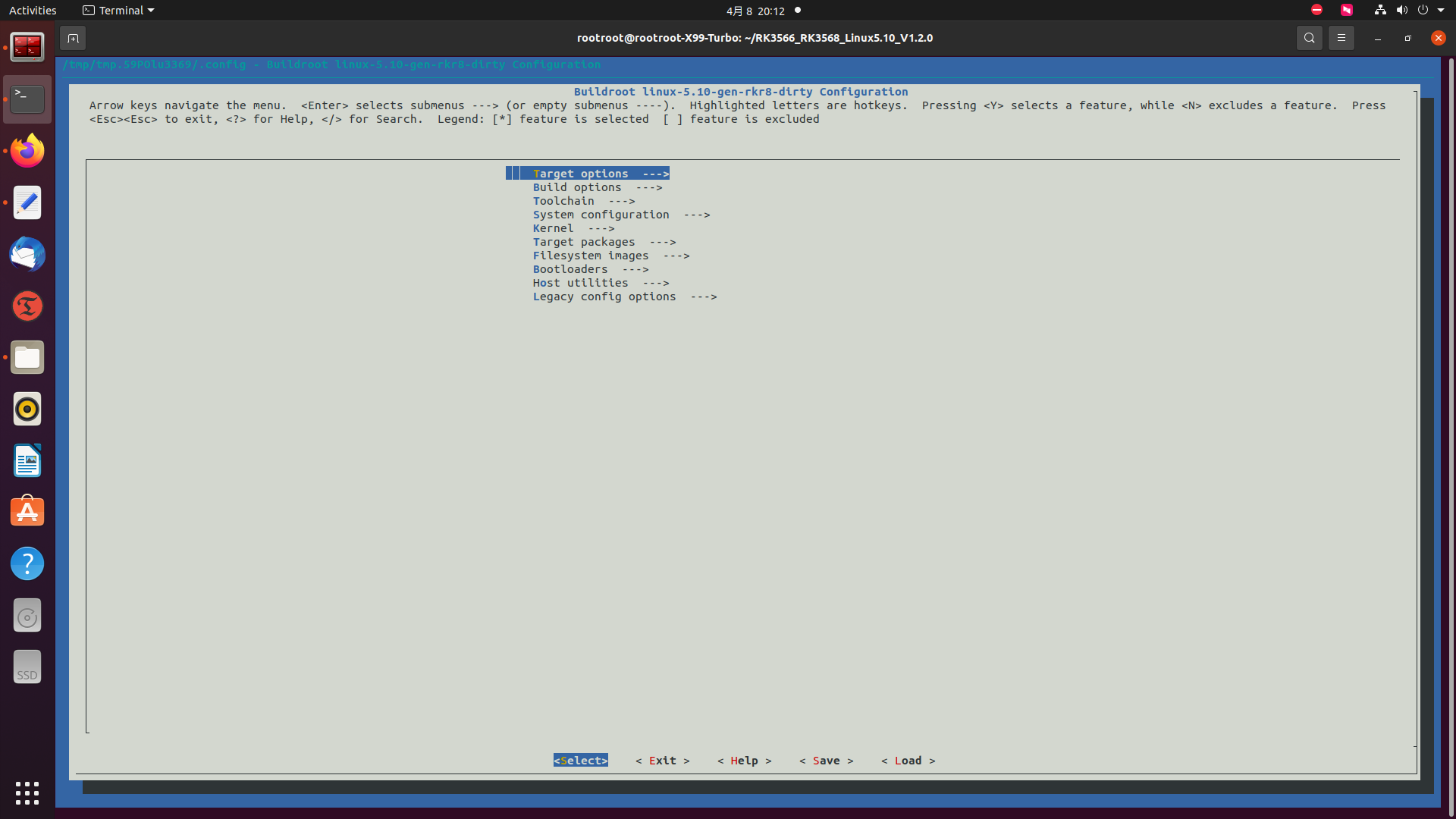

Target options --->
Build options --->
Toolchain --->
System configuration --->
Kernel --->

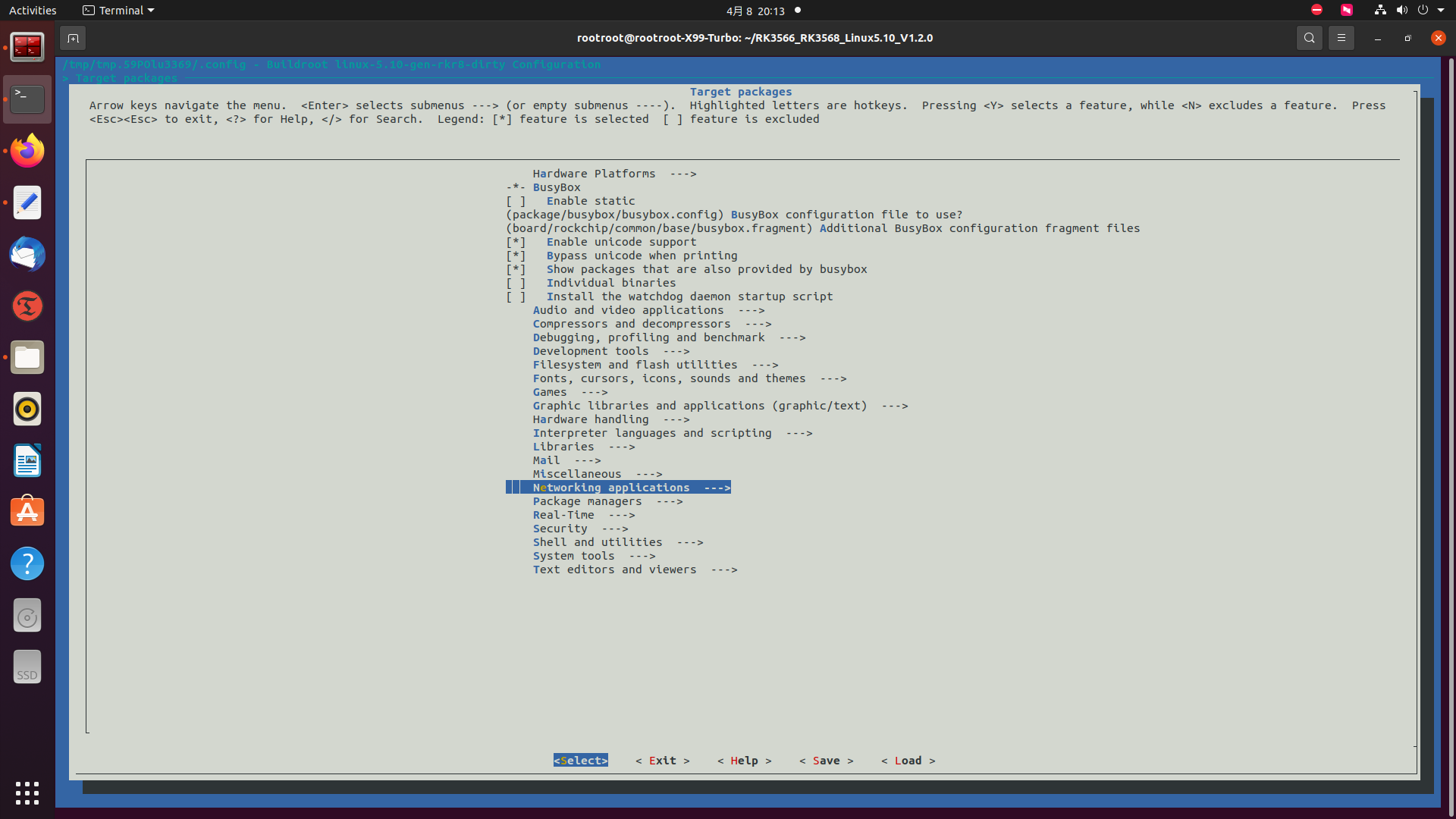

Target packages --->
Filesystem images --->
Bootloaders --->
Host utilities --->
Legacy config options --->

Hardware Platforms --->

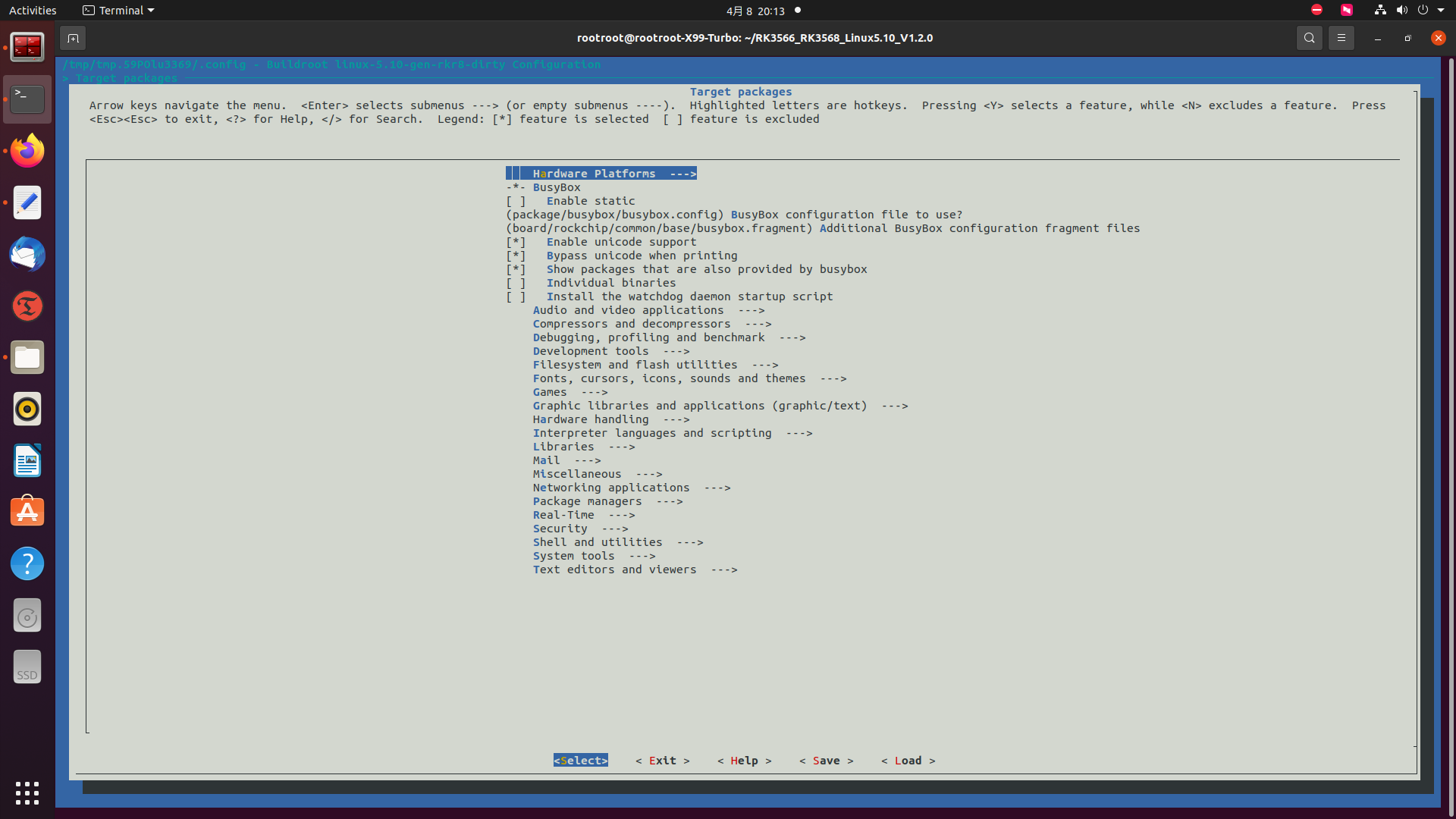

-*- BusyBox
[ ] Enable static
(package/busybox/busybox.config) BusyBox configuration file to use?
(board/rockchip/common/base/busybox.fragment) Additional BusyBox configuration fragment files
[*] Enable unicode support
[*] Bypass unicode when printing
[*] Show packages that are also provided by busybox
[ ] Individual binaries
[ ] Install the watchdog daemon startup script
Audio and video applications --->
Compressors and decompressors --->
Debugging, profiling and benchmark --->
Development tools --->
Filesystem and flash utilities --->
Fonts, cursors, icons, sounds and themes --->
Games --->
Graphic libraries and applications (graphic/text) --->
Hardware handling --->
Interpreter languages and scripting --->
Libraries --->
Mail --->
Miscellaneous --->
Networking applications --->
Package managers --->
Real-Time --->
Security --->
Shell and utilities --->
System tools --->
Text editors and viewers --->

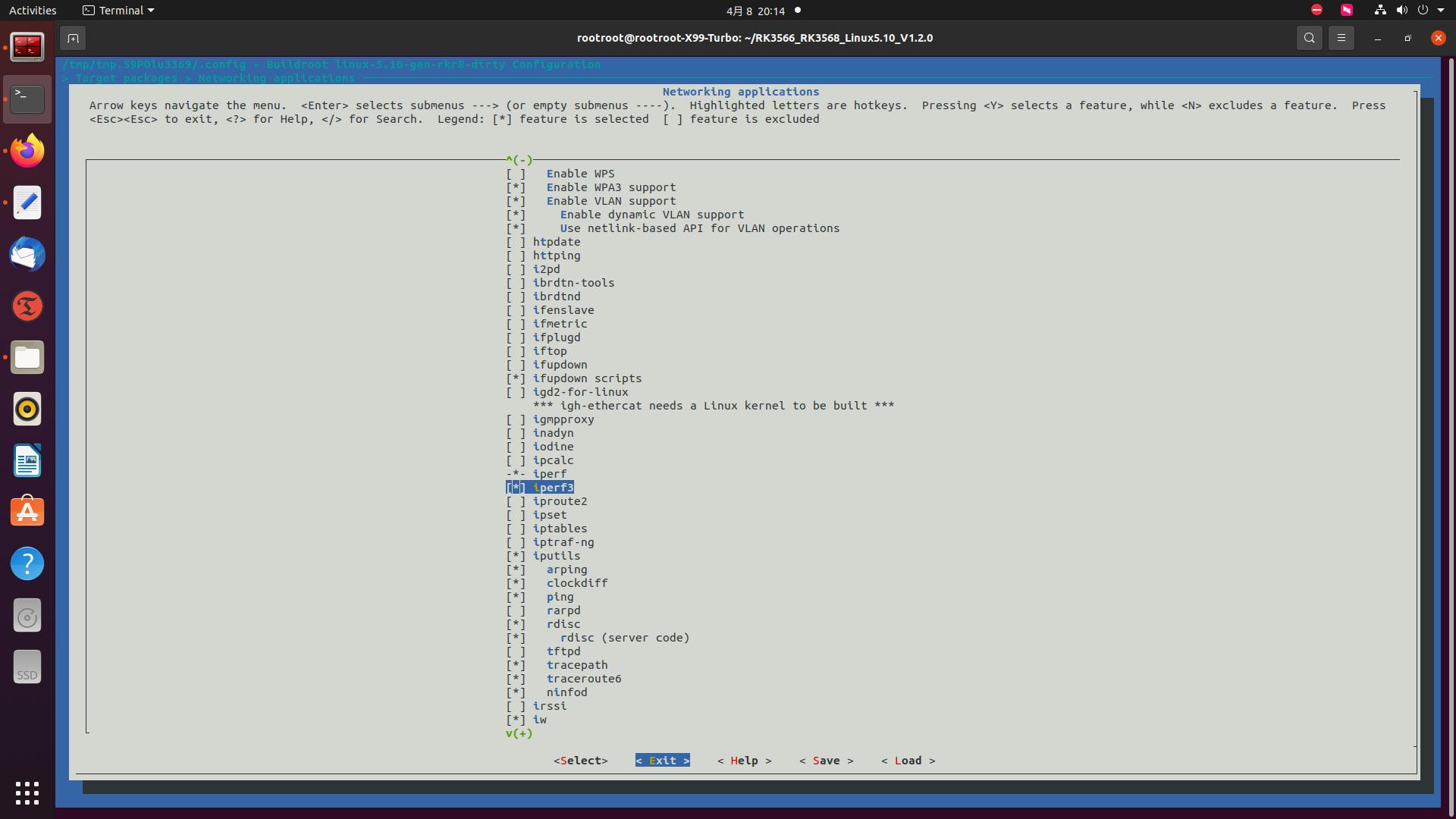

[ ] aircrack-ng
[ ] aoetools
[ ] apache
[ ] argus
[ ] arp-scan
[ ] arptables-legacy
[ ] asterisk
[ ] atftp
[ ] autossh
[ ] avahi
[ ] axel
[ ] babeld
[ ] bandwidthd
[ ] batctl
[ ] bcusdk
[ ] bind
[ ] bird
[ ] bluez-tools
-*- bluez-utils
[ ] build OBEX support
[*] build CLI client
[*] build monitor utility
[*] build tools
[*] install deprecated tools
[ ] build experimental tools
-*- build audio plugins (a2dp and avrcp)
[ ] build health plugin
[ ] build hid plugin
[ ] build hog plugin
[ ] build mesh plugin
[ ] build midi plugin
[ ] build network plugin
[ ] build nfc plugin
[ ] build sap plugin
[ ] build sixaxis plugin
[ ] install test scripts
[ ] build hid2hci tool
[ ] bmon
[ ] boinc
[ ] brcm-patchram-plus
[ ] bridge-utils
[ ] bwm-ng
[ ] c-icap
[ ] can-utils
[ ] cannelloni
[ ] casync

[ ] hans
[ ] haproxy
[ ] hiawatha
[*] hostapd
[*] Enable hostap driver
[*] Enable nl80211 driver
[ ] Enable wired driver
[*] Enable ACS
[ ] Enable EAP
[ ] Enable WPS
[*] Enable WPA3 support
[*] Enable VLAN support
[*] Enable dynamic VLAN support
[*] Use netlink-based API for VLAN operations
[ ] htpdate
[ ] httping
[ ] i2pd
[ ] ibrdtn-tools
[ ] ibrdtnd
[ ] ifenslave
[ ] ifmetric
[ ] ifplugd
[ ] iftop
[ ] ifupdown
[*] ifupdown scripts
[ ] igd2-for-linux
*** igh-ethercat needs a Linux kernel to be built ***
[ ] igmpproxy
[ ] inadyn
[ ] iodine
[ ] ipcalc
-*- iperf
[*] iperf3
[ ] iproute2
[ ] ipset
[ ] iptables
[ ] iptraf-ng
[*] iputils
[*] arping
[*] clockdiff
[*] ping
[ ] rarpd
[*] rdisc
[*] rdisc (server code)
[ ] tftpd
[*] tracepath

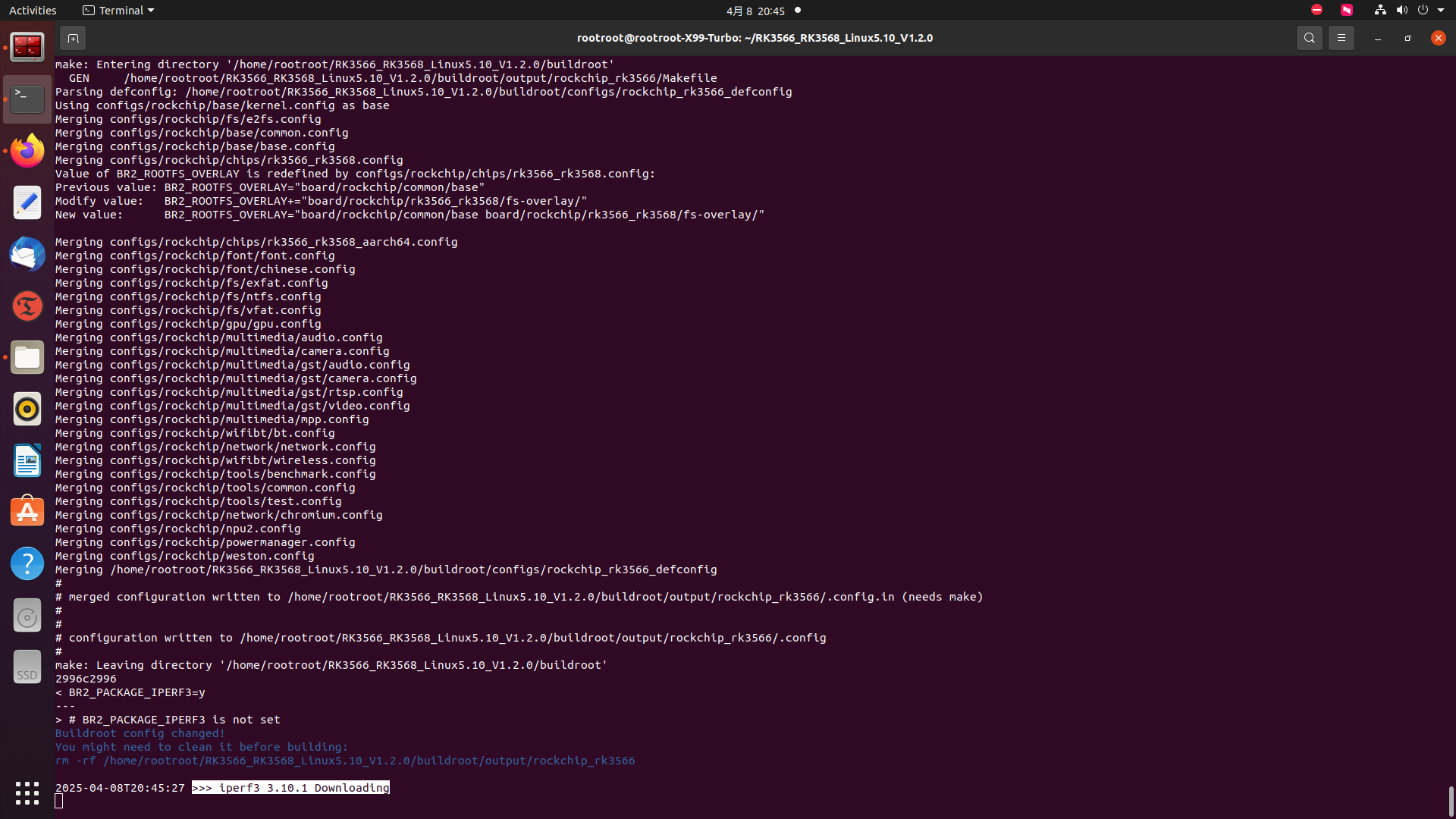

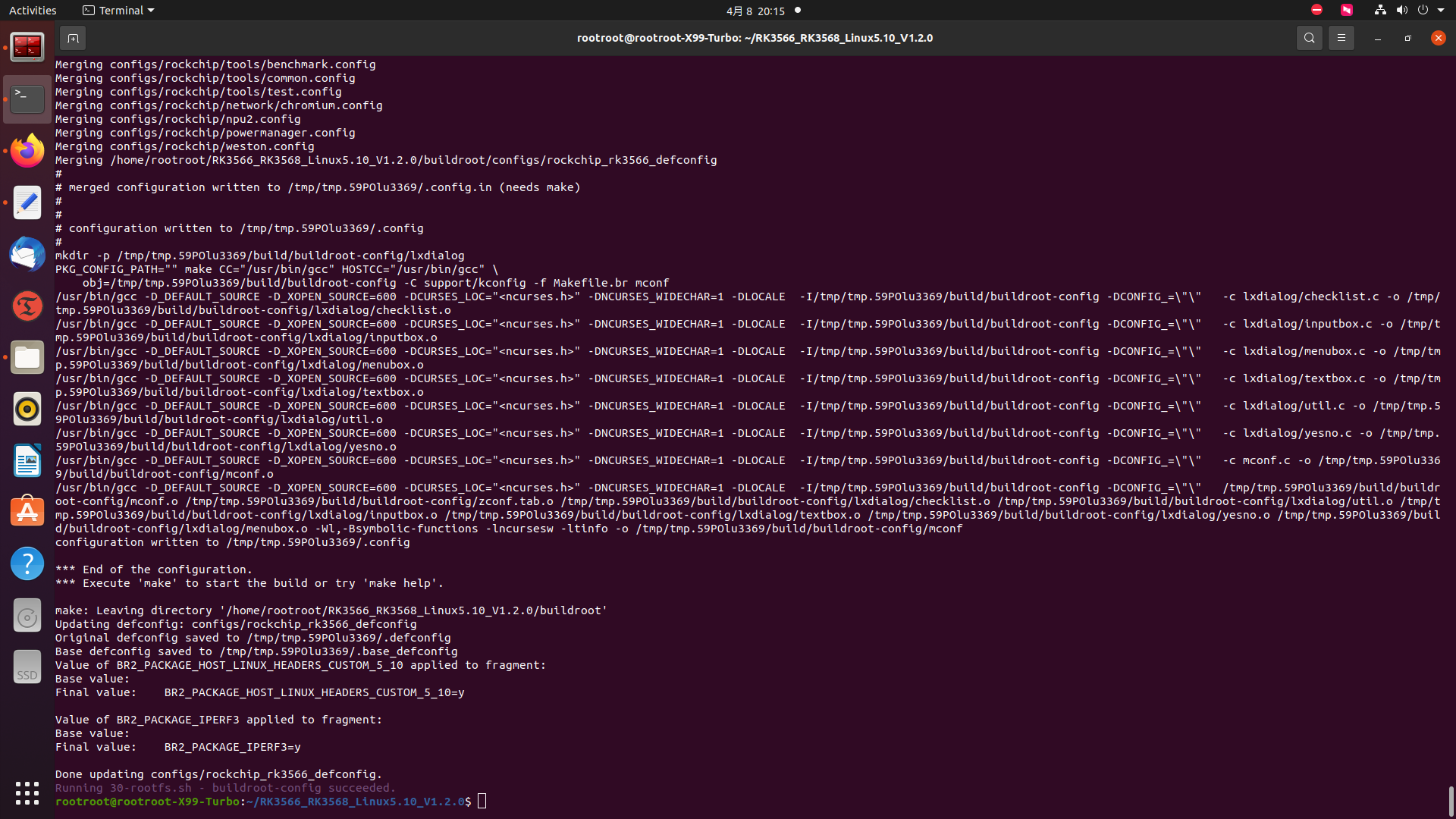

方法二：很容易得知，修改的地方在：【直接手工添加：BR2_PACKAGE_IPERF3=y】
Z:\RK3566_RK3568_Linux5.10_V1.2.0\buildroot\configs\rockchip_rk3566_defconfig

#include "base/base.config"
#include "chips/rk3566_rk3568_aarch64.config"
#include "font/chinese.config"
#include "fs/exfat.config"
#include "fs/ntfs.config"
#include "fs/vfat.config"
#include "gpu/gpu.config"
#include "multimedia/audio.config"
#include "multimedia/camera.config"
#include "multimedia/gst/audio.config"
#include "multimedia/gst/camera.config"
#include "multimedia/gst/rtsp.config"
#include "multimedia/gst/video.config"
#include "multimedia/mpp.config"
#include "wifibt/bt.config"
#include "wifibt/wireless.config"
#include "tools/benchmark.config"
#include "tools/common.config"
#include "tools/test.config"
#include "network/chromium.config"
#include "npu2.config"
#include "powermanager.config"
#include "weston.config"
BR2_PACKAGE_HOST_LINUX_HEADERS_CUSTOM_5_10=y

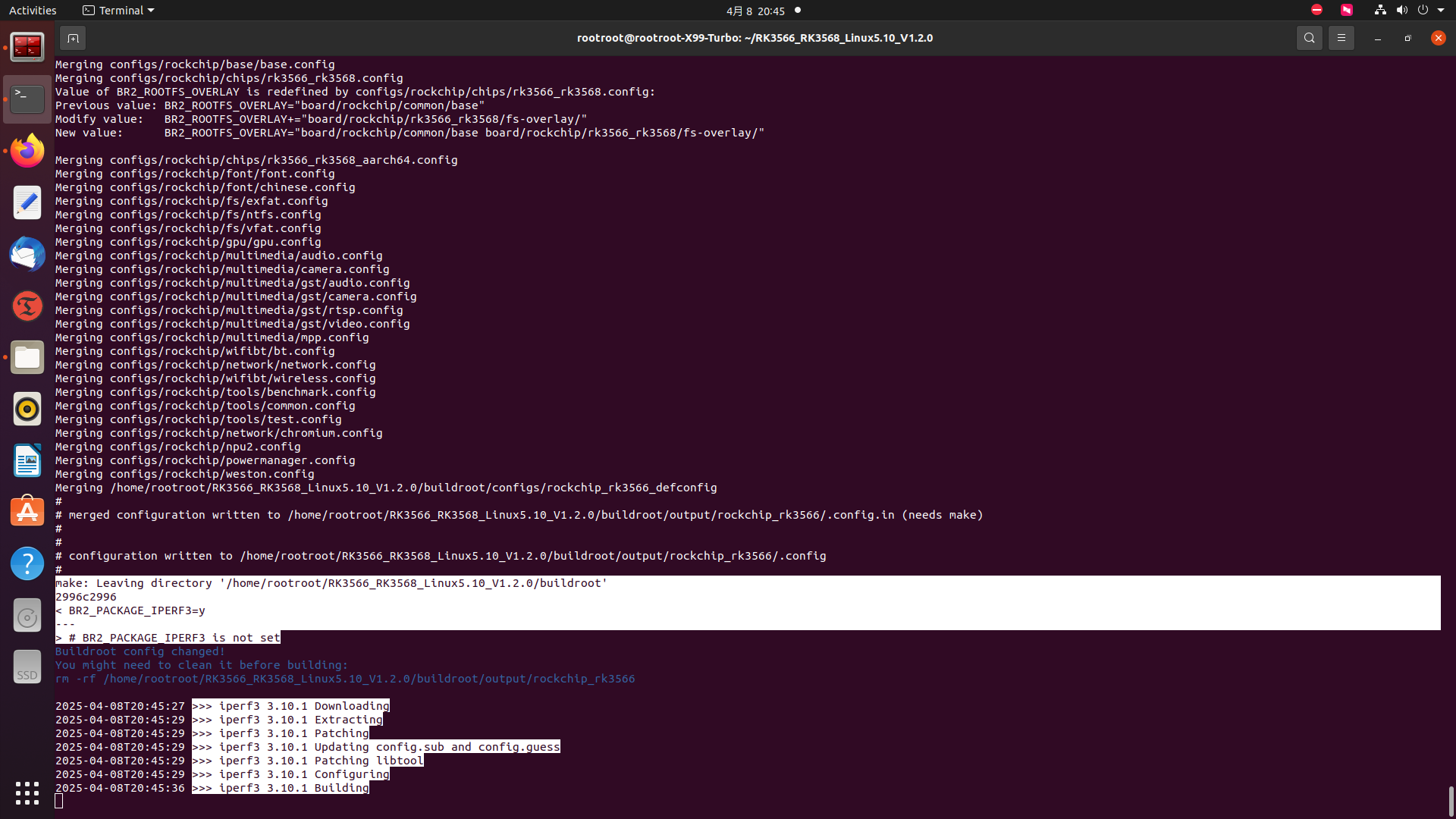

BR2_PACKAGE_IPERF3=y

rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ find . -name iperf3
./buildroot/dl/iperf3
./buildroot/output/rockchip_rk3566/build/iperf3-3.10.1/src/iperf3
./buildroot/output/rockchip_rk3566/target/usr/bin/iperf3
./buildroot/package/iperf3
./yocto/meta-openembedded/meta-oe/recipes-benchmark/iperf3
./yocto/meta-openembedded/meta-oe/recipes-benchmark/iperf3/iperf3
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$

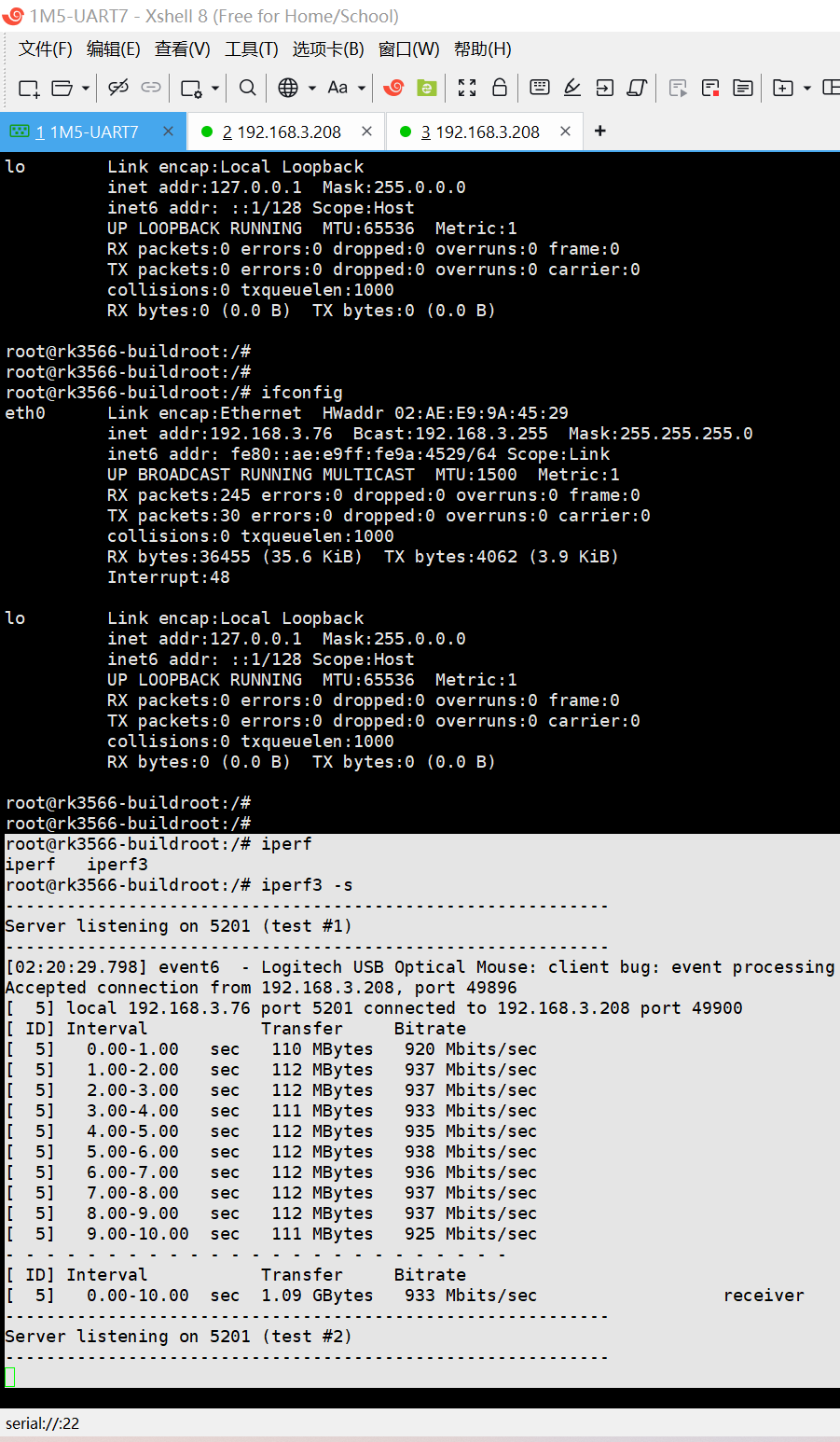

终端DEBUG口完整的LOG：

root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ifconfig
eth0 Link encap:Ethernet HWaddr 02:AE:E9:9A:45:29
inet addr:192.168.3.76 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::ae:e9ff:fe9a:4529/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:174 errors:0 dropped:0 overruns:0 frame:0
TX packets:22 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:25613 (25.0 KiB) TX bytes:3342 (3.2 KiB)
Interrupt:48

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)

root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ifconfig
eth0 Link encap:Ethernet HWaddr 02:AE:E9:9A:45:29
inet addr:192.168.3.76 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::ae:e9ff:fe9a:4529/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:193 errors:0 dropped:0 overruns:0 frame:0
TX packets:22 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:28812 (28.1 KiB) TX bytes:3342 (3.2 KiB)
Interrupt:48

root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ifconfig
eth0 Link encap:Ethernet HWaddr 02:AE:E9:9A:45:29
inet addr:192.168.3.76 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::ae:e9ff:fe9a:4529/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:245 errors:0 dropped:0 overruns:0 frame:0
TX packets:30 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:36455 (35.6 KiB) TX bytes:4062 (3.9 KiB)
Interrupt:48

root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# iperf
iperf iperf3
root@rk3566-buildroot:/# iperf3 -s
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
[02:20:29.798] event6 - Logitech USB Optical Mouse: client bug: event processing lagging behind by 11ms, your system is too slow
Accepted connection from 192.168.3.208, port 49896
[ 5] local 192.168.3.76 port 5201 connected to 192.168.3.208 port 49900
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 110 MBytes 920 Mbits/sec
[ 5] 1.00-2.00 sec 112 MBytes 937 Mbits/sec
[ 5] 2.00-3.00 sec 112 MBytes 937 Mbits/sec
[ 5] 3.00-4.00 sec 111 MBytes 933 Mbits/sec
[ 5] 4.00-5.00 sec 112 MBytes 935 Mbits/sec
[ 5] 5.00-6.00 sec 112 MBytes 938 Mbits/sec
[ 5] 6.00-7.00 sec 112 MBytes 936 Mbits/sec
[ 5] 7.00-8.00 sec 112 MBytes 937 Mbits/sec
[ 5] 8.00-9.00 sec 112 MBytes 937 Mbits/sec
[ 5] 9.00-10.00 sec 111 MBytes 925 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 1.09 GBytes 933 Mbits/sec receiver
-----------------------------------------------------------
Server listening on 5201 (test #2)
-----------------------------------------------------------

ubuntu20.04.6服务器上的：

root@rk3566-buildroot:/# iperf
iperf iperf3
root@rk3566-buildroot:/# iperf3 -s
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
[02:20:29.798] event6 - Logitech USB Optical Mouse: client bug: event processing lagging behind by 11ms, your system is too slow
Accepted connection from 192.168.3.208, port 49896
[ 5] local 192.168.3.76 port 5201 connected to 192.168.3.208 port 49900
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 110 MBytes 920 Mbits/sec
[ 5] 1.00-2.00 sec 112 MBytes 937 Mbits/sec
[ 5] 2.00-3.00 sec 112 MBytes 937 Mbits/sec
[ 5] 3.00-4.00 sec 111 MBytes 933 Mbits/sec
[ 5] 4.00-5.00 sec 112 MBytes 935 Mbits/sec
[ 5] 5.00-6.00 sec 112 MBytes 938 Mbits/sec
[ 5] 6.00-7.00 sec 112 MBytes 936 Mbits/sec
[ 5] 7.00-8.00 sec 112 MBytes 937 Mbits/sec
[ 5] 8.00-9.00 sec 112 MBytes 937 Mbits/sec
[ 5] 9.00-10.00 sec 111 MBytes 925 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 1.09 GBytes 933 Mbits/sec receiver
-----------------------------------------------------------
Server listening on 5201 (test #2)
-----------------------------------------------------------

rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$

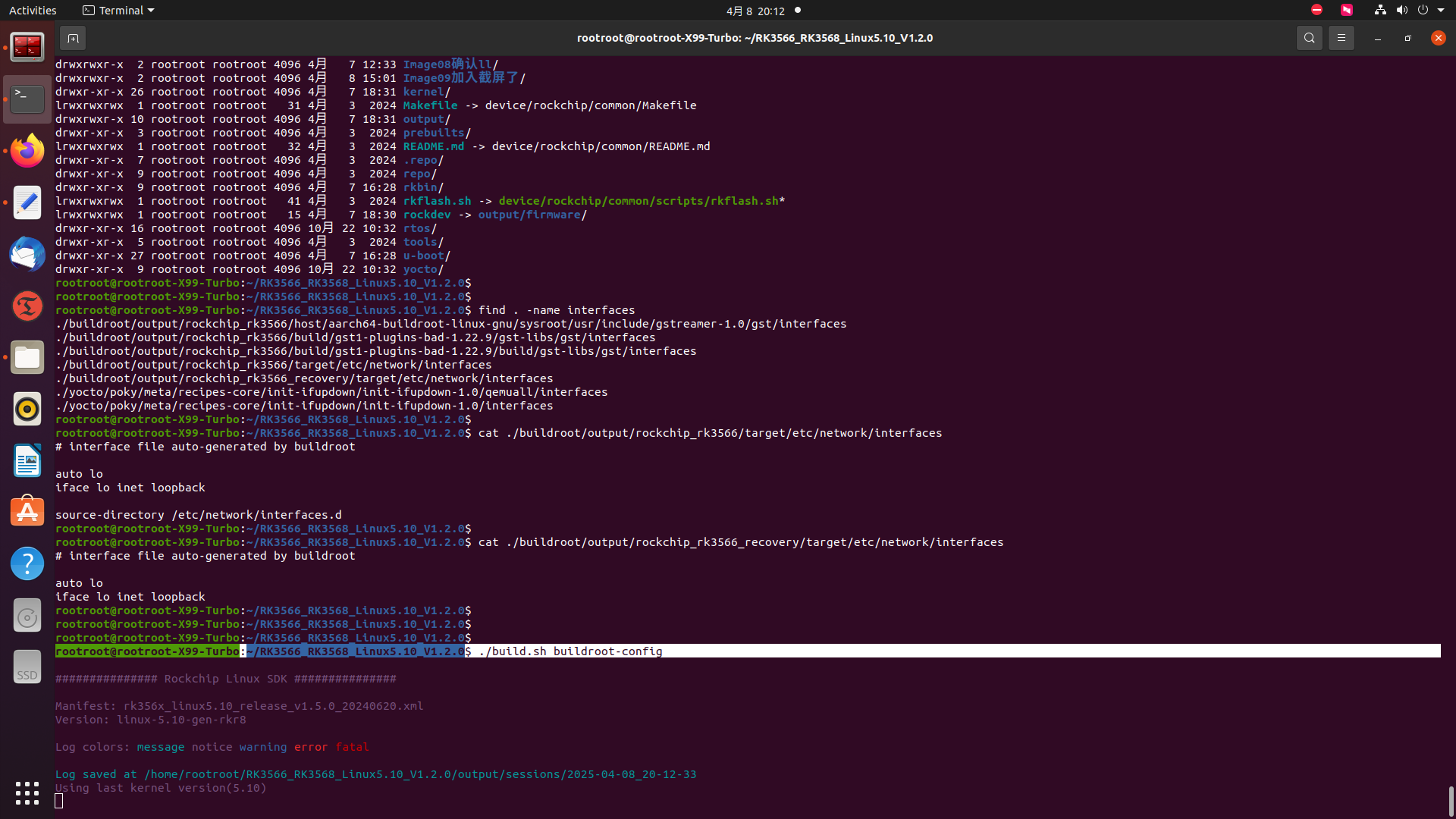

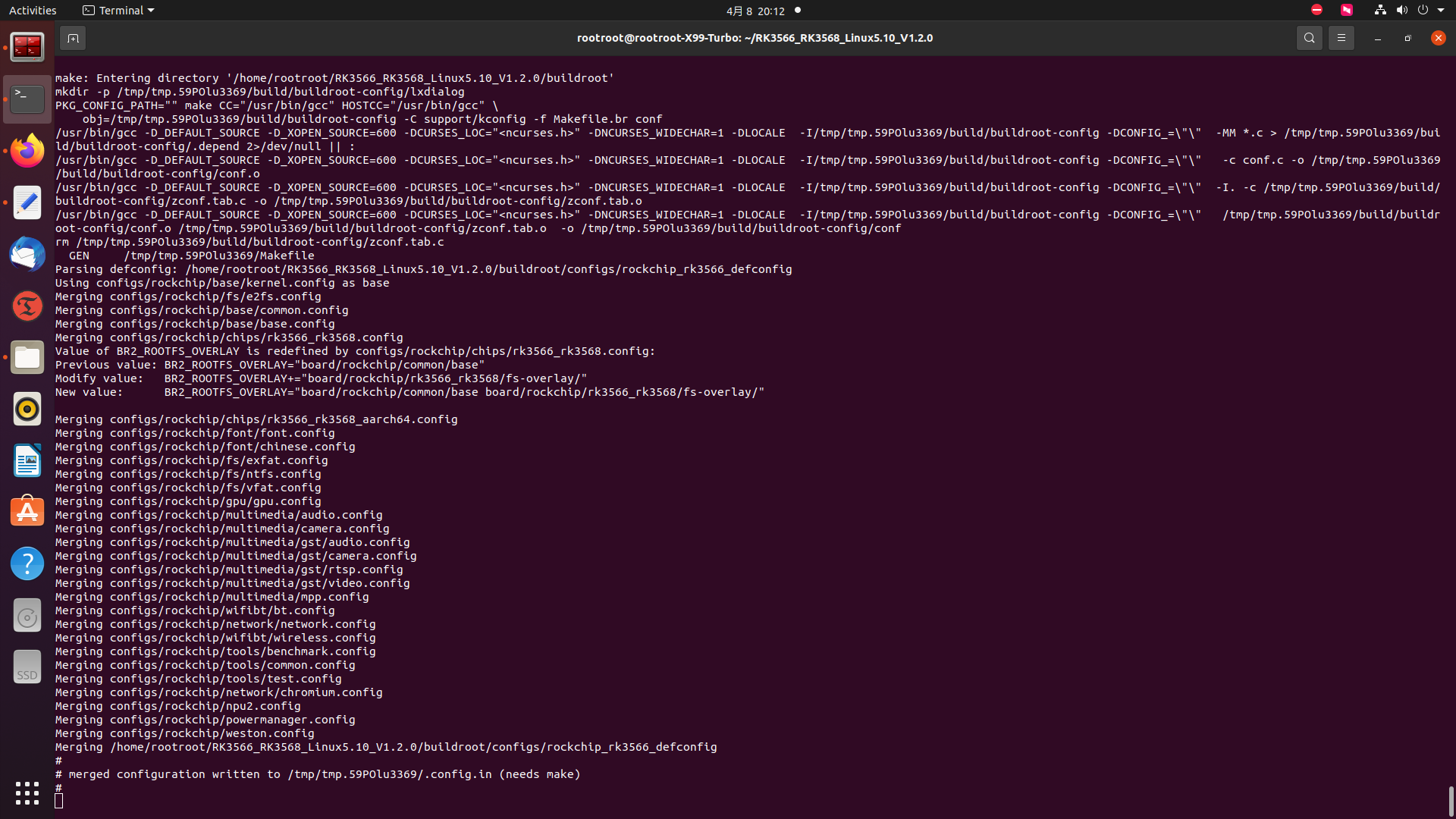

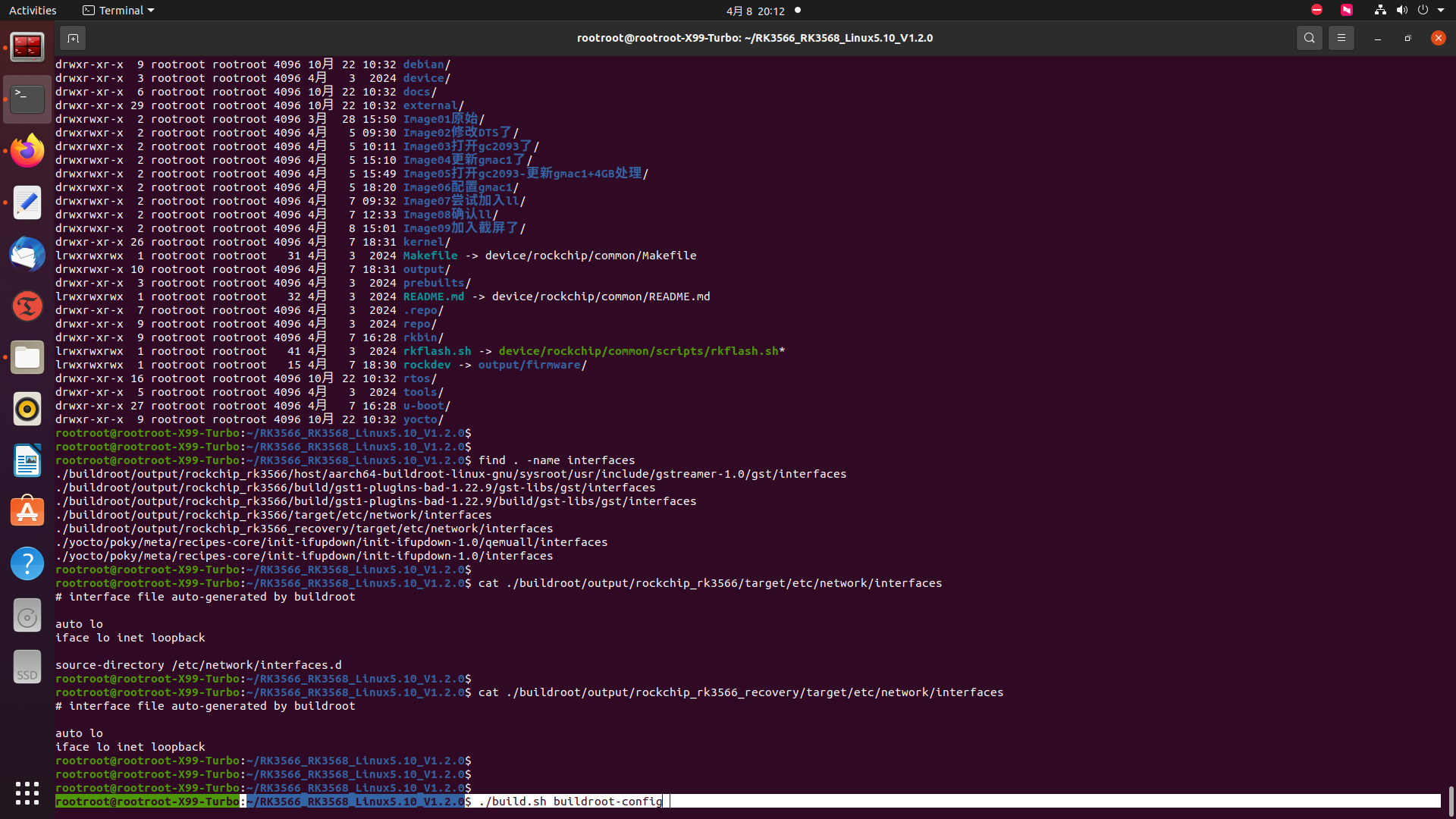

rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ ./build.sh buildroot-config

############### Rockchip Linux SDK ###############

Manifest: rk356x_linux5.10_release_v1.5.0_20240620.xml
Version: linux-5.10-gen-rkr8

Log colors: message notice warning error fatal

Log saved at /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/sessions/2025-04-08_20-43-53
Using last kernel version(5.10)

==========================================

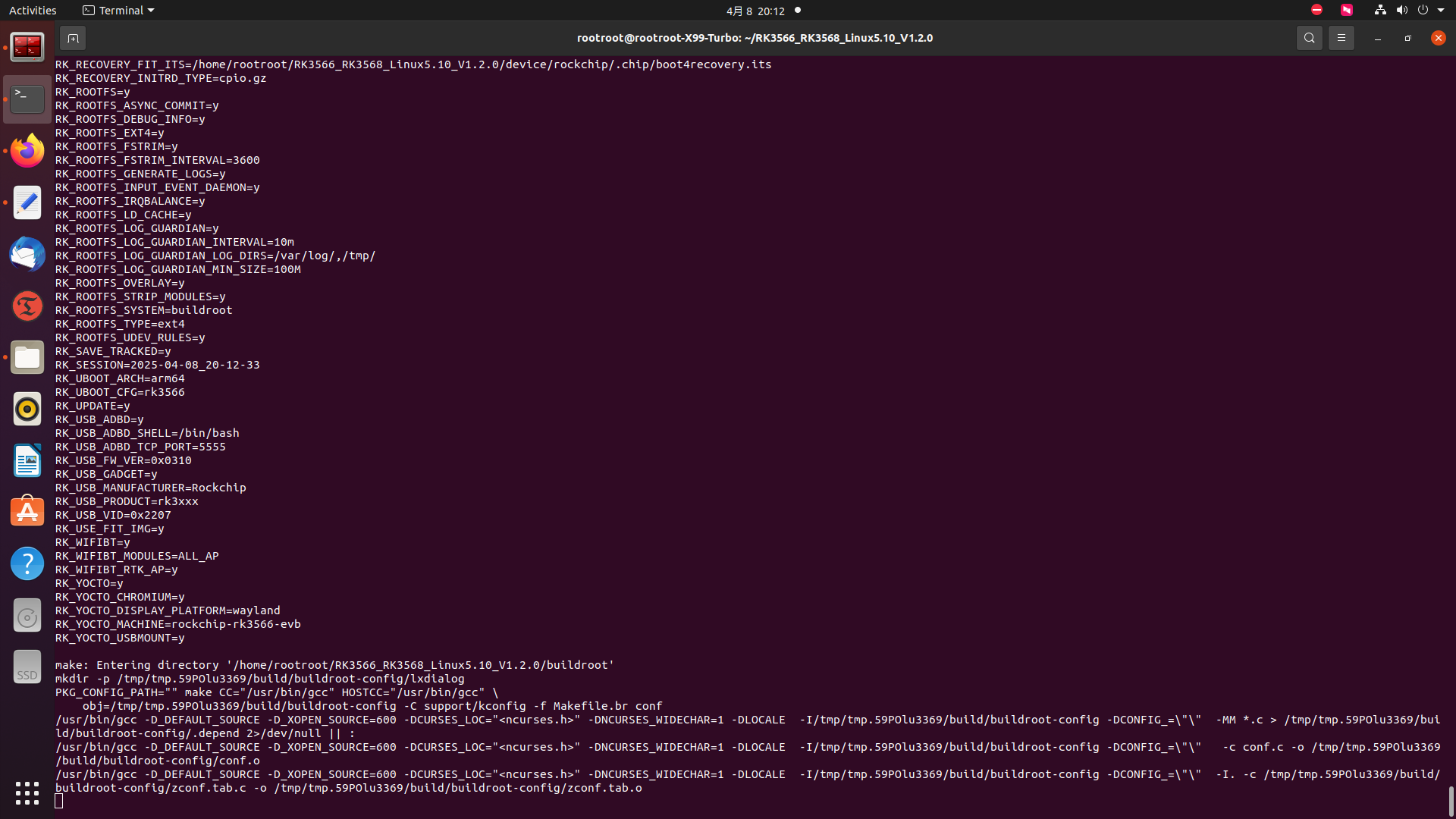

Final configs
==========================================
RK_BOOT_FIT_ITS=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chip/boot.its
RK_BOOT_IMG=boot.img
RK_BUILDROOT=y
RK_BUILDROOT_CFG=rockchip_rk3566
RK_CHIP=rk3566
RK_CHIP_FAMILY=rk3566_rk3568
RK_DEBIAN=y
RK_DEBIAN_ARCH=arm64
RK_DEBIAN_BULLSEYE=y
RK_DEBIAN_MIRROR=mirrors.ustc.edu.cn
RK_DEBIAN_VERSION=bullseye
RK_DEFCONFIG=rockchip_rk3566_evb2_lp4x_v10_defconfig
RK_EXTRA_PARTITION_NUM=2
RK_EXTRA_PARTITION_STR=oem:oem:/oem:ext4:defaults:normal:auto:@userdata:userdata:/userdata:ext4:defaults:normal:auto:@@@
RK_KERNEL=y
RK_KERNEL_ARCH=arm64
RK_KERNEL_CFG=rockchip_linux_defconfig
RK_KERNEL_DTS=kernel/arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dts
RK_KERNEL_IMG=kernel/arch/arm64/boot/Image
RK_KERNEL_VERSION=5.10
RK_KERNEL_VERSION_RAW=5.10
RK_LOADER=y
RK_MISC=y
RK_MISC_BLANK=y
RK_OVERLAY=y
RK_OWNER=rootroot
RK_OWNER_UID=1000
RK_PARAMETER=parameter-buildroot-fit.txt
RK_RECOVERY=y
RK_RECOVERY_CFG=rockchip_rk3566_recovery
RK_RECOVERY_CPIO_GZ=y
RK_RECOVERY_FIT_ITS=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chip/boot4recovery.its
RK_RECOVERY_INITRD_TYPE=cpio.gz
RK_ROOTFS=y
RK_ROOTFS_ASYNC_COMMIT=y
RK_ROOTFS_DEBUG_INFO=y
RK_ROOTFS_EXT4=y
RK_ROOTFS_FSTRIM=y
RK_ROOTFS_FSTRIM_INTERVAL=3600
RK_ROOTFS_GENERATE_LOGS=y
RK_ROOTFS_INPUT_EVENT_DAEMON=y
RK_ROOTFS_IRQBALANCE=y
RK_ROOTFS_LD_CACHE=y
RK_ROOTFS_LOG_GUARDIAN=y
RK_ROOTFS_LOG_GUARDIAN_INTERVAL=10m
RK_ROOTFS_LOG_GUARDIAN_LOG_DIRS=/var/log/,/tmp/
RK_ROOTFS_LOG_GUARDIAN_MIN_SIZE=100M
RK_ROOTFS_OVERLAY=y
RK_ROOTFS_STRIP_MODULES=y
RK_ROOTFS_SYSTEM=buildroot
RK_ROOTFS_TYPE=ext4
RK_ROOTFS_UDEV_RULES=y
RK_SAVE_TRACKED=y
RK_SESSION=2025-04-08_20-43-53
RK_UBOOT_ARCH=arm64
RK_UBOOT_CFG=rk3566
RK_UPDATE=y
RK_USB_ADBD=y
RK_USB_ADBD_SHELL=/bin/bash
RK_USB_ADBD_TCP_PORT=5555
RK_USB_FW_VER=0x0310
RK_USB_GADGET=y
RK_USB_MANUFACTURER=Rockchip
RK_USB_PRODUCT=rk3xxx
RK_USB_VID=0x2207
RK_USE_FIT_IMG=y
RK_WIFIBT=y
RK_WIFIBT_MODULES=ALL_AP
RK_WIFIBT_RTK_AP=y
RK_YOCTO=y
RK_YOCTO_CHROMIUM=y
RK_YOCTO_DISPLAY_PLATFORM=wayland
RK_YOCTO_MACHINE=rockchip-rk3566-evb
RK_YOCTO_USBMOUNT=y

make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot'
mkdir -p /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog
PKG_CONFIG_PATH="" make CC="/usr/bin/gcc" HOSTCC="/usr/bin/gcc" \
obj=/tmp/tmp.nq88OWu4jf/build/buildroot-config -C support/kconfig -f Makefile.br conf
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -MM *.c > /tmp/tmp.nq88OWu4jf/build/buildroot-config/.depend 2>/dev/null || :
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c conf.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/conf.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -I. -c /tmp/tmp.nq88OWu4jf/build/buildroot-config/zconf.tab.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/zconf.tab.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" /tmp/tmp.nq88OWu4jf/build/buildroot-config/conf.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/zconf.tab.o -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/conf
rm /tmp/tmp.nq88OWu4jf/build/buildroot-config/zconf.tab.c
GEN /tmp/tmp.nq88OWu4jf/Makefile
Parsing defconfig: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/configs/rockchip_rk3566_defconfig
Using configs/rockchip/base/kernel.config as base
Merging configs/rockchip/fs/e2fs.config
Merging configs/rockchip/base/common.config
Merging configs/rockchip/base/base.config
Merging configs/rockchip/chips/rk3566_rk3568.config
Value of BR2_ROOTFS_OVERLAY is redefined by configs/rockchip/chips/rk3566_rk3568.config:
Previous value:   BR2_ROOTFS_OVERLAY="board/rockchip/common/base"
Modify value:   BR2_ROOTFS_OVERLAY+="board/rockchip/rk3566_rk3568/fs-overlay/"
New value:   BR2_ROOTFS_OVERLAY="board/rockchip/common/base board/rockchip/rk3566_rk3568/fs-overlay/"

Merging configs/rockchip/chips/rk3566_rk3568_aarch64.config
Merging configs/rockchip/font/font.config
Merging configs/rockchip/font/chinese.config
Merging configs/rockchip/fs/exfat.config
Merging configs/rockchip/fs/ntfs.config
Merging configs/rockchip/fs/vfat.config
Merging configs/rockchip/gpu/gpu.config
Merging configs/rockchip/multimedia/audio.config
Merging configs/rockchip/multimedia/camera.config
Merging configs/rockchip/multimedia/gst/audio.config
Merging configs/rockchip/multimedia/gst/camera.config
Merging configs/rockchip/multimedia/gst/rtsp.config
Merging configs/rockchip/multimedia/gst/video.config
Merging configs/rockchip/multimedia/mpp.config
Merging configs/rockchip/wifibt/bt.config
Merging configs/rockchip/network/network.config
Merging configs/rockchip/wifibt/wireless.config
Merging configs/rockchip/tools/benchmark.config
Merging configs/rockchip/tools/common.config
Merging configs/rockchip/tools/test.config
Merging configs/rockchip/network/chromium.config
Merging configs/rockchip/npu2.config
Merging configs/rockchip/powermanager.config
Merging configs/rockchip/weston.config
Merging /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/configs/rockchip_rk3566_defconfig
#
# merged configuration written to /tmp/tmp.nq88OWu4jf/.config.in (needs make)
#
#
# configuration written to /tmp/tmp.nq88OWu4jf/.config
#
mkdir -p /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog
PKG_CONFIG_PATH="" make CC="/usr/bin/gcc" HOSTCC="/usr/bin/gcc" \
obj=/tmp/tmp.nq88OWu4jf/build/buildroot-config -C support/kconfig -f Makefile.br mconf
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c lxdialog/checklist.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/checklist.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c lxdialog/inputbox.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/inputbox.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c lxdialog/menubox.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/menubox.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c lxdialog/textbox.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/textbox.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c lxdialog/util.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/util.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c lxdialog/yesno.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/yesno.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" -c mconf.c -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/mconf.o
/usr/bin/gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/tmp/tmp.nq88OWu4jf/build/buildroot-config -DCONFIG_=\"\" /tmp/tmp.nq88OWu4jf/build/buildroot-config/mconf.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/zconf.tab.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/checklist.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/util.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/inputbox.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/textbox.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/yesno.o /tmp/tmp.nq88OWu4jf/build/buildroot-config/lxdialog/menubox.o -Wl,-Bsymbolic-functions -lncursesw -ltinfo -o /tmp/tmp.nq88OWu4jf/build/buildroot-config/mconf
configuration written to /tmp/tmp.nq88OWu4jf/.config

*** End of the configuration.
*** Execute 'make' to start the build or try 'make help'.

make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot'
Updating defconfig: configs/rockchip_rk3566_defconfig
Original defconfig saved to /tmp/tmp.nq88OWu4jf/.defconfig
Base defconfig saved to /tmp/tmp.nq88OWu4jf/.base_defconfig
Value of BR2_PACKAGE_HOST_LINUX_HEADERS_CUSTOM_5_10 applied to fragment:
Base value:
Final value: BR2_PACKAGE_HOST_LINUX_HEADERS_CUSTOM_5_10=y

Value of BR2_PACKAGE_IPERF3 applied to fragment:
Base value:
Final value: BR2_PACKAGE_IPERF3=y

Done updating configs/rockchip_rk3566_defconfig.
Running 30-rootfs.sh - buildroot-config succeeded.
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$ ./build.sh

############### Rockchip Linux SDK ###############

Manifest: rk356x_linux5.10_release_v1.5.0_20240620.xml
Version: linux-5.10-gen-rkr8

Log colors: message notice warning error fatal

Log saved at /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/sessions/2025-04-08_20-44-55
Using last kernel version(5.10)

==========================================
Final configs
==========================================
RK_BOOT_FIT_ITS=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chip/boot.its
RK_BOOT_IMG=boot.img
RK_BUILDROOT=y
RK_BUILDROOT_CFG=rockchip_rk3566
RK_CHIP=rk3566
RK_CHIP_FAMILY=rk3566_rk3568
RK_DEBIAN=y
RK_DEBIAN_ARCH=arm64
RK_DEBIAN_BULLSEYE=y
RK_DEBIAN_MIRROR=mirrors.ustc.edu.cn
RK_DEBIAN_VERSION=bullseye
RK_DEFCONFIG=rockchip_rk3566_evb2_lp4x_v10_defconfig
RK_EXTRA_PARTITION_NUM=2
RK_EXTRA_PARTITION_STR=oem:oem:/oem:ext4:defaults:normal:auto:@userdata:userdata:/userdata:ext4:defaults:normal:auto:@@@
RK_KERNEL=y
RK_KERNEL_ARCH=arm64
RK_KERNEL_CFG=rockchip_linux_defconfig
RK_KERNEL_DTS=kernel/arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dts
RK_KERNEL_IMG=kernel/arch/arm64/boot/Image
RK_KERNEL_VERSION=5.10
RK_KERNEL_VERSION_RAW=5.10
RK_LOADER=y
RK_MISC=y
RK_MISC_BLANK=y
RK_OVERLAY=y
RK_OWNER=rootroot
RK_OWNER_UID=1000
RK_PARAMETER=parameter-buildroot-fit.txt
RK_RECOVERY=y
RK_RECOVERY_CFG=rockchip_rk3566_recovery
RK_RECOVERY_CPIO_GZ=y
RK_RECOVERY_FIT_ITS=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chip/boot4recovery.its
RK_RECOVERY_INITRD_TYPE=cpio.gz
RK_ROOTFS=y
RK_ROOTFS_ASYNC_COMMIT=y
RK_ROOTFS_DEBUG_INFO=y
RK_ROOTFS_EXT4=y
RK_ROOTFS_FSTRIM=y
RK_ROOTFS_FSTRIM_INTERVAL=3600
RK_ROOTFS_GENERATE_LOGS=y
RK_ROOTFS_INPUT_EVENT_DAEMON=y
RK_ROOTFS_IRQBALANCE=y
RK_ROOTFS_LD_CACHE=y
RK_ROOTFS_LOG_GUARDIAN=y
RK_ROOTFS_LOG_GUARDIAN_INTERVAL=10m
RK_ROOTFS_LOG_GUARDIAN_LOG_DIRS=/var/log/,/tmp/
RK_ROOTFS_LOG_GUARDIAN_MIN_SIZE=100M
RK_ROOTFS_OVERLAY=y
RK_ROOTFS_STRIP_MODULES=y
RK_ROOTFS_SYSTEM=buildroot
RK_ROOTFS_TYPE=ext4
RK_ROOTFS_UDEV_RULES=y
RK_SAVE_TRACKED=y
RK_SESSION=2025-04-08_20-44-55
RK_UBOOT_ARCH=arm64
RK_UBOOT_CFG=rk3566
RK_UPDATE=y
RK_USB_ADBD=y
RK_USB_ADBD_SHELL=/bin/bash
RK_USB_ADBD_TCP_PORT=5555
RK_USB_FW_VER=0x0310
RK_USB_GADGET=y
RK_USB_MANUFACTURER=Rockchip
RK_USB_PRODUCT=rk3xxx
RK_USB_VID=0x2207
RK_USE_FIT_IMG=y
RK_WIFIBT=y
RK_WIFIBT_MODULES=ALL_AP
RK_WIFIBT_RTK_AP=y
RK_YOCTO=y
RK_YOCTO_CHROMIUM=y
RK_YOCTO_DISPLAY_PLATFORM=wayland
RK_YOCTO_MACHINE=rockchip-rk3566-evb
RK_YOCTO_USBMOUNT=y

==========================================
Start building all images
==========================================
Generated blank misc image
Done packing /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/firmware/misc.img
Running mk-misc.sh - build_misc succeeded.
Toolchain for loader (U-Boot):
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-

==========================================
Start building loader
==========================================
+ cd u-boot
+ ./make.sh CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- rk3566
## make rk3568_defconfig rk3566.config -j48
#
# configuration written to .config
#
Using .config as base
Merging ./arch/../configs/rk3566.config
Value of CONFIG_BASE_DEFCONFIG is redefined by fragment ./arch/../configs/rk3566.config:
Previous value: CONFIG_BASE_DEFCONFIG=""
New value: CONFIG_BASE_DEFCONFIG="rk3568_defconfig"

Value of CONFIG_LOADER_INI is redefined by fragment ./arch/../configs/rk3566.config:
Previous value: CONFIG_LOADER_INI=""
New value: CONFIG_LOADER_INI="RK3566MINIALL.ini"

#
# merged configuration written to .config (needs make)
#
scripts/kconfig/conf --oldconfig Kconfig
#
# configuration written to .config
#
scripts/kconfig/conf --silentoldconfig Kconfig
CHK include/config.h
CFG u-boot.cfg
GEN include/autoconf.mk.dep
CFG spl/u-boot.cfg
CFG tpl/u-boot.cfg
GEN include/autoconf.mk
GEN spl/include/autoconf.mk
GEN tpl/include/autoconf.mk
CHK include/config/uboot.release
CHK include/generated/timestamp_autogenerated.h
UPD include/generated/timestamp_autogenerated.h
CHK include/generated/version_autogenerated.h
CHK include/generated/generic-asm-offsets.h
CHK include/generated/asm-offsets.h
HOSTCC tools/mkenvimage.o
HOSTCC tools/fit_image.o
HOSTCC tools/image-host.o
HOSTCC tools/dumpimage.o
HOSTCC tools/mkimage.o
CHK include/config.h
CFG u-boot.cfg
HOSTLD tools/mkenvimage
HOSTLD tools/dumpimage
HOSTLD tools/mkimage
CC arch/arm/cpu/armv8/fwcall.o
CC arch/arm/mach-rockchip/board.o
LD arch/arm/cpu/armv8/built-in.o
CC common/main.o
CC cmd/version.o
CC drivers/usb/gadget/f_fastboot.o
LD cmd/built-in.o
LD common/built-in.o
CC lib/display_options.o
LD lib/built-in.o
LD arch/arm/mach-rockchip/built-in.o
LD drivers/usb/gadget/built-in.o
LD u-boot
OBJCOPY u-boot.srec
OBJCOPY u-boot-nodtb.bin
SYM u-boot.sym
start=$(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-nm u-boot | grep __rel_dyn_start | cut -f 1 -d ' '); end=$(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-nm u-boot | grep __rel_dyn_end | cut -f 1 -d ' '); tools/relocate-rela u-boot-nodtb.bin 0x00a00000 $start $end
make[2]: 'arch/arm/dts/rk3568-evb.dtb' is up to date.
COPY u-boot.dtb
CAT u-boot-dtb.bin
MKIMAGE u-boot.img
MKIMAGE u-boot-dtb.img
COPY u-boot.bin
ALIGN u-boot.bin
COPY spl/u-boot-spl.dtb
CC tpl/arch/arm/mach-rockchip/tpl.o
CC spl/common/spl/spl.o
CC spl/arch/arm/cpu/armv8/fwcall.o
CC tpl/arch/arm/cpu/armv8/fwcall.o
CC spl/arch/arm/mach-rockchip/spl.o
CC spl/lib/display_options.o
LD spl/arch/arm/cpu/armv8/built-in.o
LD tpl/arch/arm/cpu/armv8/built-in.o
LD tpl/arch/arm/mach-rockchip/built-in.o
LD spl/arch/arm/mach-rockchip/built-in.o
LD spl/common/spl/built-in.o
LD spl/lib/built-in.o
LD tpl/u-boot-tpl
OBJCOPY tpl/u-boot-tpl-nodtb.bin
COPY tpl/u-boot-tpl.bin
LD spl/u-boot-spl
OBJCOPY spl/u-boot-spl-nodtb.bin
CAT spl/u-boot-spl-dtb.bin
COPY spl/u-boot-spl.bin
CFGCHK u-boot.cfg
SEC=1
pack u-boot.itb okay! Input: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/rkbin/RKTRUST/RK3568TRUST.ini

FIT description: FIT Image with ATF/OP-TEE/U-Boot/MCU
Created: Tue Apr 8 20:45:03 2025
Image 0 (uboot)
Description: U-Boot
Created: Tue Apr 8 20:45:03 2025
Type: Standalone Program
Compression: gzip compressed
Data Size: 588621 Bytes = 574.83 KiB = 0.56 MiB
Architecture: AArch64
Load Address: 0x00a00000
Entry Point: unavailable
Hash algo: sha256
Hash value: 4520926b8edc0f8348f5e4f2472eeea15b8a8ca3b1384773ca8d3943f3f6213a
Image 1 (atf-1)
Description: ARM Trusted Firmware
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: gzip compressed
Data Size: 57097 Bytes = 55.76 KiB = 0.05 MiB
Architecture: AArch64
Load Address: 0x00040000
Hash algo: sha256
Hash value: de2f64a8f43532c0d8f63d1f669a7bf79befe1095a67ae33d9f2266d868f6eea
Image 2 (atf-2)
Description: ARM Trusted Firmware
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: uncompressed
Data Size: 40960 Bytes = 40.00 KiB = 0.04 MiB
Architecture: AArch64
Load Address: 0xfdcc1000
Hash algo: sha256
Hash value: b8dca786b41f8beb12e2434c1698e344931777099aa0e5729b76fcda2f781907
Image 3 (atf-3)
Description: ARM Trusted Firmware
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: uncompressed
Data Size: 20291 Bytes = 19.82 KiB = 0.02 MiB
Architecture: AArch64
Load Address: 0x0006b000
Hash algo: sha256
Hash value: 2f91089eb714c78d9fb81f005859beda7f1709e04a858e4db732cb8f9800e727
Image 4 (atf-4)
Description: ARM Trusted Firmware
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: uncompressed
Data Size: 8192 Bytes = 8.00 KiB = 0.01 MiB
Architecture: AArch64
Load Address: 0xfdcce000
Hash algo: sha256
Hash value: 86ef8857484c5cd51363c3dd8338818c7bdc687e48c57897578781f10270a515
Image 5 (atf-5)
Description: ARM Trusted Firmware
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: uncompressed
Data Size: 8192 Bytes = 8.00 KiB = 0.01 MiB
Architecture: AArch64
Load Address: 0xfdcd0000
Hash algo: sha256
Hash value: 0b2b146c608fb46195852ab008f179c3e4ea399d38af589691d72705fbfde654
Image 6 (atf-6)
Description: ARM Trusted Firmware
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: uncompressed
Data Size: 7916 Bytes = 7.73 KiB = 0.01 MiB
Architecture: AArch64
Load Address: 0x00069000
Hash algo: sha256
Hash value: a9a1e63bef11a6776a9670708fe78211ddcc437cc4ab145e1cfef77cea8607e4
Image 7 (optee)
Description: OP-TEE
Created: Tue Apr 8 20:45:03 2025
Type: Firmware
Compression: gzip compressed
Data Size: 227522 Bytes = 222.19 KiB = 0.22 MiB
Architecture: AArch64
Load Address: 0x08400000
Hash algo: sha256
Hash value: 62899ab09d35880dc89545fc243a2ac8ee10772f98bbadaf74bc054dea40f8b9
Image 8 (fdt)
Description: U-Boot dtb
Created: Tue Apr 8 20:45:03 2025
Type: Flat Device Tree
Compression: uncompressed
Data Size: 14869 Bytes = 14.52 KiB = 0.01 MiB
Architecture: AArch64
Hash algo: sha256
Hash value: a474c6bb6152de71c9b0873aa0c95509b938e47b343d7f8022faef48a9f8248a
Default Configuration: 'conf'
Configuration 0 (conf)
Description: rk3568-evb
Kernel: unavailable
Firmware: atf-1
FDT: fdt
Loadables: uboot
atf-2
atf-3
atf-4
atf-5
atf-6
optee
********boot_merger ver 1.35********
Info:Pack loader ok.
pack loader okay! Input: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/rkbin/RKBOOT/RK3566MINIALL.ini
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/u-boot

Image(no-signed, version=0): uboot.img (FIT with uboot, trust...) is ready
Image(no-signed): rk356x_spl_loader_v1.21.114.bin (with spl, ddr...) is ready
pack uboot.img okay! Input: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/rkbin/RKTRUST/RK3568TRUST.ini

Platform RK3568 is build OK, with new .config(make rk3568_defconfig rk3566.config -j48)
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-
Tue Apr 8 20:45:03 CST 2025
+ cd ..
Running mk-loader.sh - build_loader succeeded.
Using kernel version(5.10) from environment
Toolchain for kernel:
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-

==========================================
Start building kernel
==========================================
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 rockchip_linux_defconfig
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
#
# No change to .config
#
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 rk3566-evb2-lp4x-v10-linux.img
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
CALL scripts/atomic/check-atomics.sh
CALL scripts/checksyscalls.sh
CHK include/generated/compile.h
Image: resource.img (with rk3566-evb2-lp4x-v10-linux.dtb logo.bmp logo_kernel.bmp) is ready
Image: boot.img (with Image resource.img) is ready
Image: zboot.img (with Image.lz4 resource.img) is ready
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
+ /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/scripts/mk-fitimage.sh kernel/boot.img /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chip/boot.its kernel/arch/arm64/boot/Image kernel/arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dtb kernel/resource.img
FIT description: U-Boot FIT source file for arm
Created: Tue Apr 8 20:45:14 2025
Image 0 (fdt)
Description: unavailable
Created: Tue Apr 8 20:45:14 2025
Type: Flat Device Tree
Compression: uncompressed
Data Size: 169709 Bytes = 165.73 KiB = 0.16 MiB
Architecture: AArch64
Load Address: 0xffffff00
Hash algo: sha256
Hash value: bcba43ee816535b57ba596a314ad330c1d6eef43cde3f27403731f0ca08638f9
Image 1 (kernel)
Description: unavailable
Created: Tue Apr 8 20:45:14 2025
Type: Kernel Image
Compression: uncompressed
Data Size: 36866560 Bytes = 36002.50 KiB = 35.16 MiB
Architecture: AArch64
OS: Linux
Load Address: 0xffffff01
Entry Point: 0xffffff01
Hash algo: sha256
Hash value: d82de3c3849b63a494d08c8d9c39f5c31b4652f07dda9de1d160807b85834e4d
Image 2 (resource)
Description: unavailable
Created: Tue Apr 8 20:45:14 2025
Type: Multi-File Image
Compression: uncompressed
Data Size: 207872 Bytes = 203.00 KiB = 0.20 MiB
Hash algo: sha256
Hash value: ccf231b6cfc90df875b273108839ef3a737f9ec1e97617309f7012ae03262490
Default Configuration: 'conf'
Configuration 0 (conf)
Description: unavailable
Kernel: kernel
FDT: fdt
+ ln -rsf kernel/boot.img /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/firmware/boot.img
grep: exceeded PCRE's backtracking limit
grep: exceeded PCRE's backtracking limit
grep: exceeded PCRE's backtracking limit
grep: exceeded PCRE's backtracking limit
grep: exceeded PCRE's backtracking limit
grep: exceeded PCRE's backtracking limit
grep: exceeded PCRE's backtracking limit
PLEASE CHECK BOARD GPIO POWER DOMAIN CONFIGURATION !!!!!
<<< ESPECIALLY Wi-Fi/Flash/Ethernet IO power domain >>> !!!!!
Check Node [pmu_io_domains] in the file: kernel/arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dts

请再次确认板级的电源域配置！！！！！！
<<< 特别是Wi-Fi，FLASH，以太网这几路IO电源的配置 >>> ！！！！！
检查内核文件 kernel/arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dts 的节点 [pmu_io_domains]
Running mk-kernel.sh - build_kernel succeeded.
==========================================
Start building rootfs(buildroot)
==========================================
==========================================
Start building buildroot(2021.11)
==========================================
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot'
GEN /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/Makefile
Parsing defconfig: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/configs/rockchip_rk3566_defconfig
Using configs/rockchip/base/kernel.config as base
Merging configs/rockchip/fs/e2fs.config
Merging configs/rockchip/base/common.config
Merging configs/rockchip/base/base.config
Merging configs/rockchip/chips/rk3566_rk3568.config
Value of BR2_ROOTFS_OVERLAY is redefined by configs/rockchip/chips/rk3566_rk3568.config:
Previous value:   BR2_ROOTFS_OVERLAY="board/rockchip/common/base"
Modify value:   BR2_ROOTFS_OVERLAY+="board/rockchip/rk3566_rk3568/fs-overlay/"
New value:   BR2_ROOTFS_OVERLAY="board/rockchip/common/base board/rockchip/rk3566_rk3568/fs-overlay/"

2025-04-08T20:45:27 >>> iperf3 3.10.1 Downloading
2025-04-08T20:45:29 >>> iperf3 3.10.1 Extracting
2025-04-08T20:45:29 >>> iperf3 3.10.1 Patching
2025-04-08T20:45:29 >>> iperf3 3.10.1 Updating config.sub and config.guess
2025-04-08T20:45:29 >>> iperf3 3.10.1 Patching libtool
2025-04-08T20:45:29 >>> iperf3 3.10.1 Configuring
2025-04-08T20:45:36 >>> iperf3 3.10.1 Building
2025-04-08T20:45:38 >>> iperf3 3.10.1 Installing to target
2025-04-08T20:45:39 >>> Finalizing host directory
2025-04-08T20:45:39 >>> Finalizing target directory
2025-04-08T20:45:41 >>> Sanitizing RPATH in target tree
2025-04-08T20:46:08 >>> Sanity check in overlay board/rockchip/common/base
2025-04-08T20:46:08 >>> Sanity check in overlay board/rockchip/rk3566_rk3568/fs-overlay/
2025-04-08T20:46:08 >>> Copying overlay board/rockchip/common/base
2025-04-08T20:46:08 >>> Copying overlay board/rockchip/rk3566_rk3568/fs-overlay/
2025-04-08T20:46:08 >>> Executing post-build script board/rockchip/common/post-build.sh
2025-04-08T20:46:08 >>> Copying board/rockchip/common/overlays/00-pm-utils
2025-04-08T20:46:08 >>> Copying board/rockchip/common/overlays/10-weston
2025-04-08T20:46:08 >>> Copying board/rockchip/common/overlays/11-weston-chromium
2025-04-08T20:46:08 >>> Copying board/rockchip/common/overlays/20-wlan0
2025-04-08T20:46:10 >>> Running 00-wifibt.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:46:10 >>> Building Wifi/BT module and firmwares...
2025-04-08T20:46:10 >>> Start building wifi/BT (ALL_AP)
2025-04-08T20:46:10 >>> building bcmdhd sdio
2025-04-08T20:46:27 >>> building bcmdhd pcie
2025-04-08T20:46:44 >>> building rtl8188fu usb
2025-04-08T20:46:47 >>> building rtl8189fs sdio
2025-04-08T20:46:51 >>> building rtl8723ds sdio
2025-04-08T20:46:55 >>> building rtl8821cs sdio
2025-04-08T20:46:58 >>> building rtl8822cs sdio
2025-04-08T20:47:02 >>> building rtl8852bs sdio
2025-04-08T20:47:07 >>> building rtl8852be pcie
2025-04-08T20:47:12 >>> building realtek bt drivers
2025-04-08T20:47:17 >>> Running 01-hostname.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:17 >>> Running 05-udev.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:17 >>> Installing udev rule: external/rkscript/61-persistent-internal-storage.rules
2025-04-08T20:47:17 >>> Installing udev rule: external/rkscript/88-rockchip-camera.rules
2025-04-08T20:47:17 >>> Installing udev rule: external/rkscript/99-rockchip-permissions.rules
2025-04-08T20:47:17 >>> Running 06-async-commit.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:17 >>> Installing async-commit service...
2025-04-08T20:47:17 >>> Running 07-log-guardian.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:17 >>> Installing log-guardian...
2025-04-08T20:47:17 >>> Running 09-disk.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:17 >>> Installing mount service...
2025-04-08T20:47:17 >>> Running 10-os-release.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:17 >>> Running 20-info.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:18 >>> Running 30-fstab.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:19 >>> Running 40-busybox-reboot.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:19 >>> Running 50-locale.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:19 >>> Running 60-dirs.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:19 >>> Running 90-overlay.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/bootanim)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/chromium)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/fonts)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/frecon)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/fstrim)...
2025-04-08T20:47:19 >>> Installing fstrim service to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/generate-logs)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/input-event-daemon)...
2025-04-08T20:47:19 >>> Installing input-event-daemon to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/irqbalance)...
2025-04-08T20:47:19 >>> Installing irqbalance to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/tools)...
2025-04-08T20:47:19 >>> Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/usb-gadget)...
2025-04-08T20:47:19 >>> Installing USB gadget to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
2025-04-08T20:47:19 >>> Installing adbd...
2025-04-08T20:47:19 >>> Installing USB services...
2025-04-08T20:47:19 >>> Running 91-modules.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:20 >>> Running 95-partitions.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:20 >>> Running 97-ldcache.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:20 >>> Running 99-owner.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
2025-04-08T20:47:20 >>> Running build.sh - post-rootfs succeeded.
2025-04-08T20:47:22 >>> Generating root filesystems common tables
2025-04-08T20:47:22 >>> Generating filesystem image rootfs.cpio
2025-04-08T20:49:22 >>> Generating filesystem image rootfs.ext2
2025-04-08T20:49:31 >>> Generating filesystem image rootfs.squashfs
2025-04-08T20:49:42 >>> Generating filesystem image rootfs.tar
Done in 4min 31s
Log saved on /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/sessions/2025-04-08_20-44-55/br-rockchip_rk3566_2025-04-08_20-45-17.log
Generated images:
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images/rootfs.cpio
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images/rootfs.cpio.gz
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images/rootfs.ext2
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images/rootfs.ext4
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images/rootfs.squashfs
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images/rootfs.tar
# 2025-04-08 20:46:09
# run hook: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target

Running 00-wifibt.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Building Wifi/BT module and firmwares...
==========================================
Start building wifi/BT (ALL_AP)
==========================================

kernel config: CONFIG_USB=y CONFIG_MMC=y CONFIG_RFKILL=y
building bcmdhd sdio
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/aiutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/siutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/sbutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmwifi_channels.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmxtlv.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcm_app_utils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmstdlib_s.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_platdev.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_sched.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_pno.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_common.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_ip.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_wq.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_custom_gpio.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmevent.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/hndpmu.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/linux_osl.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wldev_common.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_android.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_debug_linux.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_debug.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_mschdbg.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_dbg_ring.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/hnd_pktq.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/hnd_pktpool.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/linux_pkt.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/frag.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_exportfs.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_pktdump.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/linuxerrmap.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_tx.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_rx.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/fwpkg_utils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_config.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_ccode.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_event.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_android_ext.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_escan.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_iapsta.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_timer.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_iw.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfg80211.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgscan.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgp2p.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_linux_mon.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfg_btcoex.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgvendor.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_cfg80211.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgvif.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_roam.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_gpio.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_static_buf.o
LD [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmdhd.o
MODPOST /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/Module.symvers
LD [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmdhd.ko
building bcmdhd pcie
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/aiutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/siutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/sbutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmutils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmwifi_channels.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmxtlv.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcm_app_utils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmstdlib_s.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_platdev.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_sched.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_pno.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_common.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_ip.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_wq.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_custom_gpio.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmevent.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/hndpmu.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/linux_osl.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wldev_common.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_android.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_debug_linux.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_debug.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_mschdbg.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_dbg_ring.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/hnd_pktq.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/hnd_pktpool.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/linux_pkt.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/frag.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_exportfs.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_pktdump.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/linuxerrmap.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_tx.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_linux_rx.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/fwpkg_utils.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_config.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_ccode.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_event.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_android_ext.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_iapsta.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_escan.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_timer.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_iw.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfg80211.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgscan.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgp2p.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_linux_mon.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfg_btcoex.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgvendor.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_cfg80211.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_cfgvif.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/wl_roam.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_gpio.o
CC [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/dhd_static_buf.o
LD [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmdhd_pcie.o
MODPOST /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/Module.symvers
LD [M] /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/drivers/bcmdhd/bcmdhd_pcie.ko
building rtl8188fu usb
building rtl8189fs sdio
building rtl8723ds sdio
building rtl8821cs sdio
building rtl8822cs sdio
building rtl8852bs sdio
pwd: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
pwd: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
pwd: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
pwd: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
building rtl8852be pcie
building realtek bt drivers
create Android style dirs
copy prebuilt tools/scripts to rootfs
copy ap6xxx firmware/nvram to rootfs
cp: will not overwrite just-created '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/lib/firmware/clm_syn43756b0.blob' with '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/firmware/broadcom/AP6276S/wifi/clm_syn43756b0.blob'
cp: will not overwrite just-created '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/lib/firmware/BCM4362A2.hcd' with '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/firmware/broadcom/AP6275_PCIE/bt/BCM4362A2.hcd'
cp: will not overwrite just-created '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/lib/firmware/SYN43756B0.hcd' with '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/external/rkwifibt/firmware/broadcom/AP6276S/bt/SYN43756B0.hcd'
copy realtek firmware/nvram to rootfs
Running 01-hostname.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Setting hostname: rk3566-buildroot
Running 05-udev.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Installing udev rule: external/rkscript/61-persistent-internal-storage.rules
Installing udev rule: external/rkscript/88-rockchip-camera.rules
Installing udev rule: external/rkscript/99-rockchip-permissions.rules
Running 06-async-commit.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Installing async-commit service...
Running 07-log-guardian.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Installing log-guardian...
Running 09-disk.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Installing mount service...
Running 10-os-release.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Adding information to /etc/os-release...
Running 20-info.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Adding info dir...
Running 30-fstab.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Fixing up /etc/fstab...
Fixing up rootfs type: ext4
Fixing up basic partition: proc /proc
Fixing up basic partition: devtmpfs /dev
Fixing up basic partition: devpts /dev/pts mode=0620,ptmxmode=0000,gid=5
Fixing up basic partition: tmpfs /dev/shm nosuid,nodev,noexec
Fixing up basic partition: sysfs /sys nosuid,nodev,noexec
Fixing up basic partition: configfs /sys/kernel/config
Fixing up basic partition: debugfs /sys/kernel/debug
Fixing up basic partition: pstore /sys/fs/pstore nosuid,nodev,noexec
Fixing up device partition: oem /oem ext4 defaults
Fixing up device partition: userdata /userdata ext4 defaults
Running 40-busybox-reboot.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Running 50-locale.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Setting LANG environment to en_US.UTF-8...
Running 60-dirs.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Adding dirs and links...
Running 90-overlay.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/bootanim)...
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/chromium)...
Disabling chromium commandline flag security warnings...
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/fonts)...
No extra fonts for buildroot by default
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/frecon)...
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/fstrim)...
Installing fstrim service to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/generate-logs)...
sending incremental file list
copying unsafe symlink "usr/bin/kmsgrab" -> "../../../../../tools/armhf/kmsgrab"
copying unsafe symlink "usr/bin/modetest" -> "../../../../../tools/armhf/modetest"
etc/
etc/generate_logs.d/
usr/
usr/bin/
usr/bin/kmsgrab
usr/bin/modetest

sent 1,150,034 bytes received 70 bytes 2,300,208.00 bytes/sec
total size is 1,150,643 speedup is 1.00
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/input-event-daemon)...
Installing input-event-daemon to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
sending incremental file list
etc/input-event-daemon.conf.d/
usr/bin/input-event-daemon

sent 439,207 bytes received 42 bytes 878,498.00 bytes/sec
total size is 441,083 speedup is 1.00
removed '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/bin/inotifywait'
'/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/tools/armhf/inotifywait' -> '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/bin/inotifywait'
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/irqbalance)...
Installing irqbalance to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
sending incremental file list
etc/irqbalance.d/
usr/sbin/
usr/sbin/irqbalance
usr/share/
usr/share/man/
usr/share/man/man1/
usr/share/man/man1/irqbalance.1

sent 1,306,307 bytes received 76 bytes 2,612,766.00 bytes/sec
total size is 1,305,714 speedup is 1.00
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/tools)...
Handling overlay: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/overlays/rootfs/usb-gadget)...
Installing USB gadget to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target...
USB gadget functions: adb
Installing adbd...
Installing USB services...
Running 91-modules.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Strip kernel modules...
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/8852be.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stKdHPQW' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/rtk_btusb.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stLgvPCb' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/RTL8189FU.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stVi47Lg' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/RTL8822CS.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stLfeuTt' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/8852bs.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stIcq3GQ' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/RTL8723DS.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stTAwXT5' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/bcmdhd_pcie.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stKPtfbd' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/hci_uart.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/st3ShKgr' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/RTL8821CS.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stJlBrwB' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/RTL8189FS.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stTbLRjT' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/rtkm.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/stWxcJe9' [elf64-littleaarch64]
copy from `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/bcmdhd.ko' [elf64-littleaarch64] to `/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target/usr/lib/modules/st1kDxOh' [elf64-littleaarch64]
Running 95-partitions.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Preparing extra partitions...
Running 97-ldcache.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Keep original /etc/ld.so.cache
Running 99-owner.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/target (buildroot init=busybox)...
Running mk-rootfs.sh - build_buildroot /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/buildroot/images succeeded.
Running mk-rootfs.sh - build_rootfs succeeded.
==========================================
Start building recovery(buildroot)
==========================================
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot'
GEN /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/Makefile
Parsing defconfig: /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/configs/rockchip_rk3566_recovery_defconfig
Using configs/rockchip/base/kernel.config as base
Merging configs/rockchip/fs/e2fs.config
Merging configs/rockchip/base/common.config
Merging configs/rockchip/base/base.config
Merging configs/rockchip/base/kernel.config
Merging configs/rockchip/fs/e2fs.config
Merging configs/rockchip/base/common.config
Merging configs/rockchip/fs/vfat.config
Merging configs/rockchip/base/recovery.config
Merging configs/rockchip/chips/rk3566_rk3568.config
Value of BR2_ROOTFS_OVERLAY is redefined by configs/rockchip/chips/rk3566_rk3568.config:
Previous value:   BR2_ROOTFS_OVERLAY="board/rockchip/common/base"
Modify value:   BR2_ROOTFS_OVERLAY+="board/rockchip/rk3566_rk3568/fs-overlay/"
New value:   BR2_ROOTFS_OVERLAY="board/rockchip/common/base board/rockchip/rk3566_rk3568/fs-overlay/"

Merging configs/rockchip/chips/rk3566_rk3568_aarch64.config
Merging /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/configs/rockchip_rk3566_recovery_defconfig
#
# merged configuration written to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/.config.in (needs make)
#
#
# configuration written to /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/.config
#
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot'
2025-04-08T20:49:59 >>> Finalizing host directory
2025-04-08T20:49:59 >>> Finalizing target directory
2025-04-08T20:49:59 >>> Sanitizing RPATH in target tree
2025-04-08T20:50:01 >>> Sanity check in overlay board/rockchip/common/base
2025-04-08T20:50:01 >>> Sanity check in overlay board/rockchip/rk3566_rk3568/fs-overlay/
2025-04-08T20:50:01 >>> Copying overlay board/rockchip/common/base
2025-04-08T20:50:01 >>> Copying overlay board/rockchip/rk3566_rk3568/fs-overlay/
2025-04-08T20:50:01 >>> Executing post-build script board/rockchip/common/post-build.sh
2025-04-08T20:50:01 >>> Copying board/rockchip/common/overlays/00-pm-utils
2025-04-08T20:50:01 >>> Ignored board/rockchip/common/overlays/10-weston
2025-04-08T20:50:01 >>> Ignored board/rockchip/common/overlays/11-weston-chromium
2025-04-08T20:50:01 >>> Ignored board/rockchip/common/overlays/20-wlan0
2025-04-08T20:50:02 >>> Running 01-hostname.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:02 >>> Running 05-udev.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:02 >>> Installing udev rule: external/rkscript/61-persistent-internal-storage.rules
2025-04-08T20:50:02 >>> Installing udev rule: external/rkscript/88-rockchip-camera.rules
2025-04-08T20:50:02 >>> Installing udev rule: external/rkscript/99-rockchip-permissions.rules
2025-04-08T20:50:02 >>> Running 10-os-release.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:02 >>> Running 30-fstab.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 40-busybox-reboot.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 50-locale.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 60-dirs.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 90-overlay.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 91-modules.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 97-ldcache.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:03 >>> Running 99-owner.sh for /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566_recovery/target (recovery init=busybox)...
2025-04-08T20:50:04 >>> chown: changing ownership of './res/images/icon_installing.png': Operation not permitted
2025-04-08T20:50:06 >>> Running build.sh - post-rootfs succeeded.
2025-04-08T20:50:06 >>> Generating root filesystems common tables
2025-04-08T20:50:07 >>> Generating filesystem image rootfs.cpio
2025-04-08T20:50:10 >>> Generating filesystem image rootfs.ext2
2025-04-08T20:50:11 >>> Generating filesystem image rootfs.squashfs
2025-04-08T20:50:12 >>> Generating filesystem image rootfs.tar
Done in 23s
Log saved on /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/sessions/2025-04-08_20-44-55/br-rockchip_rk3566_recovery_2025-04-08_20-49-49.log
Generated images:
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/images/rootfs.cpio
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/images/rootfs.cpio.gz
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/images/rootfs.ext2
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/images/rootfs.ext4
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/images/rootfs.squashfs
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/images/rootfs.tar
Using kernel version(5.10) from environment
Toolchain for kernel:
/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-

==========================================
Start building recovery-kernel
==========================================
+ rm -rf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery-kernel
+ ln -rsf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery-kernel
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery-kernel
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 rockchip_linux_defconfig
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
#
# No change to .config
#
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 Image
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
CALL scripts/atomic/check-atomics.sh
CALL scripts/checksyscalls.sh
CHK include/generated/compile.h
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 rockchip/rk3566-evb2-lp4x-v10-linux.dtb
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
+ ln -rsf arch/arm64/boot/Image /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery-kernel.img
+ ln -rsf arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dtb /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery-kernel.dtb
+ scripts/resource_tool arch/arm64/boot/dts/rockchip/rk3566-evb2-lp4x-v10-linux.dtb logo.bmp logo_kernel.bmp
Pack to resource.img successed!
+ ln -rsf resource.img /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery-resource.img
Running mk-kernel.sh - build_recovery-kernel succeeded.
Packing /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/ramboot.img...
FIT description: U-Boot FIT source file for arm
Created: Tue Apr 8 20:50:22 2025
Image 0 (fdt)
Description: unavailable
Created: Tue Apr 8 20:50:22 2025
Type: Flat Device Tree
Compression: uncompressed
Data Size: 169709 Bytes = 165.73 KiB = 0.16 MiB
Architecture: AArch64
Load Address: 0xffffff00
Hash algo: sha256
Hash value: bcba43ee816535b57ba596a314ad330c1d6eef43cde3f27403731f0ca08638f9
Image 1 (kernel)
Description: unavailable
Created: Tue Apr 8 20:50:22 2025
Type: Kernel Image
Compression: uncompressed
Data Size: 36866560 Bytes = 36002.50 KiB = 35.16 MiB
Architecture: AArch64
OS: Linux
Load Address: 0xffffff01
Entry Point: 0xffffff01
Hash algo: sha256
Hash value: d82de3c3849b63a494d08c8d9c39f5c31b4652f07dda9de1d160807b85834e4d
Image 2 (ramdisk)
Description: unavailable
Created: Tue Apr 8 20:50:22 2025
Type: RAMDisk Image
Compression: uncompressed
Data Size: 6751818 Bytes = 6593.57 KiB = 6.44 MiB
Architecture: AArch64
OS: Linux
Load Address: 0xffffff02
Entry Point: unavailable
Hash algo: sha256
Hash value: 0c75c256a860dc767bd68422053bbc73548f9495328f0148e804b64cc436b2fe
Image 3 (resource)
Description: unavailable
Created: Tue Apr 8 20:50:22 2025
Type: Multi-File Image
Compression: uncompressed
Data Size: 207872 Bytes = 203.00 KiB = 0.20 MiB
Hash algo: sha256
Hash value: ccf231b6cfc90df875b273108839ef3a737f9ec1e97617309f7012ae03262490
Default Configuration: 'conf'
Configuration 0 (conf)
Description: unavailable
Kernel: kernel
Init Ramdisk: ramdisk
FDT: fdt
Running mk-recovery.sh - build_recovery succeeded.
==========================================
Start packing firmwares
==========================================
Linking /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/firmware/parameter.txt from /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chip/parameter-buildroot-fit.txt...
Preparing partiton oem
Merging /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/extra-parts/oem/normal into /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem
Packing /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img from /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.fs
Using host tools in /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/host (except for mke2fs)
Making /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img from /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem (auto sized)
Making /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img from /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem with size(14271KB)
mke2fs 1.45.5 (07-Jan-2020)
Creating regular file /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img
Creating filesystem with 3567 4k blocks and 3584 inodes

Allocating group tables: done
Writing inode tables: done
Creating journal (1024 blocks): done
Copying files into the device: __populate_fs: Could not allocate block in ext2 filesystem while writing file "game_test.gba"
mke2fs: Could not allocate block in ext2 filesystem while populating file system
Retring with increased size....(1/20)
Making /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img from /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem with size(18367KB)
mke2fs 1.45.5 (07-Jan-2020)
Creating regular file /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img
Creating filesystem with 4591 4k blocks and 4608 inodes

Allocating group tables: done
Writing inode tables: done
Creating journal (1024 blocks): done
Copying files into the device: done
Writing superblocks and filesystem accounting information: done

Filesystem too small for a journal
Creating filesystem with 78 4k blocks and 64 inodes

Allocating group tables: done
Writing inode tables: done
Copying files into the device: __populate_fs: Could not allocate block in ext2 filesystem while writing file "piano2-CoolEdit.mp3"
mke2fs: Could not allocate block in ext2 filesystem while populating file system
Retring with increased size....(1/20)
Making /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/userdata.img from /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/userdata with size(4409KB)
mke2fs 1.45.5 (07-Jan-2020)
Creating regular file /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/userdata.img

Filesystem too small for a journal
Creating filesystem with 1102 4k blocks and 1120 inodes

Allocating group tables: done
Writing inode tables: done
Copying files into the device: done
Writing superblocks and filesystem accounting information: done

tune2fs 1.46.5 (30-Dec-2021)
Setting maximal mount count to -1
Setting interval between checks to 0 seconds
Generated /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/userdata.img
Done packing /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/userdata.img
Running mk-extra-parts.sh - build_extra_part succeeded.
Packed files:
MiniLoaderAll.bin(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/u-boot/rk356x_spl_loader_v1.21.114.bin): 471K
boot.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/boot.img): 36M
misc.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/misc.img): 48K
oem.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/oem.img): 18M
parameter.txt(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/.chips/rk3566_rk3568/parameter-buildroot-fit.txt): 492
recovery.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/recovery/ramboot.img): 42M
rootfs.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/buildroot/output/rockchip_rk3566/images/rootfs.ext2): 860M
uboot.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/u-boot/uboot.img): 4.0M
userdata.img(/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/extra-parts/userdata.img): 4.4M
Making update image...
==========================================
Start packing update image
==========================================
Generating package-file for update:
# NAME   PATH
package-file   package-file
parameter   parameter.txt
bootloader   MiniLoaderAll.bin
uboot   uboot.img
misc   misc.img
boot   boot.img
recovery   recovery.img
backup   RESERVED
rootfs   rootfs.img
oem   oem.img
userdata   userdata.img
Packing /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/firmware/update.img for update...
Android Firmware Package Tool v2.27
------ PACKAGE ------
Add file: ./package-file
package-file,Add file: ./package-file done,offset=0x800,size=0xe1,userspace=0x1
Add file: ./parameter.txt
parameter,Add file: ./parameter.txt done,offset=0x1000,size=0x1f8,userspace=0x1,flash_address=0x00000000
Add file: ./MiniLoaderAll.bin
bootloader,Add file: ./MiniLoaderAll.bin done,offset=0x1800,size=0x759c0,userspace=0xec
Add file: ./uboot.img
uboot,Add file: ./uboot.img done,offset=0x77800,size=0x400000,userspace=0x800,flash_address=0x00004000
Add file: ./misc.img
misc,Add file: ./misc.img done,offset=0x477800,size=0xc000,userspace=0x18,flash_address=0x00006000
Add file: ./boot.img
boot,Add file: ./boot.img done,offset=0x483800,size=0x2385a00,userspace=0x470c,flash_address=0x00008000
Add file: ./recovery.img
recovery,Add file: ./recovery.img done,offset=0x2809800,size=0x29f6200,userspace=0x53ed,flash_address=0x00028000
Add file: ./rootfs.img
rootfs,Add file: ./rootfs.img done,offset=0x5200000,size=0x35c00000,userspace=0x6b800,flash_address=0x00078000
Add file: ./oem.img
oem,Add file: ./oem.img done,offset=0x3ae00000,size=0x11ef000,userspace=0x23de,flash_address=0x00c78000
Add file: ./userdata.img
userdata,Add file: ./userdata.img done,offset=0x3bfef000,size=0x44e000,userspace=0x89c,flash_address=0x00cb8000
Add CRC...
Make firmware OK!
------ OK ------
********rkImageMaker ver 2.23********
Generating new image, please wait...
Writing head info...
Writing boot file...
Writing firmware...
Generating MD5 data...
MD5 data generated successfully!
New image generated successfully!

Run 'make edit-package-file' if you want to change the package-file.

Running mk-updateimg.sh - build_updateimg succeeded.
Images under /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/firmware/ are ready!
Running mk-firmware.sh - build_firmware succeeded.
==========================================
Start building linux-headers
==========================================
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 rockchip_linux_defconfig
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
#
# No change to .config
#
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
+ make -C /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel/ -j25 CROSS_COMPILE=/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 Image
make: Entering directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
CALL scripts/atomic/check-atomics.sh
CALL scripts/checksyscalls.sh
CHK include/generated/compile.h
make: Leaving directory '/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel'
==========================================
Start packing linux-headers-amd64
==========================================
+ mkdir -p /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers
+ rm -rf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-amd64 /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-amd64.tar.gz
+ ln -rsf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-amd64
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel
{
   # Based on kernel/scripts/package/builddeb
   find . arch/arm64 -maxdepth 1 -name Makefile\*
   find include -type f -o -type l
   find arch/arm64 -name module.lds -o -name Kbuild.platforms -o -name Platform
   find $(find arch/arm64 -name include -o -name scripts -type d) -type f
   find arch/arm64/include Module.symvers -type f
   echo .config
} | tar --no-recursion --ignore-failed-read -T -    -cf "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-amd64.tar"

   # Pack kbuild
   tar -uf "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-amd64.tar" -C "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-amd64" scripts/ tools/
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
Unpacking /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-amd64.tar ...
Debian control file:
Package: linux-headers-5.10-arm64
Source: linux-rockchip (5.10)
Version: 5.10-rockchip
Architecture: amd64
Section: kernel
Priority: optional
Multi-Arch: foreign
Maintainer: Tao Huang <[email protected]>
Homepage: https://www.kernel.org/
Description: Kbuild and headers for Rockchip Linux 5.10 arm64 configuration
Packing linux-headers-5.10-arm64_amd64.deb...
Running mk-kernel.sh - linux-headers-amd64 succeeded.
==========================================
Start packing linux-headers-armhf
==========================================
+ mkdir -p /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers
+ rm -rf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-armhf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-armhf.tar.gz
+ ln -rsf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/linux-kbuild/armhf/linux-kbuild-5.10 /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-armhf
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel
{
   # Based on kernel/scripts/package/builddeb
   find . arch/arm64 -maxdepth 1 -name Makefile\*
   find include -type f -o -type l
   find arch/arm64 -name module.lds -o -name Kbuild.platforms -o -name Platform
   find $(find arch/arm64 -name include -o -name scripts -type d) -type f
   find arch/arm64/include Module.symvers -type f
   echo .config
} | tar --no-recursion --ignore-failed-read -T -    -cf "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-armhf.tar"

   # Pack kbuild
   tar -uf "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-armhf.tar" -C "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-armhf" scripts/ tools/
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
Unpacking /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-armhf.tar ...
Debian control file:
Package: linux-headers-5.10-arm64
Source: linux-rockchip (5.10)
Version: 5.10-rockchip
Architecture: armhf
Section: kernel
Priority: optional
Multi-Arch: foreign
Maintainer: Tao Huang <[email protected]>
Homepage: https://www.kernel.org/
Description: Kbuild and headers for Rockchip Linux 5.10 arm64 configuration
Packing linux-headers-5.10-arm64_armhf.deb...
Running mk-kernel.sh - linux-headers-armhf succeeded.
==========================================
Start packing linux-headers-aarch64
==========================================
+ mkdir -p /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers
+ rm -rf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-aarch64 /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-aarch64.tar.gz
+ ln -rsf /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/device/rockchip/common/linux-kbuild/aarch64/linux-kbuild-5.10 /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-aarch64
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/kernel
{
   # Based on kernel/scripts/package/builddeb
   find . arch/arm64 -maxdepth 1 -name Makefile\*
   find include -type f -o -type l
   find arch/arm64 -name module.lds -o -name Kbuild.platforms -o -name Platform
   find $(find arch/arm64 -name include -o -name scripts -type d) -type f
   find arch/arm64/include Module.symvers -type f
   echo .config
} | tar --no-recursion --ignore-failed-read -T -    -cf "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-aarch64.tar"

# Pack kbuild
tar -uf "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-aarch64.tar" -C "/home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-kbuild-aarch64" scripts/ tools/
+ cd /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0
Unpacking /home/rootroot/RK3566_RK3568_Linux5.10_V1.2.0/output/linux-headers/linux-headers-aarch64.tar ...
Debian control file:
Package: linux-headers-5.10-arm64
Source: linux-rockchip (5.10)
Version: 5.10-rockchip
Architecture: aarch64
Section: kernel
Priority: optional
Multi-Arch: foreign
Maintainer: Tao Huang <[email protected]>
Homepage: https://www.kernel.org/
Description: Kbuild and headers for Rockchip Linux 5.10 arm64 configuration
Packing linux-headers-5.10-arm64_aarch64.deb...
Running mk-kernel.sh - linux-headers-aarch64 succeeded.
Running mk-kernel.sh - linux-headers succeeded.
Running 99-all.sh - build_all succeeded.
rootroot@rootroot-X99-Turbo:~/RK3566_RK3568_Linux5.10_V1.2.0$
