用flex布局实现骰子

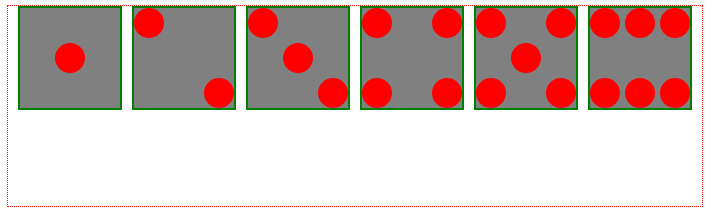

实现6个骰子,如下图所示:

代码如下:

<html>

<head>
<style type="text/css">

#bg{
    height: 200px;
    outline: red dotted thin;
    display: inline-flex; /*不用定义此容器的宽度,宽度根据容器元素进行自适应*/
}

.dice-base{
    width: 100px;
    height: 100px;
    background-color: gray;
    border: 2px solid green;
    margin-right: 10px;
    display: flex; /*flex布局*/
}

/*first dice*/
.dice-1{
    margin-left: 10px;
    justify-content: center; /*可以使子元素水平居中*/
}
.one{
    width: 30px;
    height: 30px;
    background-color: red;
    border-radius: 50%; /*画圆*/
    align-self: center; /*使自己在垂直方向居中*/
}

/*second dice*/
.dice-2{
    justify-content: space-between; /*使第一个元素左对齐,第二个元素右对齐*/
}
.two{
    width: 30px;
    height: 30px;
    background-color: red;
    border-radius: 50%;
}
.two:nth-child(2){  /*nth-child是选择器*/
    align-self: flex-end; /*使第二个元素自身在垂直方向上底边对齐*/
}

/*third dice*/
.dice-3{
    justify-content: space-between; /*使第一个元素左对齐,最后一个元素右对齐*/
}
.three{
    width: 30px;
    height: 30px;
    background-color: red;
    border-radius: 50%;
}
.three:nth-child(2){  /*nth-child是选择器*/
    align-self: center; /*使第二个元素自身在垂直方向上居中*/
}
.three:nth-child(3){  /*nth-child是选择器*/
    align-self: flex-end; /*使第二个元素自身在垂直方向上底边对齐*/
}

/*forth dice*/
.dice-4{
    flex-wrap: wrap;  /*当子元素超过父元素时在下一行显示*/
    align-content: space-between; /*在垂直方向上两边对齐*/
}
.forth{
    width: 30px;
    height: 30px;
    background-color: red;
    border-radius: 50%;
}
.forth:nth-child(1){
    margin-right: 40px; /*设置第一个元素右边距,使一行只放两个子元素*/
}
.forth:nth-child(3){
    margin-right: 40px;
}

/*five dice*/
.dice-5{
    flex-wrap: wrap;  /*当子元素超过父元素时在下一行显示*/
    align-content: space-between; /*在垂直方向上两边对齐*/
}
.five{
    width: 30px;
    height: 30px;
    background-color: red;
    border-radius: 50%;
}
.five:nth-child(1){
    margin-right: 40px; /*设置第一个元素右边距,使一行只放两个子元素*/
}
.five:nth-child(3){
    margin-right: 35px;
    margin-left: 35px;
}
.five:nth-child(4){
    margin-right: 40px;
}

/*six dice*/
.dice-6{
    flex-wrap: wrap;  /*当子元素超过父元素时在下一行显示*/
    align-content: space-between; /*在垂直方向上两边对齐*/
    justify-content: space-between;/*在水平方向上两边对齐*/
}
.six{
    width: 30px;
    height: 30px;
    background-color: red;
    border-radius: 50%;
}
</style>
</head>

<body>

    <div id="bg">
        <!-- first dice  -->
        <div class="dice-base dice-1">
            <div class="one"></div>
        </div>

         <!-- second dice  -->
        <div class="dice-base dice-2">
           <div class="two"></div>
           <div class="two"></div>
        </div>

        <!-- third dice  -->
        <div class="dice-base dice-3">
            <div class="three"></div>
            <div class="three"></div>
            <div class="three"></div>
        </div>

        <!-- forth dice  -->
        <div class="dice-base dice-4">
            <div class="forth"></div>
            <div class="forth"></div>
            <div class="forth"></div>
            <div class="forth"></div>
        </div>

        <!-- five dice  -->
        <div class="dice-base dice-5">
            <div class="five"></div>
            <div class="five"></div>
            <div class="five"></div>
            <div class="five"></div>
            <div class="five"></div>
        </div>

        <!-- five dice  -->
        <div class="dice-base dice-6">
            <div class="six"></div>
            <div class="six"></div>
            <div class="six"></div>
            <div class="six"></div>
            <div class="six"></div>
            <div class="six"></div>
        </div>

    </div>

<script>

</script>
</body>
</html>
