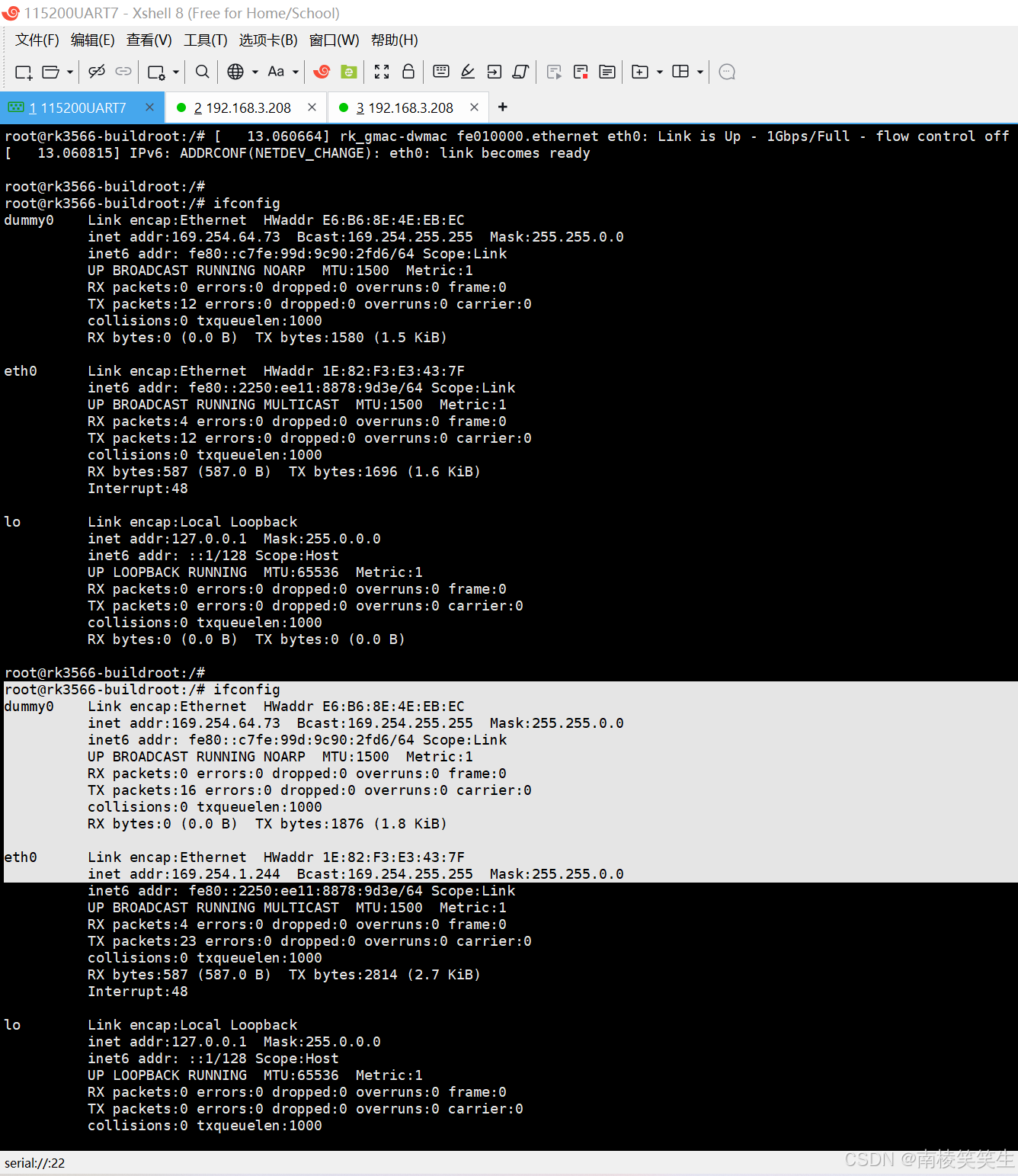

20250326解决在荣品的PRO-RK3566核心板的buildroot系统下使用4线以太网出现IP地址169.254.1.244的问题
2025/3/26 14:57

缘起：在荣品的PRO-RK3566核心板的buildroot系统下，使用了RTL8211F-CG这个PHY。
我司使用场景是极度要求小体积/不占用空间的情况，因此只使用了4线的以太网。
也就是将千兆网卡当百兆网卡用了。【这个年头，纯百兆的以太网卡难买了^_也犯不着费这个劲了！】

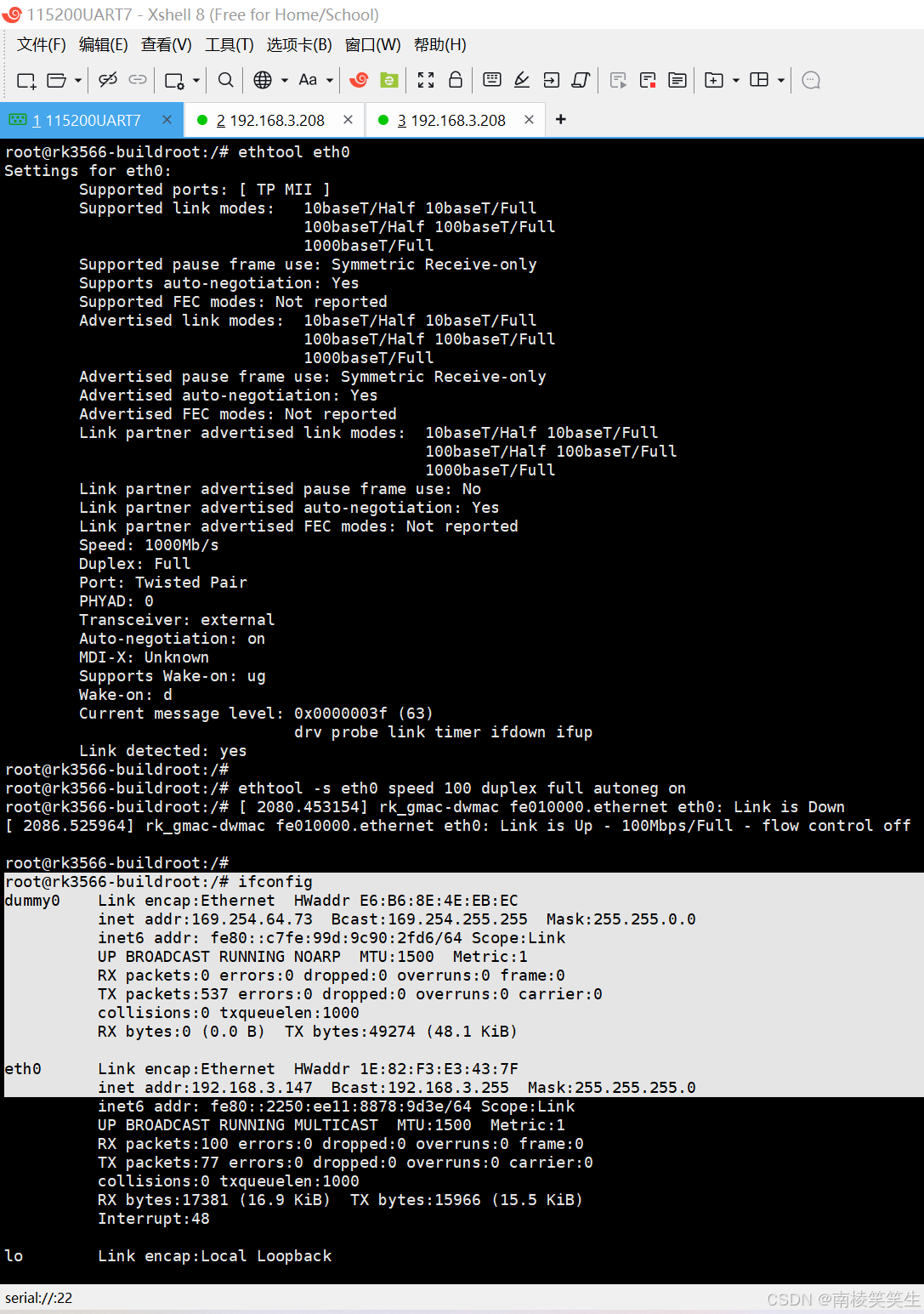

ethtool eth0  查看网卡参数
ethtool -s eth0 speed 100 duplex full autoneg on  强制切换百兆指令

完整的LOG：

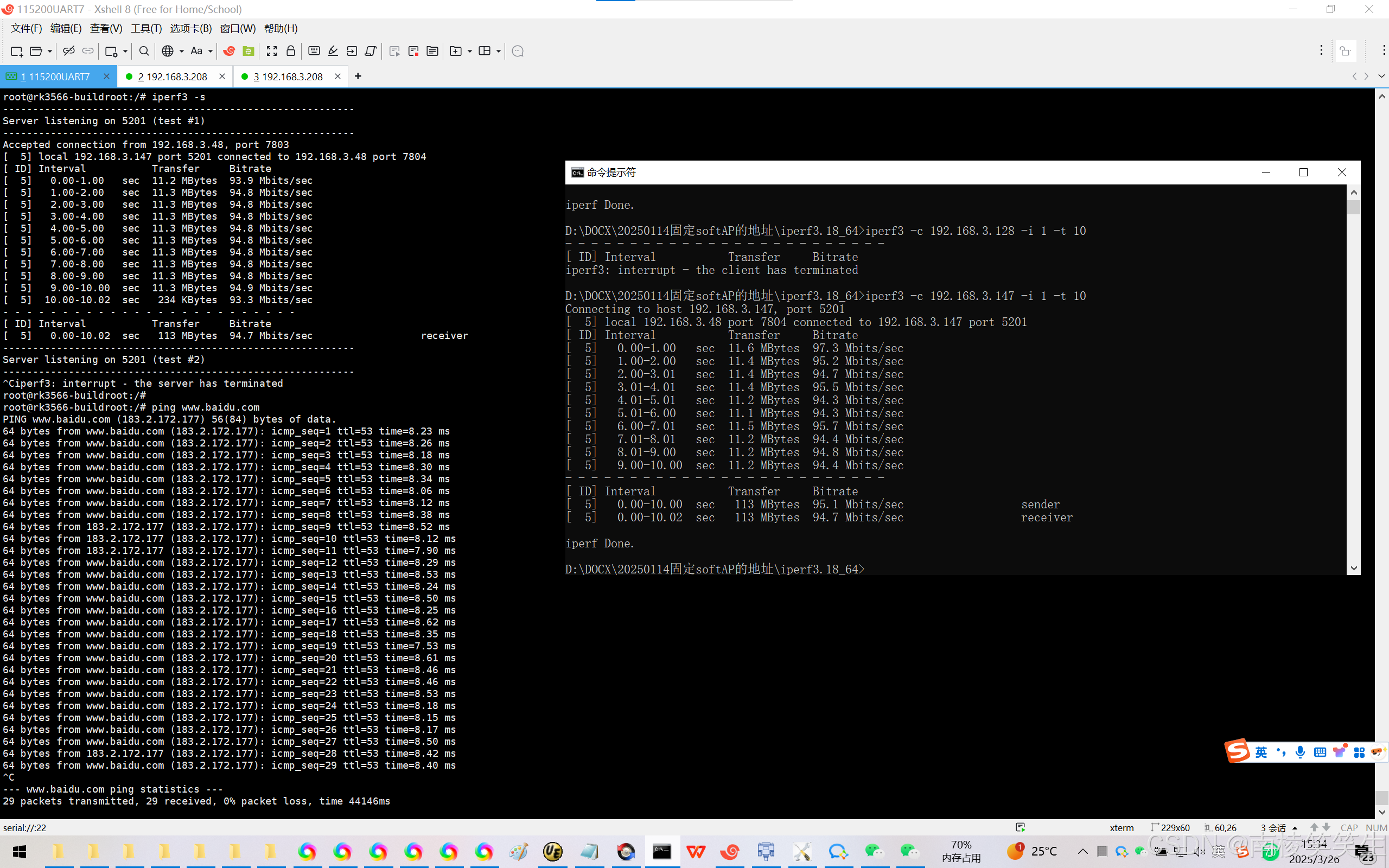

D:\DOCX\20250114固定softAP的地址\iperf3.18_64>iperf3 -c 192.168.3.147 -i 1 -t 10
Connecting to host 192.168.3.147, port 5201
[  5] local 192.168.3.48 port 7804 connected to 192.168.3.147 port 5201
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  11.6 MBytes  97.3 Mbits/sec
[  5]   1.00-2.00   sec  11.4 MBytes  95.2 Mbits/sec
[  5]   2.00-3.01   sec  11.4 MBytes  94.7 Mbits/sec
[  5]   3.01-4.01   sec  11.4 MBytes  95.5 Mbits/sec
[  5]   4.01-5.01   sec  11.2 MBytes  94.3 Mbits/sec
[  5]   5.01-6.00   sec  11.1 MBytes  94.3 Mbits/sec
[  5]   6.00-7.01   sec  11.5 MBytes  95.7 Mbits/sec
[  5]   7.01-8.01   sec  11.2 MBytes  94.4 Mbits/sec
[  5]   8.01-9.00   sec  11.2 MBytes  94.8 Mbits/sec
[  5]   9.00-10.00  sec  11.2 MBytes  94.4 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.00  sec   113 MBytes  95.1 Mbits/sec                  sender
[  5]   0.00-10.02  sec   113 MBytes  94.7 Mbits/sec                  receiver

iperf Done.

D:\DOCX\20250114固定softAP的地址\iperf3.18_64>

[BEGIN] 2025/3/26 14:55:10
DDR V1.18 f366f69a7d typ 23/07/17-15:48:58
ln
LP4/4x derate en, other dram:1x trefi
ddrconfig:7
LP4 MR14:0x4d
LPDDR4, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: 72ps, dqs1: -48ps, dqs2: 0ps, dqs3: -48ps,
tdqss: cs1 dqs0: 72ps, dqs1: -24ps, dqs2: 24ps, dqs3: -48ps,

change to: 324MHz
clk skew:0x60

change to: 528MHz
clk skew:0x58

change to: 780MHz
clk skew:0x58

change to: 1056MHz(final freq)
PHY drv:clk:38,ca:38,DQ:30,odt:60
vrefinner:16%, vrefout:29%
dram drv:40,odt:80
vref_ca:00000068
clk skew:0x25
cs 0:
the read training result:
DQS0:0x3c, DQS1:0x3d, DQS2:0x3d, DQS3:0x3f,
min  : 0x7  0x5  0x4  0x5  0x5  0x5  0x3  0x2 , 0x2  0x5  0xa  0x5  0x1  0x5  0x6  0x3 ,
       0x3  0x3  0x3  0x2  0x1  0x2  0x4  0x2 , 0x8  0x5  0x6  0x3  0x4  0x6  0x8  0x1 ,
mid  :0x25 0x23 0x23 0x24 0x23 0x24 0x21 0x21 ,0x22 0x24 0x27 0x24 0x21 0x25 0x27 0x23 ,
      0x24 0x24 0x23 0x22 0x22 0x23 0x24 0x22 ,0x28 0x25 0x26 0x23 0x25 0x26 0x29 0x22 ,
max  :0x44 0x42 0x43 0x43 0x42 0x43 0x40 0x41 ,0x43 0x44 0x44 0x43 0x41 0x45 0x48 0x43 ,
      0x45 0x45 0x44 0x42 0x43 0x44 0x45 0x42 ,0x48 0x46 0x47 0x44 0x46 0x46 0x4a 0x44 ,
range:0x3d 0x3d 0x3f 0x3e 0x3d 0x3e 0x3d 0x3f ,0x41 0x3f 0x3a 0x3e 0x40 0x40 0x42 0x40 ,
      0x42 0x42 0x41 0x40 0x42 0x42 0x41 0x40 ,0x40 0x41 0x41 0x41 0x42 0x40 0x42 0x43 ,
the write training result:
DQS0:0x2e, DQS1:0x1f, DQS2:0x25, DQS3:0x1f,
min  :0x54 0x55 0x55 0x55 0x53 0x53 0x52 0x54 0x54 ,0x45 0x48 0x4a 0x48 0x45 0x49 0x49 0x48 0x48 ,
      0x4c 0x4c 0x4c 0x4b 0x49 0x4b 0x4c 0x4c 0x4b ,0x47 0x46 0x45 0x45 0x45 0x47 0x48 0x46 0x46 ,
mid  :0x70 0x70 0x70 0x70 0x6e 0x6f 0x6d 0x6f 0x6f ,0x60 0x61 0x65 0x62 0x5f 0x62 0x62 0x62 0x61 ,
      0x68 0x67 0x67 0x67 0x64 0x66 0x66 0x65 0x67 ,0x63 0x60 0x60 0x60 0x5f 0x61 0x64 0x60 0x60 ,
max  :0x8c 0x8b 0x8c 0x8c 0x8a 0x8b 0x89 0x8a 0x8b ,0x7c 0x7a 0x81 0x7d 0x79 0x7c 0x7c 0x7d 0x7b ,
      0x85 0x83 0x83 0x84 0x80 0x81 0x81 0x7e 0x83 ,0x80 0x7a 0x7b 0x7b 0x7a 0x7c 0x80 0x7a 0x7b ,
range:0x38 0x36 0x37 0x37 0x37 0x38 0x37 0x36 0x37 ,0x37 0x32 0x37 0x35 0x34 0x33 0x33 0x35 0x33 ,
      0x39 0x37 0x37 0x39 0x37 0x36 0x35 0x32 0x38 ,0x39 0x34 0x36 0x36 0x35 0x35 0x38 0x34 0x35 ,
cs 1:
the read training result:
DQS0:0x3d, DQS1:0x3f, DQS2:0x3d, DQS3:0x3f,
min  : 0x6  0x4  0x4  0x3  0x5  0x4  0x3  0x2 , 0x2  0x4  0xa  0x4  0x1  0x5  0x7  0x4 ,
       0x3  0x3  0x2  0x2  0x1  0x2  0x3  0x2 , 0x6  0x3  0x3  0x1  0x2  0x3  0x6  0x1 ,
mid  :0x26 0x23 0x24 0x23 0x24 0x24 0x22 0x22 ,0x23 0x25 0x28 0x24 0x22 0x26 0x28 0x24 ,
      0x24 0x23 0x23 0x21 0x21 0x23 0x24 0x21 ,0x27 0x23 0x24 0x22 0x23 0x24 0x27 0x21 ,
max  :0x46 0x43 0x45 0x44 0x44 0x44 0x42 0x43 ,0x44 0x46 0x46 0x44 0x43 0x47 0x49 0x44 ,
      0x45 0x44 0x44 0x41 0x42 0x44 0x46 0x41 ,0x48 0x43 0x46 0x44 0x44 0x46 0x49 0x41 ,
range:0x40 0x3f 0x41 0x41 0x3f 0x40 0x3f 0x41 ,0x42 0x42 0x3c 0x40 0x42 0x42 0x42 0x40 ,
      0x42 0x41 0x42 0x3f 0x41 0x42 0x43 0x3f ,0x42 0x40 0x43 0x43 0x42 0x43 0x43 0x40 ,
the write training result:
DQS0:0x2e, DQS1:0x1f, DQS2:0x25, DQS3:0x1f,
min  :0x54 0x55 0x54 0x54 0x53 0x53 0x51 0x54 0x54 ,0x47 0x49 0x4c 0x49 0x48 0x4b 0x4c 0x4a 0x4b ,
      0x4e 0x4f 0x4e 0x4e 0x4c 0x4e 0x4e 0x4e 0x4c ,0x45 0x44 0x43 0x44 0x44 0x45 0x46 0x44 0x44 ,
mid  :0x70 0x70 0x70 0x70 0x6f 0x6f 0x6d 0x6f 0x6f ,0x64 0x63 0x68 0x65 0x61 0x66 0x66 0x65 0x64 ,
      0x6b 0x6b 0x6a 0x6a 0x68 0x6a 0x69 0x69 0x69 ,0x60 0x5f 0x5e 0x5f 0x5e 0x60 0x61 0x5e 0x5f ,
max  :0x8c 0x8b 0x8c 0x8c 0x8b 0x8b 0x89 0x8a 0x8b ,0x81 0x7e 0x84 0x82 0x7b 0x81 0x80 0x80 0x7e ,
      0x88 0x87 0x87 0x87 0x85 0x86 0x85 0x84 0x87 ,0x7c 0x7a 0x79 0x7a 0x79 0x7b 0x7d 0x79 0x7a ,
range:0x38 0x36 0x38 0x38 0x38 0x38 0x38 0x36 0x37 ,0x3a 0x35 0x38 0x39 0x33 0x36 0x34 0x36 0x33 ,
      0x3a 0x38 0x39 0x39 0x39 0x38 0x37 0x36 0x3b ,0x37 0x36 0x36 0x36 0x35 0x36 0x37 0x35 0x36 ,
CA Training result:
cs:0 min  :0x4d 0x4f 0x45 0x42 0x44 0x43 0x49 ,0x4d 0x49 0x42 0x40 0x42 0x40 0x45 ,
cs:0 mid  :0x8d 0x8d 0x84 0x81 0x84 0x82 0x79 ,0x8c 0x88 0x81 0x7f 0x81 0x7f 0x73 ,
cs:0 max  :0xce 0xcc 0xc3 0xc1 0xc4 0xc1 0xa9 ,0xcc 0xc7 0xc1 0xbf 0xc0 0xbe 0xa2 ,
cs:0 range:0x81 0x7d 0x7e 0x7f 0x80 0x7e 0x60 ,0x7f 0x7e 0x7f 0x7f 0x7e 0x7e 0x5d ,
cs:1 min  :0x4d 0x4f 0x44 0x43 0x45 0x41 0x48 ,0x4e 0x4c 0x44 0x41 0x43 0x40 0x42 ,
cs:1 mid  :0x8d 0x8e 0x83 0x82 0x84 0x80 0x7a ,0x8e 0x8a 0x83 0x80 0x82 0x7f 0x74 ,
cs:1 max  :0xcd 0xcd 0xc3 0xc2 0xc4 0xc0 0xad ,0xce 0xc8 0xc3 0xc0 0xc2 0xbf 0xa6 ,
cs:1 range:0x80 0x7e 0x7f 0x7f 0x7f 0x7f 0x65 ,0x80 0x7c 0x7f 0x7f 0x7f 0x7f 0x64 ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-ge4e124926e-230922 #lxh (Sep 25 2023 - 11:07:45), fwver: v1.13
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
Card did not respond to voltage select!
mmc_init: -95, time 12
spl: mmc init failed with error: -95
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(b5946ac63d...) + OK
## Checking uboot 0x00a00000 ... sha256(7e62959694...) + OK
## Checking fdt 0x00b47c70 ... sha256(036cca5880...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(b8dca786b4...) + OK
## Checking atf-3 0x0006b000 ... sha256(2f91089eb7...) + OK
## Checking atf-4 0xfdcce000 ... sha256(86ef885748...) + OK
## Checking atf-5 0xfdcd0000 ... sha256(0b2b146c60...) + OK
## Checking atf-6 0x00069000 ... sha256(a9a1e63bef...) + OK
## Checking optee 0x08400000 ... sha256(6c92ef6a0e...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 205.284/695.373 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-645-g8cea6ab0b:cl, fwver: v1.44
NOTICE:  BL31: Built : 16:36:43, Sep 19 2023
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    pmu v1 is valid 220114
INFO:    l3 cache partition cfg-0
INFO:    dfs DDR fsp_param[0].freq_mhz= 1056MHz
INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-743-gb5340fd65 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #5 Mon Aug 28 15:15:17 CST 2023 aarch64
I/TC: Primary CPU initializing
E/TC:0 0 hal_algo_version_init:296 CRYPTO_CRYPTO_VERSION_NEW no support. Skip all algo mode check.
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0xa00000
INFO:    SPSR = 0x3c9

U-Boot 2017.09 (Mar 26 2025 - 13:58:10 +0800)

Model: Rockchip RK3568 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfe660000
DRAM:  4 GiB
Sysmem: init
Relocation Offset: ed217000
Relocation fdt: eb9f8948 - eb9fecd8
CR: M/C/I
Using default environment

optee api revision: 2.0
dwmmc@fe2b0000: 1, dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v1
boot mode: None
RESC: 'boot', blk@0x0001c5d9
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
PMIC:  RK8090 (on=0x40, off=0x00)
vdd_logic init 950000 uV
vdd_gpu init 900000 uV
vdd_npu init 900000 uV
vsel-gpios- not found! Error: -2
vdd_cpu init 1000000 uV
io-domain: OK
INFO:    ddr dmc_fsp already initialized in loader.
Could not find baseparameter partition
Model: pro-rk3566
MPIDR: 0x81000000
ethaddr = 66:d2:0d:33:f3:5d
eth1addr = 1e:82:f3:e3:43:7f
eth2addr = f2:69:0f:e8:f1:3f
eth3addr = 1a:e0:70:c8:77:19
rp_power not have children !
rp_power have node!
rp_power: pwr_5v_3v3 gpio set output
rp_power: led gpio function is 3, not realize!
rp_power: usb_pwr gpio set output
rp_power: otg_pwr gpio set output
rp_power: usb_rst gpio set output
rp_power: spk_en gpio set output
rp_power: spk_mute gpio set output
rp_power: usb_mode gpio set output
rp_power: Equipment_EN gpio set output
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 1 active VP
vp0 have layer nr:6[0 2 4 1 3 5 ], primary plane: 4
vp1 have layer nr:0[], primary plane: 0
vp2 have layer nr:0[], primary plane: 0
xfer: num: 2, addr: 0x50
xfer: num: 2, addr: 0x50
Monitor has basic audio support
Could not find baseparameter partition
hdmi@fe0a0000:  detailed mode clock 148500 kHz, flags[5]
    H: 1920 2008 2052 2200
    V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
VP0 set crtc_clock to 148500KHz
VOP VP0 enable Smart0[654x270->654x270@633x405] fmt[2] addr[0xedf04000]
CEA mode used vic=16
final pixclk = 148500000 tmdsclk = 148500000
PHY powered down in 0 iterations
PHY PLL locked 1 iterations
PHY powered down in 0 iterations
PHY PLL locked 1 iterations
sink has audio support
hdmi_set_clk_regenerator: fs=48000Hz ftdms=148.500MHz N=6144 cts=148500
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
  apll 1104000 KHz
  dpll 528000 KHz
  gpll 1188000 KHz
  cpll 1000000 KHz
  npll 1200000 KHz
  vpll 24000 KHz
  hpll 148500 KHz
  ppll 200000 KHz
  armclk 1104000 KHz
  aclk_bus 150000 KHz
  pclk_bus 100000 KHz
  aclk_top_high 500000 KHz
  aclk_top_low 400000 KHz
  hclk_top 150000 KHz
  pclk_top 100000 KHz
  aclk_perimid 300000 KHz
  hclk_perimid 150000 KHz
  pclk_pmu 100000 KHz
Net:   eth1: ethernet@fe010000
Hit key to stop autoboot('CTRL+C'):  0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xe8f3c700 with size 0x028bb200
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e8f3c700 ...
   Using 'conf' configuration
## Verified-boot: 0
   Trying 'kernel' kernel subimage
     Description:  unavailable
     Type:         Kernel Image
     Compression:  uncompressed
     Data Start:   0xe8f66700
     Data Size:    42537472 Bytes = 40.6 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x00280000
     Entry Point:  0x00280000
     Hash algo:    sha256
     Hash value:   26f73c67a2aa50c05df3f2c8b833dd94a11799f8671bc2611aa1793bf7e2e8c1
   Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at e8f3c700 ...
   Using 'conf' configuration
   Trying 'fdt' fdt subimage
     Description:  unavailable
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0xe8f3cf00
     Data Size:    169681 Bytes = 165.7 KiB
     Architecture: AArch64
     Load Address: 0x08300000
     Hash algo:    sha256
     Hash value:   0cde733173dc3cca226f45d4d19fa1a1d95ba749a488ed5c901f3ef5bd59db0c
   Verifying Hash Integrity ... sha256+ OK
   Loading fdt from 0x08300000 to 0x08300000
   Booting using the fdt blob at 0x08300000
   Loading Kernel Image from 0xe8f66700 to 0x00280000 ... OK
   kernel loaded at 0x00280000, end = 0x02b11200
   Using Device Tree in place at 0000000008300000, end 000000000832c6d0
vp0, plane_mask:0x3f, primary-id:4, curser-id:-1
vp1, plane_mask:0x0, primary-id:0, curser-id:-1
vp2, plane_mask:0x0, primary-id:0, curser-id:-1
WARNING: could not set reg FDT_ERR_BADOFFSET.
## reserved-memory:
  drm-logo@00000000: addr=edf00000 size=b8000
  drm-cubic-lut@00000000: addr=eff00000 size=8000
  ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
Adding bank: 0x1f0000000 - 0x200000000 (size: 0x10000000)
No RNG device
== DO RELOCATE == Kernel from 0x00280000 to 0x00200000
Total: 1430.531/1562.704 ms

Starting kernel ...

[    1.572434] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[    1.572460] Linux version 5.10.198 (rootroot@rootroot-X99-Turbo) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Wed Mar 26 11:47:58 CST 2025
[    1.577778] Machine model: pro-rk3566
[    1.619414] earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')
[    1.667965] printk: bootconsole [uart8250] enabled
[    1.674334] efi: UEFI not found.
[    1.735371] Zone ranges:
[    1.738154]   DMA      [mem 0x0000000000200000-0x00000000ffffffff]
[    1.744935]   DMA32    empty
[    1.748086]   Normal   [mem 0x0000000100000000-0x00000001ffffffff]
[    1.754861] Movable zone start for each node
[    1.759535] Early memory node ranges
[    1.763448]   node   0: [mem 0x0000000000200000-0x00000000083fffff]
[    1.770319]   node   0: [mem 0x0000000009400000-0x00000000efffffff]
[    1.777191]   node   0: [mem 0x00000001f0000000-0x00000001ffffffff]
[    1.784062] Initmem setup node 0 [mem 0x0000000000200000-0x00000001ffffffff]
[    1.809868] cma: Reserved 16 MiB at 0x00000000eec00000
[    1.815580] psci: probing for conduit method from DT.
[    1.821126] psci: PSCIv1.1 detected in firmware.
[    1.826184] psci: Using standard PSCI v0.2 function IDs
[    1.831912] psci: Trusted OS migration not required
[    1.837249] psci: SMC Calling Convention v1.2
[    1.842368] percpu: Embedded 31 pages/cpu s88344 r8192 d30440 u126976
[    1.849533] Detected VIPT I-cache on CPU0
[    1.853961] CPU features: detected: GIC system register CPU interface
[    1.861021] CPU features: detected: Virtualization Host Extensions
[    1.867800] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[    1.875453] alternatives: patching kernel code
[    1.882341] Built 1 zonelists, mobility grouping on.  Total pages: 1027656
[    1.889886] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal  androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfe660000 console=ttyFIQ0 root=PARTUUID=614e0000-0000 androidboot.fwver=spl-v1.13,bl31-v1.44,uboot-03/26/2025
[    1.919263] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[    1.928429] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    1.936922] mem auto-init: stack:off, heap alloc:off, heap free:off
[    1.959568] software IO TLB: mapped [mem 0x00000000e9f00000-0x00000000edf00000] (64MB)
[    2.012714] Memory: 3969044K/4175872K available (22144K kernel code, 3844K rwdata, 7876K rodata, 7552K init, 880K bss, 190444K reserved, 16384K cma-reserved)
[    2.028279] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    2.035470] ftrace: allocating 67062 entries in 262 pages
[    2.125118] ftrace: allocated 262 pages with 3 groups
[    2.130957] rcu: Hierarchical RCU implementation.
[    2.136116] rcu:     RCU event tracing is enabled.
[    2.141078] rcu:     RCU dyntick-idle grace-period acceleration is enabled.
[    2.148423] rcu:     RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[    2.155579]     Rude variant of Tasks RCU enabled.
[    2.160539]     Tracing variant of Tasks RCU enabled.
[    2.165787] rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
[    2.174085] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[    2.186108] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    2.193651] GICv3: GIC: Using split EOI/Deactivate mode
[    2.199387] GICv3: 320 SPIs implemented
[    2.203587] GICv3: 0 Extended SPIs implemented
[    2.208486] GICv3: Distributor has no Range Selector support
[    2.214695] GICv3: 16 PPIs implemented
[    2.218836] GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000
[    2.226481] ITS [mem 0xfd440000-0xfd45ffff]
[    2.231131] ITS@0x00000000fd440000: allocated 8192 Devices @2c10000 (indirect, esz 8, psz 64K, shr 0)
[    2.241273] ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @2c20000 (flat, esz 2, psz 64K, shr 0)
[    2.252437] ITS: using cache flushing for cmd queue
[    2.258150] GICv3: using LPI property table @0x0000000002c30000
[    2.264752] GIC: using cache flushing for LPI property table
[    2.270959] GICv3: CPU0: using allocated LPI pending table @0x0000000002c40000
[    2.278947] rcu:     Offload RCU callbacks from CPUs: (none).
[    2.312846] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[    2.319540] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    2.331373] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    2.341168] Console: colour dummy device 80x25
[    2.346086] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
[    2.357360] pid_max: default: 32768 minimum: 301
[    2.362501] LSM: Security Framework initializing
[    2.367627] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    2.375757] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    2.385897] rcu: Hierarchical SRCU implementation.
[    2.391899] Platform MSI: interrupt-controller@fd440000 domain created
[    2.399537] PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created
[    2.409516] EFI services will not be available.
[    2.414842] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
[    2.428167] Detected VIPT I-cache on CPU1
[    2.428199] GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000
[    2.428220] GICv3: CPU1: using allocated LPI pending table @0x0000000002c50000
[    2.428270] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[    2.436617] Detected VIPT I-cache on CPU2
[    2.436642] GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000
[    2.436659] GICv3: CPU2: using allocated LPI pending table @0x0000000002c60000
[    2.436696] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[    2.445034] Detected VIPT I-cache on CPU3
[    2.445060] GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000
[    2.445077] GICv3: CPU3: using allocated LPI pending table @0x0000000002c70000
[    2.445114] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[    2.445207] smp: Brought up 1 node, 4 CPUs
[    2.531307] SMP: Total of 4 processors activated.
[    2.536468] CPU features: detected: Privileged Access Never
[    2.542579] CPU features: detected: LSE atomic instructions
[    2.548691] CPU features: detected: User Access Override
[    2.554518] CPU features: detected: 32-bit EL0 Support
[    2.560154] CPU features: detected: Common not Private translations
[    2.567028] CPU features: detected: RAS Extension Support
[    2.572949] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[    2.582398] CPU features: detected: CRC32 instructions
[    2.588032] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[    2.595669] CPU features: detected: RCpc load-acquire (LDAPR)
[    2.634349] CPU: All CPU(s) started at EL2
[    2.640326] devtmpfs: initialized
[    2.664803] Registered cp15_barrier emulation handler
[    2.670376] Registered setend emulation handler
[    2.675519] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
[    2.686227] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[    2.694327] pinctrl core: initialized pinctrl subsystem
[    2.700593] DMI not present or invalid.
[    2.705192] NET: Registered protocol family 16
[    2.711540] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations
[    2.719419] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    2.728013] audit: initializing netlink subsys (disabled)
[    2.734110] audit: type=2000 audit(0.246:1): state=initialized audit_enabled=0 res=1
[    2.736071] Registered FIQ tty driver
[    2.747000] thermal_sys: Registered thermal governor 'fair_share'
[    2.747004] thermal_sys: Registered thermal governor 'step_wise'
[    2.753697] thermal_sys: Registered thermal governor 'user_space'
[    2.760287] thermal_sys: Registered thermal governor 'power_allocator'
[    2.767261] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[    2.783275] cpuidle: using governor menu
[    2.787879] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    2.795437] ASID allocator initialised with 65536 entries
[    2.803534] ramoops: dmesg-0    0x20000@0x0000000000110000
[    2.809303] ramoops: console    0x80000@0x0000000000130000
[    2.815050] ramoops: pmsg    0x50000@0x00000000001b0000
[    2.820840] printk: console [ramoops-1] enabled
[    2.825813] pstore: Registered ramoops as persistent store backend
[    2.832596] ramoops: using 0xf0000@0x110000, ecc: 0
[    2.873761] rockchip-gpio fdd60000.gpio0: probed /pinctrl/gpio0@fdd60000
[    2.881602] rockchip-gpio fe740000.gpio1: probed /pinctrl/gpio1@fe740000
[    2.889434] rockchip-gpio fe750000.gpio2: probed /pinctrl/gpio2@fe750000
[    2.897280] rockchip-gpio fe760000.gpio3: probed /pinctrl/gpio3@fe760000
[    2.905107] rockchip-gpio fe770000.gpio4: probed /pinctrl/gpio4@fe770000
[    2.912569] rockchip-pinctrl pinctrl: probed pinctrl
[    2.996282] raid6: neonx8   gen()  2551 MB/s
[    3.056341] raid6: neonx8   xor()  2027 MB/s
[    3.116414] raid6: neonx4   gen()  2609 MB/s
[    3.176480] raid6: neonx4   xor()  2009 MB/s
[    3.236557] raid6: neonx2   gen()  2362 MB/s
[    3.296622] raid6: neonx2   xor()  1842 MB/s
[    3.356700] raid6: neonx1   gen()  1923 MB/s
[    3.416764] raid6: neonx1   xor()  1479 MB/s
[    3.476836] raid6: int64x8  gen()  1729 MB/s
[    3.536916] raid6: int64x8  xor()   935 MB/s
[    3.596985] raid6: int64x4  gen()  1866 MB/s
[    3.657057] raid6: int64x4  xor()  1007 MB/s
[    3.717121] raid6: int64x2  gen()  1655 MB/s
[    3.777192] raid6: int64x2  xor()   900 MB/s
[    3.837258] raid6: int64x1  gen()  1184 MB/s
[    3.897333] raid6: int64x1  xor()   613 MB/s
[    3.902017] raid6: using algorithm neonx4 gen() 2609 MB/s
[    3.907939] raid6: .... xor() 2009 MB/s, rmw enabled
[    3.913385] raid6: using neon recovery algorithm
[    3.919995] fiq_debugger fiq_debugger.0: IRQ fiq not found
[    3.926282] fiq_debugger fiq_debugger.0: IRQ wakeup not found
[    3.932602] fiq_debugger_probe: could not install nmi irq handler
[[    3.939371] printk: console [ttyFIQ0] enabled
    3.939371] printk: console [ttyFIQ0] enabled
[    3.948498] printk: bootconsole [    3.948498] printk: bootconsole [uart8250] disabled
[uart8250] disabled
[    3.958893] Registered fiq debugger ttyFIQ0
[    3.959584] vcc3v3_sys: supplied by dc_12v
[    3.959864] vcc5v0_sys: supplied by dc_12v
[    3.960139] vcc3v3_lcd0_n: supplied by vcc3v3_sys
[    3.960403] vcc3v3_lcd1_n: supplied by vcc3v3_sys
[    3.961579] iommu: Default domain type: Translated
[    3.964909] SCSI subsystem initialized
[    3.965119] usbcore: registered new interface driver usbfs
[    3.965162] usbcore: registered new interface driver hub
[    3.965199] usbcore: registered new device driver usb
[    3.965289] mc: Linux media interface: v0.10
[    3.965317] videodev: Linux video capture interface: v2.00
[    3.965419] pps_core: LinuxPPS API ver. 1 registered
[    3.965427] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <[email protected]>
[    3.965445] PTP clock support registered
[    3.965480] EDAC MC: Ver: 3.0.0
[    3.966390] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[    3.966455] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[    3.968304] Advanced Linux Sound Architecture Driver Initialized.
[    3.968796] Bluetooth: Core ver 2.22
[    3.968844] NET: Registered protocol family 31
[    3.968852] Bluetooth: HCI device and connection manager initialized
[    3.968865] Bluetooth: HCI socket layer initialized
[    3.968874] Bluetooth: L2CAP socket layer initialized
[    3.968897] Bluetooth: SCO socket layer initialized
[    3.969344] rockchip-cpuinfo cpuinfo: SoC        : 35663000
[    3.969355] rockchip-cpuinfo cpuinfo: Serial        : 1d4016ecebc98fe3
[    3.970093] clocksource: Switched to clocksource arch_sys_counter
[    4.394220] NET: Registered protocol family 2
[    4.394507] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[    4.396182] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[    4.396240] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    4.396394] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear)
[    4.396824] TCP: Hash tables configured (established 32768 bind 32768)
[    4.396943] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    4.397002] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    4.397180] NET: Registered protocol family 1
[    4.397638] RPC: Registered named UNIX socket transport module.
[    4.397648] RPC: Registered udp transport module.
[    4.397654] RPC: Registered tcp transport module.
[    4.397659] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    4.398567] PCI: CLS 0 bytes, default 64
[    4.401024] rockchip-thermal fe710000.tsadc: tsadc is probed successfully!
[    4.401953] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available
[    4.406062] Initialise system trusted keyrings
[    4.406233] workingset: timestamp_bits=46 max_order=20 bucket_order=0
[    4.410949] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    4.411678] NFS: Registering the id_resolver key type
[    4.411711] Key type id_resolver registered
[    4.411718] Key type id_legacy registered
[    4.411753] ntfs: driver 2.1.32 [Flags: R/O].
[    4.411894] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    4.412101] fuse: init (API version 7.32)
[    4.412454] SGI XFS with security attributes, no debug enabled
[    4.442312] NET: Registered protocol family 38
[    4.442335] xor: measuring software checksum speed
[    4.445838]    8regs           :  2852 MB/sec
[    4.448689]    32regs          :  3478 MB/sec
[    4.451827]    arm64_neon      :  3152 MB/sec
[    4.451834] xor: using function: 32regs (3478 MB/sec)
[    4.451849] Key type asymmetric registered
[    4.451859] Asymmetric key parser 'x509' registered
[    4.451907] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[    4.452042] io scheduler mq-deadline registered
[    4.452059] io scheduler kyber registered
[    4.452745] rockchip-csi2-dphy-hw fe870000.csi2-dphy-hw: csi2 dphy hw probe successfully!
[    4.453512] rockchip-csi2-dphy csi2-dphy1: csi2 dphy1 probe successfully!
[    4.462909] pwm-backlight backlight: supply power not found, using dummy regulator
[    4.463482] iep: Module initialized.
[    4.463552] mpp_service mpp-srv: 292c8a74f3 author: lixin 2024-02-20 update sdk to linux5.10-rkr7(v1.4.0_20231220). commit on 20240220
[    4.463562] mpp_service mpp-srv: probe start
[    4.465279] mpp_vdpu2 fdea0400.vdpu: Adding to iommu group 1
[    4.465482] mpp_vdpu2 fdea0400.vdpu: probe device
[    4.465961] mpp_vdpu2 fdea0400.vdpu: probing finish
[    4.466427] mpp_vepu2 fdee0000.vepu: Adding to iommu group 3
[    4.466603] mpp_vepu2 fdee0000.vepu: probing start
[    4.467056] mpp_vepu2 fdee0000.vepu: probing finish
[    4.467554] mpp-iep2 fdef0000.iep: Adding to iommu group 4
[    4.467724] mpp-iep2 fdef0000.iep: probe device
[    4.467975] mpp-iep2 fdef0000.iep: allocate roi buffer failed
[    4.468183] mpp-iep2 fdef0000.iep: probing finish
[    4.468625] mpp_jpgdec fded0000.jpegd: Adding to iommu group 2
[    4.468783] mpp_jpgdec fded0000.jpegd: probe device
[    4.469218] mpp_jpgdec fded0000.jpegd: probing finish
[    4.470444] mpp_service mpp-srv: probe success
[    4.474985] dma-pl330 fe530000.dmac: Loaded driver for PL330 DMAC-241330
[    4.475008] dma-pl330 fe530000.dmac:     DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    4.476740] dma-pl330 fe550000.dmac: Loaded driver for PL330 DMAC-241330
[    4.476781] dma-pl330 fe550000.dmac:     DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    4.477493] rockchip-pvtm fde00000.pvtm: pvtm@0 probed
[    4.477618] rockchip-pvtm fde80000.pvtm: pvtm@1 probed
[    4.477722] rockchip-pvtm fde90000.pvtm: pvtm@2 probed
[    4.478246] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[    4.478815] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
[    4.479090] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[    4.480025] fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 70, base_baud = 1500000) is a 16550A
[    4.480627] fe670000.serial: ttyS3 at MMIO 0xfe670000 (irq = 71, base_baud = 1500000) is a 16550A
[    4.481082] fe6a0000.serial: ttyS6 at MMIO 0xfe6a0000 (irq = 72, base_baud = 1500000) is a 16550A
[    4.481516] fe6b0000.serial: ttyS7 at MMIO 0xfe6b0000 (irq = 73, base_baud = 1500000) is a 16550A
[    4.481969] fe6d0000.serial: ttyS9 at MMIO 0xfe6d0000 (irq = 74, base_baud = 1500000) is a 16550A
[    4.484234] random: crng init done
[    4.484814] rockchip-vop2 fe040000.vop: Adding to iommu group 8
[    4.491197] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x3f, primary plane phy id: 4
[    4.491221] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp1 assign plane mask: 0x0, primary plane phy id: -1
[    4.491231] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x0, primary plane phy id: -1
[    4.491344] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP1 plane_mask is zero, so ignore register crtc
[    4.491356] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP2 plane_mask is zero, so ignore register crtc
[    4.491429] [drm] failed to init overlay plane Cluster0-win1
[    4.491514] rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffffc0096d8fb8)
[    4.491780] dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)
[    4.492317] dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver
[    4.492552] dwhdmi-rockchip fe0a0000.hdmi: IRQ index 1 not found
[    4.492907] rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffffc0096e7b48)
[    4.724047] rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device
[    4.724693] [drm] Initialized rockchip 3.0.0 20140818 for display-subsystem on minor 0
[    4.731511] input: hdmi_cec_key as /devices/platform/fe0a0000.hdmi/dw-hdmi-cec.1.auto/input/input0
[    4.732400] cacheinfo: Unable to detect cache hierarchy for CPU 0
[    4.733077] brd: module loaded
[    4.737919] loop: module loaded
[    4.738316] zram: Added device: zram0
[    4.738554] lkdtm: No crash points registered, enable through debugfs
[    4.739501] system_heap: orders[0] = 6
[    4.739511] system_heap: orders[1] = 4
[    4.739517] system_heap: orders[2] = 0
[    4.741240] ahci fc800000.sata: supply ahci not found, using dummy regulator
[    4.741377] ahci fc800000.sata: supply phy not found, using dummy regulator
[    4.741495] ahci fc800000.sata: supply target not found, using dummy regulator
[    4.741641] ahci fc800000.sata: forcing port_map 0x0 -> 0x1
[    4.741685] ahci fc800000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode
[    4.741697] ahci fc800000.sata: flags: ncq sntf pm led clo only pmp fbs pio slum part ccc apst
[    4.741713] ahci fc800000.sata: port 0 is not capable of FBS
[    4.742599] scsi host0: ahci
[    4.742865] ata1: SATA max UDMA/133 mmio [mem 0xfc800000-0xfc800fff] port 0x100 irq 19
[    4.745521] rockchip-spi fe620000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[    4.746963] rockchip-spi fe630000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[    4.748168] rockchip-spi fe640000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[    4.749748] register spi return v = :0
[    4.750990] CAN device driver interface
[    4.753072] rk_gmac-dwmac fe010000.ethernet: IRQ eth_lpi not found
[    4.753284] rk_gmac-dwmac fe010000.ethernet: supply phy not found, using dummy regulator
[    4.753470] rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).
[    4.753483] rk_gmac-dwmac fe010000.ethernet: TX delay(0x38).
[    4.753493] rk_gmac-dwmac fe010000.ethernet: RX delay(0x34).
[    4.753506] rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).
[    4.753546] rk_gmac-dwmac fe010000.ethernet: clock input from PHY
[    4.753795] rk_gmac-dwmac fe010000.ethernet: init for RGMII
[    4.754025] rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[    4.754038] rk_gmac-dwmac fe010000.ethernet:     DWMAC4/5
[    4.754048] rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported
[    4.754055] rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported
[    4.754061] rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported
[    4.754068] rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported
[    4.754124] rk_gmac-dwmac fe010000.ethernet: TSO supported
[    4.754133] rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[    4.754140] rk_gmac-dwmac fe010000.ethernet: TSO feature enabled
[    4.754147] rk_gmac-dwmac fe010000.ethernet: Using 32 bits DMA width
[    4.889549] PPP generic driver version 2.4.2
[    4.889757] PPP BSD Compression module registered
[    4.889769] PPP Deflate Compression module registered
[    4.889791] PPP MPPE Compression module registered
[    4.889799] NET: Registered protocol family 24
[    4.889965] usbcore: registered new interface driver rtl8150
[    4.890054] usbcore: registered new interface driver r8152
[    4.890152] usbcore: registered new interface driver asix
[    4.890209] usbcore: registered new interface driver ax88179_178a
[    4.890248] usbcore: registered new interface driver cdc_ether
[    4.890288] usbcore: registered new interface driver net1080
[    4.890325] usbcore: registered new interface driver cdc_subset
[    4.890366] usbcore: registered new interface driver zaurus
[    4.890415] usbcore: registered new interface driver cdc_ncm
[    4.890453] usbcore: registered new interface driver qmi_wwan_q
[    4.898987] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    4.899024] ehci-pci: EHCI PCI platform driver
[    4.899122] ehci-platform: EHCI generic platform driver
[    4.899540] phy phy-fe8b0000.usb2-phy.3: illegal mode
[    4.901579] ehci-platform fd800000.usb: EHCI Host Controller
[    4.901766] ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1
[    4.901905] ehci-platform fd800000.usb: irq 20, io mem 0xfd800000
[    4.913437] ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00
[    4.913629] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    4.913641] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.913648] usb usb1: Product: EHCI Host Controller
[    4.913655] usb usb1: Manufacturer: Linux 5.10.198 ehci_hcd
[    4.913662] usb usb1: SerialNumber: fd800000.usb
[    4.914067] hub 1-0:1.0: USB hub found
[    4.914104] hub 1-0:1.0: 1 port detected
[    4.916794] ehci-platform fd880000.usb: EHCI Host Controller
[    4.916956] ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2
[    4.917067] ehci-platform fd880000.usb: irq 22, io mem 0xfd880000
[    4.930114] ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00
[    4.930284] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    4.930295] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.930304] usb usb2: Product: EHCI Host Controller
[    4.930311] usb usb2: Manufacturer: Linux 5.10.198 ehci_hcd
[    4.930317] usb usb2: SerialNumber: fd880000.usb
[    4.930708] hub 2-0:1.0: USB hub found
[    4.930748] hub 2-0:1.0: 1 port detected
[    4.931403] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    4.931425] ohci-platform: OHCI generic platform driver
[    4.931719] phy phy-fe8b0000.usb2-phy.3: illegal mode
[    4.931731] ohci-platform fd840000.usb: Generic Platform OHCI controller
[    4.931885] ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3
[    4.932002] ohci-platform fd840000.usb: irq 21, io mem 0xfd840000
[    4.990906] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    4.990918] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.990926] usb usb3: Product: Generic Platform OHCI controller
[    4.990933] usb usb3: Manufacturer: Linux 5.10.198 ohci_hcd
[    4.990940] usb usb3: SerialNumber: fd840000.usb
[    4.991348] hub 3-0:1.0: USB hub found
[    4.991383] hub 3-0:1.0: 1 port detected
[    4.991872] ohci-platform fd8c0000.usb: Generic Platform OHCI controller
[    4.992021] ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4
[    4.992120] ohci-platform fd8c0000.usb: irq 23, io mem 0xfd8c0000
[    5.050900] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    5.050912] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.050919] usb usb4: Product: Generic Platform OHCI controller
[    5.050926] usb usb4: Manufacturer: Linux 5.10.198 ohci_hcd
[    5.050933] usb usb4: SerialNumber: fd8c0000.usb
[    5.051316] hub 4-0:1.0: USB hub found
[    5.051358] hub 4-0:1.0: 1 port detected
[    5.052569] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[    5.052740] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
[    5.052870] xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000002022010010
[    5.052932] xhci-hcd xhci-hcd.4.auto: irq 87, io mem 0xfcc00000
[    5.053039] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[    5.053194] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
[    5.053212] xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
[    5.053333] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    5.053344] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.053351] usb usb5: Product: xHCI Host Controller
[    5.053359] usb usb5: Manufacturer: Linux 5.10.198 xhci-hcd
[    5.053365] usb usb5: SerialNumber: xhci-hcd.4.auto
[    5.053781] hub 5-0:1.0: USB hub found
[    5.053816] hub 5-0:1.0: 1 port detected
[    5.054147] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[    5.054239] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10
[    5.054249] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.054256] usb usb6: Product: xHCI Host Controller
[    5.054263] usb usb6: Manufacturer: Linux 5.10.198 xhci-hcd
[    5.054270] usb usb6: SerialNumber: xhci-hcd.4.auto
[    5.054640] hub 6-0:1.0: USB hub found
[    5.054672] hub 6-0:1.0: 1 port detected
[    5.055147] xhci-hcd xhci-hcd.5.auto: xHCI Host Controller
[    5.055302] xhci-hcd xhci-hcd.5.auto: new USB bus registered, assigned bus number 7
[    5.055426] xhci-hcd xhci-hcd.5.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000800002010010
[    5.055476] xhci-hcd xhci-hcd.5.auto: irq 88, io mem 0xfd000000
[    5.055599] xhci-hcd xhci-hcd.5.auto: xHCI Host Controller
[    5.055728] xhci-hcd xhci-hcd.5.auto: new USB bus registered, assigned bus number 8
[    5.055747] xhci-hcd xhci-hcd.5.auto: Host supports USB 3.0 SuperSpeed
[    5.055869] usb usb7: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    5.055880] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.055887] usb usb7: Product: xHCI Host Controller
[    5.055894] usb usb7: Manufacturer: Linux 5.10.198 xhci-hcd
[    5.055900] usb usb7: SerialNumber: xhci-hcd.5.auto
[    5.056256] hub 7-0:1.0: USB hub found
[    5.056290] hub 7-0:1.0: 1 port detected
[    5.056468] ata1: SATA link down (SStatus 0 SControl 300)
[    5.056615] usb usb8: We don't know the algorithms for LPM for this host, disabling LPM.
[    5.056714] usb usb8: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10
[    5.056726] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.056733] usb usb8: Product: xHCI Host Controller
[    5.056740] usb usb8: Manufacturer: Linux 5.10.198 xhci-hcd
[    5.056779] usb usb8: SerialNumber: xhci-hcd.5.auto
mount: /oem: can't find PARTLABEL=oem.
[    5.057157] hub 8-0:1.0: USB hub found
mount: /userdata: can't find PARTLABEL=userdata.
[    5.057190] hub 8-0:1.0: 1 port detected
[    5.057620] usbcore: registered new interface driver cdc_acm
[    5.057630] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[    5.057697] usbcore: registered new interface driver usblp
[    5.057755] usbcore: registered new interface driver cdc_wdm
[    5.057986] usbcore: registered new interface driver uas
[    5.058081] usbcore: registered new interface driver usb-storage
[    5.058174] usbcore: registered new interface driver usbserial_generic
[    5.058200] usbserial: USB Serial support registered for generic
[    5.058257] usbcore: registered new interface driver ch341
[    5.058282] usbserial: USB Serial support registered for ch341-uart
[    5.058330] usbcore: registered new interface driver cp210x
Start mounting all internal partitions in /etc/fstab
[    5.058351] usbserial: USB Serial support registered for cp210x
Log saved to /var/log/mount-all.log
[    5.058416] usbcore: registered new interface driver ftdi_sio
Note: Will skip fsck, remove /.skip_fsck to enable
[    5.058442] usbserial: USB Serial support registered for FTDI USB Serial Device
[    5.058581] usbcore: registered new interface driver keyspan
[    5.058602] usbserial: USB Serial support registered for Keyspan - (without firmware)
[    5.058622] usbserial: USB Serial support registered for Keyspan 1 port adapter
[0]: Handling /dev/mmcblk0p6 / ext4 rw,noauto 1
[    5.058642] usbserial: USB Serial support registered for Keyspan 2 port adapter
[    5.058661] usbserial: USB Serial support registered for Keyspan 4 port adapter
[    5.058710] usbcore: registered new interface driver option
[    5.058732] usbserial: USB Serial support registered for GSM modem (1-port)
[    5.058915] usbcore: registered new interface driver oti6858
[    5.058937] usbserial: USB Serial support registered for oti6858
[    5.058988] usbcore: registered new interface driver pl2303
[0]: Already resized /dev/mmcblk0p6(ext4)
[    5.059009] usbserial: USB Serial support registered for pl2303
[    5.059066] usbcore: registered new interface driver qcserial
[    5.059089] usbserial: USB Serial support registered for Qualcomm USB modem
[    5.059152] usbcore: registered new interface driver sierra
Starting syslogd: [    5.059175] usbserial: USB Serial support registered for Sierra USB modem
OK
[    5.060661] usbcore: registered new interface driver xpad
Starting klogd: [    5.060747] <<-GTP-INFO->> GTP driver installing...
OK
[    5.061004] usbcore: registered new interface driver usbtouchscreen
Running sysctl: [    5.061670] i2c /dev entries driver
[    5.064872] rk808 0-0020: chip id: 0x8090
OK
[    5.064924] rk808 0-0020: No cache defaults, reading back from HW
[    5.088612] rk808 0-0020: source: on=0x40, off=0x00
Populating /dev using udev: [    5.088630] rk808 0-0020: support dcdc3 fb mode:-22, 1
[    5.088639] rk808 0-0020: support pmic reset mode:0,0
[    5.094310] rk808-regulator rk808-regulator: there is no dvs0 gpio
[    5.094340] rk808-regulator rk808-regulator: there is no dvs1 gpio
[    5.094765] vdd_logic: supplied by vcc3v3_sys
[    5.095742] vdd_gpu: supplied by vcc3v3_sys
[    5.096343] vcc_ddr: supplied by vcc3v3_sys
[    5.096954] vdd_npu: supplied by vcc3v3_sys
[    5.097892] vcc_1v8: supplied by vcc3v3_sys
[    5.098459] vdda0v9_image: supplied by vcc3v3_sys
[    5.099879] vdda_0v9: supplied by vcc3v3_sys
[    5.100967] vdda0v9_pmu: supplied by vcc3v3_sys
[    5.102042] vccio_acodec: supplied by vcc3v3_sys
[    5.103470] vccio_sd: supplied by vcc3v3_sys
[    5.104562] vcc3v3_pmu: supplied by vcc3v3_sys
[    5.105979] vcca_1v8: supplied by vcc3v3_sys
[    5.107064] vcca1v8_pmu: supplied by vcc3v3_sys
[    5.108154] vcca1v8_image: supplied by vcc3v3_sys
[    5.109568] vcc_3v3: supplied by vcc3v3_sys
[    5.110491] vcc3v3_sd: supplied by vcc3v3_sys
[    5.111075] rk817-charger: Failed to locate of_node [id: -1]
[    5.111233] rk817-charger rk817-charger: Failed to find matching dt id
[    5.114423] input: rk805 pwrkey as /devices/platform/fdd40000.i2c/i2c-0/0-0020/rk805-pwrkey/input/input1
[    5.116952] fan53555-regulator 0-001c: FAN53555 Option[12] Rev[15] Detected!
[    5.118895] vdd_cpu: supplied by vcc5v0_sys
[    5.229364] rtc-hym8563 4-0051: could not init device, -6
[    5.230950] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: enter mipi csi2 hw probe!
[    5.231122] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: probe success, v4l2_dev:mipi-csi2-hw!
[    5.232175] rkisp_hw fdff0000.rkisp: Adding to iommu group 7
[    5.232388] rkisp_hw fdff0000.rkisp: is_thunderboot: 0
[    5.232419] rkisp_hw fdff0000.rkisp: can't request region for resource [mem 0xfdff0000-0xfdffffff]
[    5.232447] rkisp_hw fdff0000.rkisp: max input:0x0@0fps
[    5.232598] rkisp_hw fdff0000.rkisp: no find phandle sram
[    5.233069] rkisp rkisp-vir0: rkisp driver version: v02.04.00
[    5.233215] rkisp rkisp-vir0: No memory-region-thunderboot specified
[    5.233467] rkisp rkisp-vir0: Entity type for entity rkisp-isp-subdev was not initialized!
[    5.233488] rkisp rkisp-vir0: Entity type for entity rkisp-csi-subdev was not initialized!
[    5.236029] usbcore: registered new interface driver uvcvideo
[    5.236048] USB Video Class driver (1.1.1)
[    5.237851] device-mapper: ioctl: 4.44.0-ioctl (2021-02-01) initialised: [email protected]
[    5.238284] Bluetooth: HCI UART driver ver 2.3
[    5.238298] Bluetooth: HCI UART protocol H4 registered
[    5.238305] Bluetooth: HCI UART protocol ATH3K registered
[    5.238384] usbcore: registered new interface driver bfusb
[    5.238441] usbcore: registered new interface driver btusb
[    5.239386] cpu cpu0: bin=0
[    5.239450] cpu cpu0: leakage=34
[    5.239492] cpu cpu0: pvtm = 91570, from nvmem
[    5.239508] cpu cpu0: pvtm-volt-sel=3
[    5.239566] cpu cpu0: soc version=0, speed=3
[    5.241163] cpu cpu0: avs=0
[    5.241431] cpu cpu0: EM: created perf domain
[    5.241492] cpu cpu0: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[    5.247465] sdhci: Secure Digital Host Controller Interface driver
[    5.247486] sdhci: Copyright(c) Pierre Ossman
[    5.247494] Synopsys Designware Multimedia Card Interface Driver
[    5.248167] sdhci-pltfm: SDHCI platform and OF driver helper
[    5.248735] dwmmc_rockchip fe2b0000.dwmmc: No normal pinctrl state
[    5.248754] dwmmc_rockchip fe2b0000.dwmmc: No idle pinctrl state
[    5.248891] dwmmc_rockchip fe000000.dwmmc: No normal pinctrl state
[    5.248905] dwmmc_rockchip fe000000.dwmmc: No idle pinctrl state
[    5.248909] dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.
[    5.248937] dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.
done
[    5.248955] dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a
Starting irqbalance: [    5.249016] dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 53,32 bit host data width,256 deep fifo
[    5.249023] dwmmc_rockchip fe000000.dwmmc: IDMAC supports 32-bit address mode.
[    5.249043] dwmmc_rockchip fe000000.dwmmc: Using internal DMA controller.
OK
[    5.249060] dwmmc_rockchip fe000000.dwmmc: Version ID is 270a
[    5.249103] dwmmc_rockchip fe000000.dwmmc: DW MMC controller at irq 52,32 bit host data width,256 deep fifo
[    5.249493] dwmmc_rockchip fe000000.dwmmc: allocated mmc-pwrseq
[    5.249512] mmc_host mmc3: card is non-removable.
[    5.249795] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
[    5.249900] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
Initializing random number generator: OK
[    5.250993] cryptodev: driver 1.12 loaded.
Saving random seed: [    5.251065] hid: raw HID events driver (C) Jiri Kosina
OK
[    5.251559] usbcore: registered new interface driver usbhid
[    5.251571] usbhid: USB HID core driver
[    5.252789] rockchip,bus bus-npu: bin=0
[    5.252808] rockchip,bus bus-npu: Failed to get leakage
[    5.252867] rockchip,bus bus-npu: pvtm = 91570, from nvmem
Starting system message bus: [    5.252882] rockchip,bus bus-npu: pvtm-volt-sel=2
[    5.253163] rockchip,bus bus-npu: avs=0
[    5.258251] rp_power prepare build 9 gpio
[    5.258411] rp_power request pwr_5v_3v3
[    5.258440] success request gpio75 out
[    5.258460] rp_power request led
done
[    5.258475] success request gpio114 flash
[    5.258491] rp_power request usb_pwr
[    5.258506] success request gpio6 out
Starting iptables: [    5.258526] rp_power request otg_pwr
[    5.258539] success request gpio5 out
[    5.258556] rp_power request usb_rst
[    5.258568] success request gpio8 out
OK
[    5.258587] rp_power request spk_en
[    5.258603] success request gpio148 out
[    5.258638] rp_power request spk_mute
[    5.258686] success request gpio0 out
[    5.258709] rp_power request usb_mode
[    5.258723] success request gpio18 out
Starting bluetoothd: [    5.258739] rp_power request Equipment_EN
OK
[    5.258752] success request gpio97 out
[    5.258886] input: gpio_event as /devices/platform/rp_power/input/input2
[    5.259287] input: gpio_event as /devices/platform/rp_power/input/input3
[    5.259495] rpdzkj wake lock
Starting network: [    5.260429] rp_gpio prepare build 11 gpio
[    5.260543] rp_gpio request gpio1d0
[    5.260559] success request gpio56 out
[    5.260573] rp_gpio request gpio1d1
[    5.260582] success request gpio57 out
[    5.260594] rp_gpio request gpio1d2
[    5.260602] success request gpio58 out
[    5.260613] rp_gpio request gpio1d3
[    5.260621] success request gpio59 out
[    5.260632] rp_gpio request gpio1d4
[    5.260639] success request gpio60 out
[    5.260709] rp_gpio request gpio4a0
[    5.260720] success request gpio128 out
[    5.260731] rp_gpio request gpio4a1
[    5.260739] success request gpio129 out
ln: failed to create symbolic link '': No such file or directory
[    5.260751] rp_gpio request gpio4a2
Failed to detect Wi-Fi/BT chip!
[    5.260759] success request gpio130 out
[    5.260781] rp_gpio request gpio4a3
[    5.260789] success request gpio131 out
[    5.260845] rp_gpio request gpio1a4
[    5.260855] success request gpio36 out
[    5.260868] rp_gpio request gpio3c1
[    5.260877] success request gpio113 out
[    5.261214] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.1
[    5.261401] sprd_pci_ep_dev_init Quectel_Linux&Android_SPRD_PCIE_Driver_V1.1.8
[    5.261903] sipc: name=sprd,sipc
[    5.261909] sipc: type=1
OK
[    5.261913] sipc: dst =1
[    5.261917] sipc: ep_dev=0
[    5.261921] sipc: smem_type = 0
[    5.262412] sipc: smem_base=0x3000000, dst_smem_base=0x3000000, smem_size=0x300000
Starting dhcpcd...
[    5.262418] sipc: high_offset=0x0n
[    5.262421] smsg_ipc_create: sprd,sipc
[    5.262716] mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
dhcpcd-9.4.1 starting
[    5.262760] smem_init: pool addr = 0x3000000, size = 0x300000 added.
dev: loaded udev
[    5.262771] smsg_ipc_smem_init: ring_base = 0x3000000, ring_size = 0x1000
DUID 00:01:00:01:21:16:fa:3c:d2:96:64:fb:eb:d1
[    5.263525] spipe_probe!
[    5.263537] spipe: after parse device tree, name=spipe_nr, dst=1, channel=4, ringnr=15,  rxbuf_size=0x1000, txbuf_size=0x1000
[    5.263547] sbuf_host_init: channel 1-4, offset = 0x0!
[    5.263810] smsg_ch_open: channel 1-4 send open msg!
[    5.264943] spipe_probe!
[    5.264952] spipe: after parse device tree, name=sdiag_nr, dst=1, channel=21, ringnr=1,  rxbuf_size=0x8000, txbuf_size=0x40000
[    5.264962] sbuf_host_init: channel 1-21, offset = 0x0!
[    5.265116] smsg_ch_open: channel 1-21 send open msg!
[    5.265240] spipe_probe!
[    5.265248] spipe: after parse device tree, name=stty_nr, dst=1, channel=6, ringnr=32,  rxbuf_size=0x800, txbuf_size=0x800
[    5.265256] sbuf_host_init: channel 1-6, offset = 0x0!
[    5.265469] smsg_ch_open: channel 1-6 send open msg!
[    5.267633] spipe_probe!
[    5.267645] spipe: after parse device tree, name=snv_nr, dst=1, channel=40, ringnr=1,  rxbuf_size=0x1000, txbuf_size=0x40400
[    5.267655] sbuf_host_init: channel 1-40, offset = 0x0!
[    5.267886] smsg_ch_open: channel 1-40 send open msg!
[    5.268391] spool: name=slog_nr, dst=1, channel=5, pre_cfg=0
[    5.268400] spool: tx_num=0, tx_size=0, rx_num=32, rx_size=65536
[    5.268614] smsg_ch_open: channel 1-5 send open msg!
[    5.269101] usbcore: registered new interface driver snd-usb-audio
no interfaces have a carrier
[    5.270937] rk817-codec rk817-codec: DMA mask not set
forked to background, child pid 469
[    5.275394] rk-multicodecs rk809-sound: Failed to get ADC channel
Starting ntpd: [    5.275512] rk-multicodecs rk809-sound: ASoC: Property 'rockchip,audio-routing' does not exist or its length is not even
[    5.276703] rk817-codec rk817-codec: rk817_probe: chip_name:0x80, chip_ver:0x95
[    5.279401] mmc0: SDHCI controller on fe310000.sdhci [fe310000.sdhci] using ADMA
[    5.281398] rk-multicodecs rk809-sound: Don't need to map headset detect gpio to irq
[    5.283687] IPVS: Registered protocols (TCP, UDP)
[    5.283734] IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
OK
[    5.283827] IPVS: ipvs loaded.
[    5.283836] IPVS: [rr] scheduler registered.
[    5.284059] Initializing XFRM netlink socket
starting weston... done.
[    5.284355] NET: Registered protocol family 10
[    5.285015] Segment Routing with IPv6
[    5.285083] NET: Registered protocol family 17
[    5.285102] NET: Registered protocol family 15
Starting dropbear sshd: [    5.285148] Bridge firewalling registered
[    5.285155] can: controller area network core
OK
[    5.285185] NET: Registered protocol family 29
[    5.285191] can: raw protocol
[    5.285198] can: broadcast manager protocol
Starting pulseaudio: OK
[    5.285208] can: netlink gateway - max_hops=1
[    5.285536] Bluetooth: RFCOMM socket layer initialized
[    5.285565] Bluetooth: RFCOMM ver 1.11
[    5.285580] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[    5.285596] Bluetooth: HIDP socket layer initialized
Starting dnsmasq: [    5.285959] NET: Registered protocol family 41
[    5.286149] 8021q: 802.1Q VLAN Support v1.8
[    5.286177] [BT_RFKILL]: Enter rfkill_rk_init
[    5.286183] [WLAN_RFKILL]: Enter rfkill_wlan_init
[    5.286929] [WLAN_RFKILL]: Enter rfkill_wlan_probe
[    5.286976] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi_chip_type = ap6398s
OK
[    5.286982] [WLAN_RFKILL]: wlan_platdata_parse_dt: enable wifi power control.
[    5.286988] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi power controled by gpio.
[    5.287016] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 124, flags = 0.
    /bin/list-iodomain.sh version: V1.0.1
[    5.287026] [WLAN_RFKILL]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
[    5.287030] [WLAN_RFKILL]: rfkill_wlan_probe: init gpio
[    5.287037] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 1
[    5.287043] [WLAN_RFKILL]: Exit rfkill_wlan_probe
[    5.287868] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 142.
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
[    5.287895] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 133.
W: [pulseaudio] main.c: Compiled with DEPRECATED libsamplerate support!
[    5.287906] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 134.
    Get CHIP ID: rk356x
[    5.287916] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 137.
    XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.287967] [BT_RFKILL]: Request irq for bt wakeup host
    XXXXXXXXXX      PLEASE CHECK IO-DOMAIN !!!!!!!!!!!!!!!
[    5.288049] [BT_RFKILL]: ** disable irq
    XXXXXXXXXX        请务必检查IO电源域配置  !!!!!!!!!!!!!!!
[    5.288125] [BT_RFKILL]: bt_default device registered.
    XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.288249] Key type dns_resolver registered
    Get IO DOMAIN VALUE:
[    5.289521] gc2093 2-0037: driver version: 00.01.02
    XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.289658] gc2093 2-0037: supply dovdd not found, using dummy regulator
    注意事项：PMUIO1/PMUIO2 固定不可配
[    5.289751] gc2093 2-0037: supply avdd not found, using dummy regulator
    VCCIO2电平由硬件FLASH_VOL_SEL决定:
[    5.289785] gc2093 2-0037: supply dvdd not found, using dummy regulator
    当VCCIo2供电是1.8V,则FLASH_VOL_SEL管脚必须保持为高电平;
[    5.307099] gc2093 2-0037: i2c read failed at addr: 3f0
    当VCCIO2供电是3.3V,则FLASH_VOL_SEL管脚必须保持为低电平;
[    5.307326] gc2093 2-0037: i2c read failed at addr: 3f1
    XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.307333] gc2093 2-0037: Failed to read sensor id, (-6)
    pmuio2_vsel: 3.3V
[    5.308241] Loading compiled-in X.509 certificates
    vccio7_vsel: 3.3V
[    5.310134] Btrfs loaded, crc32c=crc32c-generic
    vccio6_vsel: 1.8V
[    5.310315] pstore: Using crash dump compression: deflate
    vccio5_vsel: 3.3V
[    5.311154] rga: rga2, irq = 31, match scheduler
    vccio4_vsel: 3.3V
[    5.311695] rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
    vccio3_vsel: 3.3V
[    5.311721] rga: rga2 probe successfully
    vccio2_vsel: 3.3V
[    5.311963] rga_iommu: IOMMU binding successfully, default mapping core[0x4]
    vccio1_vsel: 3.3V
[    5.312194] rga: Module initialized. v1.3.1
    XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.320844] mmc0: Host Software Queue enabled
The camera soft link is automatically createdFound device with rkisp_mainpath at /sys/class/video4linux/video0 (video0)
[    5.320885] mmc0: new HS200 MMC card at address 0001
Date: 2017-08-04 CST
[    5.321726] mmcblk0: mmc0:0001 SPeMMC 29.0 GiB
[17:00:08.290] weston 13.0.0
[    5.322074] mmcblk0boot0: mmc0:0001 SPeMMC partition 1 4.00 MiB
               https://wayland.freedesktop.org
[    5.322284] mmcblk0boot1: mmc0:0001 SPeMMC partition 2 4.00 MiB
               Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
[    5.322545] mmcblk0rpmb: mmc0:0001 SPeMMC partition 3 4.00 MiB, chardev (236:0)
               Build: linux5.10-rkr7.1(v1.4.0_20231220)-395-gad3330a33b+
[    5.325653]  mmcblk0: p1 p2 p3 p4 p5 p6
[17:00:08.291] Command line: /usr/bin/weston
[    5.398044] vendor storage:20190527 ret = 0
[17:00:08.291] OS: Linux, 5.10.198, #1 SMP Wed Mar 26 11:47:58 CST 2025, aarch64
[    5.467560] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
[17:00:08.291] Flight recorder: enabled
[    5.482742] mpp_rkvenc fdf40000.rkvenc: Adding to iommu group 5
[17:00:08.291] warning: XDG_RUNTIME_DIR "/var/run" is not configured
[    5.483318] mpp_rkvenc fdf40000.rkvenc: probing start
correctly.  Unix access mode must be 0700 (current mode is 0755),
[    5.484549] mpp_rkvenc fdf40000.rkvenc: bin=0
and must be owned by the user UID 0 (current owner is UID 0).
[    5.484622] mpp_rkvenc fdf40000.rkvenc: Failed to get leakage
Refer to your distribution on how to get it, or
[    5.484732] mpp_rkvenc fdf40000.rkvenc: pvtm = 91570, from nvmem
http://www.freedesktop.org/wiki/Specifications/basedir-spec
[    5.484774] mpp_rkvenc fdf40000.rkvenc: pvtm-volt-sel=2
on how to implement it.
[    5.485274] mpp_rkvenc fdf40000.rkvenc: avs=0
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[    5.485643] mpp_rkvenc fdf40000.rkvenc: failed to find power_model node
[17:00:08.294] Using config file '/etc/xdg/weston/weston.ini'
[    5.485675] mpp_rkvenc fdf40000.rkvenc: failed to initialize power model
[17:00:08.296] Output repaint window is -1 ms maximum.
[    5.485699] mpp_rkvenc fdf40000.rkvenc: failed to get dynamic-coefficient
[17:00:08.299] Loading module '/usr/lib/libweston-13/drm-backend.so'
[    5.487376] mpp_rkvenc fdf40000.rkvenc: probing finish
OK
[    5.488380] mpp_rkvdec2 fdf80200.rkvdec: Adding to iommu group 6
[17:00:08.303] initializing drm backend
[    5.488952] mpp_rkvdec2 fdf80200.rkvdec: rkvdec, probing start
[17:00:08.303] Entering mirror mode.
[    5.489795] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_a is not found!
[17:00:08.303] Trying direct launcher...
[    5.489805] rkvdec2_init:1022: No niu aclk reset resource define
[17:00:08.305] using /dev/dri/card0
[    5.489814] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_h is not found!
[17:00:08.305] DRM: does not support atomic modesetting
[    5.489820] rkvdec2_init:1025: No niu hclk reset resource define
[17:00:08.305] DRM: does not support GBM modifiers
[    5.490021] mpp_rkvdec2 fdf80200.rkvdec: bin=0
[17:00:08.305] DRM: does not support async page flipping
[    5.490148] mpp_rkvdec2 fdf80200.rkvdec: leakage=62
[17:00:08.305] DRM: supports picture aspect ratio
[    5.490162] mpp_rkvdec2 fdf80200.rkvdec: leakage-volt-sel=0
[17:00:08.308] Loading module '/usr/lib/libweston-13/gl-renderer.so'
[    5.490199] mpp_rkvdec2 fdf80200.rkvdec: pvtm = 91570, from nvmem
arm_release_ver: g13p0-01eac0, rk_so_ver: 10
[    5.490211] mpp_rkvdec2 fdf80200.rkvdec: pvtm-volt-sel=1
[17:00:08.343] EGL version: 1.4 Bifrost-"g13p0-01eac0"
[    5.490382] mpp_rkvdec2 fdf80200.rkvdec: avs=0
[17:00:08.343] EGL vendor: ARM
[    5.490509] mpp_rkvdec2 fdf80200.rkvdec: failed to find power_model node
[17:00:08.343] EGL client APIs: OpenGL_ES
[    5.490519] mpp_rkvdec2 fdf80200.rkvdec: failed to initialize power model
[17:00:08.343] EGL features:
[    5.490527] mpp_rkvdec2 fdf80200.rkvdec: failed to get dynamic-coefficient
               EGL Wayland extension: yes
[    5.490652] mpp_rkvdec2 fdf80200.rkvdec: sram_start 0x00000000fdcc0000
               context priority: yes
[    5.490661] mpp_rkvdec2 fdf80200.rkvdec: rcb_iova 0x0000000010000000
               buffer age: no
[    5.490669] mpp_rkvdec2 fdf80200.rkvdec: sram_size 45056
               partial update: yes
[    5.490675] mpp_rkvdec2 fdf80200.rkvdec: rcb_size 65536
               swap buffers with damage: no
[    5.490683] mpp_rkvdec2 fdf80200.rkvdec: min_width 512
               configless context: yes
[    5.490737] mpp_rkvdec2 fdf80200.rkvdec: link mode probe finish
               surfaceless context: yes
[    5.490805] mpp_rkvdec2 fdf80200.rkvdec: probing finish
               dmabuf support: modifiers
[    5.491731] rockchip-iodomain fdc20000.syscon:io-domains: pmuio2(3300000 uV) supplied by vcc3v3_pmu
[17:00:08.358] GL version: OpenGL ES 3.2 v1.g13p0-01eac0.98c5dad4e3309b873e3189000b74ea36
[    5.491838] mali fde60000.gpu: Kernel DDK version g18p0-01eac0
[17:00:08.358] GLSL version: OpenGL ES GLSL ES 3.20
[    5.491880] rockchip-iodomain fdc20000.syscon:io-domains: vccio1(3000000 uV) supplied by vccio_acodec
[17:00:08.358] GL vendor: ARM
[    5.491996] rockchip-iodomain fdc20000.syscon:io-domains: vccio3(3300000 uV) supplied by vccio_sd
[17:00:08.358] GL renderer: Mali-G52
[    5.492122] rockchip-iodomain fdc20000.syscon:io-domains: vccio4(3300000 uV) supplied by vcc_3v3
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
[    5.492215] rockchip-iodomain fdc20000.syscon:io-domains: vccio5(3300000 uV) supplied by vcc_3v3
E: [pulseaudio] module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files
[    5.492322] mali fde60000.gpu: bin=0
E: [pulseaudio] module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.
[    5.492353] rockchip-iodomain fdc20000.syscon:io-domains: vccio6(1800000 uV) supplied by vcc_1v8
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[    5.492374] mali fde60000.gpu: leakage=9
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[    5.492412] mali fde60000.gpu: pvtm = 91570, from nvmem
[17:00:08.560] GL ES 3.2 - renderer features:
[    5.492425] rockchip-iodomain fdc20000.syscon:io-domains: vccio7(3300000 uV) supplied by vcc_3v3
               read-back format: ARGB8888
[    5.492431] mali fde60000.gpu: pvtm-volt-sel=3
               glReadPixels supports y-flip: no
[    5.492443] mali fde60000.gpu: soc version=0, speed=3
               wl_shm 10 bpc formats: yes
[    5.492969] mali fde60000.gpu: avs=0
               wl_shm 16 bpc formats: no
[    5.492979] input: adc-keys as /devices/platform/adc-keys/input/input4
               wl_shm half-float formats: no
[    5.493001] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 143; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
               internal R and RG formats: yes
[    5.493475] mali fde60000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
               OES_EGL_image_external: yes
[    5.493594] mali fde60000.gpu: No priority control manager is configured
               wl_shm sub-image to texture: yes
[    5.493935] mali fde60000.gpu: No memory group manager is configured
[17:00:08.560] Using GL renderer
[    5.495562] mali fde60000.gpu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[17:00:08.581] event4  - adc-keys: is tagged by udev as: Keyboard
[    5.496916] mali fde60000.gpu: Probed as mali0
[17:00:08.581] event4  - adc-keys: device is a keyboard
[    5.506066] rk808-rtc rk808-rtc: registered as rtc0
[17:00:08.583] event1  - rk805 pwrkey: is tagged by udev as: Keyboard
[    5.507906] rk808-rtc rk808-rtc: setting system clock to 2017-08-04T09:00:06 UTC (1501837206)
[17:00:08.584] event1  - rk805 pwrkey: device is a keyboard
[    5.508940] rockchip_headset rk-headset: headset_gpio request fail
[17:00:08.585] event0  - hdmi_cec_key: is tagged by udev as: Keyboard
[    5.508977] rockchip_headset: probe of rk-headset failed with error -16
[17:00:08.586] event0  - hdmi_cec_key: device is a keyboard
[    5.509289] RKNPU fde40000.npu: Adding to iommu group 0
[17:00:08.587] event2  - gpio_event: not tagged as supported input device
[    5.509669] RKNPU fde40000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
[17:00:08.616] event2  - not using input device '/dev/input/event2'
[    5.509883] RKNPU fde40000.npu: can't request region for resource [mem 0xfde40000-0xfde4ffff]
[17:00:08.618] event3  - gpio_event: is tagged by udev as: Keyboard
[    5.510406] [drm] Initialized rknpu 0.9.3 20231121 for fde40000.npu on minor 1
[17:00:08.618] event3  - gpio_event: device is a keyboard
[    5.511121] RKNPU fde40000.npu: bin=0
[17:00:08.664] libinput: configuring device "adc-keys".
[    5.511166] RKNPU fde40000.npu: leakage=5
[17:00:08.664] libinput: configuring device "rk805 pwrkey".
[    5.511199] RKNPU fde40000.npu: pvtm = 91570, from nvmem
[17:00:08.664] libinput: configuring device "hdmi_cec_key".
[    5.511214] RKNPU fde40000.npu: pvtm-volt-sel=3
[17:00:08.664] libinput: configuring device "gpio_event".
[    5.511226] RKNPU fde40000.npu: soc version=0, speed=3
[17:00:08.664] Registered plugin API 'weston_drm_output_api_v1' of size 40
[    5.511695] RKNPU fde40000.npu: avs=0
[17:00:08.665] Color manager: no-op
[    5.511850] RKNPU fde40000.npu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[17:00:08.665] Compositor capabilities:
[    5.512383] RKNPU fde40000.npu: failed to find power_model node
               arbitrary surface rotation: yes
[    5.512393] RKNPU fde40000.npu: RKNPU: failed to initialize power model
               screen capture uses y-flip: yes
[    5.512399] RKNPU fde40000.npu: RKNPU: failed to get dynamic-coefficient
               cursor planes: yes
[    5.513646] cfg80211: Loading compiled-in X.509 certificates for regulatory database
               arbitrary resolutions: no
[    5.515268] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
               view mask clipping: yes
[    5.516085] rockchip-pm rockchip-suspend: not set pwm-regulator-config
               explicit sync: yes
[    5.516555] rockchip-suspend not set sleep-mode-config for mem-lite
               color operations: no
[    5.516561] rockchip-suspend not set wakeup-config for mem-lite
               presentation clock: CLOCK_MONOTONIC, id 1
[    5.516568] rockchip-suspend not set sleep-mode-config for mem-ultra
               presentation clock resolution: 0.000000001 s
[    5.516572] rockchip-suspend not set wakeup-config for mem-ultra
[17:00:08.665] Loading module '/usr/lib/weston/desktop-shell.so'
[    5.517471] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 406; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '11:51:06', on 'Mar 26 2025'.
[17:00:08.705] DRM: head 'HDMI-A-1' found, connector 114 is connected, EDID make 'GSM', model '27MP35', serial ''
[    5.517804] Mali:
               Supported EOTF modes: SDR
[    5.517806] Mali device driver loaded
[17:00:08.706] launching '/usr/libexec/weston-keyboard'
[    5.517874] rkisp rkisp-vir0: clear unready subdev num: 1
[17:00:08.707] launching '/usr/libexec/weston-desktop-shell'
[    5.518068] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[17:00:08.710] HDMI-A-1 using at least 2 buffers
[    5.518078] cfg80211: failed to load regulatory.db
[17:00:08.710] Output 'HDMI-A-1' attempts EOTF mode: SDR
[    5.518284] rkisp-vir0: update sensor failed
[17:00:08.710] Output 'HDMI-A-1' using color profile: stock sRGB color profile
[    5.518588] ALSA device list:
[17:00:08.710] Chosen EGL config details: id:   9 rgba: 8 8 8 0 buf: 24 dep:  0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[    5.518596]   #0: rockchip-rk809
[17:00:08.710] Output HDMI-A-1 (crtc 71) video modes:
[    5.518601]   #1: rockchip,hdmi
               [email protected], preferred, current, 148.5 MHz
[    5.540923] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Opts: (null)
               [email protected] 16:9, 148.5 MHz
[    5.540999] VFS: Mounted root (ext4 filesystem) on device 179:6.
               [email protected] 16:9, 148.4 MHz
[    5.541501] devtmpfs: mounted
               [email protected], 74.2 MHz
[    5.547134] Freeing unused kernel memory: 7552K
               [email protected] 16:9, 74.2 MHz
[    5.573622] Run /sbin/init as init process
               [email protected] 16:9, 74.2 MHz
[    5.654420] EXT4-fs (mmcblk0p6): re-mounted. Opts: (null)
               [email protected] 16:9, 148.5 MHz
[    5.716843] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
               [email protected] 16:9, 74.2 MHz
[    6.083797] udevd[309]: starting version 3.2.10
               [email protected], 119.0 MHz
[    6.101786] udevd[310]: starting eudev-3.2.10
               [email protected], 101.0 MHz
[    6.943542] rk_gmac-dwmac fe010000.ethernet eth0: PHY [stmmac-1:00] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
               [email protected], 108.0 MHz
[    6.945486] dwmac4: Master AXI performs any burst length
               [email protected], 135.0 MHz
[    6.945525] rk_gmac-dwmac fe010000.ethernet eth0: No Safety Features support found
               [email protected], 108.0 MHz
[    6.945553] rk_gmac-dwmac fe010000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
               [email protected], 88.8 MHz
[    6.945904] rk_gmac-dwmac fe010000.ethernet eth0: registered PTP clock
               [email protected], 71.0 MHz
[    6.946371] rk_gmac-dwmac fe010000.ethernet eth0: configuring for phy/rgmii link mode
               [email protected], 108.0 MHz
[    7.579922] file system registered
               [email protected], 74.2 MHz
[    7.644467] read descriptors
               [email protected] 16:9, 74.2 MHz
[    7.644499] read strings
               [email protected] 16:9, 74.2 MHz
               [email protected] 16:9, 74.2 MHz
               [email protected], 78.8 MHz
               [email protected], 65.0 MHz
               [email protected], 49.5 MHz
               [email protected], 40.0 MHz
               [email protected] 16:9, 27.0 MHz
               [email protected] 4:3, 27.0 MHz
               [email protected] 16:9, 27.0 MHz
               [email protected], 27.0 MHz
               [email protected] 16:9, 27.0 MHz
               [email protected], 31.5 MHz
               [email protected] 4:3, 25.2 MHz
               [email protected], 25.2 MHz
               [email protected] 4:3, 25.2 MHz
               [email protected], 28.3 MHz
[17:00:08.711] associating input device event4 with output HDMI-A-1 (none by udev)
[17:00:08.711] associating input device event1 with output HDMI-A-1 (none by udev)
[17:00:08.711] associating input device event0 with output HDMI-A-1 (none by udev)
[17:00:08.711] associating input device event3 with output HDMI-A-1 (none by udev)
[17:00:08.711] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[    8.764248] Freeing drm_logo memory: 736K
could not load cursor 'dnd-move'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-none'
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
alsa-lib main.c:1541:(snd_use_case_mgr_open) error: failed to import hw:1 use case configuration -2
-i use default asound.conf
Starting mobilenet:OK
Starting input-event-daemon: done
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# [   13.060664] rk_gmac-dwmac fe010000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off
[   13.060815] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready

root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ifconfig
dummy0    Link encap:Ethernet  HWaddr E6:B6:8E:4E:EB:EC
          inet addr:169.254.64.73  Bcast:169.254.255.255  Mask:255.255.0.0
          inet6 addr: fe80::c7fe:99d:9c90:2fd6/64 Scope:Link
          UP BROADCAST RUNNING NOARP  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:12 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:1580 (1.5 KiB)

eth0      Link encap:Ethernet  HWaddr 1E:82:F3:E3:43:7F
          inet6 addr: fe80::2250:ee11:8878:9d3e/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:4 errors:0 dropped:0 overruns:0 frame:0
          TX packets:12 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:587 (587.0 B)  TX bytes:1696 (1.6 KiB)
          Interrupt:48

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ifconfig
dummy0    Link encap:Ethernet  HWaddr E6:B6:8E:4E:EB:EC
          inet addr:169.254.64.73  Bcast:169.254.255.255  Mask:255.255.0.0
          inet6 addr: fe80::c7fe:99d:9c90:2fd6/64 Scope:Link
          UP BROADCAST RUNNING NOARP  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:16 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:1876 (1.8 KiB)

eth0      Link encap:Ethernet  HWaddr 1E:82:F3:E3:43:7F
          inet addr:169.254.1.244  Bcast:169.254.255.255  Mask:255.255.0.0
          inet6 addr: fe80::2250:ee11:8878:9d3e/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:4 errors:0 dropped:0 overruns:0 frame:0
          TX packets:23 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:587 (587.0 B)  TX bytes:2814 (2.7 KiB)
          Interrupt:48

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

root@rk3566-buildroot:/# [   36.257108] vcc3v3_lcd0_n: disabling
[   36.257197] vcc3v3_lcd1_n: disabling

root@rk3566-buildroot:/#
root@rk3566-buildroot:/# uname -a
Linux rk3566-buildroot 5.10.198 #1 SMP Wed Mar 26 11:47:58 CST 2025 aarch64 GNU/Linux
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# eth
ether-wake  ethtool
root@rk3566-buildroot:/# ethtool --version
ethtool version 5.12
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ethtool eth0
Settings for eth0:
    Supported ports: [ TP MII ]
    Supported link modes:   10baseT/Half 10baseT/Full
                            100baseT/Half 100baseT/Full
                            1000baseT/Full
    Supported pause frame use: Symmetric Receive-only
    Supports auto-negotiation: Yes
    Supported FEC modes: Not reported
    Advertised link modes:  10baseT/Half 10baseT/Full
                            100baseT/Half 100baseT/Full
                            1000baseT/Full
    Advertised pause frame use: Symmetric Receive-only
    Advertised auto-negotiation: Yes
    Advertised FEC modes: Not reported
    Link partner advertised link modes:  10baseT/Half 10baseT/Full
                                         100baseT/Half 100baseT/Full
                                         1000baseT/Full
    Link partner advertised pause frame use: No
    Link partner advertised auto-negotiation: Yes
    Link partner advertised FEC modes: Not reported
    Speed: 1000Mb/s
    Duplex: Full
    Port: Twisted Pair
    PHYAD: 0
    Transceiver: external
    Auto-negotiation: on
    MDI-X: Unknown
    Supports Wake-on: ug
    Wake-on: d
    Current message level: 0x0000003f (63)
                   drv probe link timer ifdown ifup
    Link detected: yes
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ethtool -s eth0 speed 100 duplex full autoneg on
root@rk3566-buildroot:/# [ 2080.453154] rk_gmac-dwmac fe010000.ethernet eth0: Link is Down
[ 2086.525964] rk_gmac-dwmac fe010000.ethernet eth0: Link is Up - 100Mbps/Full - flow control off

root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ifconfig
dummy0    Link encap:Ethernet  HWaddr E6:B6:8E:4E:EB:EC
          inet addr:169.254.64.73  Bcast:169.254.255.255  Mask:255.255.0.0
          inet6 addr: fe80::c7fe:99d:9c90:2fd6/64 Scope:Link
          UP BROADCAST RUNNING NOARP  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:537 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:49274 (48.1 KiB)

eth0      Link encap:Ethernet  HWaddr 1E:82:F3:E3:43:7F
          inet addr:192.168.3.147  Bcast:192.168.3.255  Mask:255.255.255.0
          inet6 addr: fe80::2250:ee11:8878:9d3e/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:100 errors:0 dropped:0 overruns:0 frame:0
          TX packets:77 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:17381 (16.9 KiB)  TX bytes:15966 (15.5 KiB)
          Interrupt:48

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:2 errors:0 dropped:0 overruns:0 frame:0
          TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:176 (176.0 B)  TX bytes:176 (176.0 B)

root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ping www.baidu.com
PING www.baidu.com (183.2.172.177) 56(84) bytes of data.
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=1 ttl=53 time=7.81 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=2 ttl=53 time=22.6 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=3 ttl=53 time=8.10 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=4 ttl=53 time=8.01 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=5 ttl=53 time=8.38 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=6 ttl=53 time=8.51 ms
64 bytes from 183.2.172.177 (183.2.172.177): icmp_seq=7 ttl=53 time=8.43 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=8 ttl=53 time=8.39 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=9 ttl=53 time=9.04 ms
^C
--- www.baidu.com ping statistics ---
9 packets transmitted, 9 received, 0% packet loss, time 12043ms
rtt min/avg/max/mdev = 7.813/9.915/22.571/4.486 ms
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# iperf3 -s
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
Accepted connection from 192.168.3.48, port 7803
[  5] local 192.168.3.147 port 5201 connected to 192.168.3.48 port 7804
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  11.2 MBytes  93.9 Mbits/sec
[  5]   1.00-2.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   2.00-3.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   3.00-4.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   4.00-5.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   5.00-6.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   6.00-7.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   7.00-8.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   8.00-9.00   sec  11.3 MBytes  94.8 Mbits/sec
[  5]   9.00-10.00  sec  11.3 MBytes  94.9 Mbits/sec
[  5]  10.00-10.02  sec   234 KBytes  93.3 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.02  sec   113 MBytes  94.7 Mbits/sec                  receiver
-----------------------------------------------------------
Server listening on 5201 (test #2)
-----------------------------------------------------------
^Ciperf3: interrupt - the server has terminated
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# ping www.baidu.com
PING www.baidu.com (183.2.172.177) 56(84) bytes of data.
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=1 ttl=53 time=8.23 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=2 ttl=53 time=8.26 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=3 ttl=53 time=8.18 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=4 ttl=53 time=8.30 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=5 ttl=53 time=8.34 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=6 ttl=53 time=8.06 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=7 ttl=53 time=8.12 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=8 ttl=53 time=8.38 ms
64 bytes from 183.2.172.177 (183.2.172.177): icmp_seq=9 ttl=53 time=8.52 ms
64 bytes from 183.2.172.177 (183.2.172.177): icmp_seq=10 ttl=53 time=8.12 ms
64 bytes from 183.2.172.177 (183.2.172.177): icmp_seq=11 ttl=53 time=7.90 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=12 ttl=53 time=8.29 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=13 ttl=53 time=8.53 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=14 ttl=53 time=8.24 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=15 ttl=53 time=8.50 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=16 ttl=53 time=8.25 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=17 ttl=53 time=8.62 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=18 ttl=53 time=8.35 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=19 ttl=53 time=7.53 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=20 ttl=53 time=8.61 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=21 ttl=53 time=8.46 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=22 ttl=53 time=8.46 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=23 ttl=53 time=8.53 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=24 ttl=53 time=8.18 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=25 ttl=53 time=8.15 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=26 ttl=53 time=8.17 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=27 ttl=53 time=8.50 ms
64 bytes from 183.2.172.177 (183.2.172.177): icmp_seq=28 ttl=53 time=8.42 ms
64 bytes from www.baidu.com (183.2.172.177): icmp_seq=29 ttl=53 time=8.40 ms
^C
--- www.baidu.com ping statistics ---
29 packets transmitted, 29 received, 0% packet loss, time 44146ms
rtt min/avg/max/mdev = 7.527/8.295/8.621/0.225 ms
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#

[END] 2025/3/26 15:35:46
